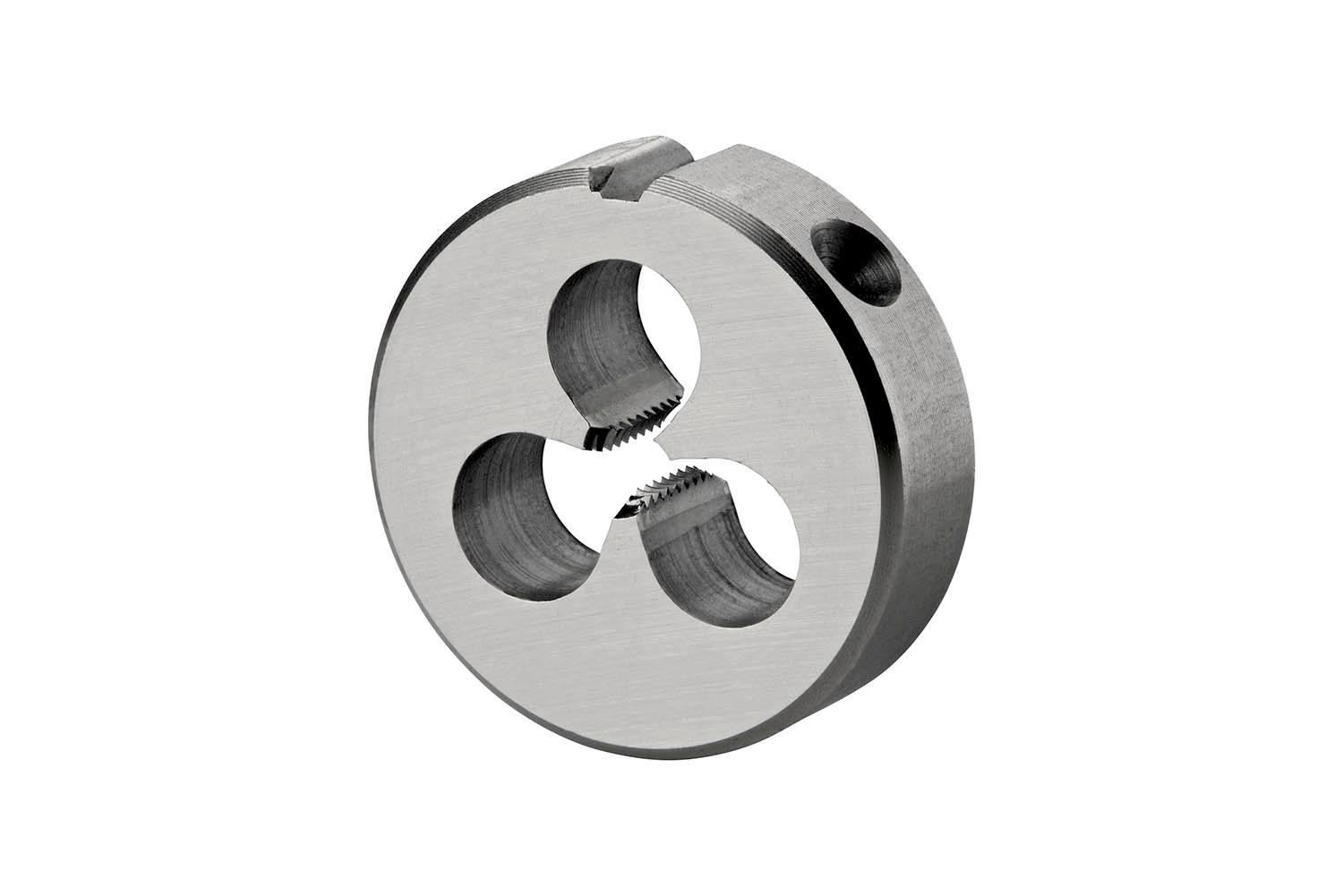

DORMER F100M2.6 Dies & Die Stocks

Product Code: F100M2.6

$88.37$80.34 Ex. GST

Product Code: F100M2.6 SKU F100M2.6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Solid round die with a gun nose, for ISO-Metric thread M2.6 with 0.45 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 16mm outside diameter and 5mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.0858 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760103838
Product number (SAP): 86017774
Ordering code ANSI: F100M2.6
Gross weight – grams: 9
Thread diameter – millimeter (TD): 2.6 mm
Thread pitch – millimeter (TP): 0.45 mm
Body diameter – millimeter (BD): 16 mm
Overall length – millimeter (OAL): 5 mm
ISO: F100M2.6

Brand

DORMER
