DORMER F100M36 Dies & Die Stocks

Product Code: F100M36

$508.72$462.47 Ex. GST

Product Code: F100M36 SKU F100M36 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

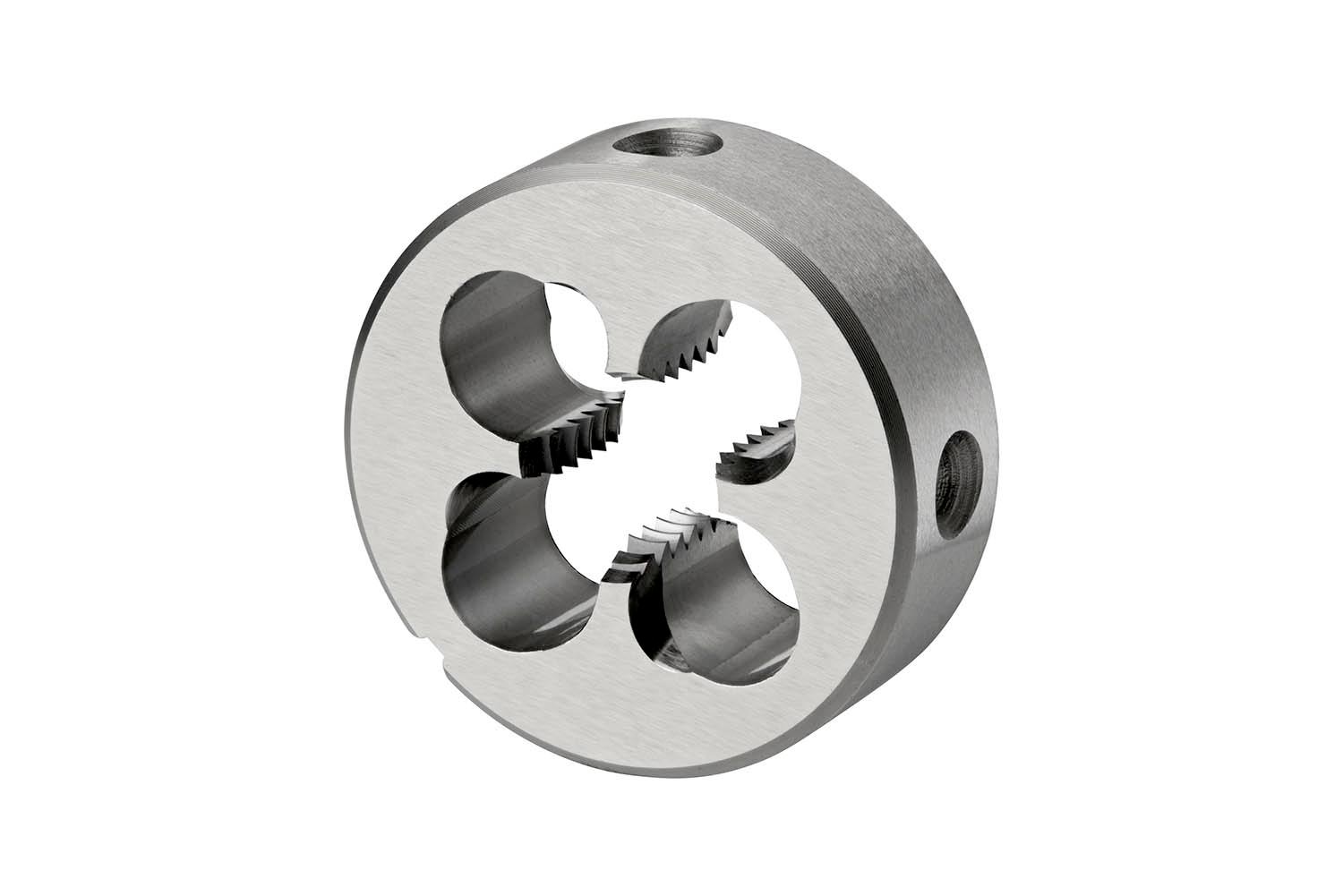

Solid round die with a gun nose, for ISO-Metric thread M36 with 4.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 65mm outside diameter and 25mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.4939 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760103913
Product number (SAP): 86017783
Ordering code ANSI: F100M36
Gross weight – grams: 353.1
Thread diameter – millimeter (TD): 36 mm
Thread pitch – millimeter (TP): 4 mm
Body diameter – millimeter (BD): 65 mm
Overall length – millimeter (OAL): 25 mm
ISO: F100M36

Brand

DORMER
