DORMER F108M6 Dies & Die Stocks

Product Code: F108M6

$107.64$97.85 Ex. GST

Product Code: F108M6 SKU F108M6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

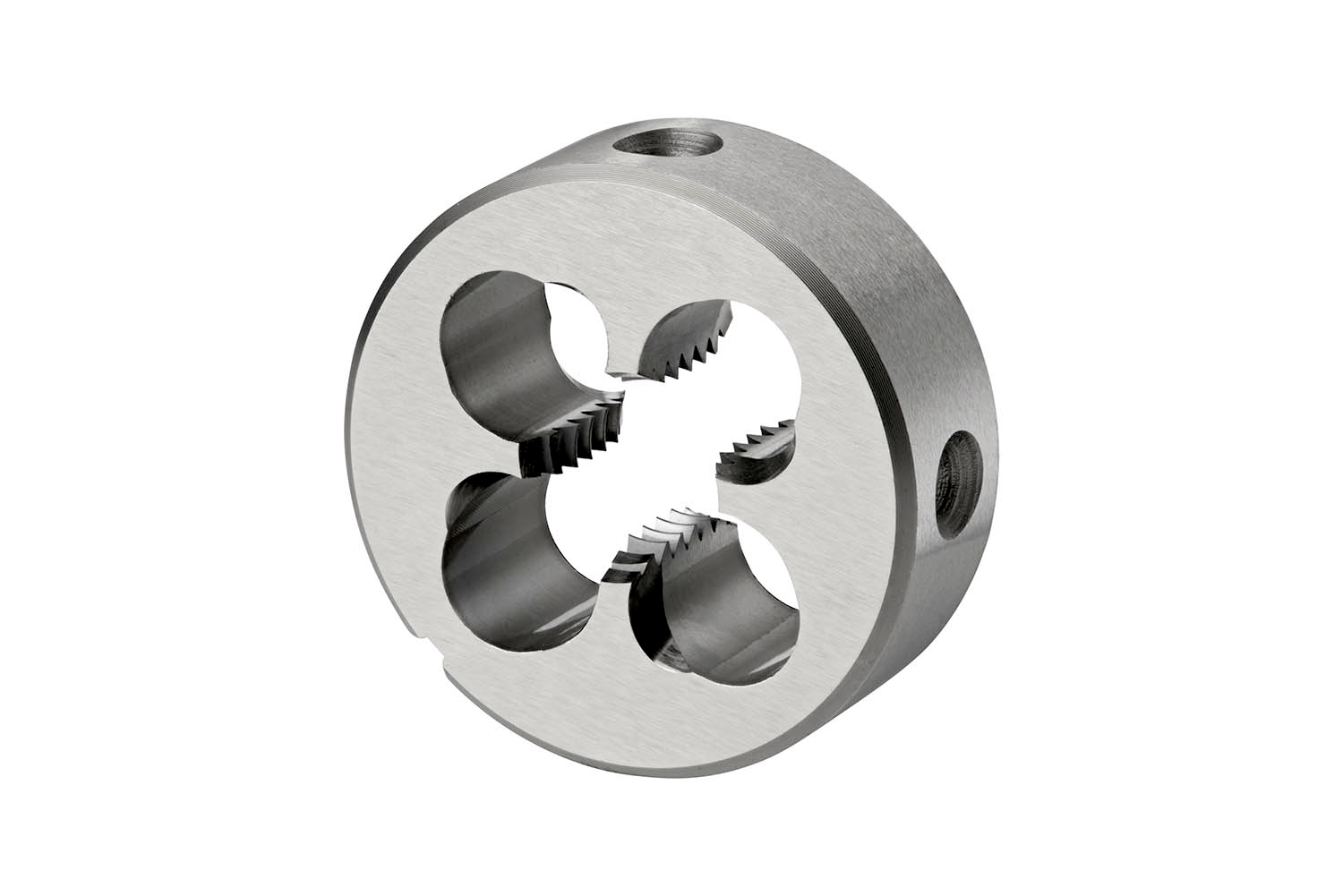

Solid round die with a gun nose, for ISO-Metric thread M6 with 1.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 7mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron

Additional information

Weight 0.1045 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760381311
Product number (SAP): 86017805
Ordering code ANSI: F108M6
Gross weight – grams: 15.1
Thread diameter – millimeter (TD): 6 mm
Thread pitch – millimeter (TP): 1 mm
Body diameter – millimeter (BD): 20 mm
Overall length – millimeter (OAL): 7 mm
ISO: F108M6

Brand

DORMER
