DORMER F110M24X2.0 Dies & Die Stocks

Product Code: F110M24X2.0

$310.44$282.22 Ex. GST

Product Code: F110M24X2.0 SKU F110M24X2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

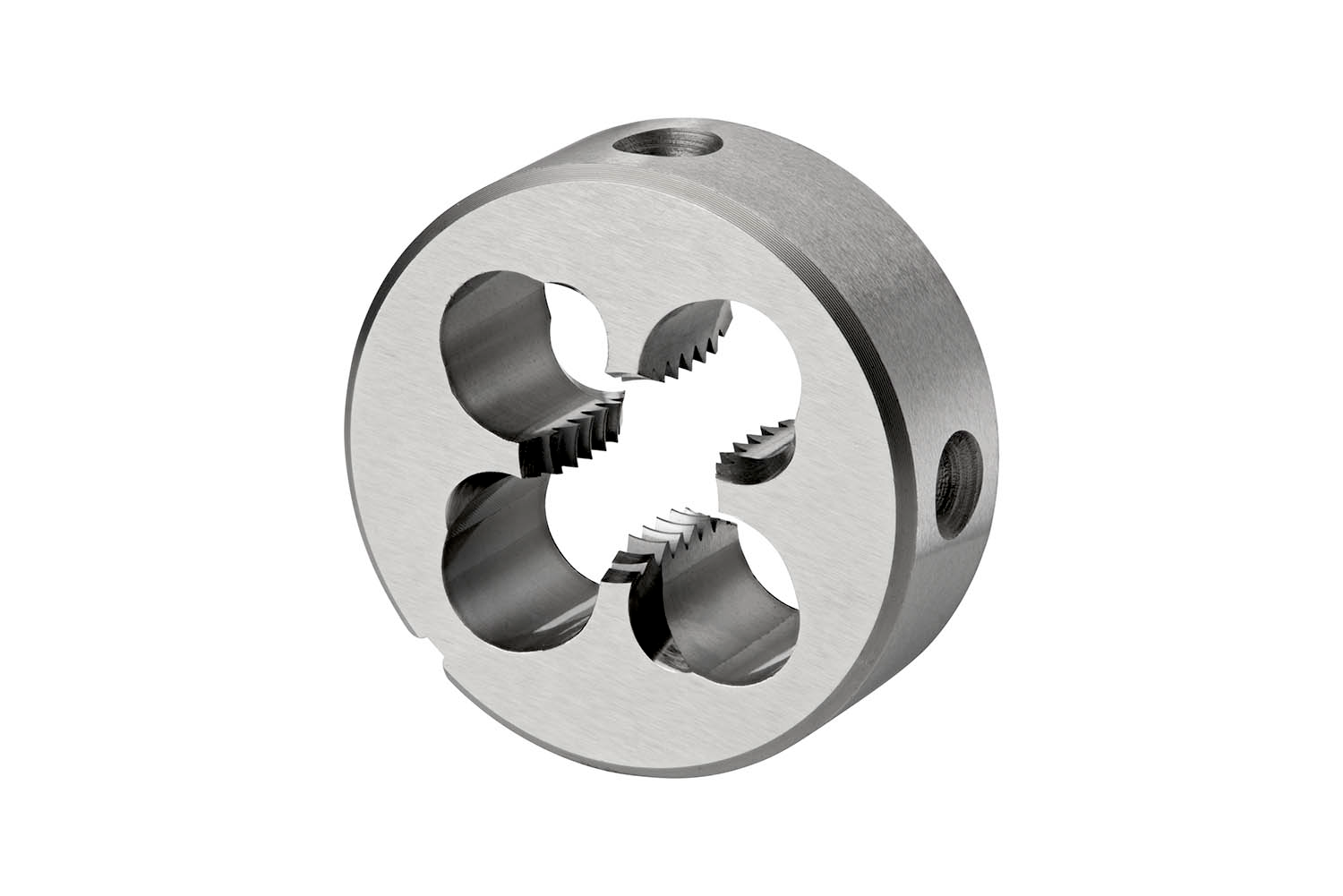

Solid round die with a gun nose, for ISO-Metric Fine thread M24 with 2.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 55mm outside diameter and 16mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.3014 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760104187
Product number (SAP): 86017832
Ordering code ANSI: F110M24X2.0
Gross weight – grams: 194.7
Thread diameter – millimeter (TD): 24 mm
Thread pitch – millimeter (TP): 2 mm
Body diameter – millimeter (BD): 55 mm
Overall length – millimeter (OAL): 16 mm
ISO: F110M24X2.0

Brand

DORMER
