DORMER F110M26X1.5 Dies & Die Stocks

Product Code: F110M26X1.5

$410.15$372.86 Ex. GST

Product Code: F110M26X1.5 SKU F110M26X1.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

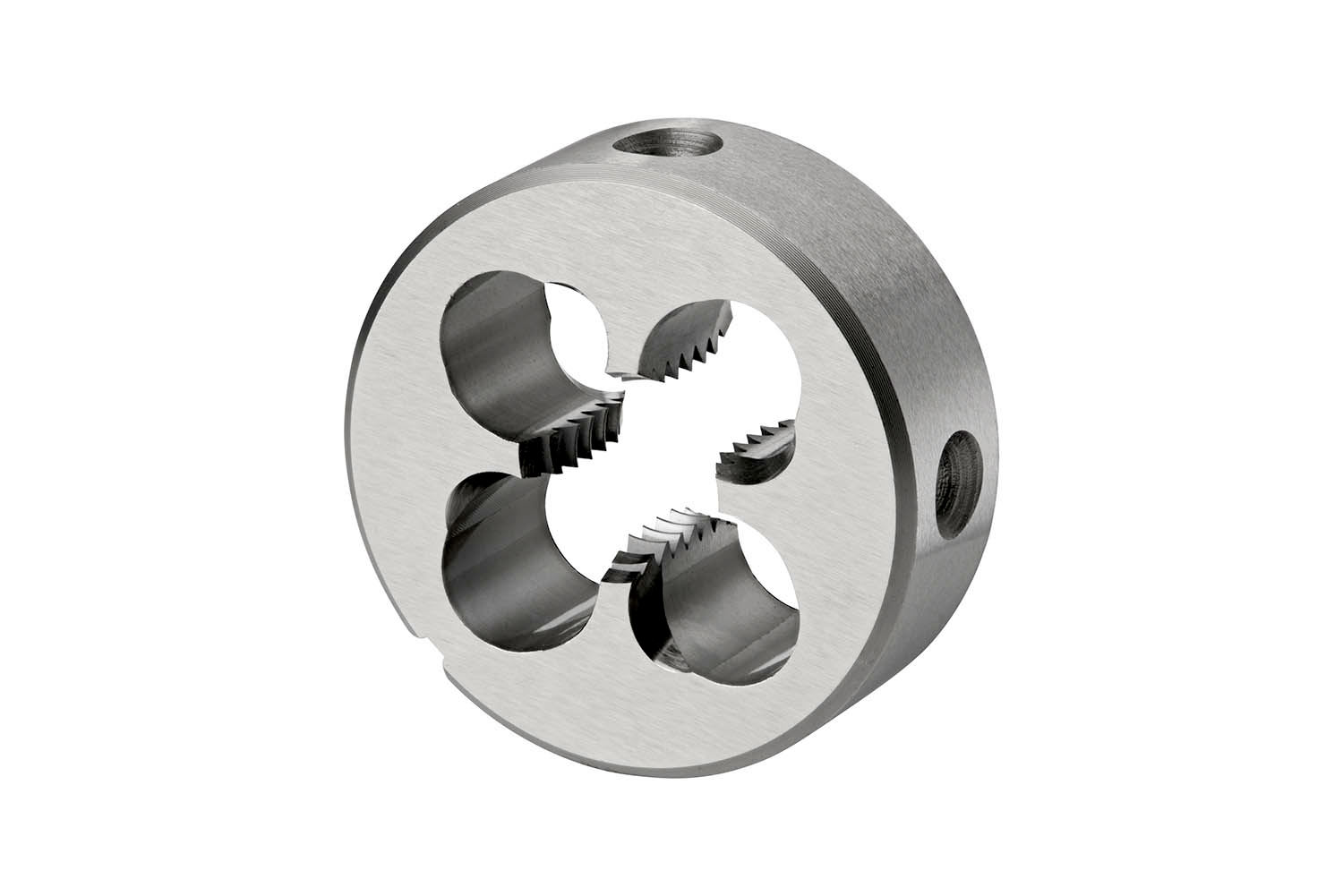

Solid round die with a gun nose, for ISO-Metric Fine thread M26 with 1.50 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 55mm outside diameter and 16mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.3982 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760104200
Product number (SAP): 86017834
Ordering code ANSI: F110M26X1.5
Gross weight – grams: 173.1
Thread diameter – millimeter (TD): 26 mm
Thread pitch – millimeter (TP): 1.5 mm
Body diameter – millimeter (BD): 55 mm
Overall length – millimeter (OAL): 16 mm
ISO: F110M26X1.5

Brand

DORMER
