DORMER F110M32X1.5 Dies & Die Stocks

Product Code: F110M32X1.5

$498.52$453.20 Ex. GST

Product Code: F110M32X1.5 SKU F110M32X1.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

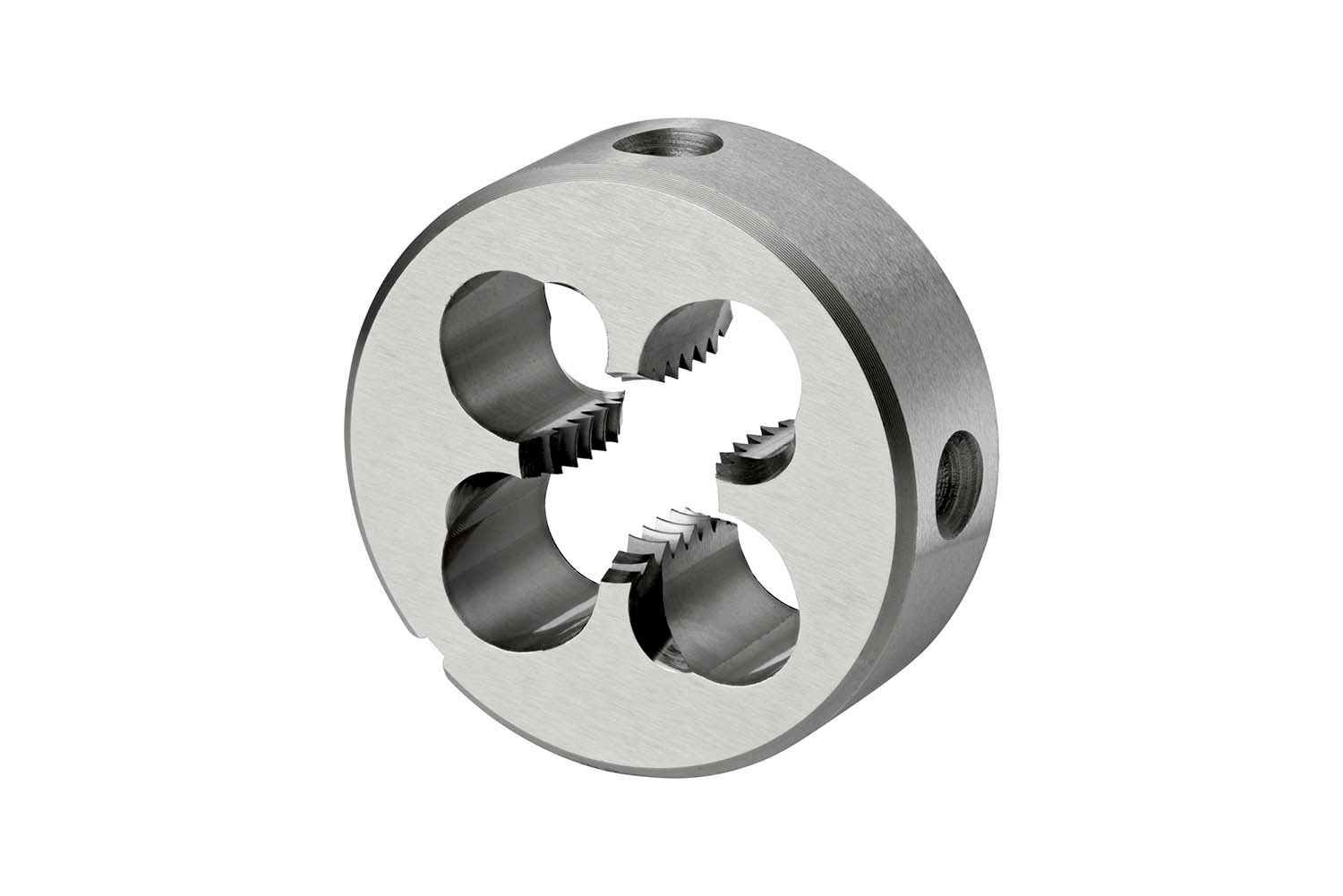

Solid round die with a gun nose, for ISO-Metric Fine thread M32 with 1.50 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 65mm outside diameter and 18mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.4840 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760104255
Product number (SAP): 86017839
Ordering code ANSI: F110M32X1.5
Gross weight – grams: 264.2
Thread diameter – millimeter (TD): 32 mm
Thread pitch – millimeter (TP): 1.5 mm
Body diameter – millimeter (BD): 65 mm
Overall length – millimeter (OAL): 18 mm
ISO: F110M32X1.5

Brand

DORMER
