DORMER F1207/8 Dies & Die Stocks

Product Code: F1207/8

$303.64$276.04 Ex. GST

Product Code: F1207/8 SKU F1207/8 Categories 19 - HSS ISO Dies, CUTTING TOOLS (HSS & Carbide), Threading

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

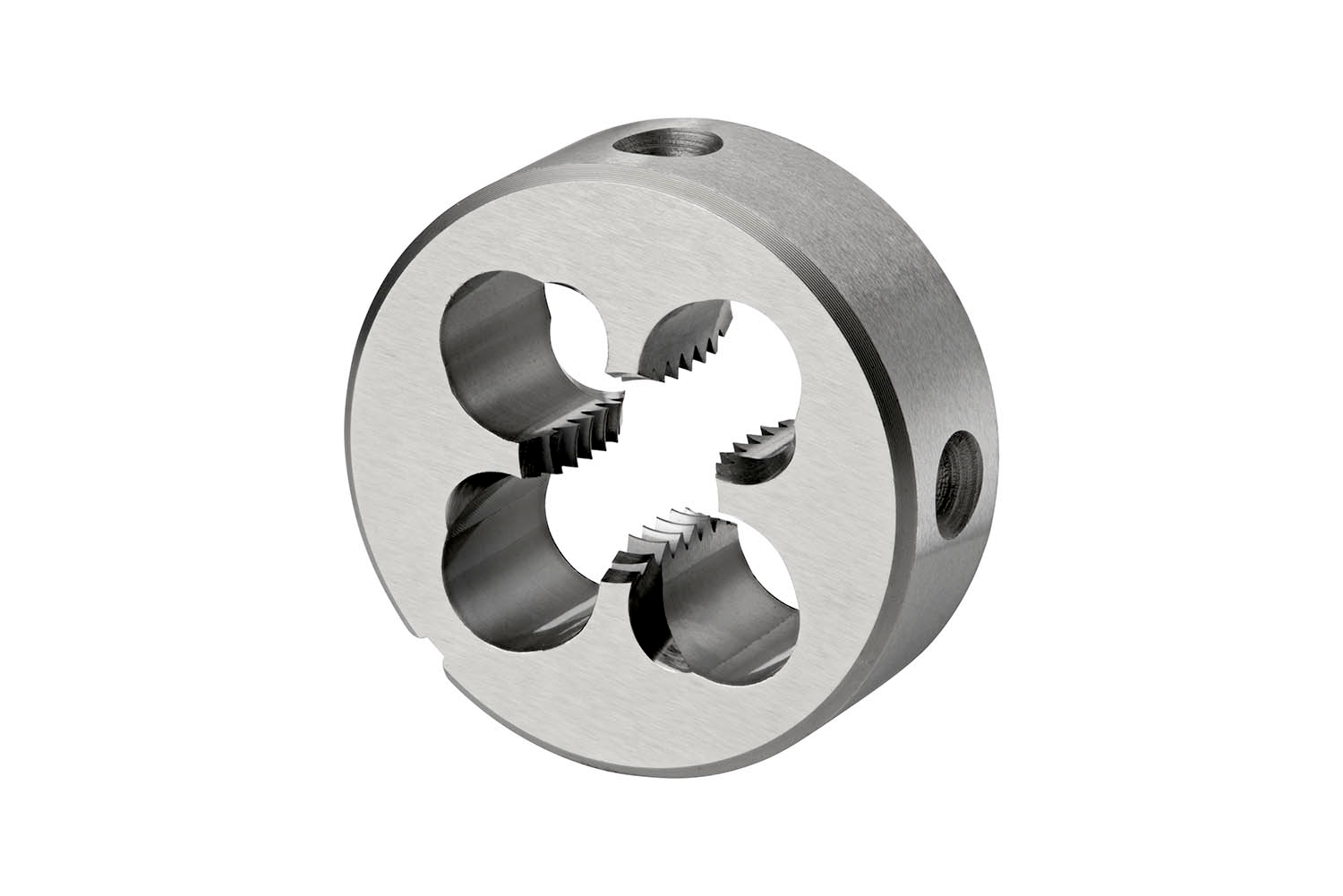

Solid round die with a gun nose, for Unified National Coarse thread UNC 7/8″ with 9 TPI and 2A class of fit, dimensions according to ISO 2568 standard with 55mm outside diameter and 22mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight	0.2948 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760104439 Product number (SAP): 86017859 Ordering code ANSI: F1207/8 Gross weight – grams: 265.5 Thread diameter size (TDZ): 7/8 Threads per inch (TPI): 9 Thread diameter – millimeter (TD): 22.23 mm Body diameter – millimeter (BD): 55 mm Overall length – millimeter (OAL): 22 mm ISO: F1207/8

DORMER F1207/8 Dies & Die Stocks

Need Technical Advice?

Description

Additional information

Brand

DORMER
