DORMER F1403/8 Dies & Die Stocks

Product Code: F1403/8

$124.63$113.30 Ex. GST

Product Code: F1403/8 SKU F1403/8 Categories 19 - HSS ISO Dies, CUTTING TOOLS (HSS & Carbide), Threading

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

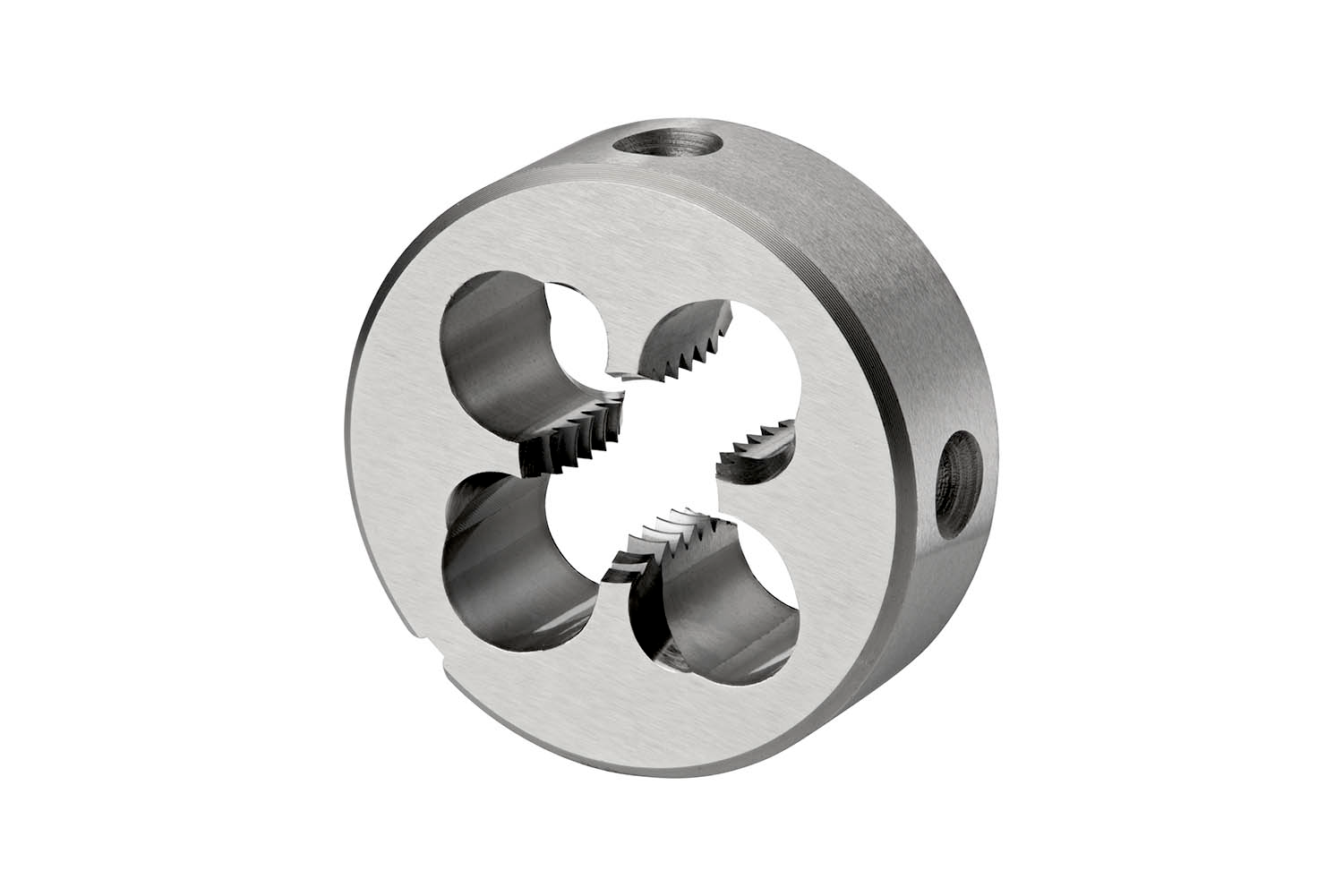

Solid round die with a gun nose, for British Standard Whitworth thread BSW 3/8″ with 16 TPI and medium class of fit, dimensions according to ISO 2568 standard with 30mm outside diameter and 11mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight	0.1210 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760104668 Product number (SAP): 86017879 Ordering code ANSI: F1403/8 Gross weight – grams: 43.6 Thread diameter size (TDZ): 3/8 Threads per inch (TPI): 16 Thread diameter – millimeter (TD): 9.53 mm Body diameter – millimeter (BD): 30 mm Overall length – millimeter (OAL): 11 mm ISO: F1403/8

DORMER F1403/8 Dies & Die Stocks

Need Technical Advice?

Description

Additional information

Brand

DORMER
