DORMER F1501/2 Dies & Die Stocks

Product Code: F1501/2

$169.95$154.50 Ex. GST

Product Code: F1501/2 SKU F1501/2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

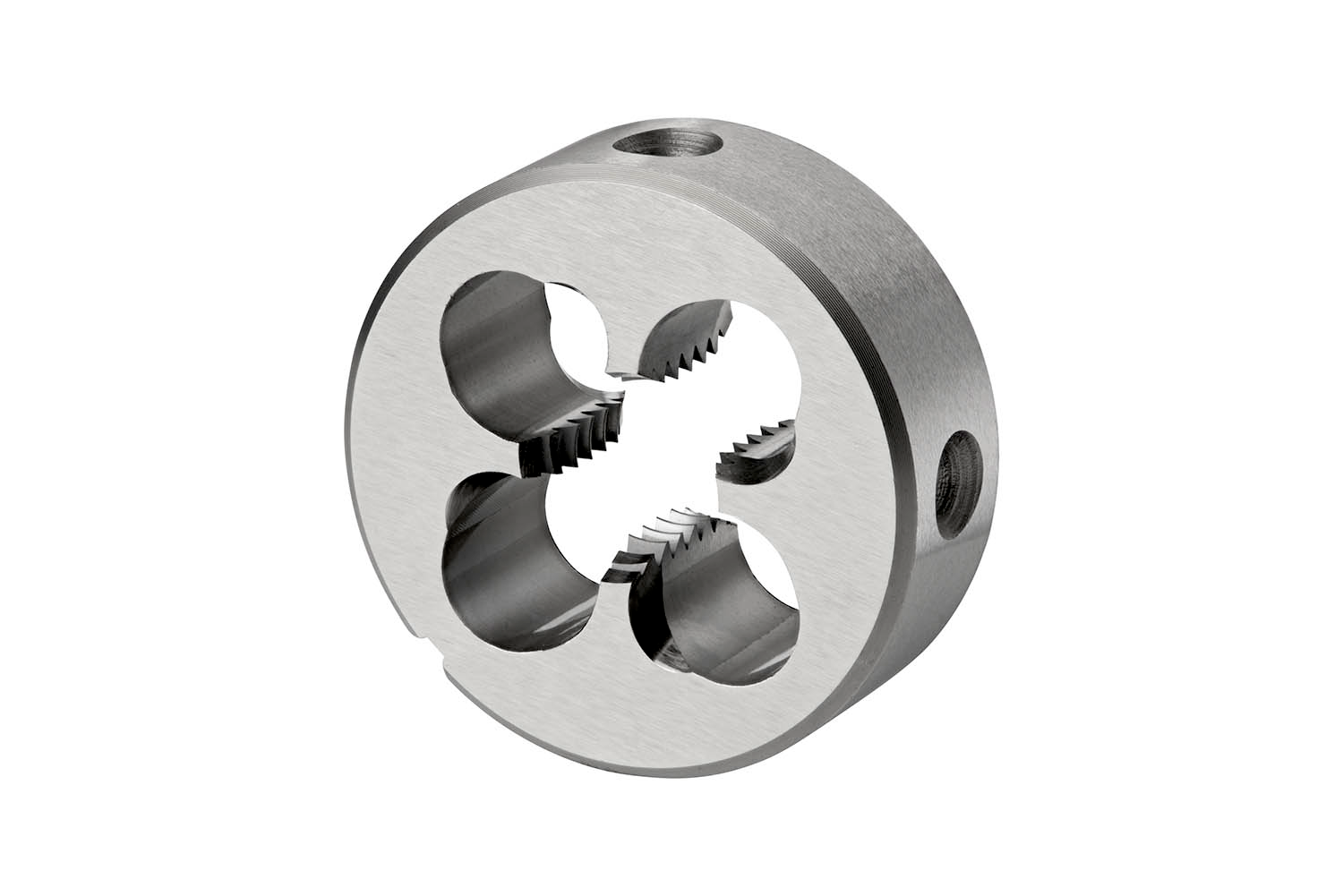

Solid round die with a gun nose, for British Standard Fine thread BSF 1/2″ with 16 TPI and medium class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 10mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.1650 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760104736
Product number (SAP): 86017884
Ordering code ANSI: F1501/2
Gross weight – grams: 63.3
Thread diameter size (TDZ): 1/2
Threads per inch (TPI): 16
Thread diameter – millimeter (TD): 12.7 mm
Body diameter – millimeter (BD): 38 mm
Overall length – millimeter (OAL): 10 mm
ISO: F1501/2

Brand

DORMER
