DORMER F201M12 Dies & Die Stocks

Product Code: F201M12

$179.01$162.74 Ex. GST

Product Code: F201M12 SKU F201M12 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

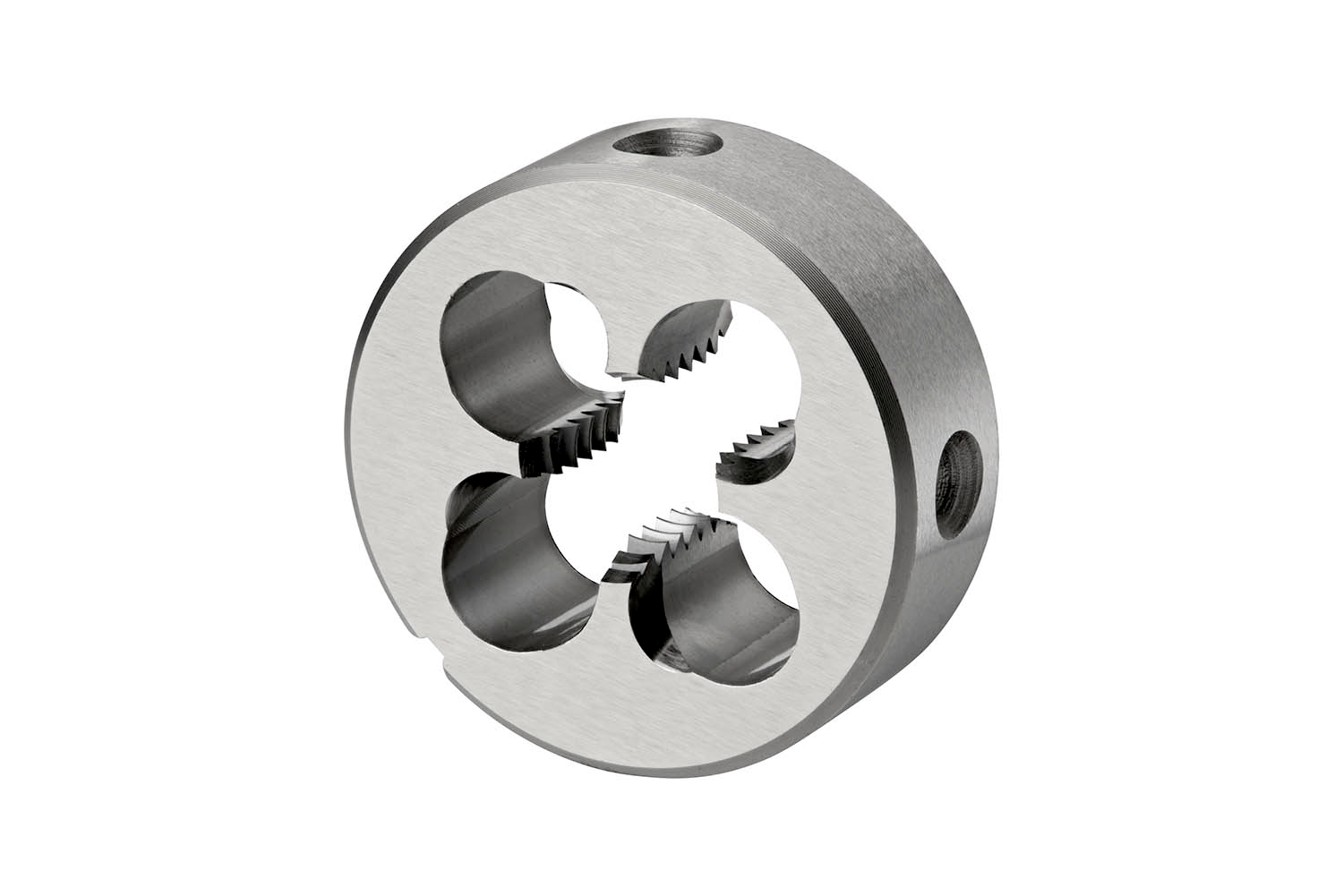

Solid round die with a gun nose, for left hand ISO-Metric thread M12 with 1.75 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 14mm thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.1738 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760105009
Product number (SAP): 86017917
Ordering code ANSI: F201M12
Gross weight – grams: 90
Thread diameter – millimeter (TD): 12 mm
Thread pitch – millimeter (TP): 1.75 mm
Body diameter – millimeter (BD): 38 mm
Overall length – millimeter (OAL): 14 mm
ISO: F201M12

Brand

DORMER
