DORMER F2723/4 Die Nut & Split Dies

Product Code: F2723/4

$464.53$422.30 Ex. GST

Product Code: F2723/4 SKU F2723/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

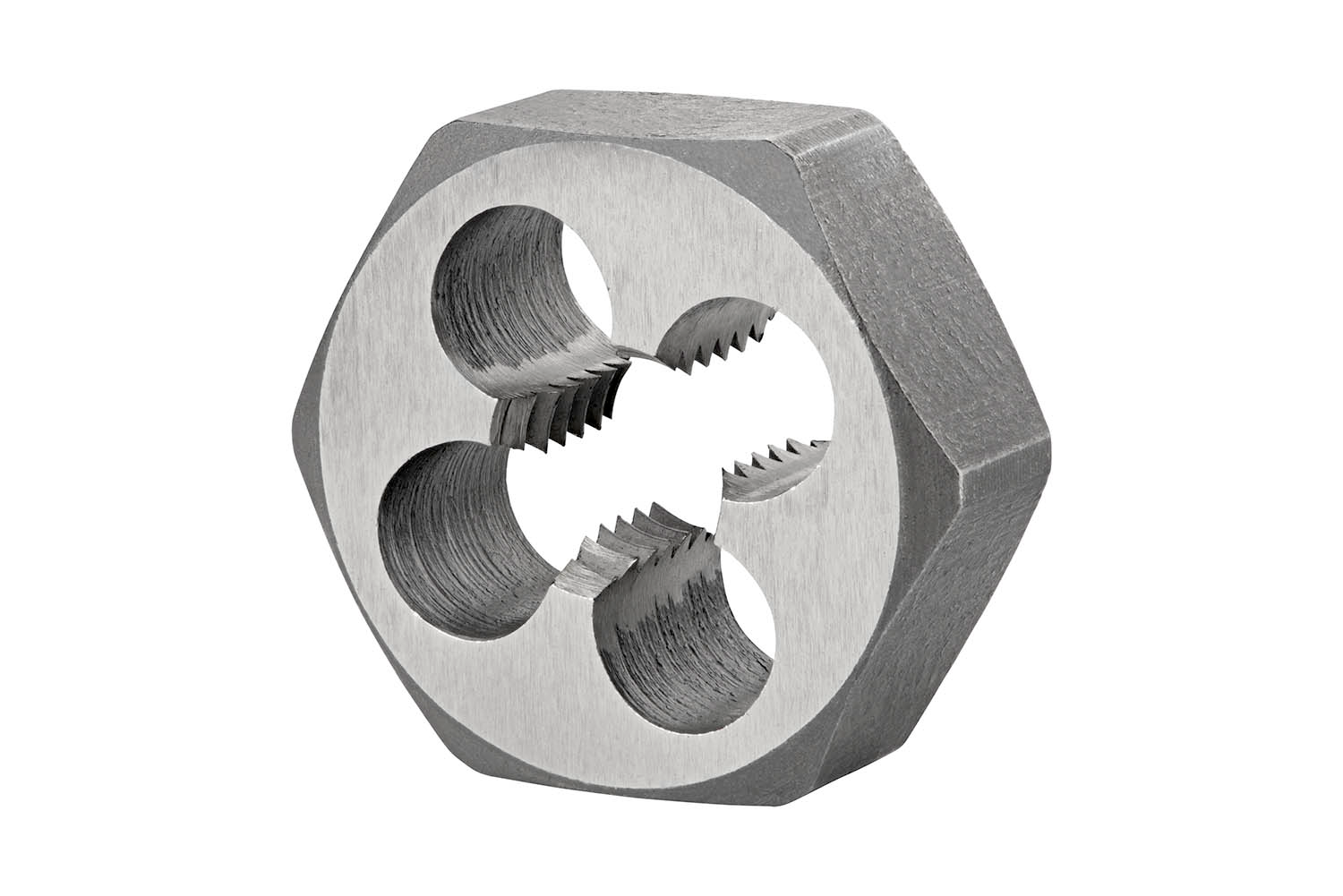

Hexagon die nut, for British Standard Pipe thread G 3/4″ with 14 TPI and class A tolerance, dimensions according to DIN 382 standard with 60mm width across flat and 18mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.4510 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760217474
Product number (SAP): 86017950
Ordering code ANSI: F2723/4
Gross weight – grams: 166
Thread diameter size (TDZ): 3/4
Threads per inch (TPI): 14
Thread diameter – millimeter (TD): 26.44 mm
Drive size – millimeter (DRVS): 60 mm
Overall length – millimeter (OAL): 18 mm
ISO: F2723/4

Brand

DORMER
