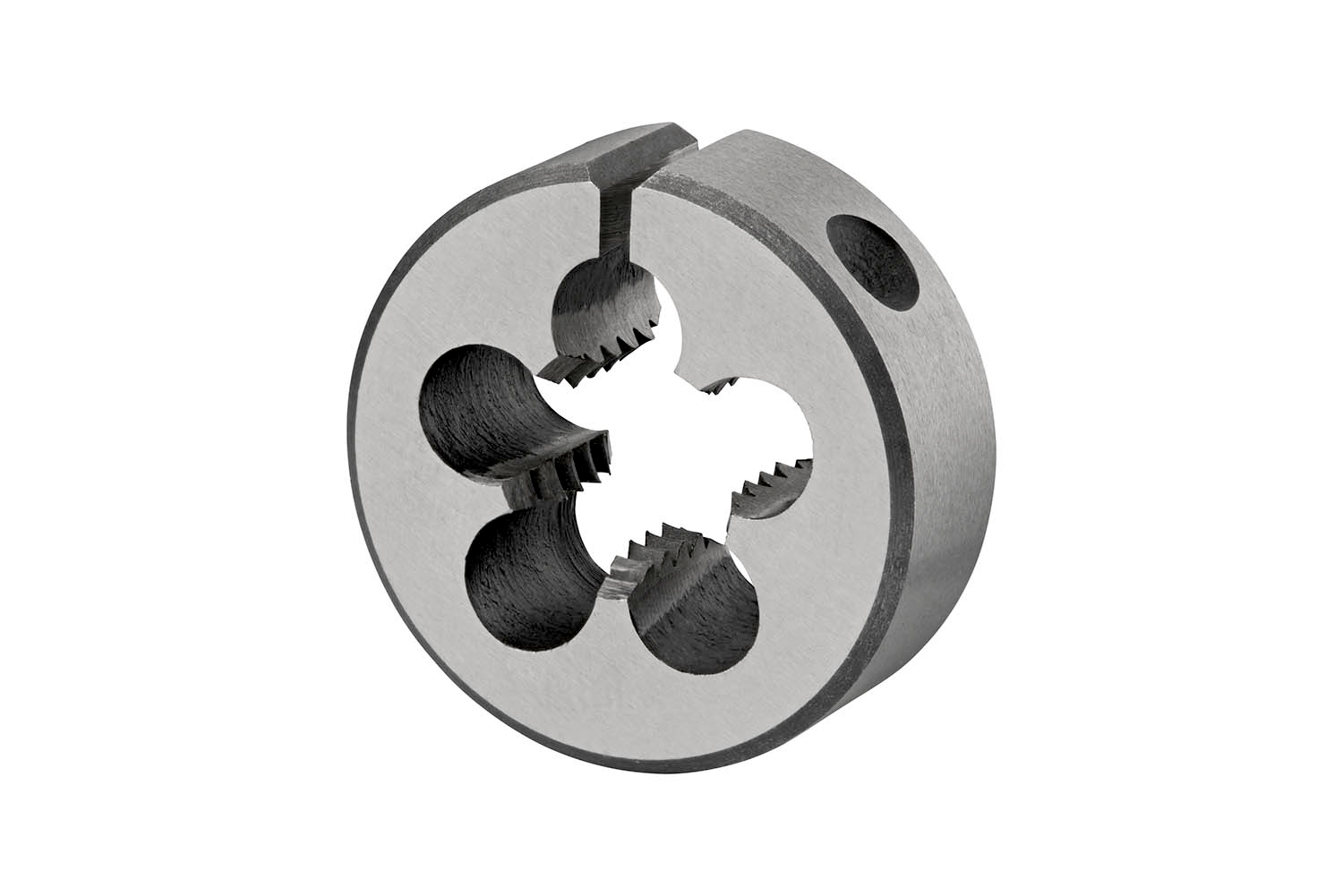

DORMER F300M11X1.5/16 Die Nut & Split Dies

Product Code: F300M11X1.5/16

$126.90$115.36 Ex. GST

Product Code: F300M11X1.5/16 SKU F300M11X1.5/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Adjustable circular split die, for ISO-Metric thread M11 with 1.50 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1.5/16″ outside diameter and 7/16″ thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.1232 kg
barcode
Additional Information

Description: Value
EAN number: 7320760205341
Product number (SAP): 86017955
Ordering code ANSI: F300M11X1.5/16
Gross weight – grams: 57.8
Thread diameter – millimeter (TD): 11 mm
Thread pitch – millimeter (TP): 1.5 mm
Body diameter – fractional inch (BD): 1.5/16
Overall length – fractional inch (OAL): 7/16
Body diameter – inch (BD): 1.3125 inch
ISO: F300M11X1.5/16

Brand

DORMER
