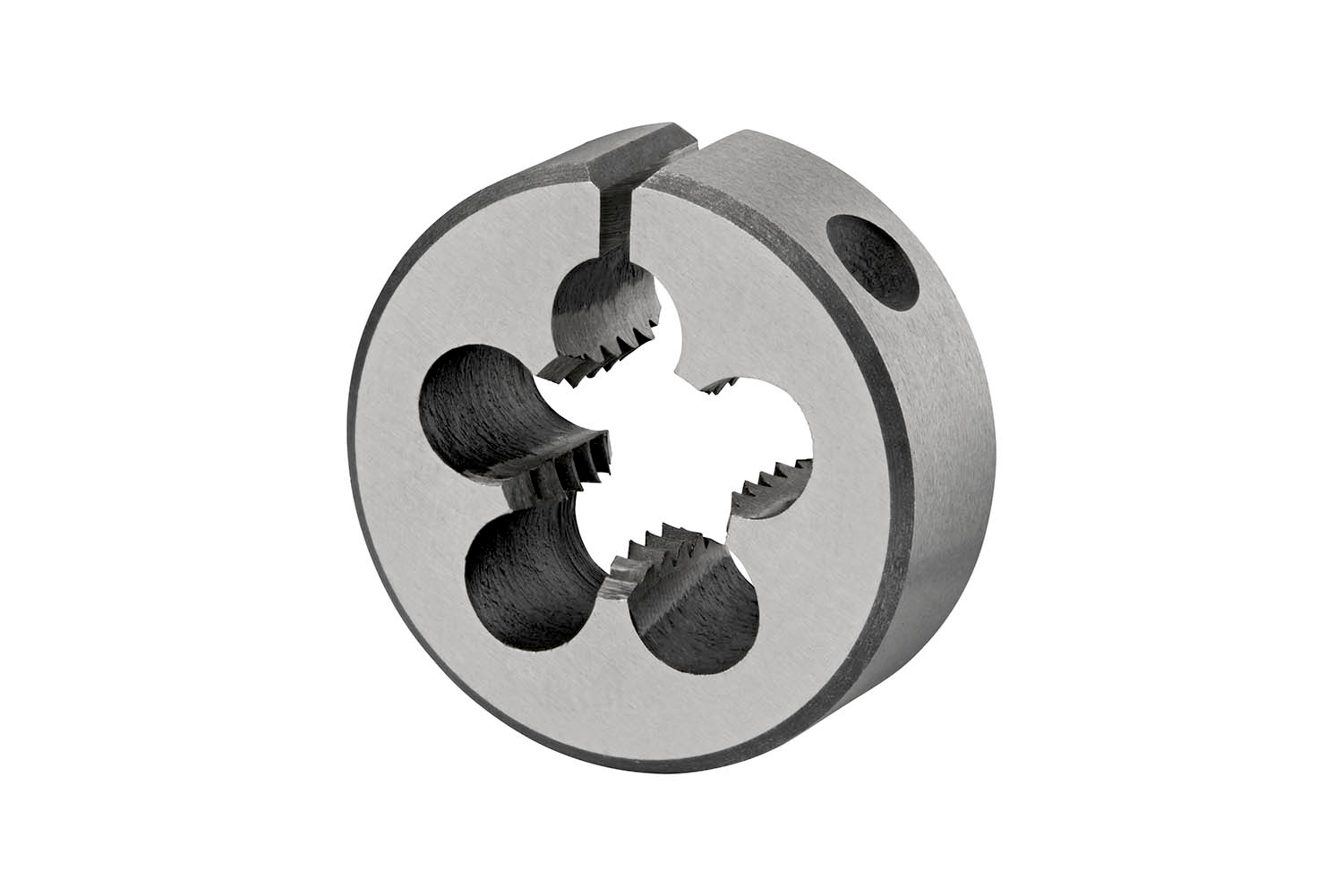

DORMER F300M6X1 Die Nut & Split Dies

Product Code: F300M6X1

$70.82$64.38 Ex. GST

Product Code: F300M6X1 SKU F300M6X1 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Adjustable circular split die, for ISO-Metric thread M6 with 1.00 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1″ outside diameter and 3/8″ thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.0688 kg
barcode
Additional Information

Description: Value
EAN number: 7320760205211
Product number (SAP): 86017978
Ordering code ANSI: F300M6X1
Gross weight – grams: 29.7
Thread diameter – millimeter (TD): 6 mm
Thread pitch – millimeter (TP): 1 mm
Body diameter – fractional inch (BD): 1"
Overall length – fractional inch (OAL): 3/8
Body diameter – inch (BD): 1 inch
ISO: F300M6X1

Brand

DORMER
