DORMER F302M36 Die Nut & Split Dies

Product Code: F302M36

$658.27$598.43 Ex. GST

Product Code: F302M36 SKU F302M36 Categories , ,
DORMER F302M36 Die Nut & Split Dies

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

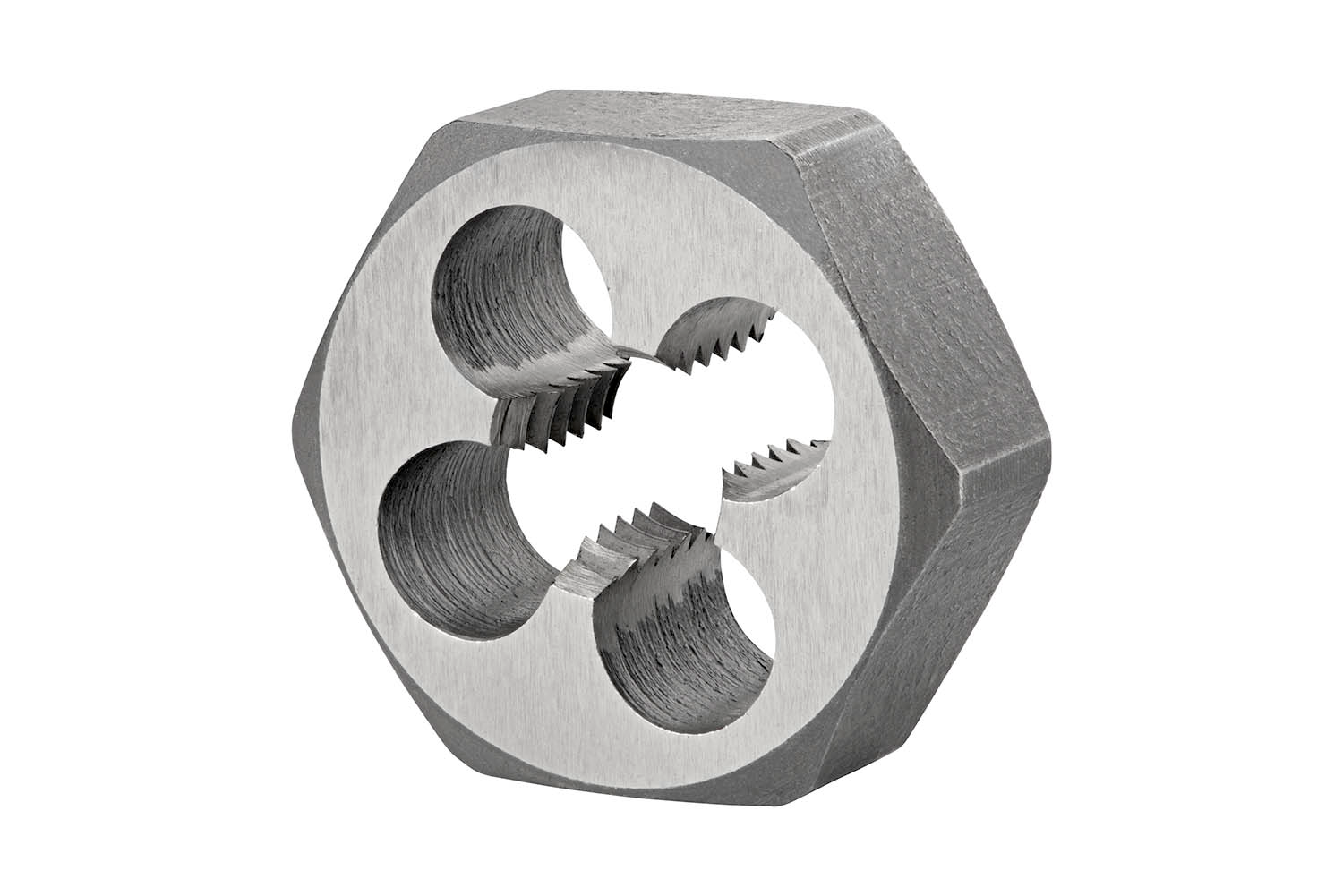

Hexagon die nut, for ISO-Metric thread M36 with 4.00 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 2.7600″ width across flat and 1.1/4″ thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.6391 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760105658
Product number (SAP): 86018000
Ordering code ANSI: F302M36
Gross weight – grams: 591.7
Thread diameter – millimeter (TD): 36 mm
Thread pitch – millimeter (TP): 4 mm
Drive size – inch (DRVS): 2.76 inch
Overall length – fractional inch (OAL): 1.1/4
Drive size – millimeter (DRVS): 70.1 mm
Overall length – millimeter (OAL): 31.75 mm
ISO: F302M36

Brand

DORMER
