DORMER F302M4 Die Nut & Split Dies

Product Code: F302M4

$112.74$102.49 Ex. GST

Product Code: F302M4 SKU F302M4 Categories , ,
DORMER F302M4 Die Nut & Split Dies

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

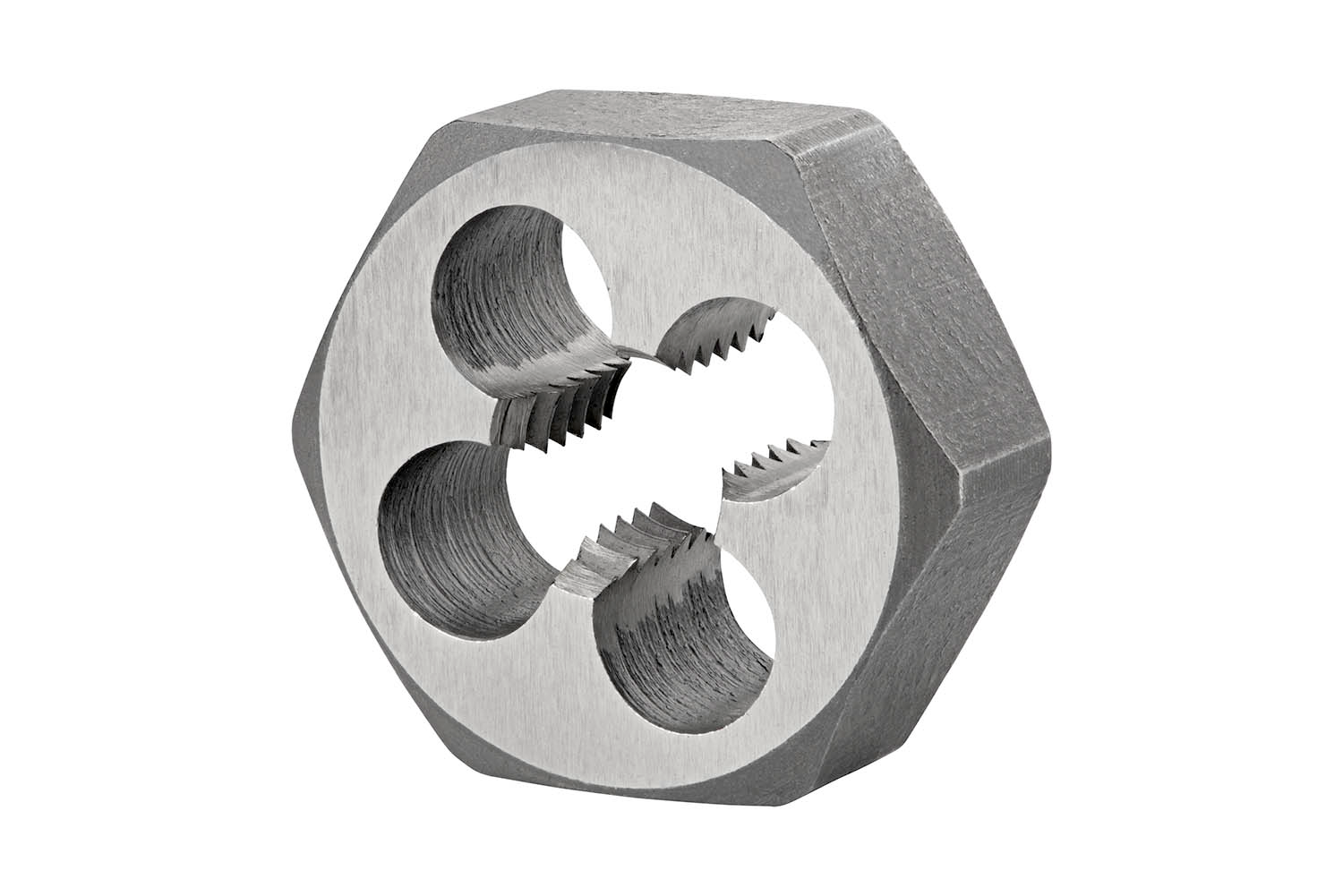

Hexagon die nut, for ISO-Metric thread M4 with 0.70 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 0.7100″ width across flat and 1/4″ thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.1095 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760105672
Product number (SAP): 86018001
Ordering code ANSI: F302M4
Gross weight – grams: 13.2
Thread diameter – millimeter (TD): 4 mm
Thread pitch – millimeter (TP): 0.7 mm
Drive size – inch (DRVS): 0.71 inch
Overall length – fractional inch (OAL): 1/4
Drive size – millimeter (DRVS): 18.03 mm
Overall length – millimeter (OAL): 6.35 mm
ISO: F302M4

Brand

DORMER
