DORMER F302M7 Die Nut & Split Dies

Product Code: F302M7

$89.51$81.37 Ex. GST

Product Code: F302M7 SKU F302M7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

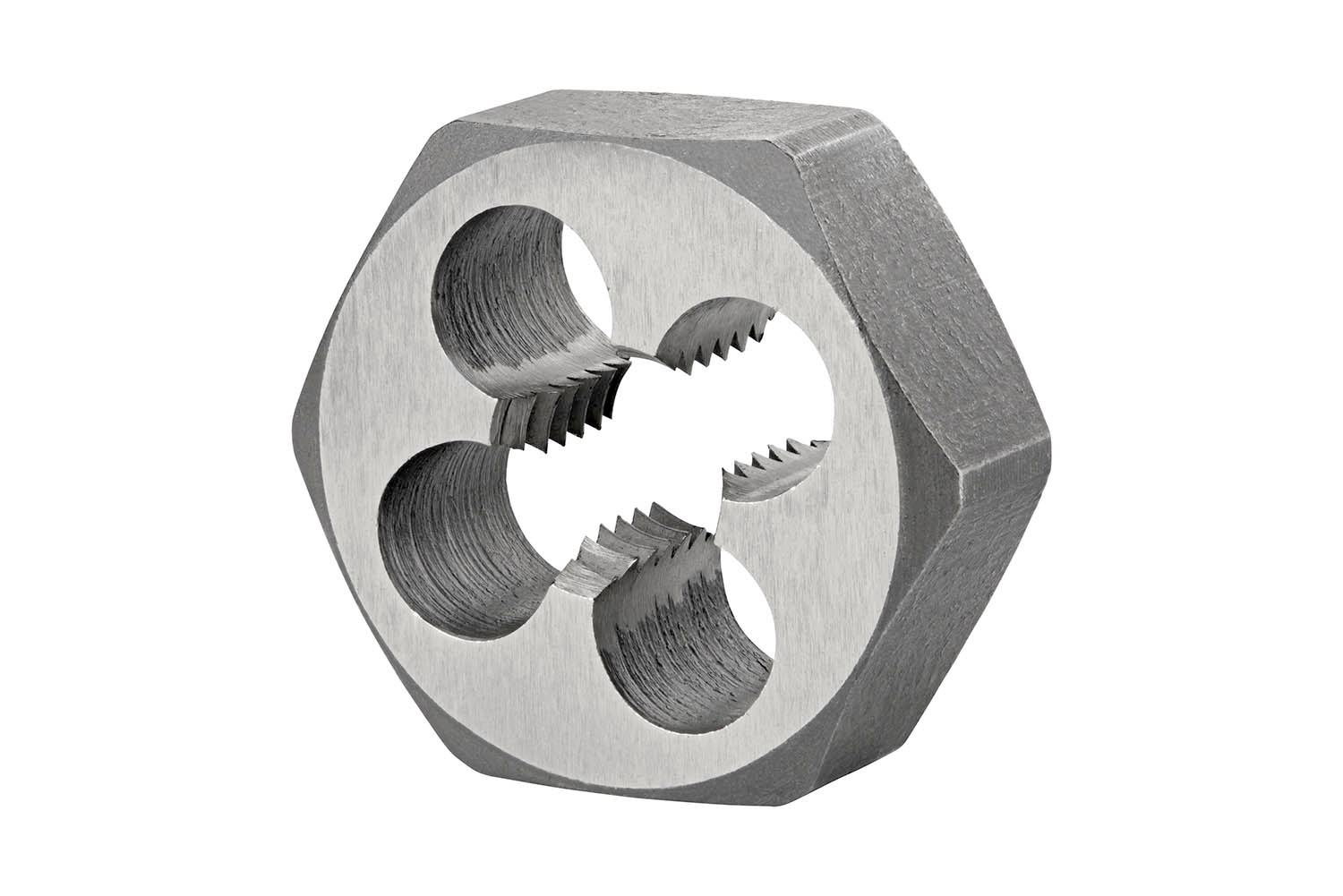

Hexagon die nut, for ISO-Metric thread M7 with 1.00 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 0.8200″ width across flat and 5/16″ thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.0869 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760105740
Product number (SAP): 86018004
Ordering code ANSI: F302M7
Gross weight – grams: 19.4
Thread diameter – millimeter (TD): 7 mm
Thread pitch – millimeter (TP): 1 mm
Drive size – inch (DRVS): 0.82 inch
Overall length – fractional inch (OAL): 5/16
Drive size – millimeter (DRVS): 20.83 mm
Overall length – millimeter (OAL): 7.94 mm
ISO: F302M7

Brand

DORMER
