DORMER F310M10X.75X1 Die Nut & Split Dies

Product Code: F310M10X.75X1

$122.36$111.24 Ex. GST

Product Code: F310M10X.75X1 SKU F310M10X.75X1 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

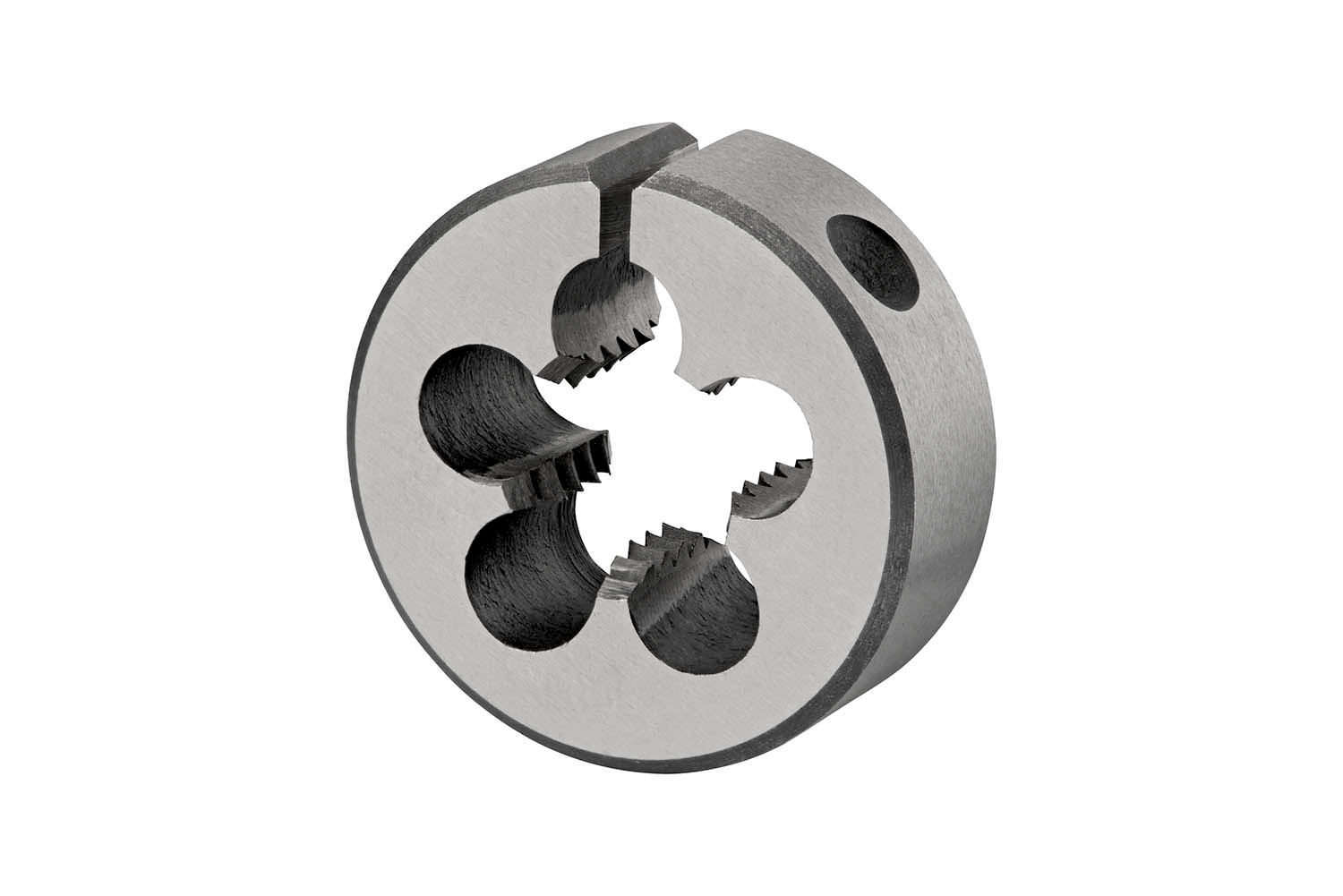

Adjustable circular split die, for ISO-Metric Fine thread M10 with 0.75 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1″ outside diameter and 3/8″ thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.1188 kg
barcode
Additional Information

Description: Value
EAN number: 7320760205990
Product number (SAP): 86018007
Ordering code ANSI: F310M10X.75X1
Gross weight – grams: 30
Thread diameter – millimeter (TD): 10 mm
Thread pitch – millimeter (TP): 0.75 mm
Body diameter – fractional inch (BD): 1"
Overall length – fractional inch (OAL): 3/8
Body diameter – inch (BD): 1 inch
ISO: F310M10X.75X1

Brand

DORMER
