DORMER F310M22X1.5X2 Die Nut & Split Dies

Product Code: F310M22X1.5X2

$241.33$219.39 Ex. GST

Product Code: F310M22X1.5X2 SKU F310M22X1.5X2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

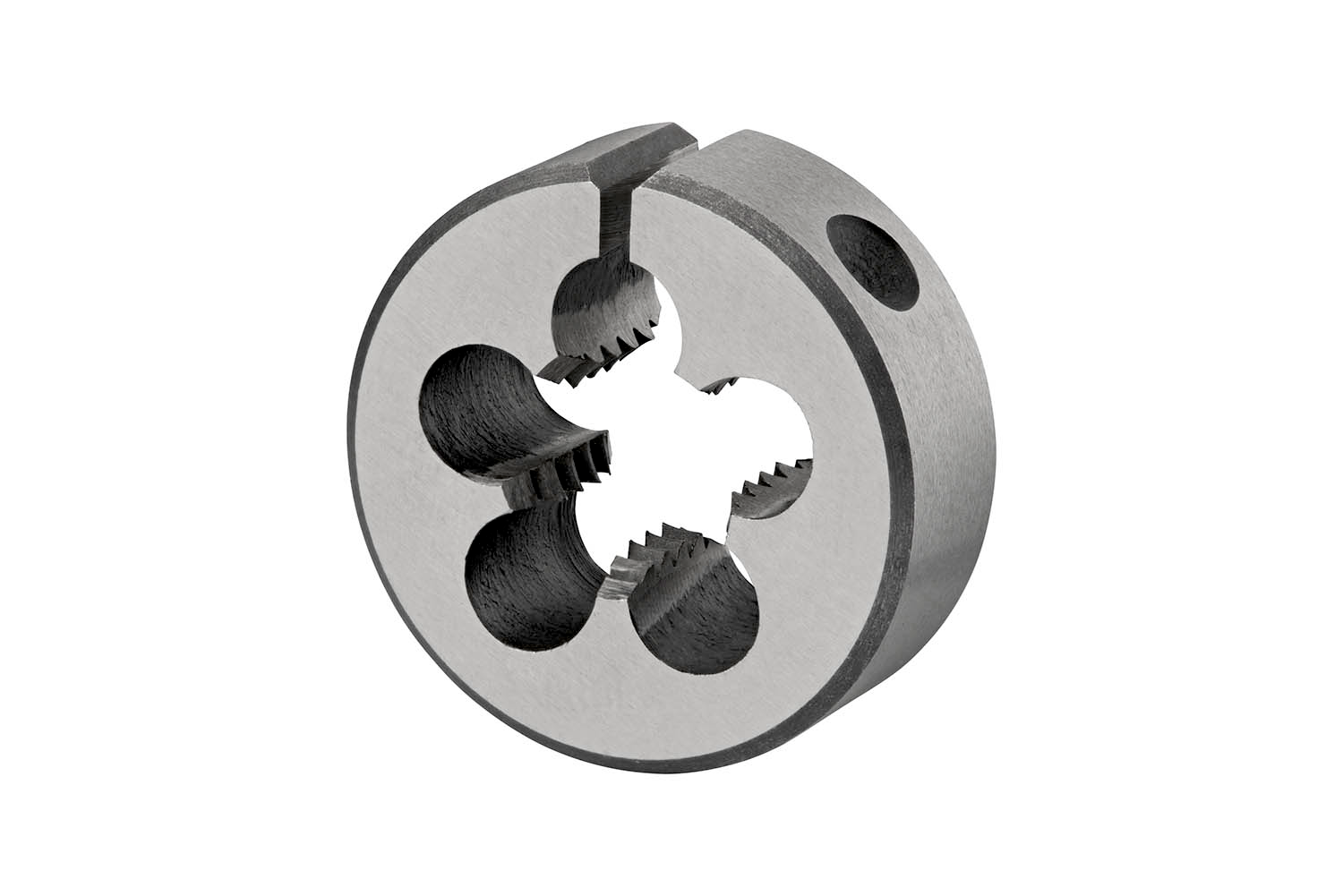

Adjustable circular split die, for ISO-Metric Fine thread M22 with 1.50 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 2″ outside diameter and 5/8″ thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.2343 kg
barcode
Additional Information

Description: Value
EAN number: 7320760206188
Product number (SAP): 86018022
Ordering code ANSI: F310M22X1.5X2
Gross weight – grams: 157.8
Thread diameter – millimeter (TD): 22 mm
Thread pitch – millimeter (TP): 1.5 mm
Body diameter – fractional inch (BD): 2"
Overall length – fractional inch (OAL): 5/8
Body diameter – inch (BD): 2 inch
ISO: F310M22X1.5X2

Brand

DORMER
