ABN 37 114 870 012

DORMER F3201/2X2 Die Nut & Split Dies

Product Code: F3201/2X2

$256.06$232.78 Ex. GST

Product Code: F3201/2X2 SKU F3201/2X2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

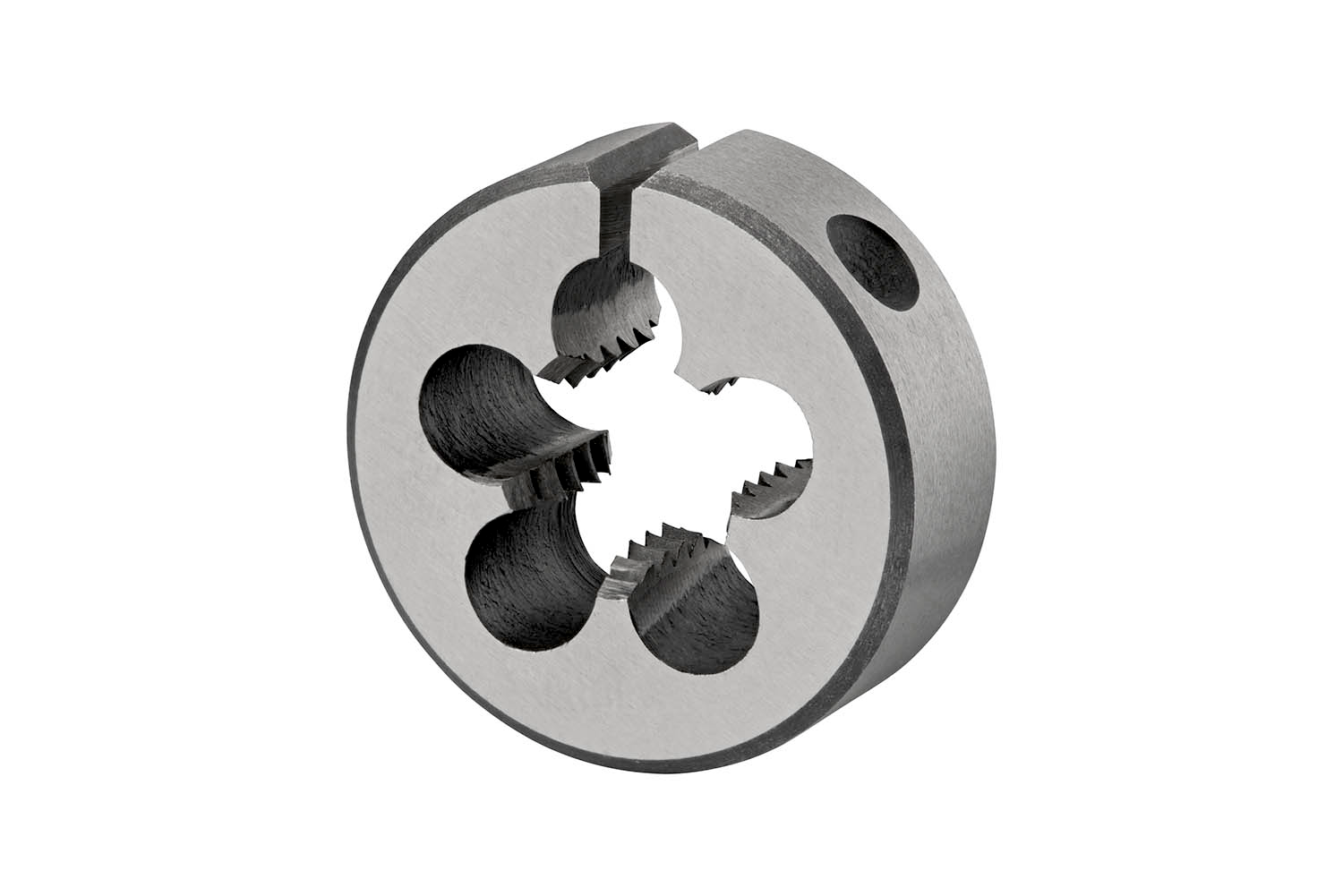

Adjustable circular split die, for Unified National Coarse thread UNC 1/2″ with 13 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006″, dimensions according to BS 1127:1950 standard with 2″ outside diameter and 5/8″ thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.2486 kg
barcode
Additional Information

Description: Value
EAN number: 7320760206881
Product number (SAP): 86018055
Ordering code ANSI: F3201/2X2
Gross weight – grams: 217.3
Thread diameter – millimeter (TD): 12.7 mm
Body diameter – fractional inch (BD): 2"
Overall length – fractional inch (OAL): 5/8
Body diameter – inch (BD): 2 inch
ISO: F3201/2X2
Thread diameter size (TDZ): 1/2
Threads per inch (TPI): 13

Brand

DORMER
