DORMER F3701.1/2X4 Die Nut & Split Dies

Product Code: F3701.1/2X4

$1,080.88$982.62 Ex. GST

Product Code: F3701.1/2X4 SKU F3701.1/2X4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

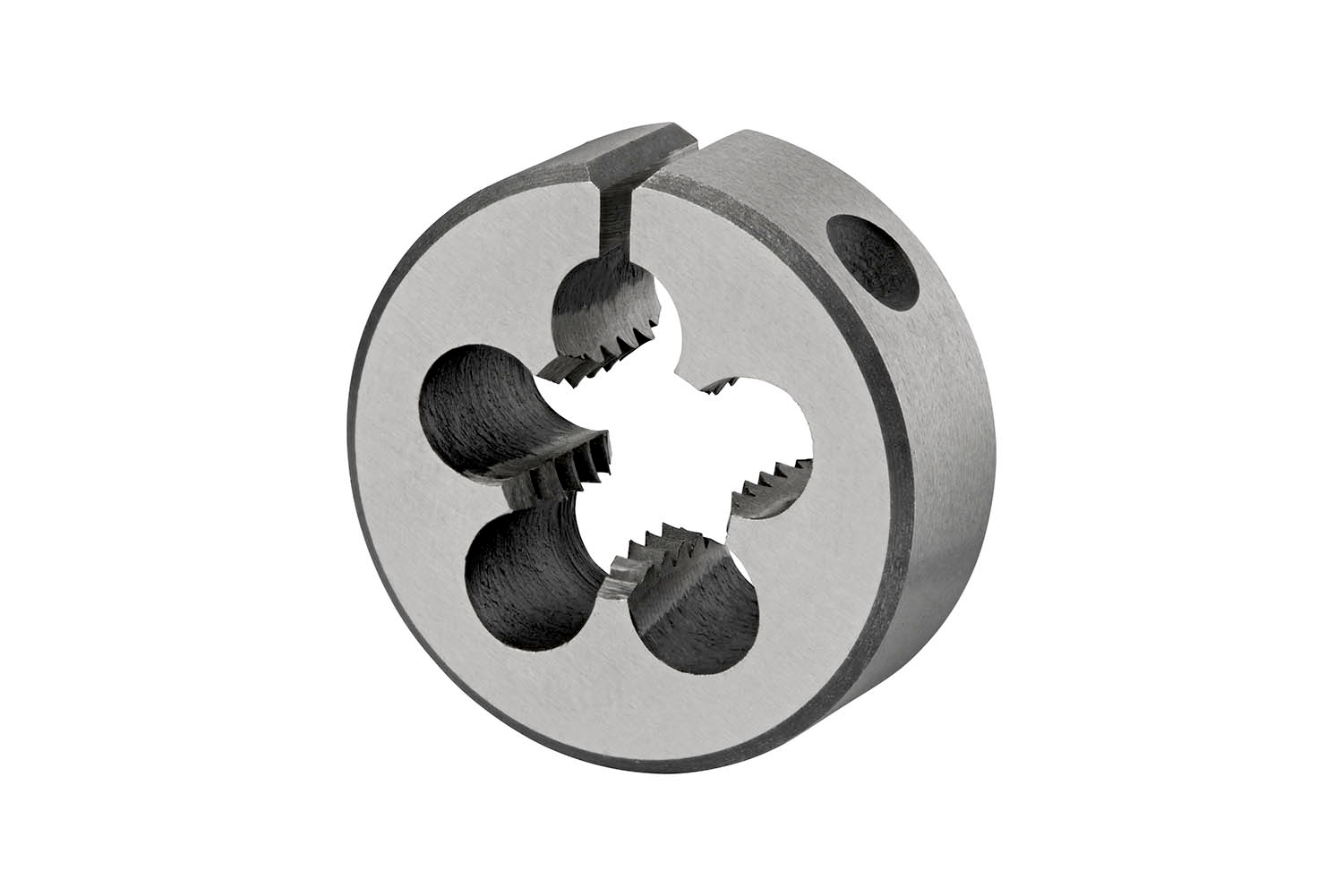

Adjustable circular split die, for British Standard Pipe thread G 1.1/2″ with 11 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006″, dimensions according to BS 1127:1950 standard with 4″ outside diameter and 1″ thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 1.0494 kg
barcode
Additional Information

Description: Value
EAN number: 7320760209417
Product number (SAP): 86018114
Ordering code ANSI: F3701.1/2X4
Gross weight – grams: 808
Thread diameter size (TDZ): 1.1/2
Threads per inch (TPI): 11
Thread diameter – millimeter (TD): 47.8 mm
Body diameter – fractional inch (BD): 4"
Overall length – fractional inch (OAL): 1"
Body diameter – inch (BD): 4 inch
ISO: F3701.1/2X4

Brand

DORMER
