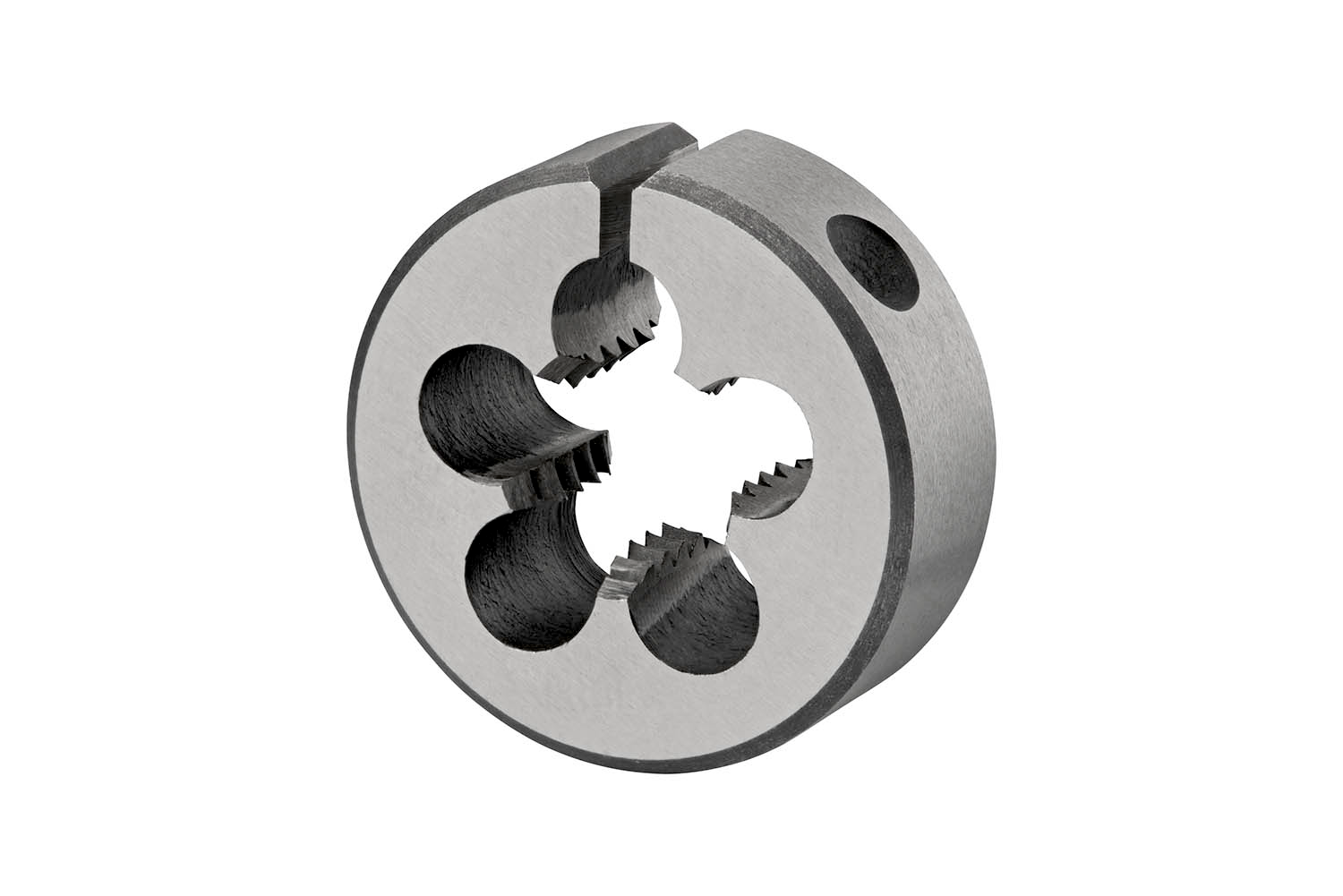

DORMER F3701.1/4X3 Die Nut & Split Dies

Product Code: F3701.1/4X3

$490.59$445.99 Ex. GST

Product Code: F3701.1/4X3 SKU F3701.1/4X3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Adjustable circular split die, for British Standard Pipe thread G 1.1/4″ with 11 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006″, dimensions according to BS 1127:1950 standard with 3″ outside diameter and 7/8″ thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.4763 kg
barcode
Additional Information

Description: Value
EAN number: 7320760209400
Product number (SAP): 86018115
Ordering code ANSI: F3701.1/4X3
Gross weight – grams: 423.5
Thread diameter size (TDZ): 1.1/4
Threads per inch (TPI): 11
Thread diameter – millimeter (TD): 41.91 mm
Body diameter – fractional inch (BD): 3"
Overall length – fractional inch (OAL): 7/8
Body diameter – inch (BD): 3 inch
ISO: F3701.1/4X3

Brand

DORMER
