DORMER G10610.4 Countersinks / Bors

Product Code: G10610.4

$58.36$53.05 Ex. GST

Product Code: G10610.4 SKU G10610.4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

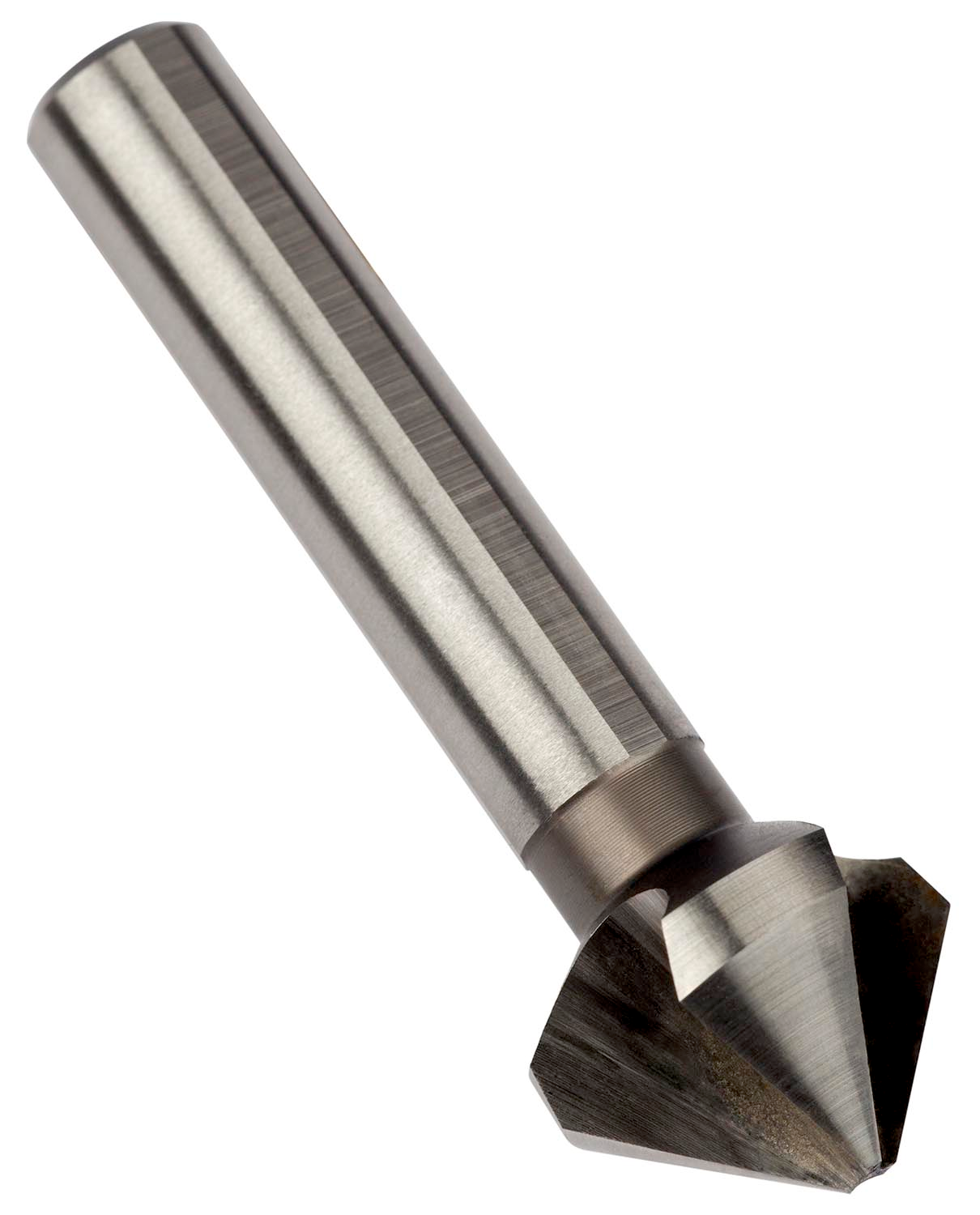

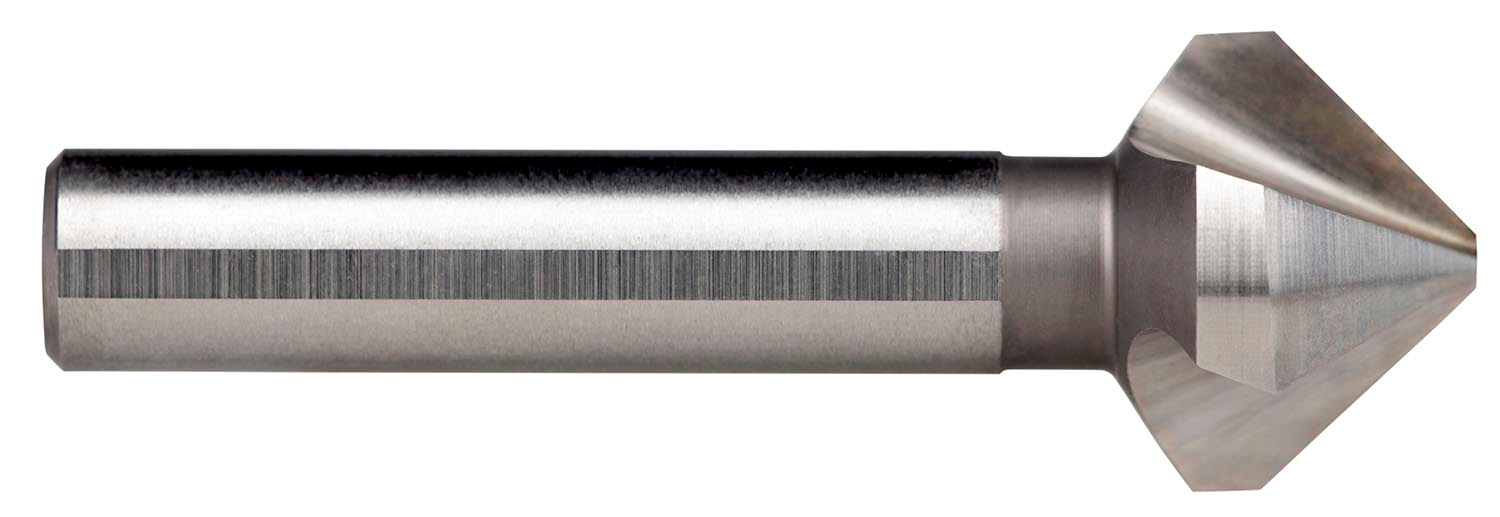

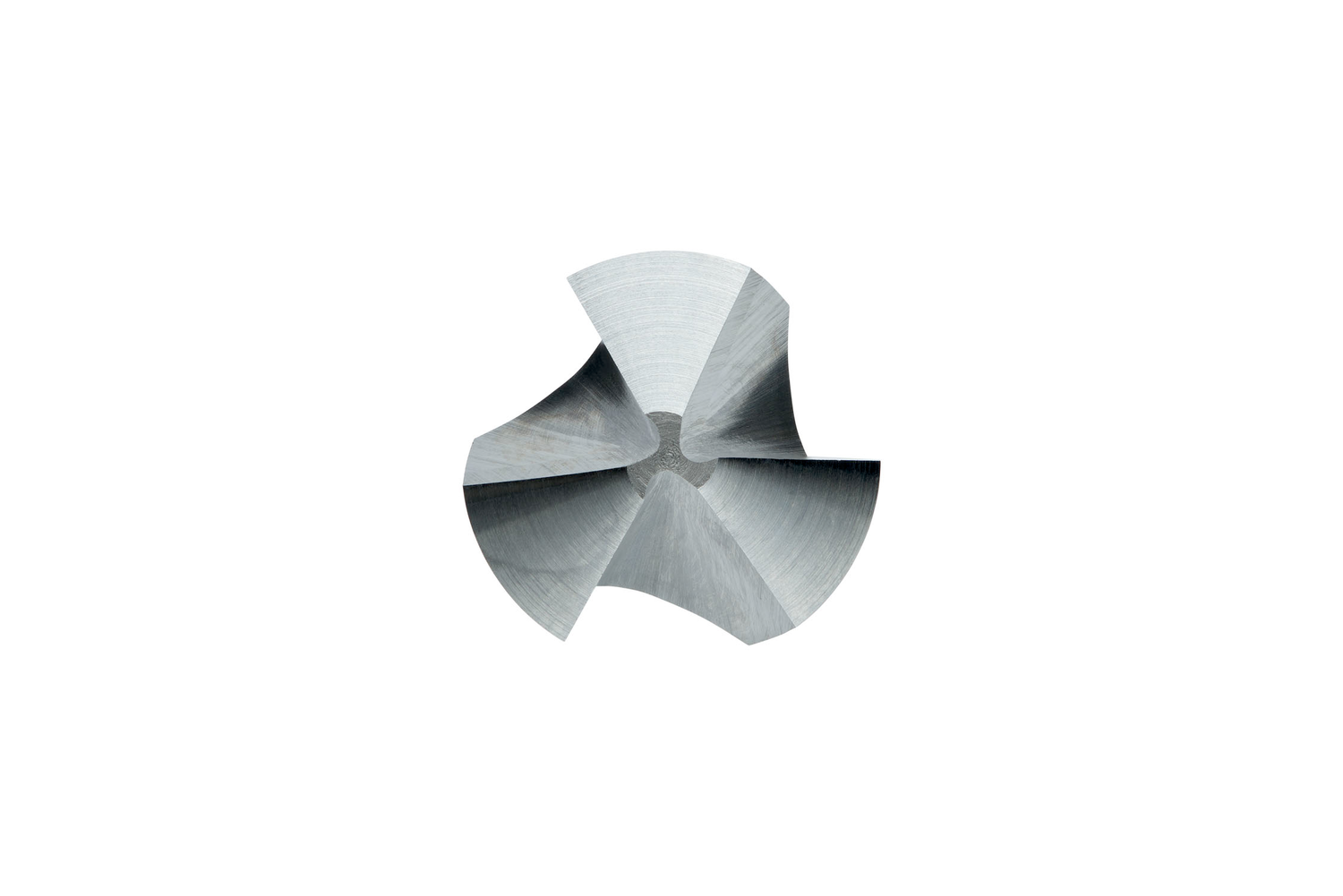

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.40mm with an overall length of 50mm and a head length of 7.8mm and 6mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Additional information

Weight 0.0567 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702598
Product number (SAP): 86030996
Ordering code ANSI: G10610.4
Gross weight – grams: 16.6
Cutting diameter second cutting step – millimeters (DC_2): 10.4 mm
Cutting diameter step – millimeter: 2.5 mm
Length chip flute – millimeter (LCF): 7.8 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: G10610.4

Brand

DORMER
