DORMER G10616.5 Countersinks / Bors

Product Code: G10616.5

$82.71$75.19 Ex. GST

Product Code: G10616.5 SKU G10616.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

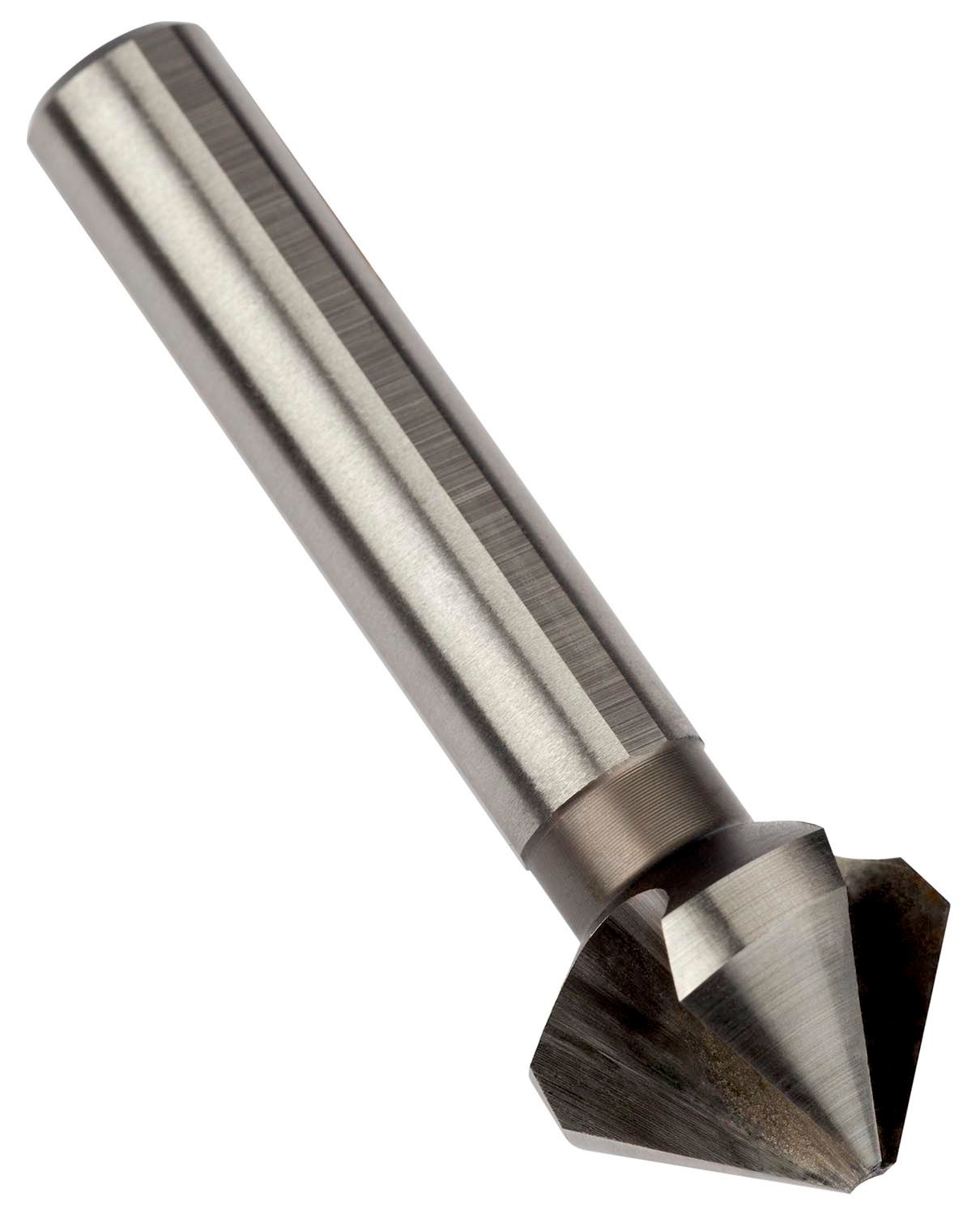

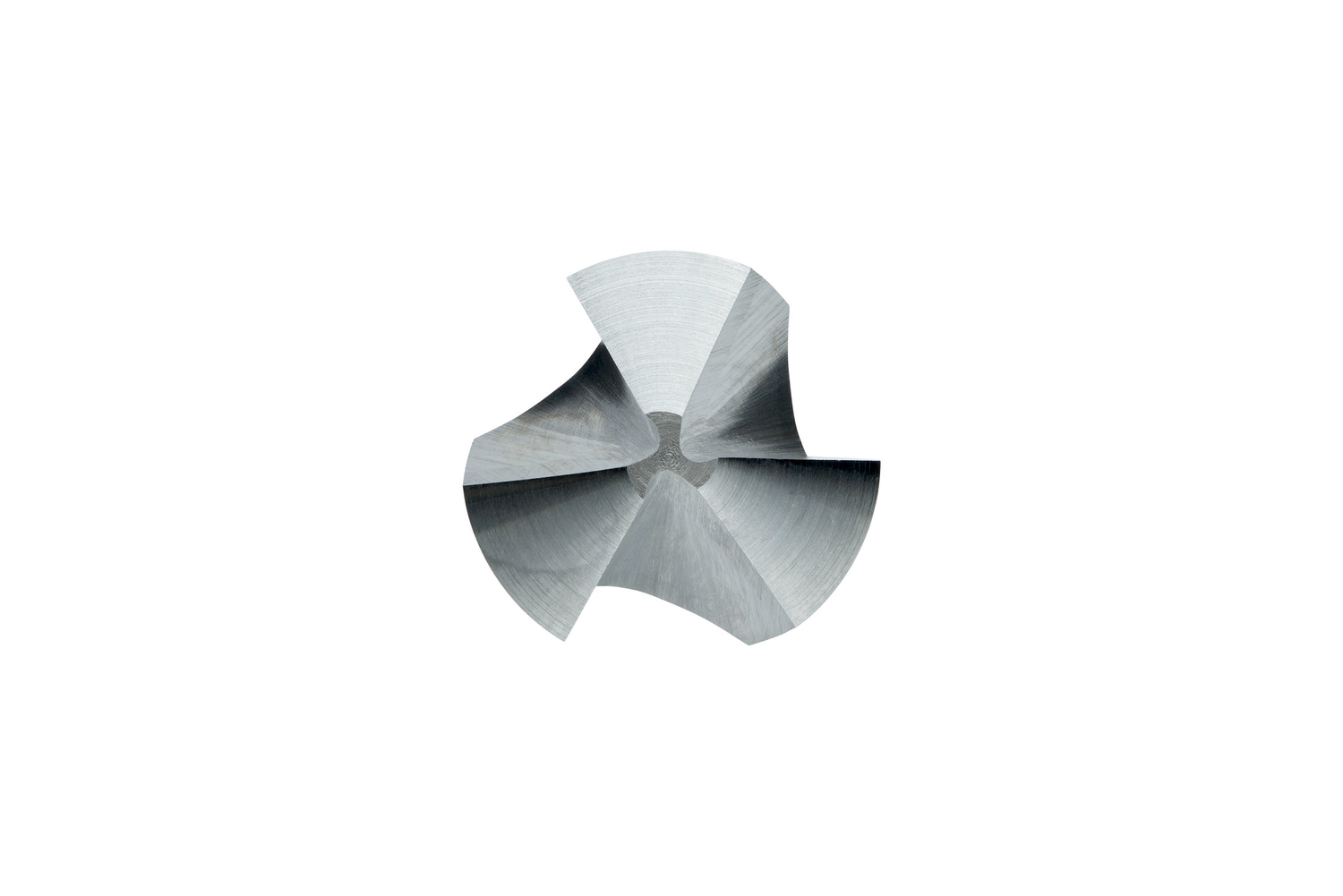

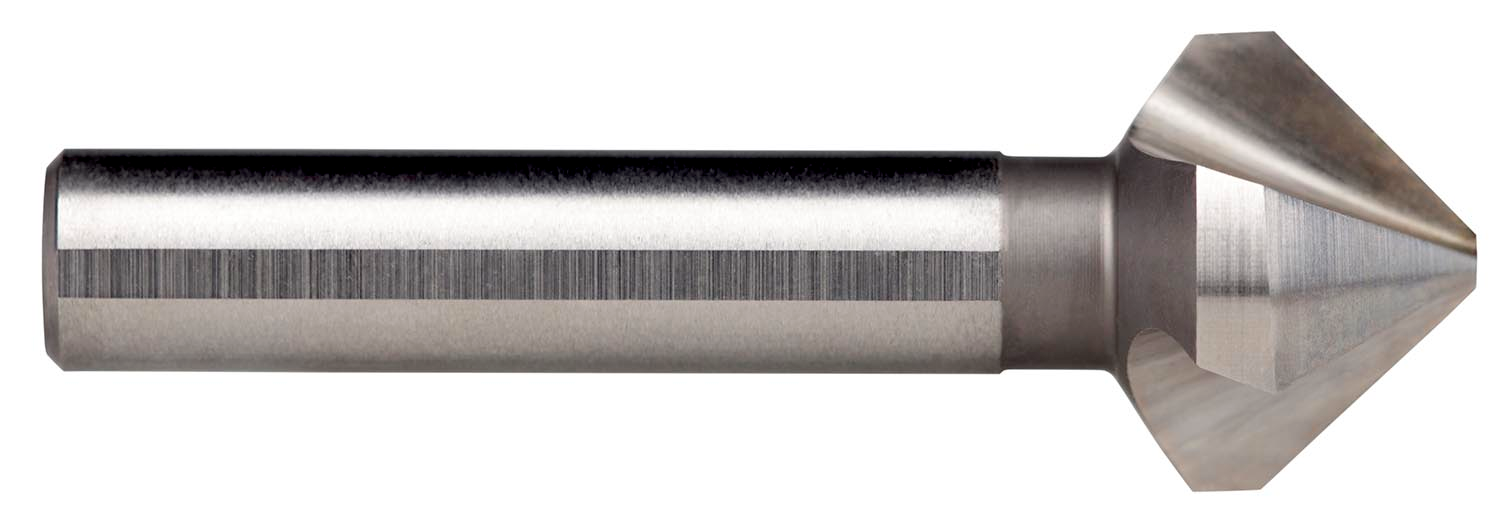

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50mm with an overall length of 60mm and a head length of 11.1mm and 10mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Additional information

Weight 0.0803 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702611
Product number (SAP): 86030998
Ordering code ANSI: G10616.5
Gross weight – grams: 47.1
Cutting diameter second cutting step – millimeters (DC_2): 16.5 mm
Cutting diameter step – millimeter: 3.2 mm
Length chip flute – millimeter (LCF): 11.1 mm
Overall length – millimeter (OAL): 60 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: G10616.5

Brand

DORMER
