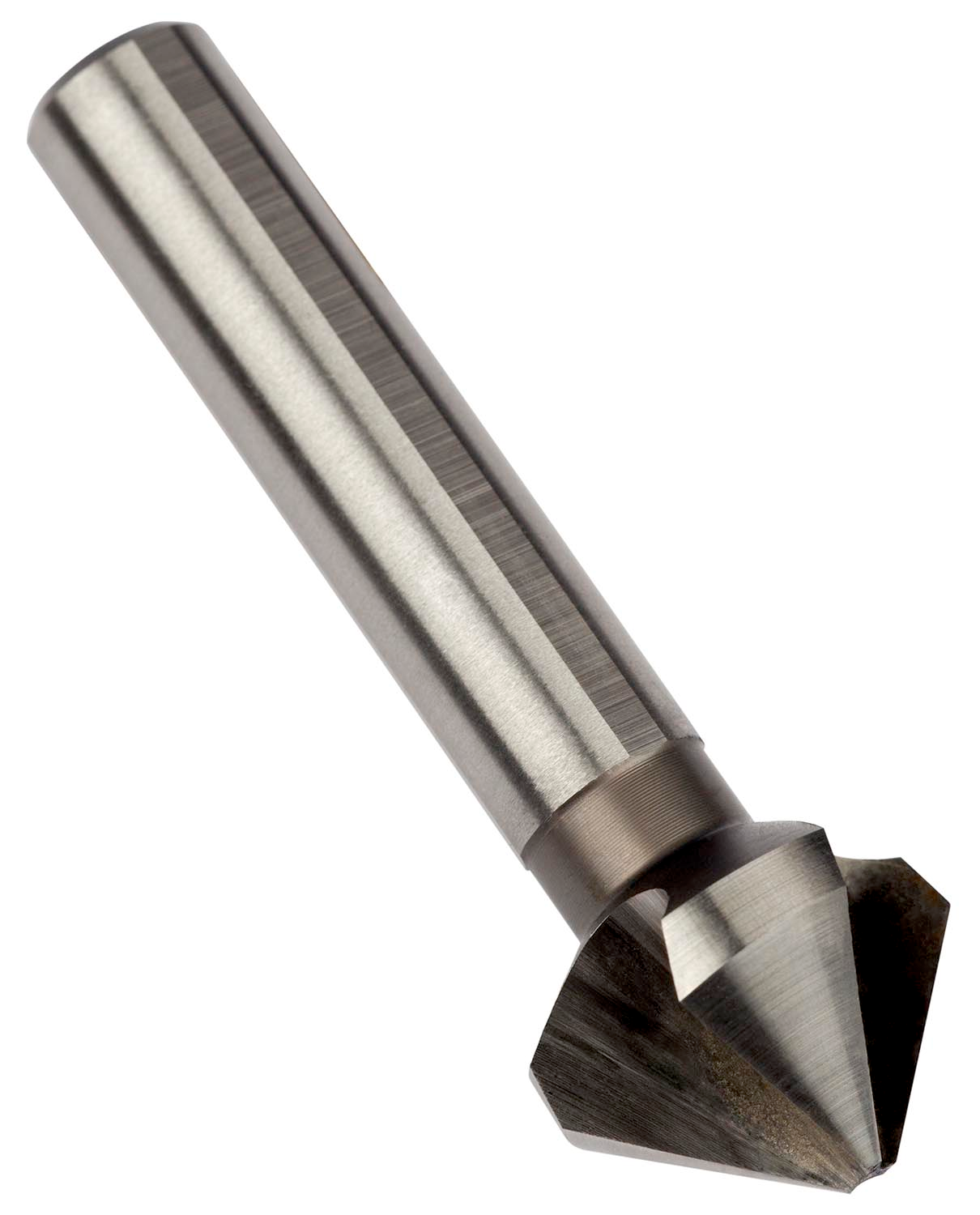

DORMER G10625.0 Countersinks / Bors

Product Code: G10625.0

$162.02$147.29 Ex. GST

Product Code: G10625.0 SKU G10625.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

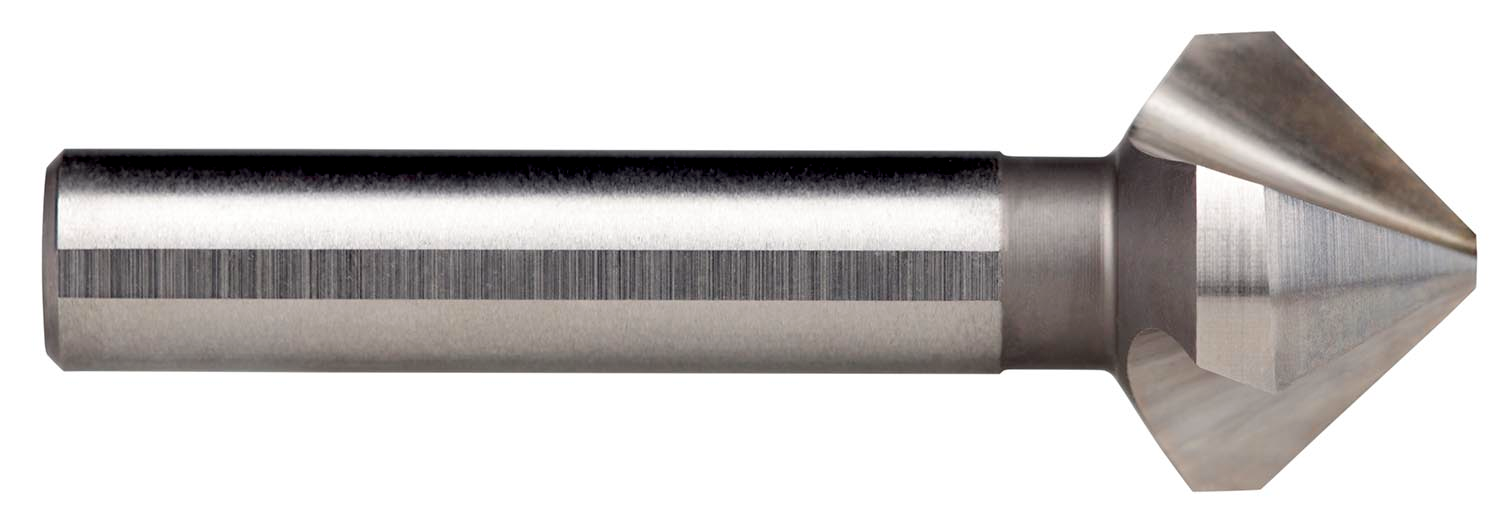

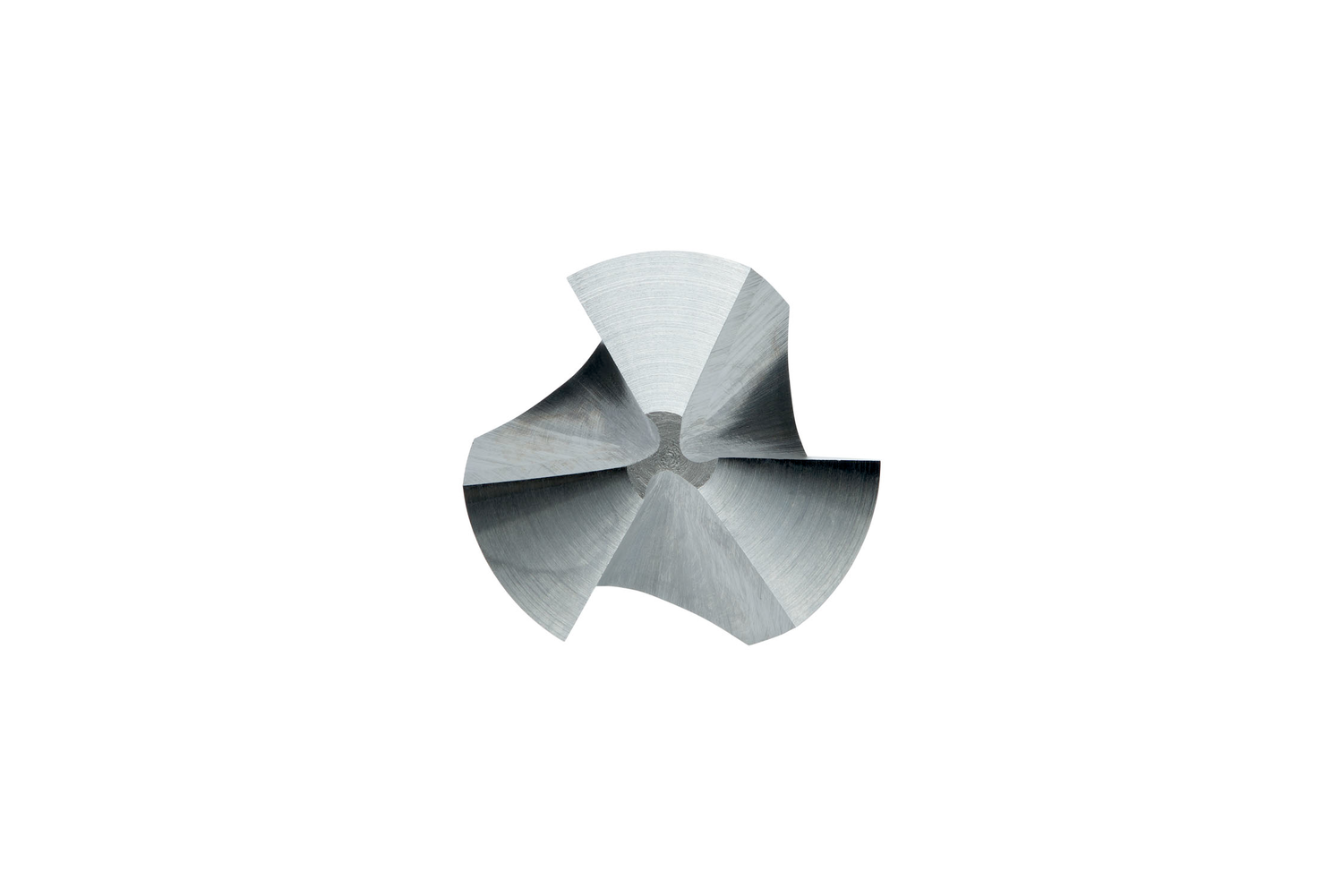

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 67mm and a head length of 15.7mm and 10mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Additional information

Weight 0.1573 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702635
Product number (SAP): 86031000
Ordering code ANSI: G10625.0
Gross weight – grams: 71.9
Cutting diameter second cutting step – millimeters (DC_2): 25 mm
Cutting diameter step – millimeter: 3.8 mm
Length chip flute – millimeter (LCF): 15.7 mm
Overall length – millimeter (OAL): 67 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: G10625.0

Brand

DORMER
