DORMER G10634.0 Countersinks / Bors

Product Code: G10634.0

$265.12$241.02 Ex. GST

Product Code: G10634.0 SKU G10634.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

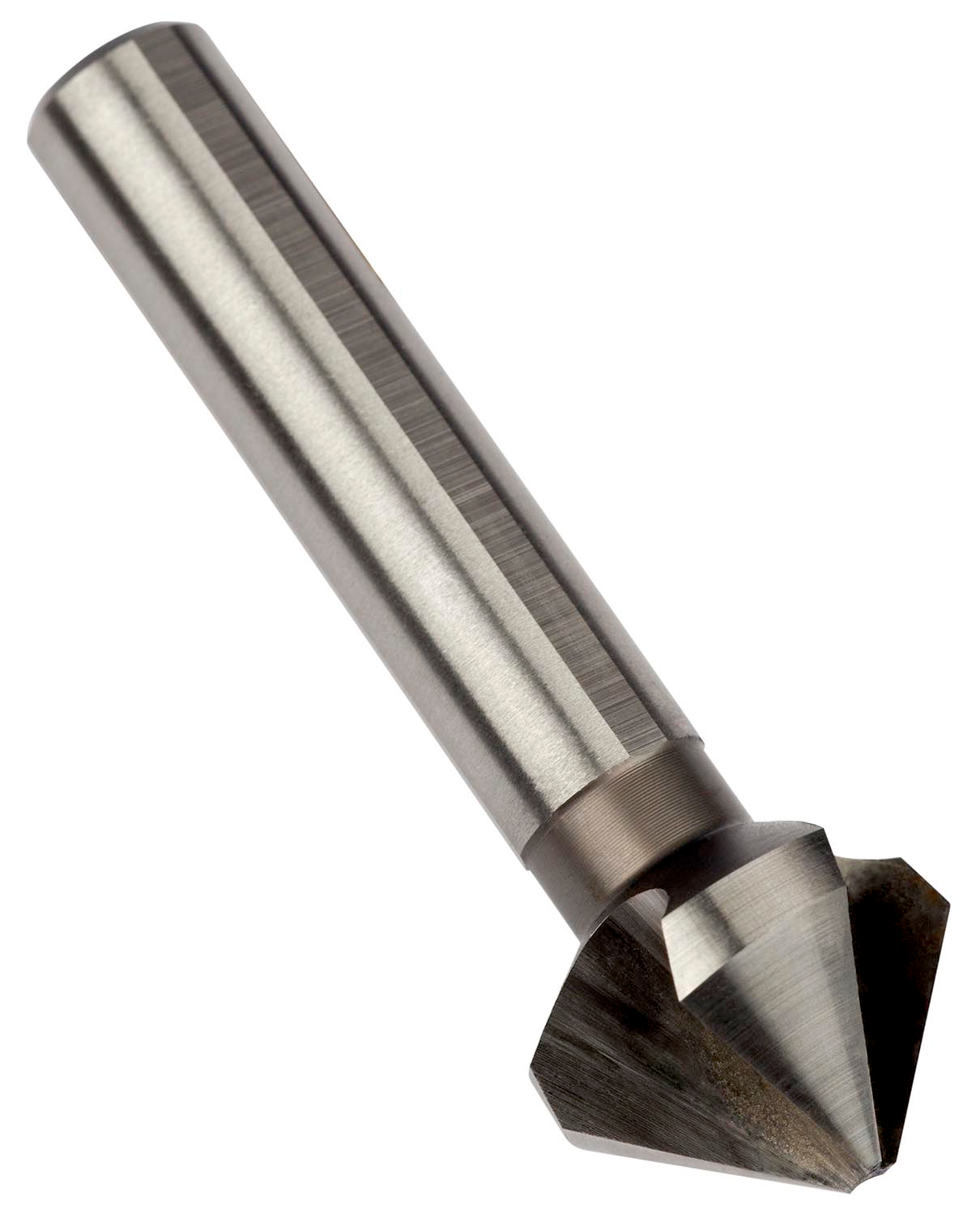

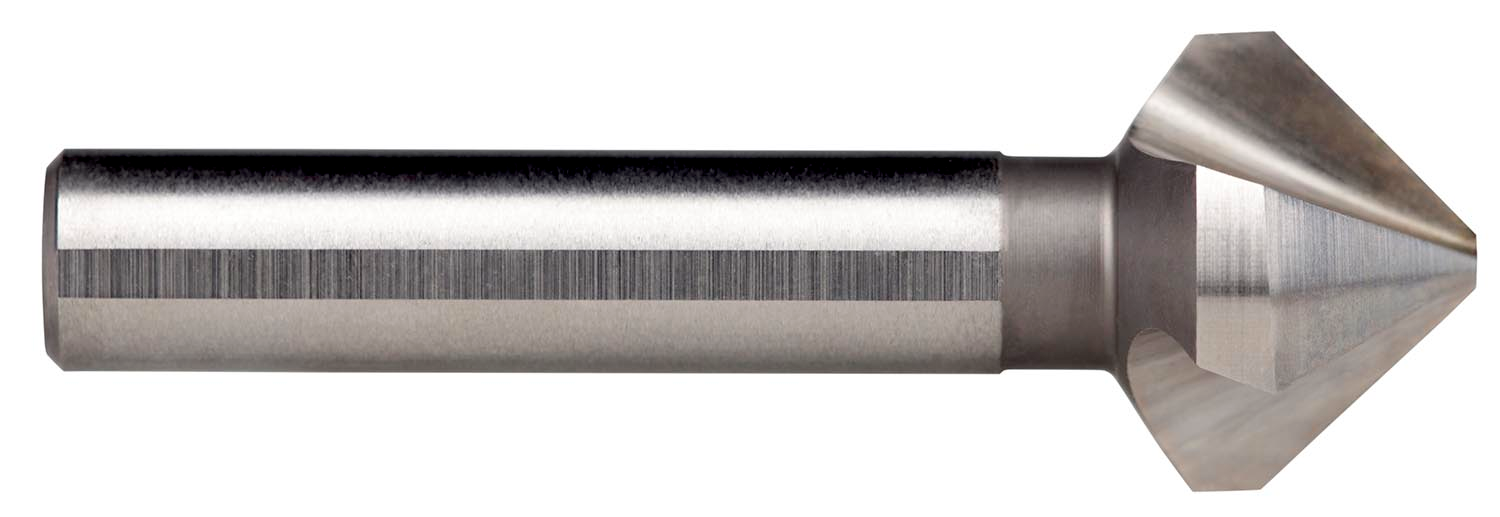

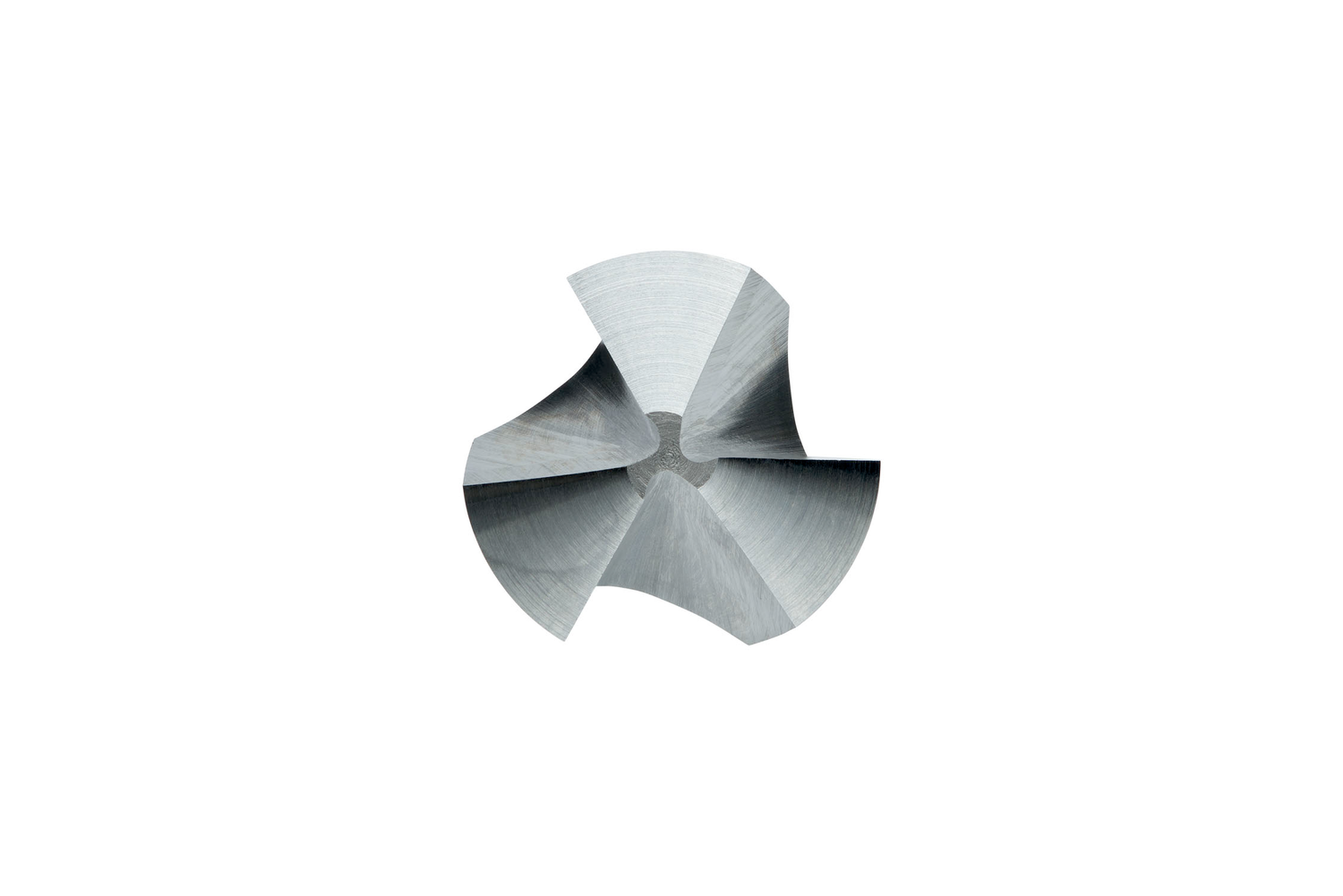

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 34.00mm with an overall length of 103mm and a head length of 19mm and 16mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Additional information

Weight 0.2574 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702659
Product number (SAP): 86031002
Ordering code ANSI: G10634.0
Gross weight – grams: 253
Cutting diameter second cutting step – millimeters (DC_2): 34 mm
Cutting diameter step – millimeter: 4.5 mm
Length chip flute – millimeter (LCF): 19 mm
Overall length – millimeter (OAL): 103 mm
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 3
ISO: G10634.0

Brand

DORMER
