DORMER G10637.0 Countersinks / Bors

Product Code: G10637.0

$280.98$255.44 Ex. GST

Product Code: G10637.0 SKU G10637.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

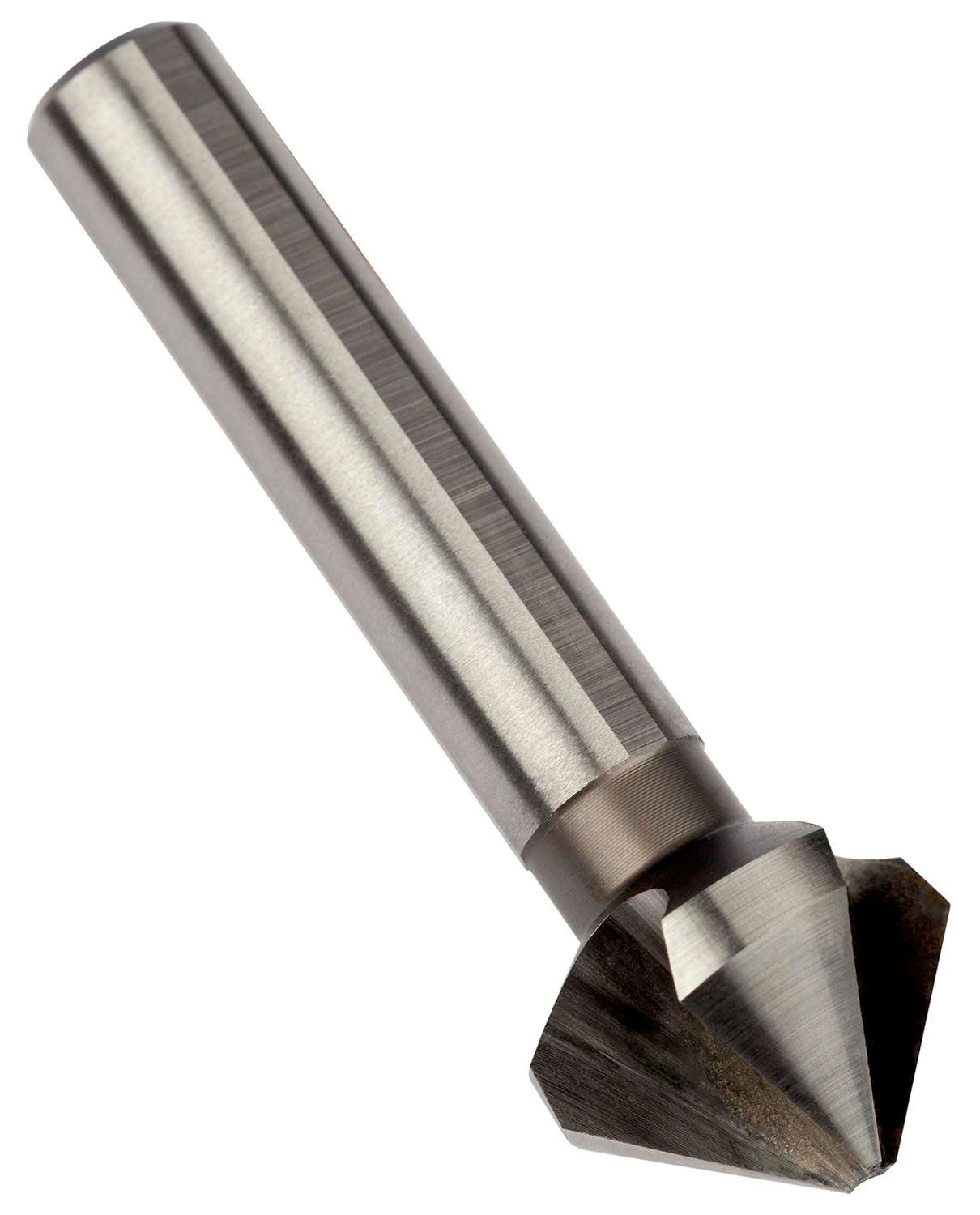

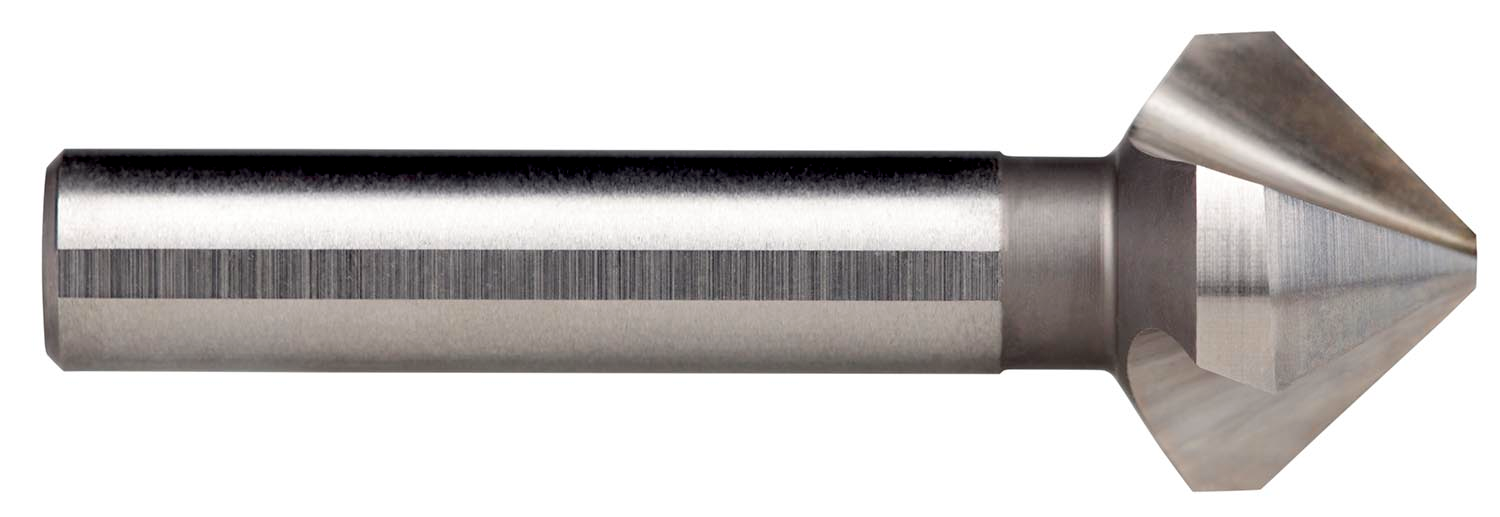

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 37.00mm with an overall length of 118mm and a head length of 21.2mm and 16mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Additional information

Weight 0.2728 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702666
Product number (SAP): 86031003
Ordering code ANSI: G10637.0
Gross weight – grams: 327.8

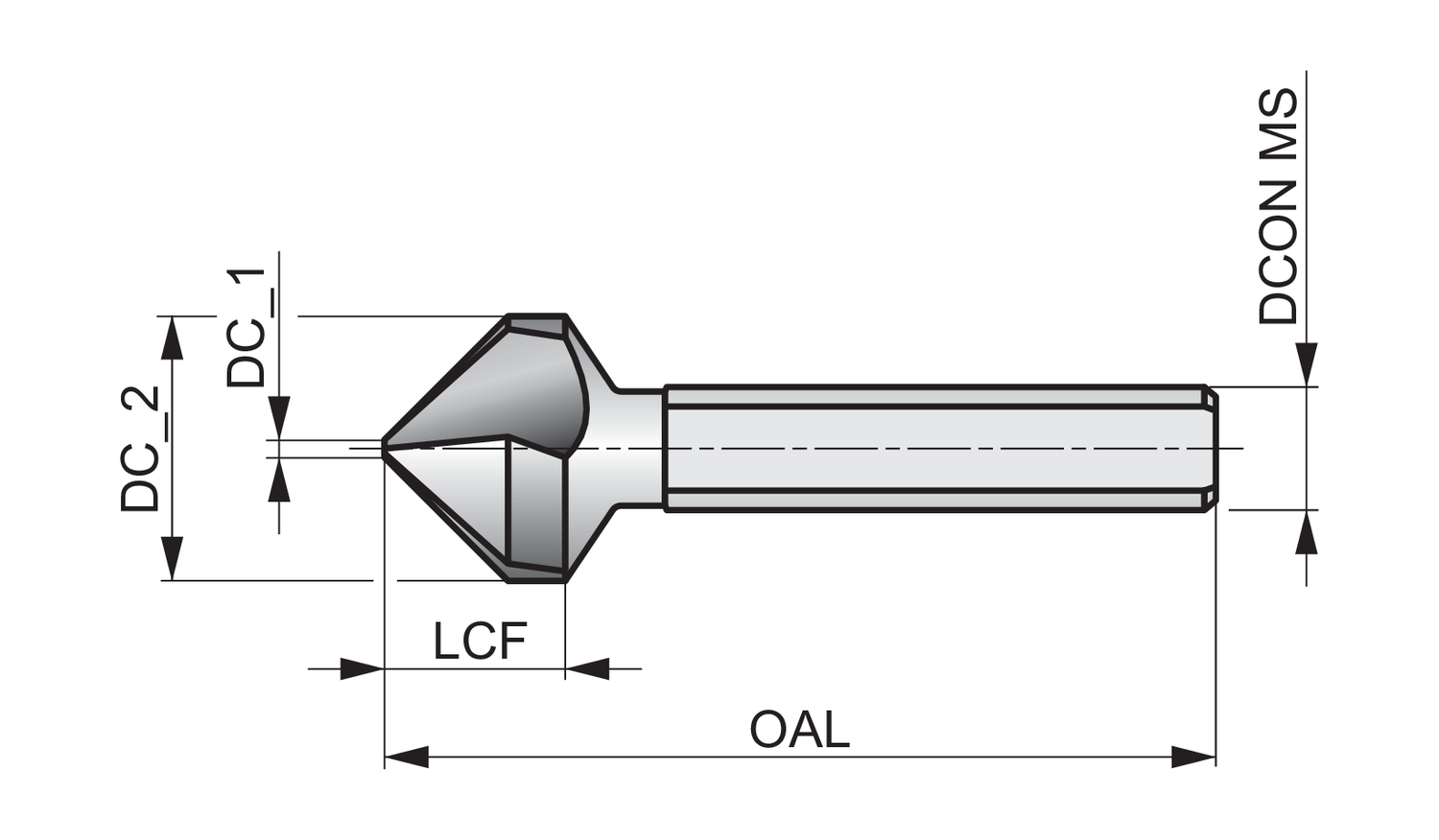

Cutting diameter second cutting step – millimeters (DC_2): 37 mm
Cutting diameter step – millimeter: 4.5 mm
Length chip flute – millimeter (LCF): 21.2 mm
Overall length – millimeter (OAL): 118 mm
Connection diameter – millimeter (DCON MS): 16 mm

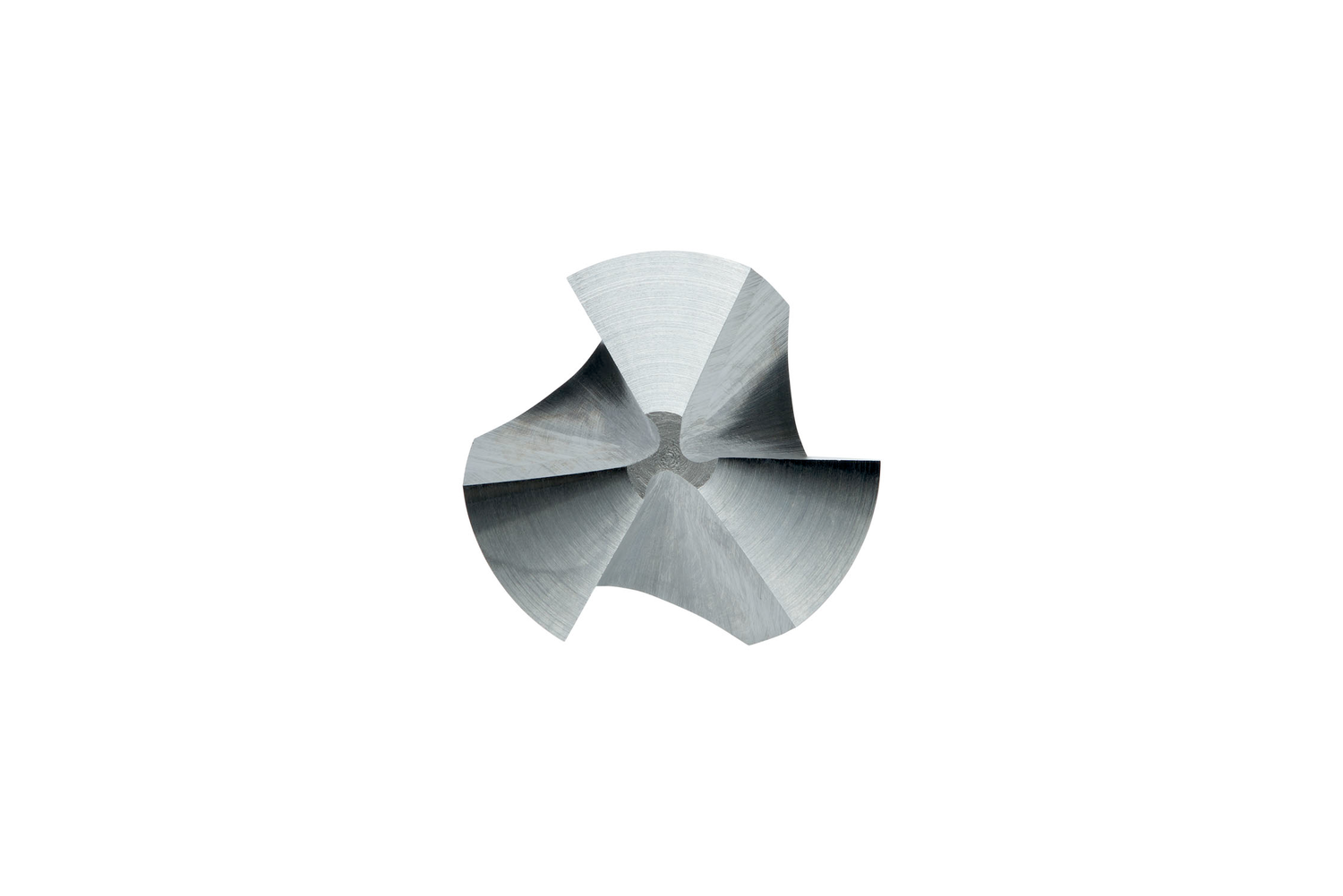

Flute count (NOF): 3
ISO: G10637.0

Brand

DORMER
