DORMER G1066.3 Countersinks / Bors

Product Code: G1066.3

$48.49$44.08 Ex. GST

Product Code: G1066.3 SKU G1066.3 Categories , ,
DORMER G1066.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

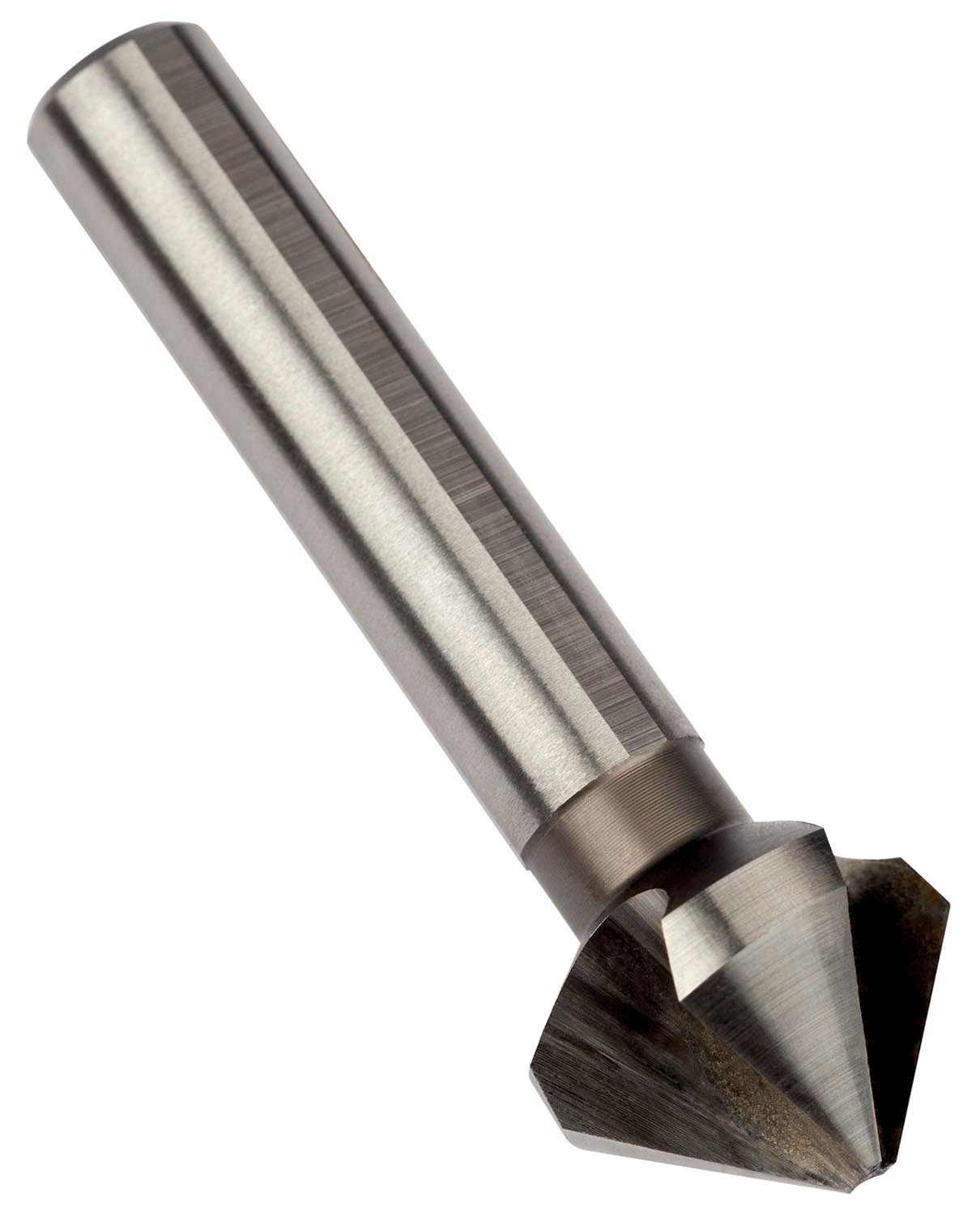

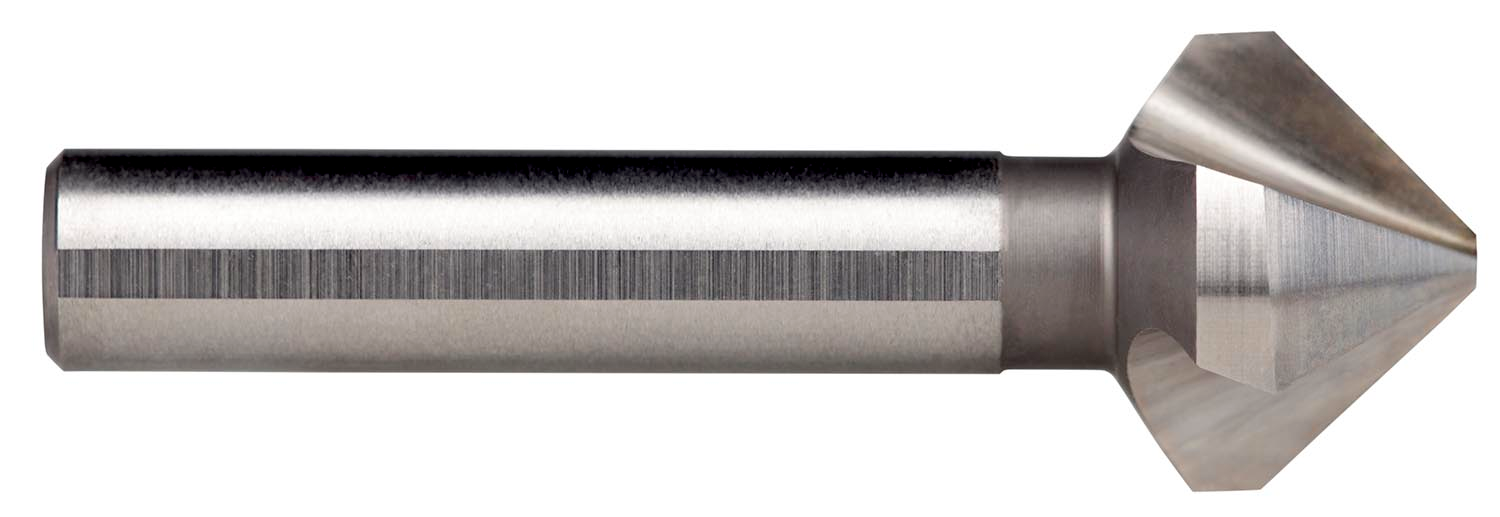

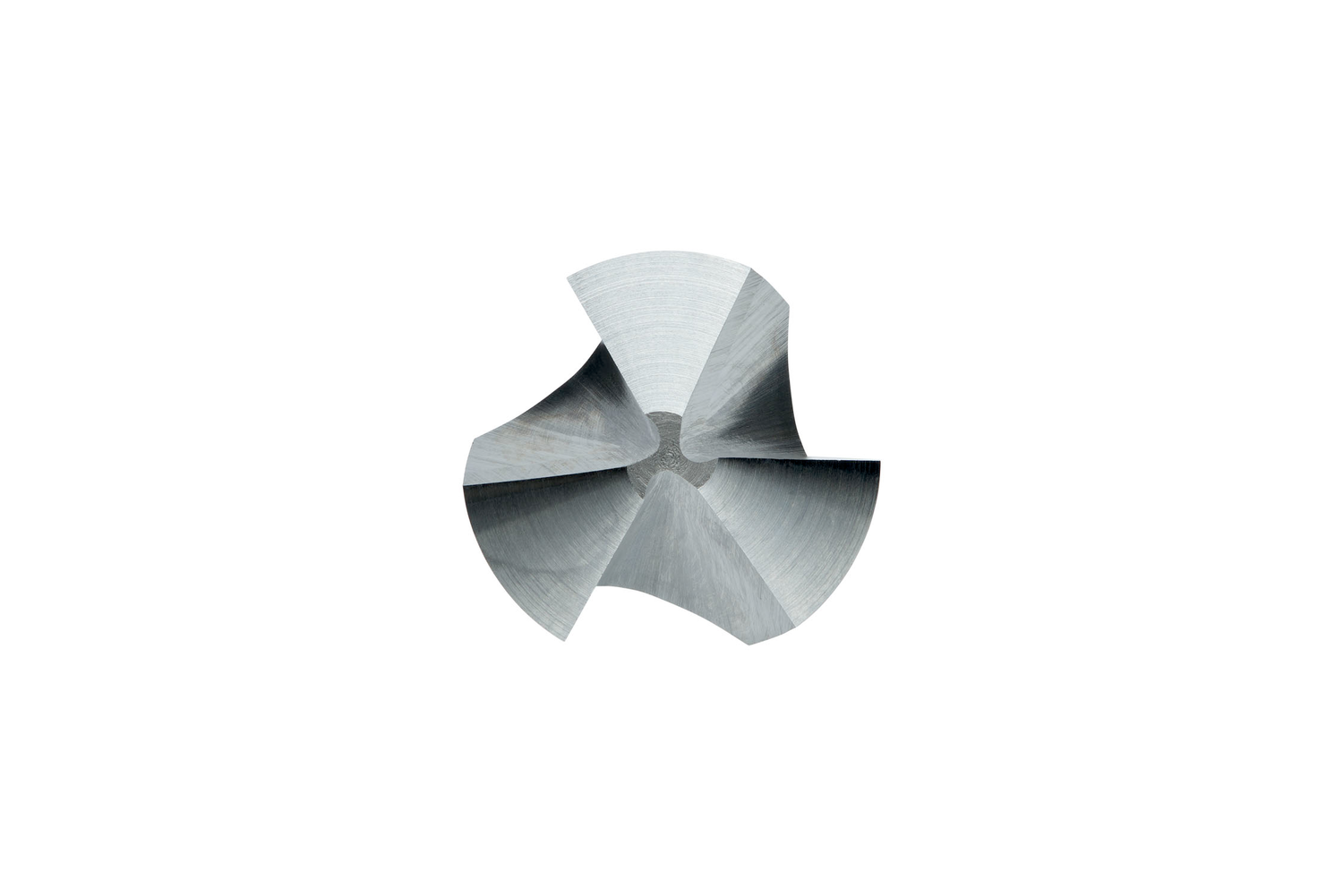

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.6mm and 5mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Additional information

Weight 0.0471 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702574
Product number (SAP): 86030994
Ordering code ANSI: G1066.3
Gross weight – grams: 9.4
Cutting diameter second cutting step – millimeters (DC_2): 6.3 mm
Cutting diameter step – millimeter: 1.5 mm
Length chip flute – millimeter (LCF): 5.6 mm
Overall length – millimeter (OAL): 45 mm
Connection diameter – millimeter (DCON MS): 5 mm
Flute count (NOF): 3
ISO: G1066.3

Brand

DORMER
