DORMER G1068.3 Countersinks / Bors

Product Code: G1068.3

$50.99$46.35 Ex. GST

Product Code: G1068.3 SKU G1068.3 Categories , ,
DORMER G1068.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

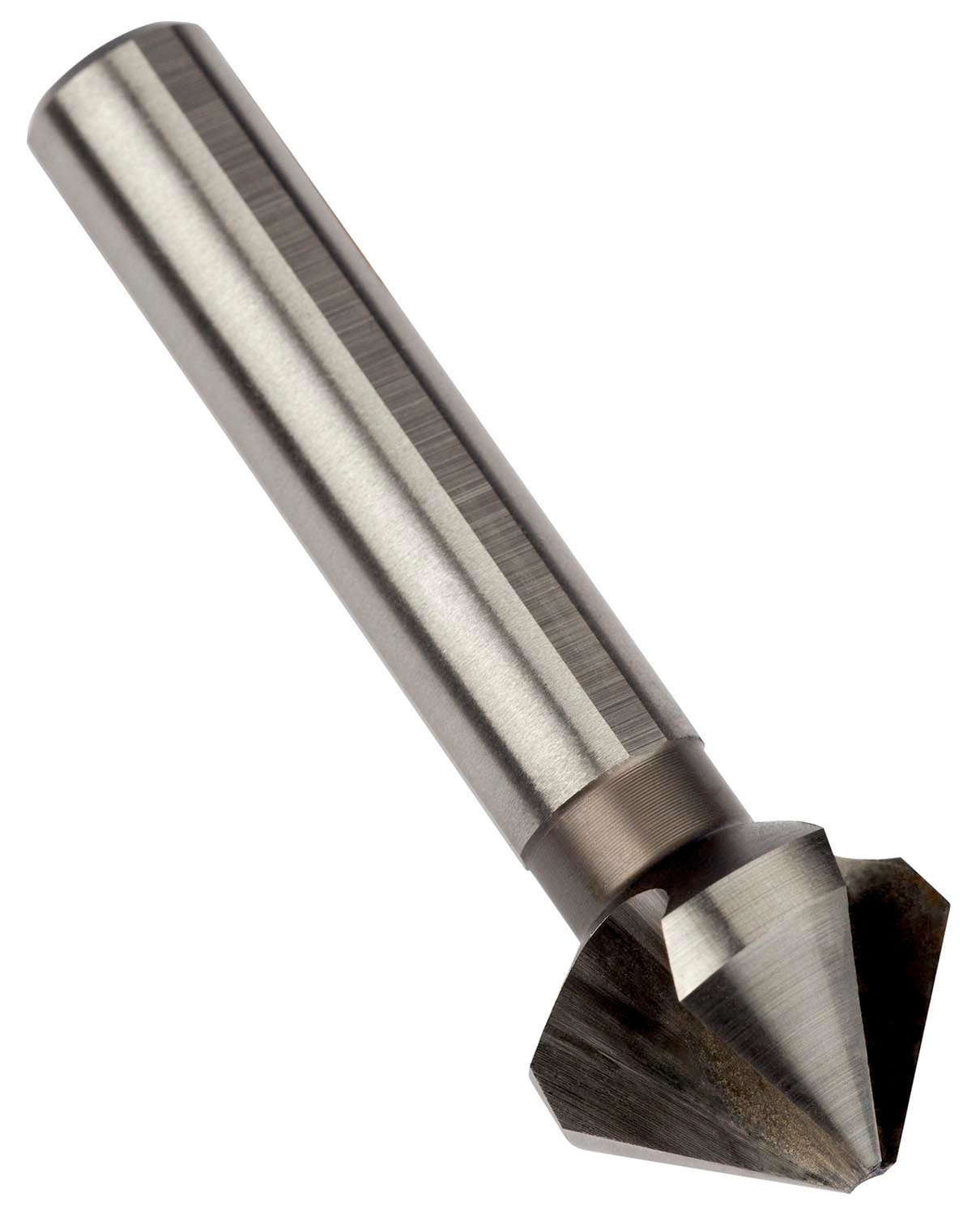

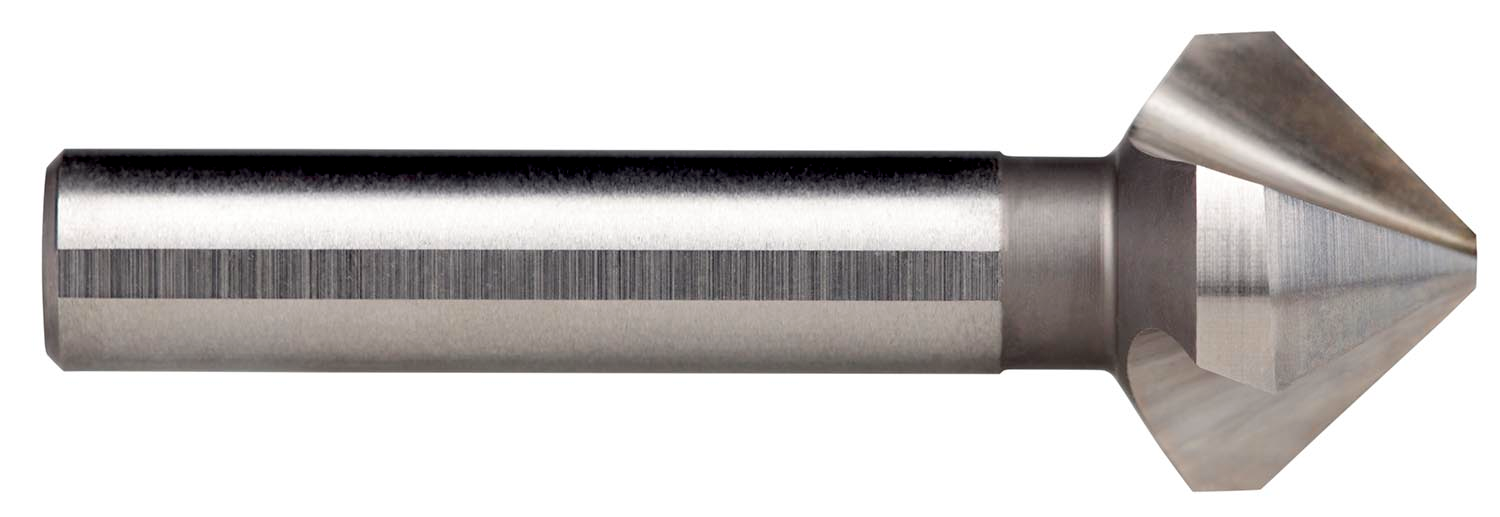

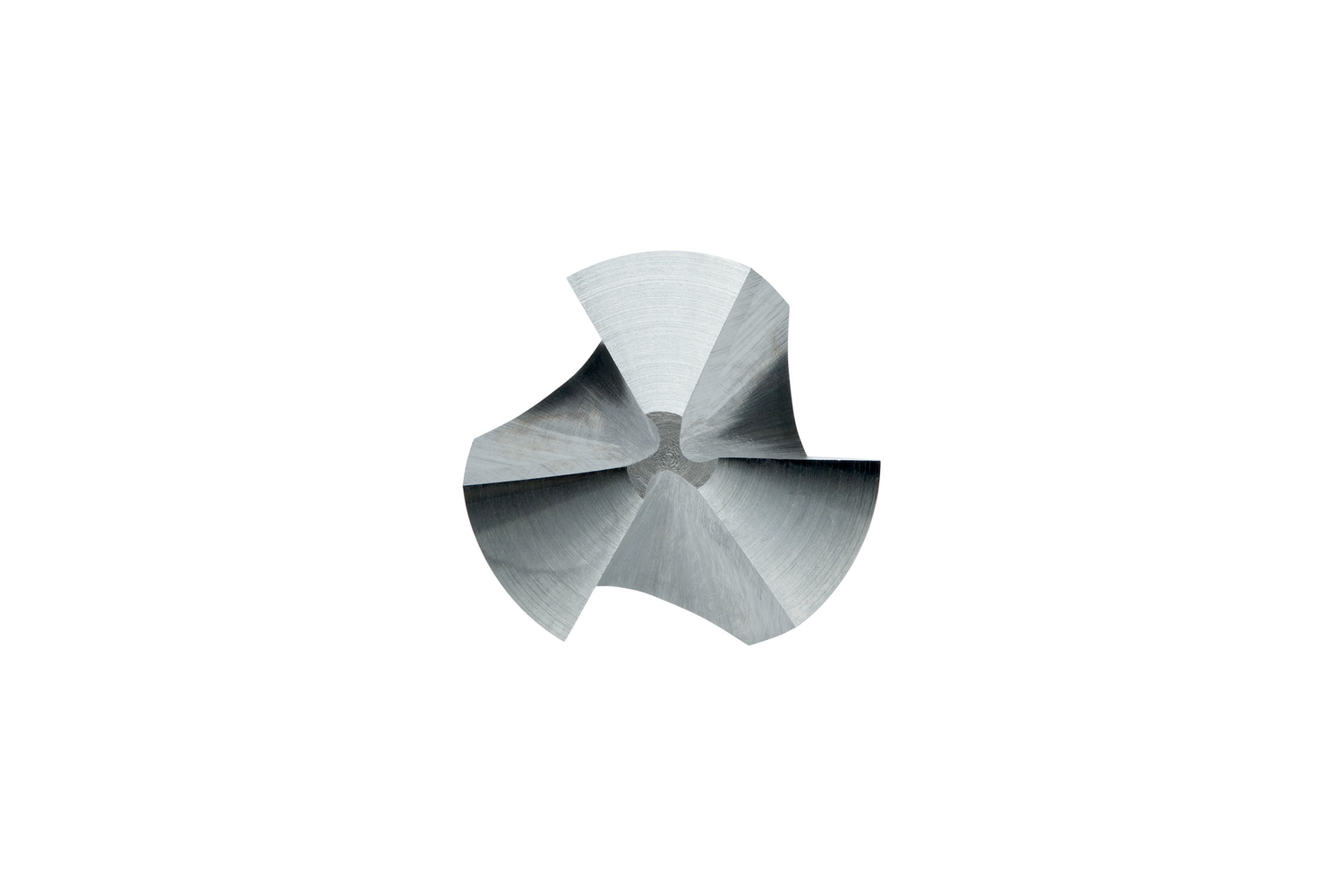

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30mm with an overall length of 50mm and a head length of 6.9mm and 6mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Additional information

Weight 0.0495 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702581
Product number (SAP): 86030995
Ordering code ANSI: G1068.3
Gross weight – grams: 16

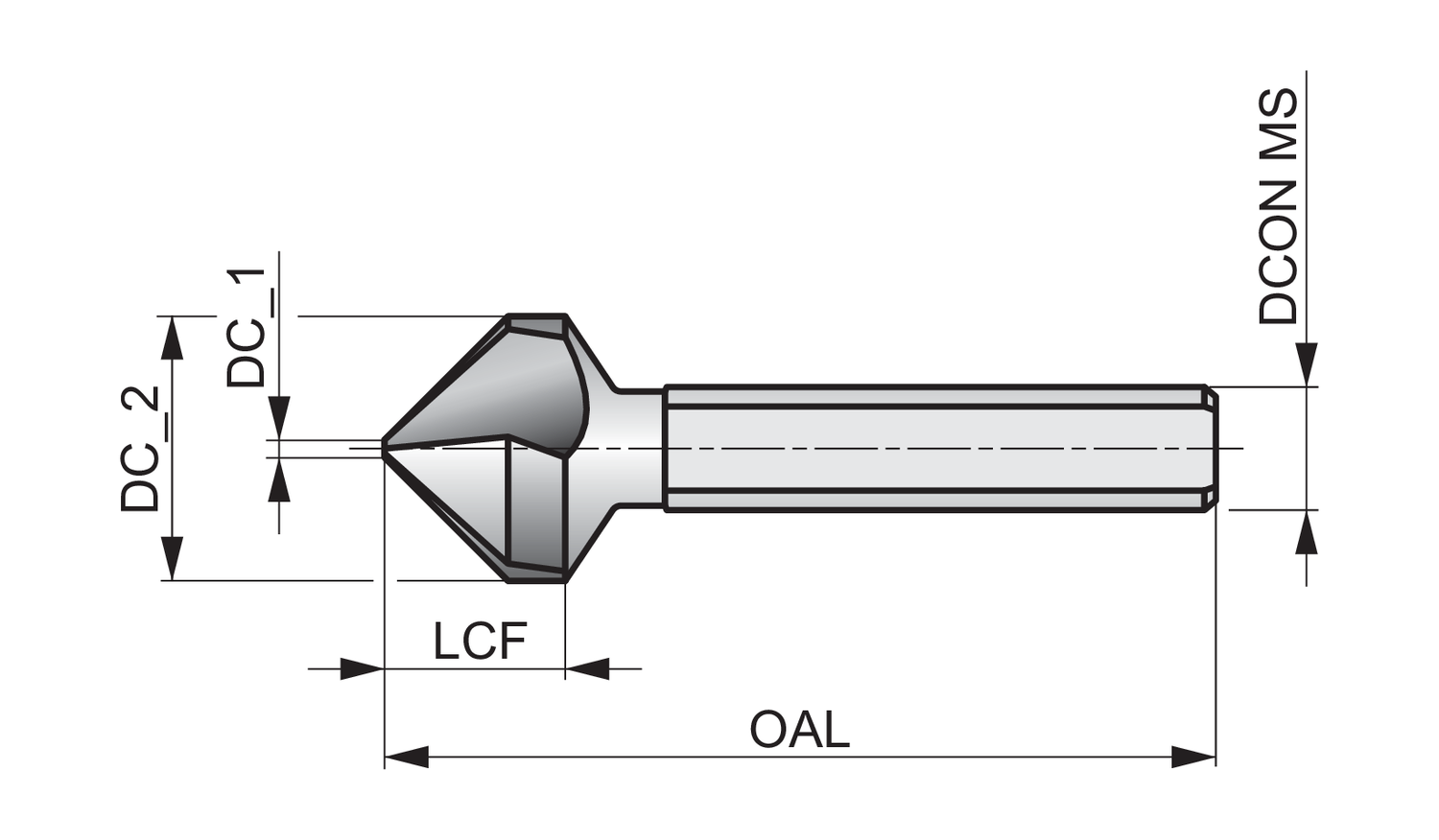

Cutting diameter second cutting step – millimeters (DC_2): 8.3 mm
Cutting diameter step – millimeter: 2 mm
Length chip flute – millimeter (LCF): 6.9 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: G1068.3

Brand

DORMER
