DORMER G10720.5 Countersinks / Bors

Product Code: G10720.5

$128.03$116.39 Ex. GST

Product Code: G10720.5 SKU G10720.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

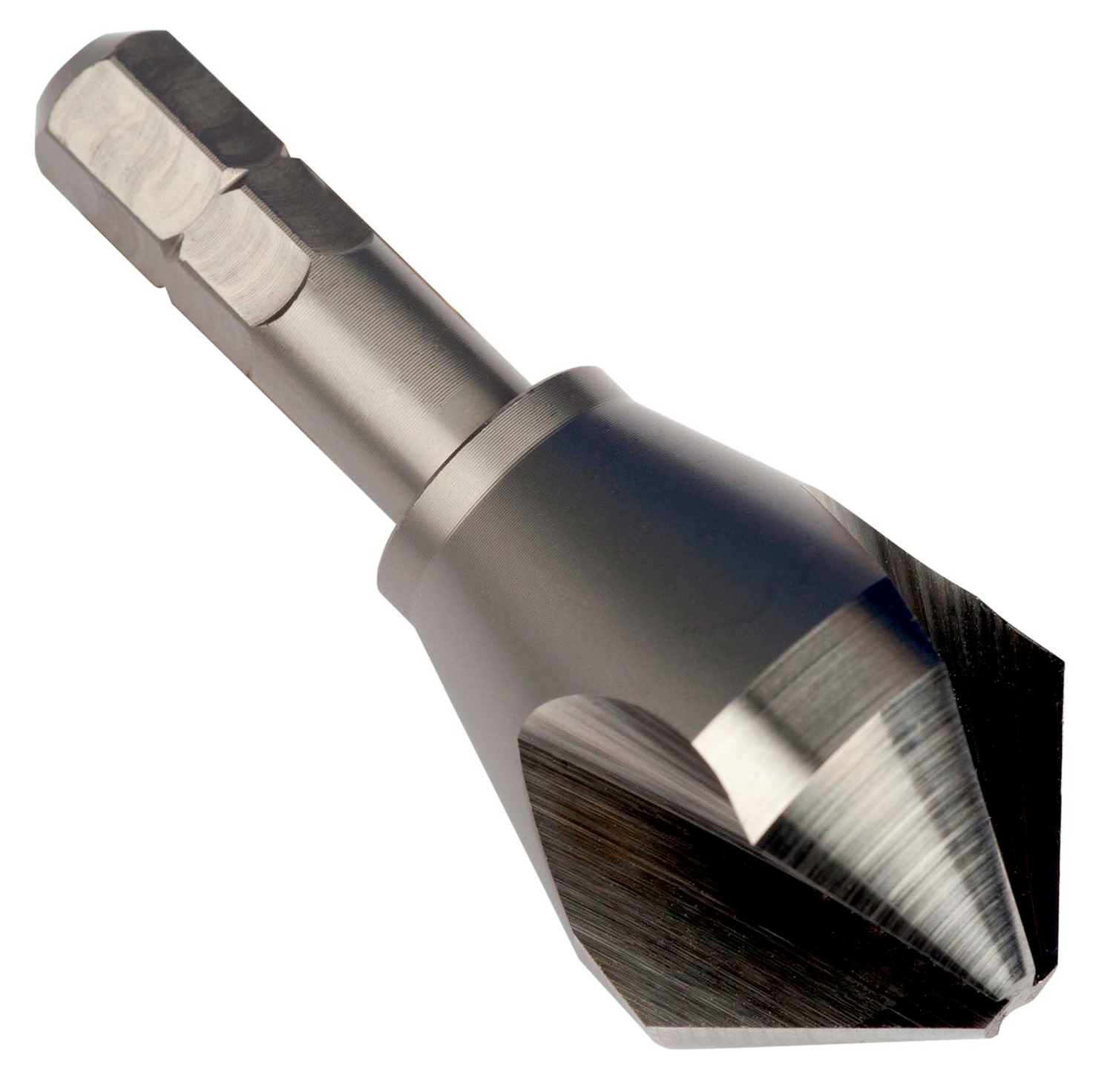

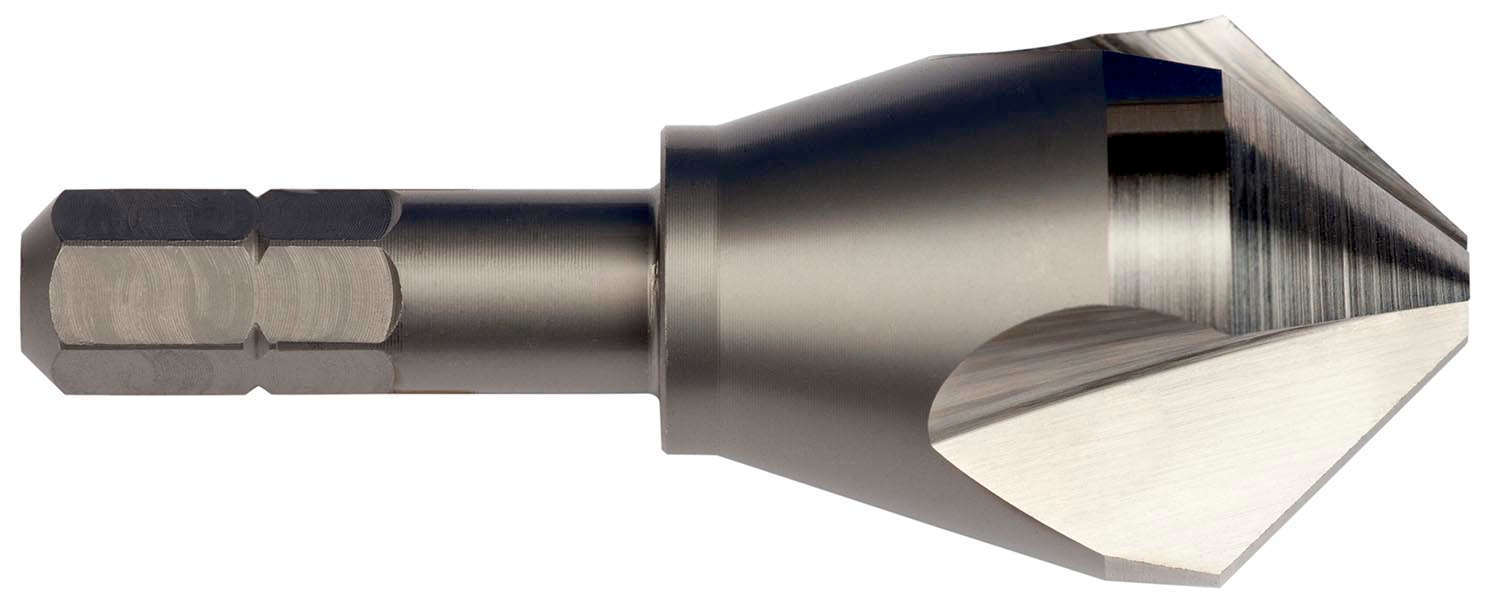

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50mm with an overall length of 50mm and 1/4″ hexagon drive, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50mm, cobalt based HSS-E with standard bright finish for machining steel and cast steel, copper or copper alloys

Additional information

Weight 0.1243 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702888
Product number (SAP): 86031025
Ordering code ANSI: G10720.5
Gross weight – grams: 48.6

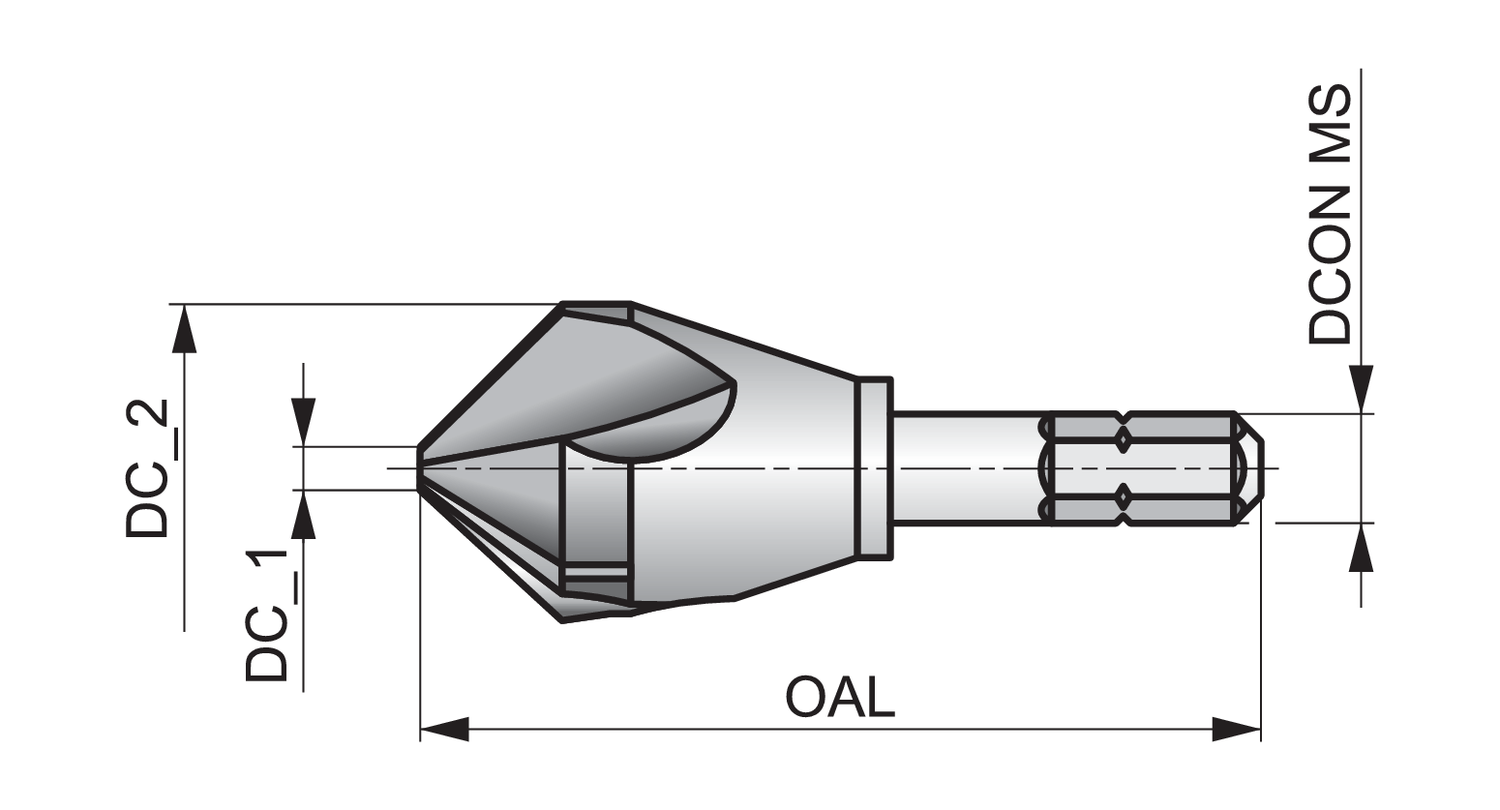

Cutting diameter second cutting step – millimeters (DC_2): 20.5 mm
Cutting diameter step – millimeter: 3.5 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – fractional inch (DCON MS): 1/4''
Connection size code machine side (CZC MS): M10
Flute count (NOF): 3
ISO: G10720.5

Brand

DORMER
