DORMER G1076.3 Countersinks / Bors

Product Code: G1076.3

$55.07$50.06 Ex. GST

Product Code: G1076.3 SKU G1076.3 Categories , ,
DORMER G1076.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

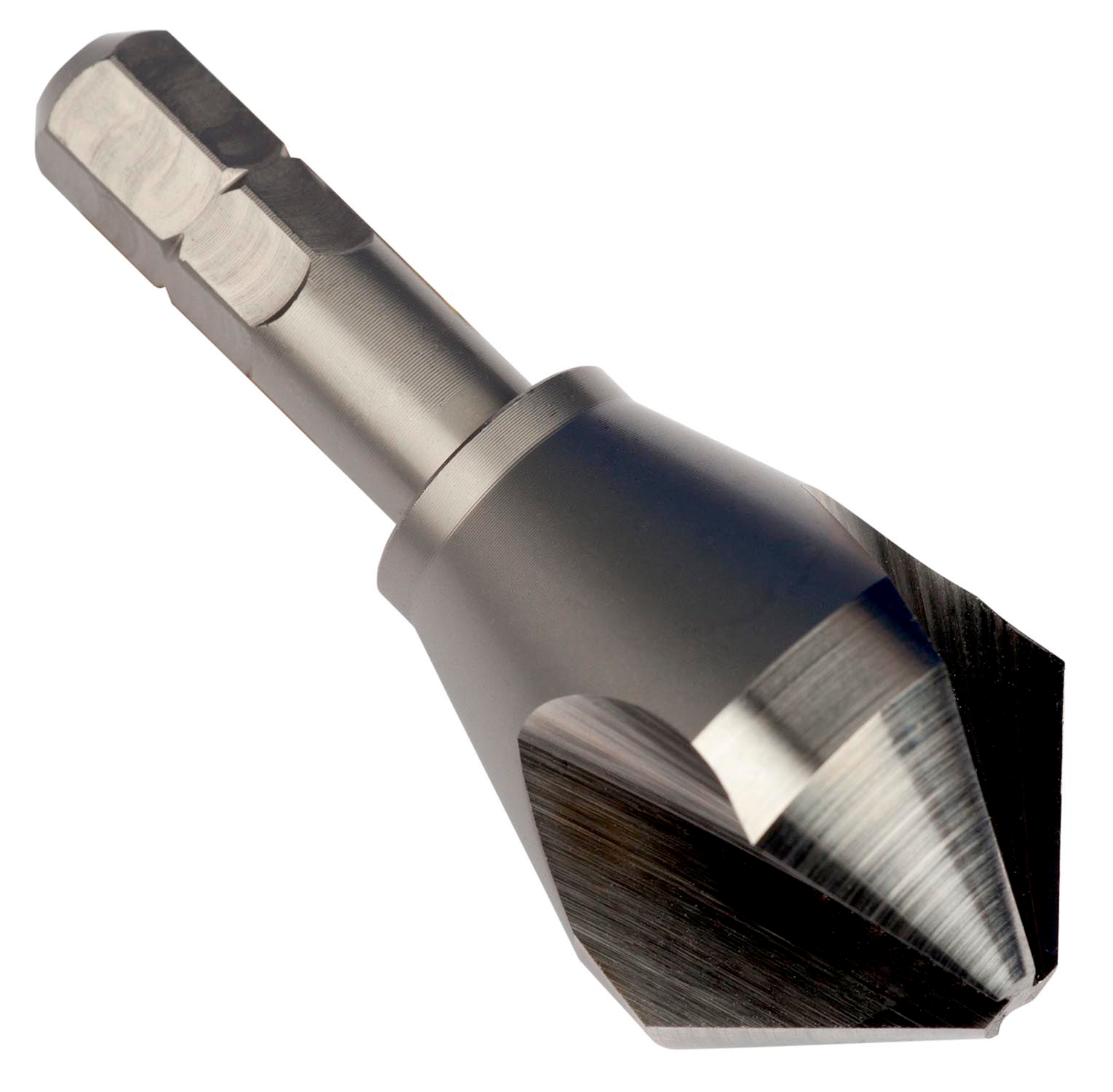

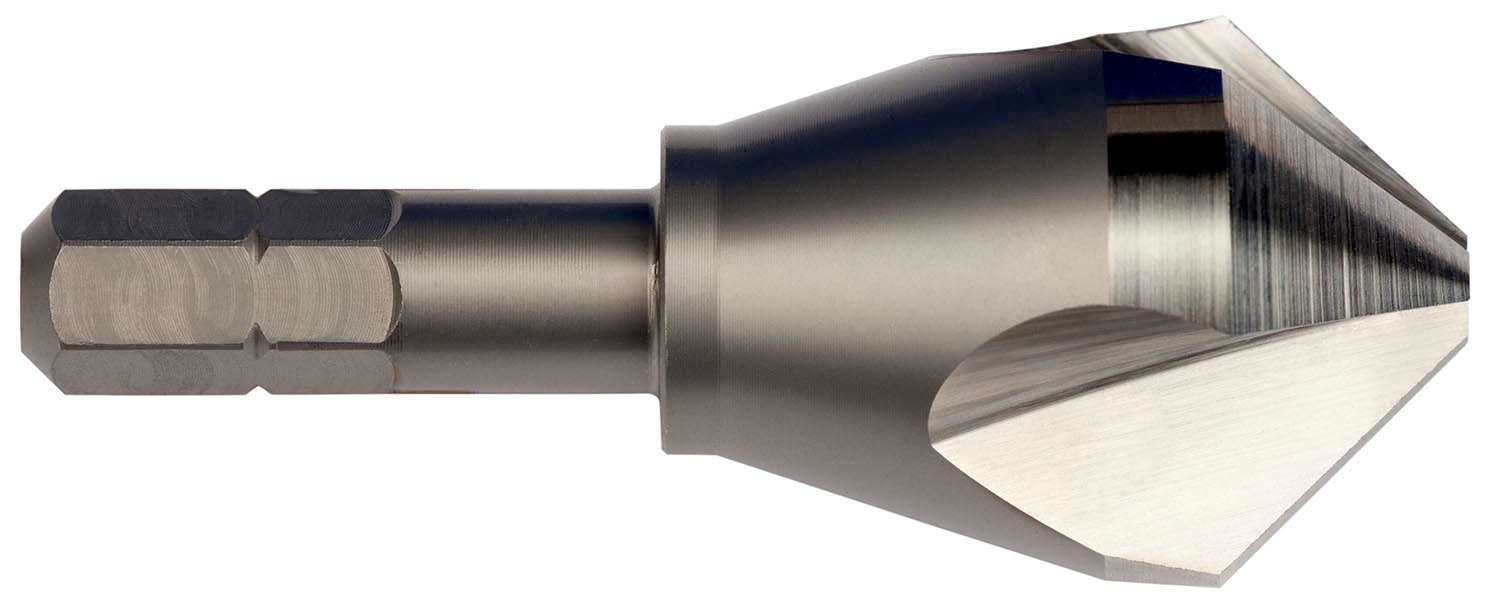

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 50mm and 1/4″ hexagon drive, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, cobalt based HSS-E with standard bright finish for machining steel and cast steel, copper or copper alloys

Additional information

Weight 0.0535 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760702833
Product number (SAP): 86031020
Ordering code ANSI: G1076.3
Gross weight – grams: 14

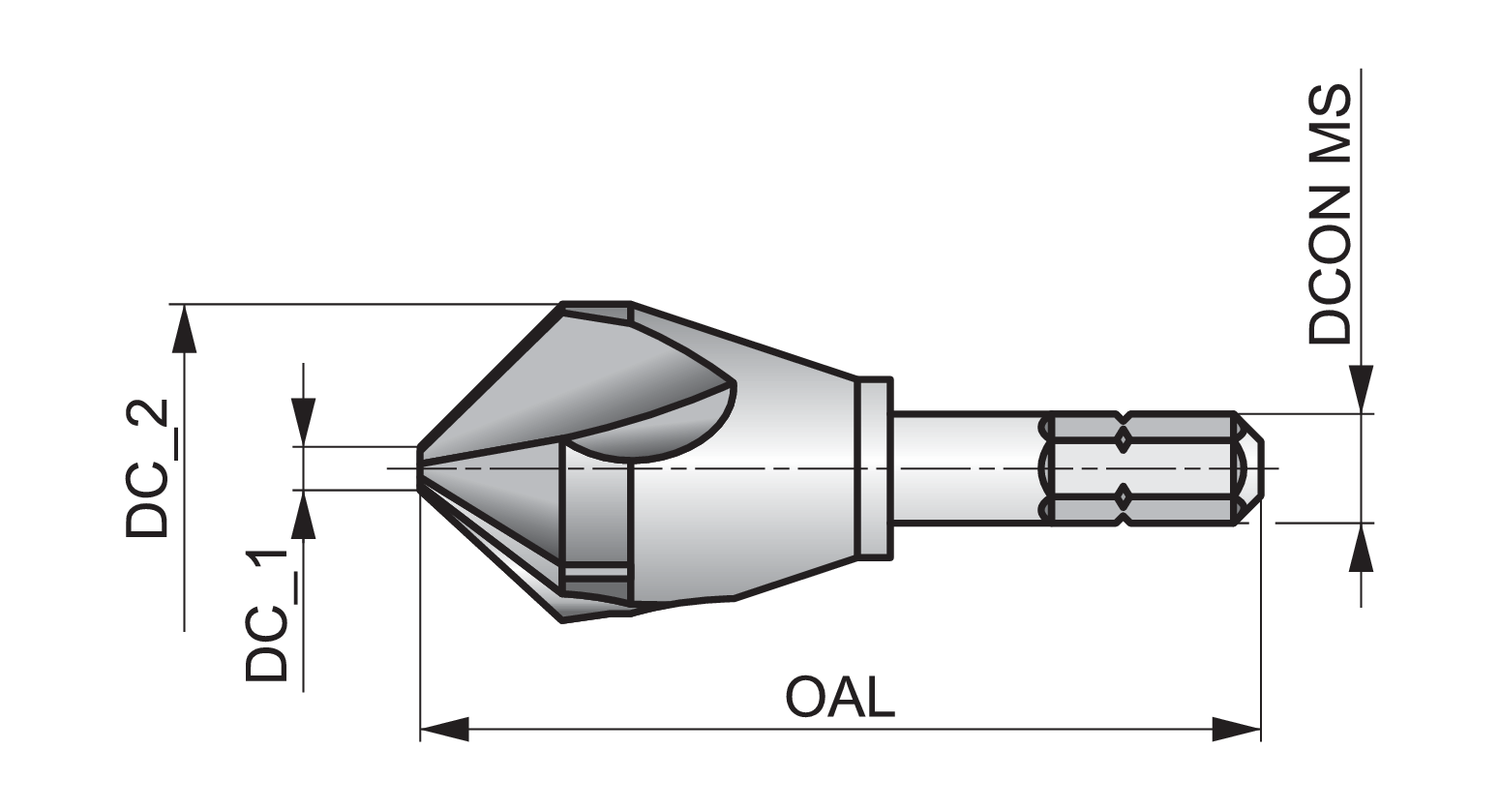

Cutting diameter second cutting step – millimeters (DC_2): 6.3 mm
Cutting diameter step – millimeter: 1.5 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – fractional inch (DCON MS): 1/4''
Connection size code machine side (CZC MS): M2-M3
Flute count (NOF): 3
ISO: G1076.3

Brand

DORMER
