DORMER G12510.0X5.3 Countersinks / Bors

Product Code: G12510.0X5.3

$55.52$50.47 Ex. GST

Product Code: G12510.0X5.3 SKU G12510.0X5.3 Categories , ,
DORMER G12510.0X5.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

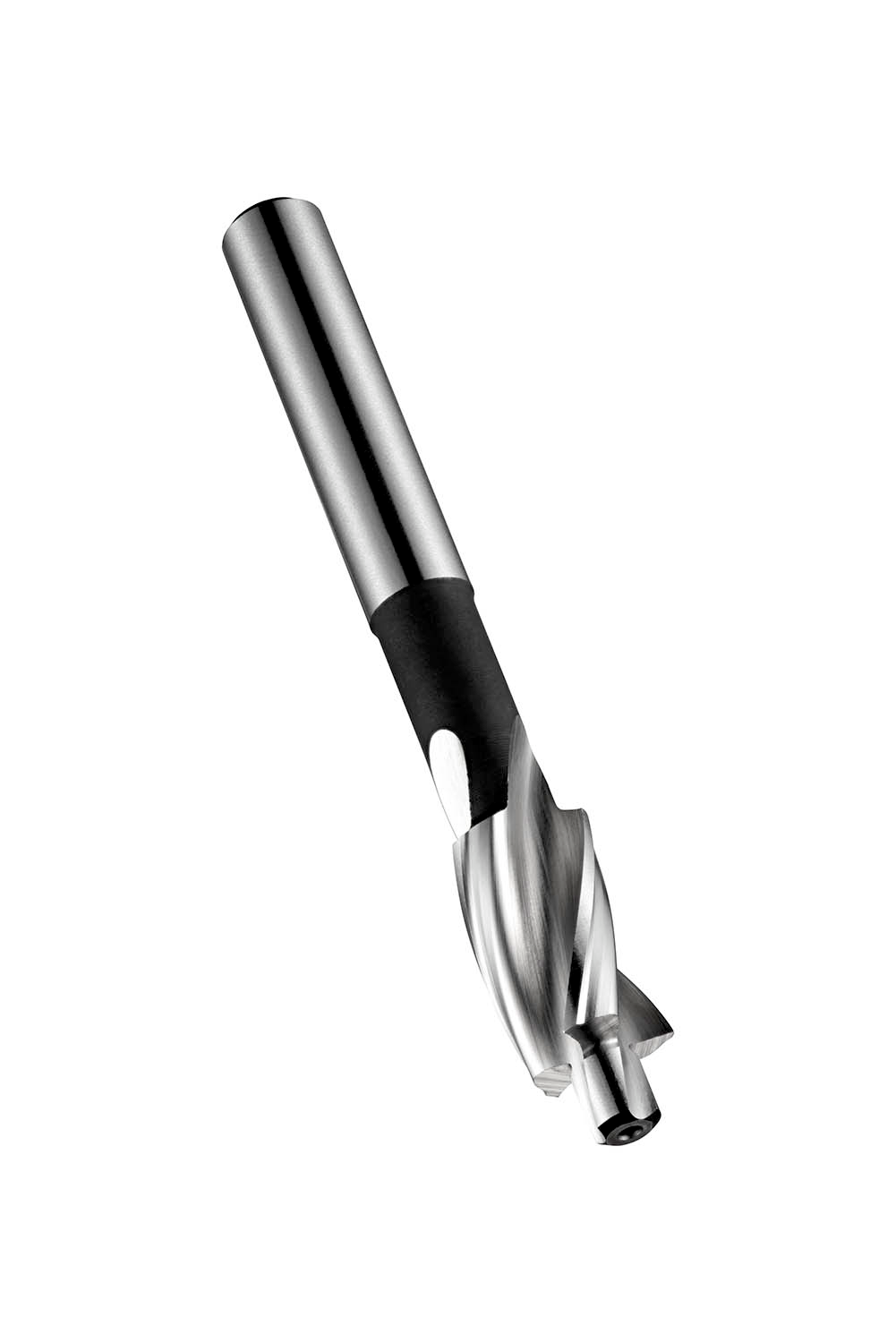

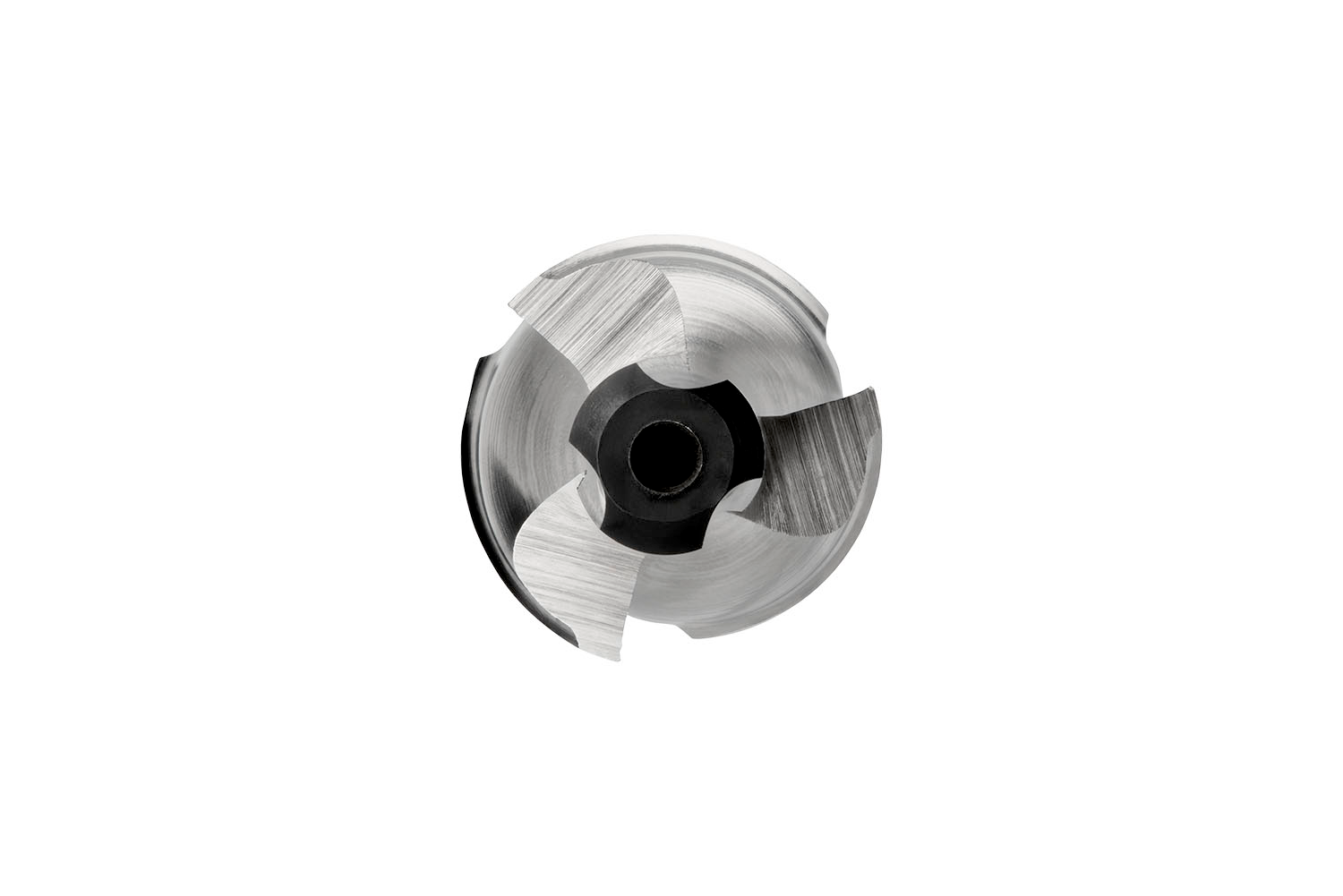

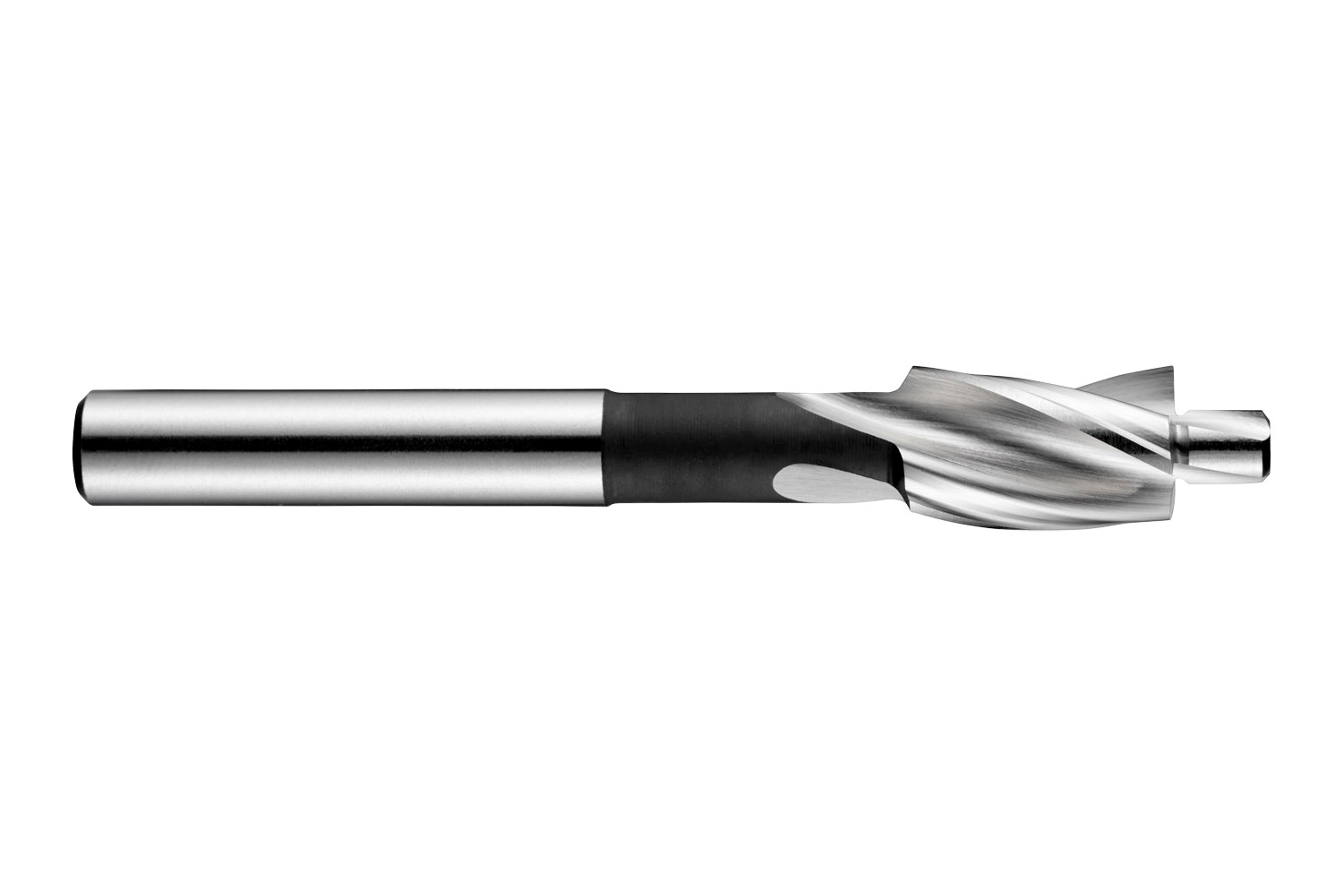

Counterbore with 3-flutes, diameter 10.00mm with an overall length of 80mm and a flute length of 18mm and 8mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 5.30mm for a close fit clearance for M5, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight 0.0539 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760107614
Product number (SAP): 86018127
Ordering code ANSI: G12510.0X5.3
Gross weight – grams: 29.3

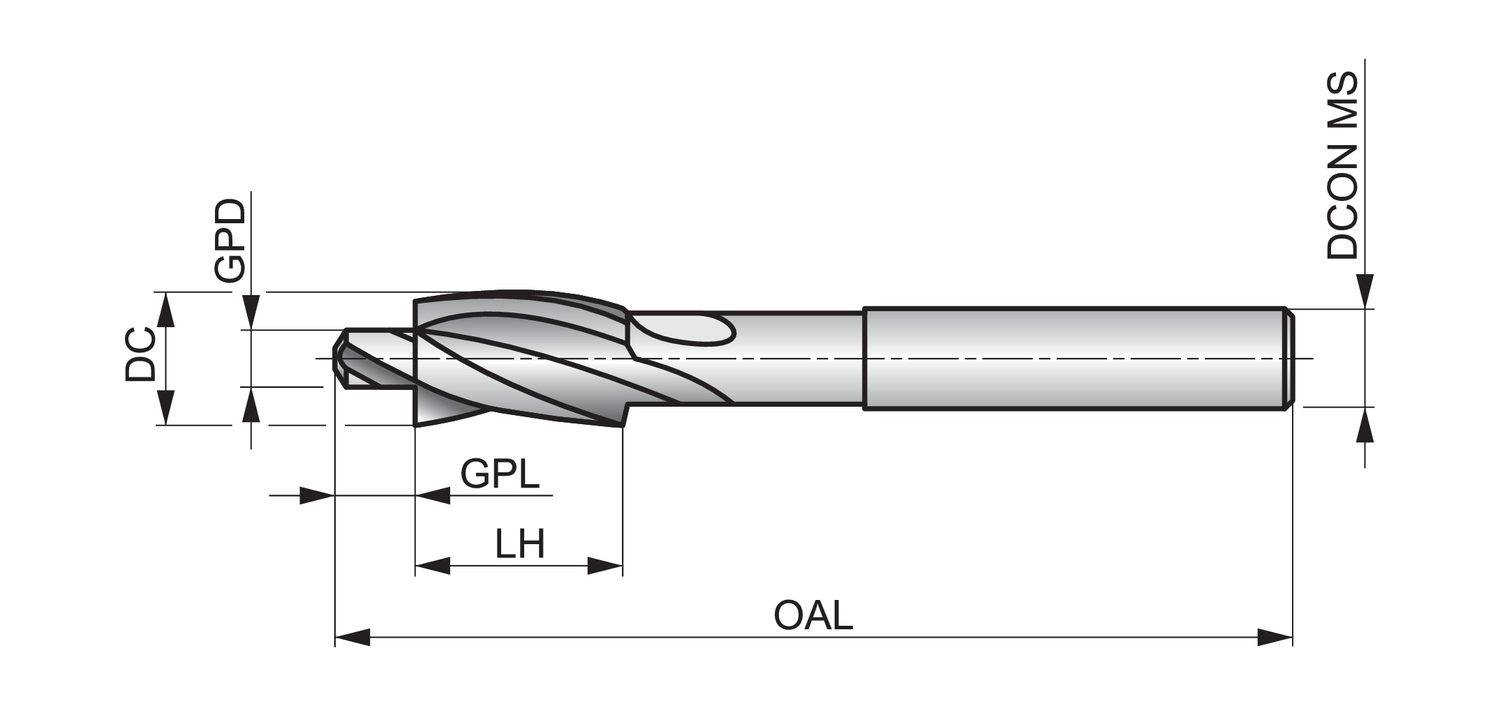

Cutting diameter – millimeter (DC): 10 mm
Guide Pilot Diameter – millimeter (GPD): 5.3 mm
Connection size code machine side (CZC MS): M 5 f
Guide Pilot Length – millimeter (GPL): 5.5 mm
Overall length – millimeter (OAL): 80 mm
Head length – millimeter (LH): 18 mm
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
ISO: G12510.0X5.3

Brand

DORMER
