DORMER G12520.0X13.5 Countersinks / Bors

Product Code: G12520.0X13.5

$122.36$111.24 Ex. GST

Product Code: G12520.0X13.5 SKU G12520.0X13.5 Categories , ,
DORMER G12520.0X13.5 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

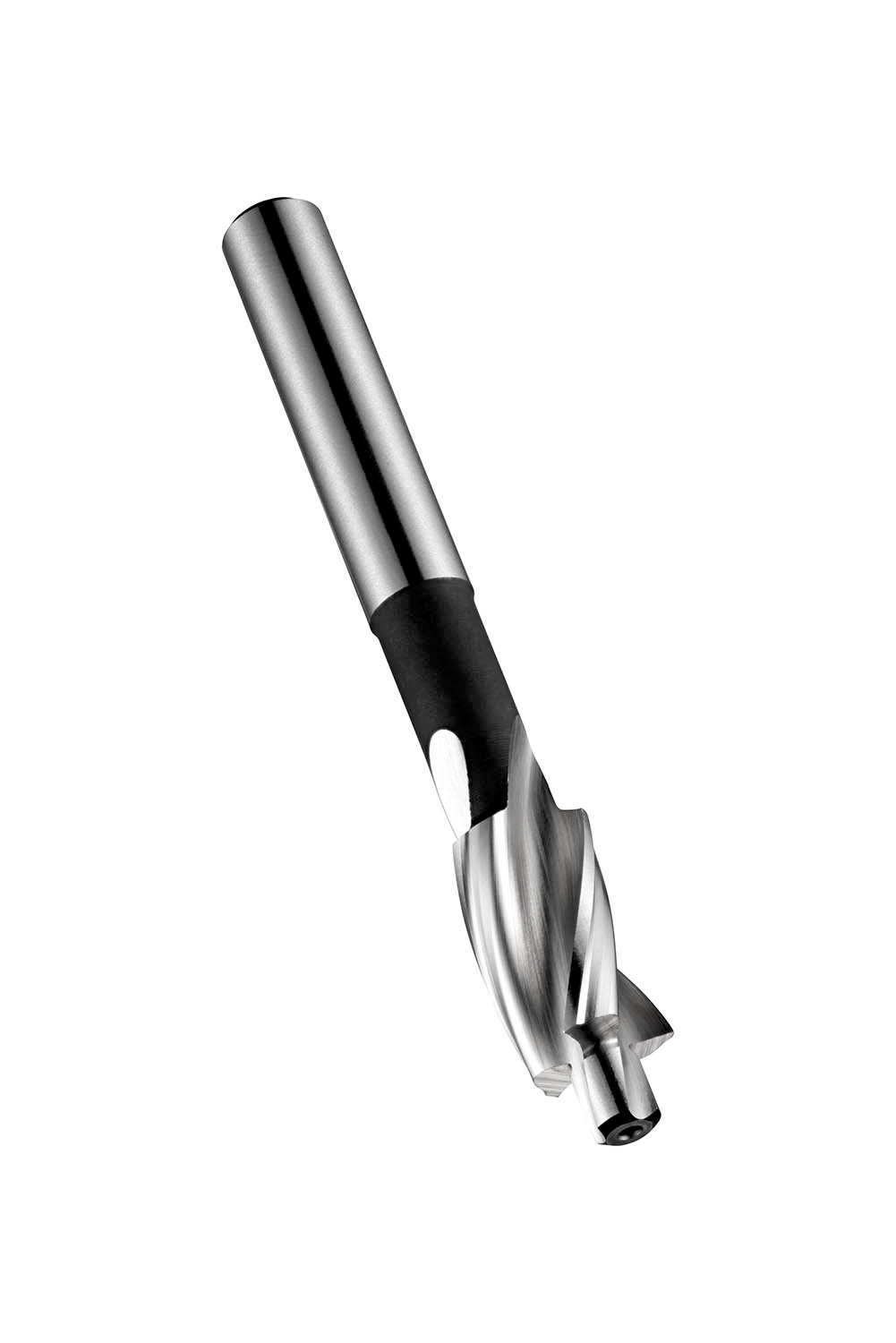

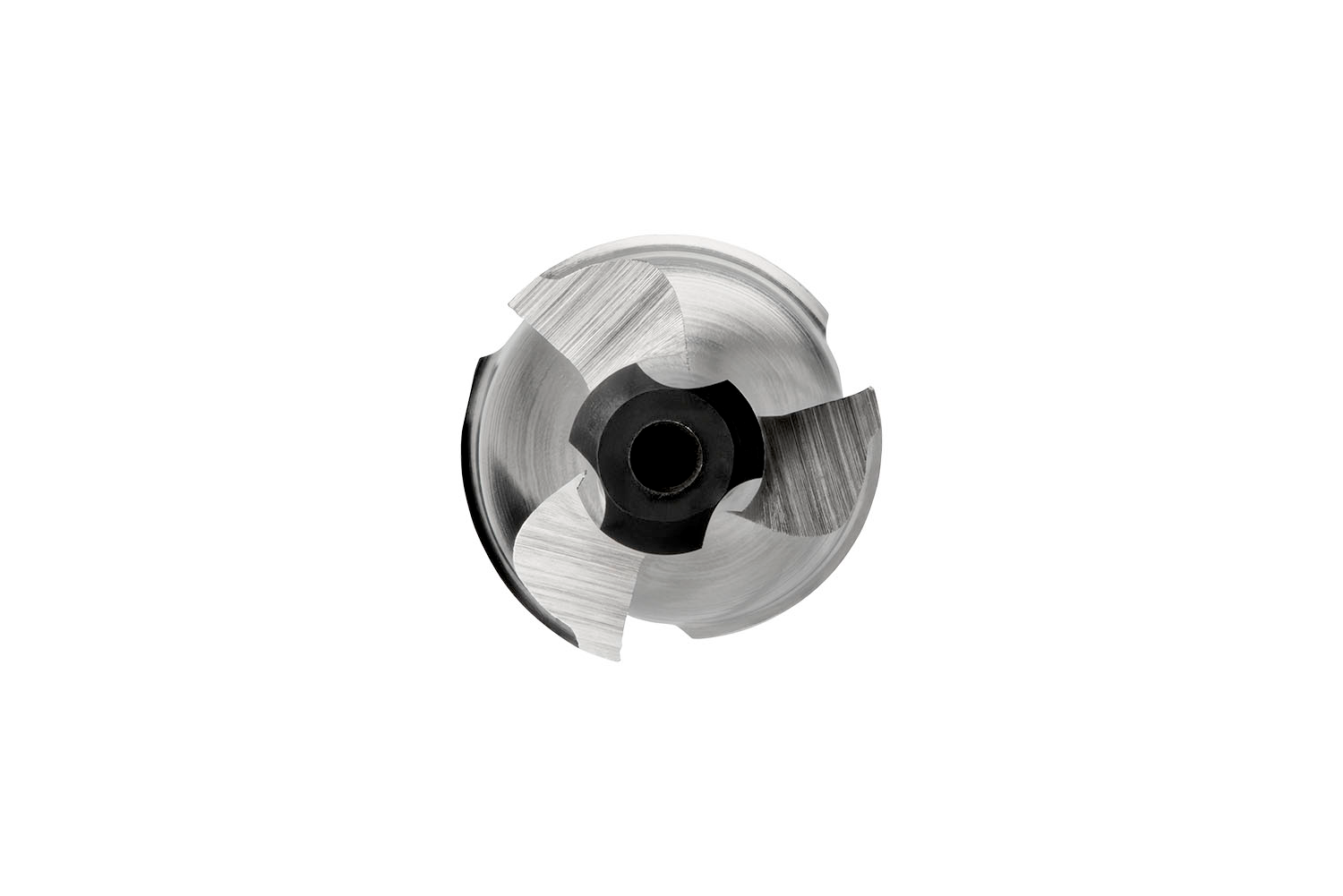

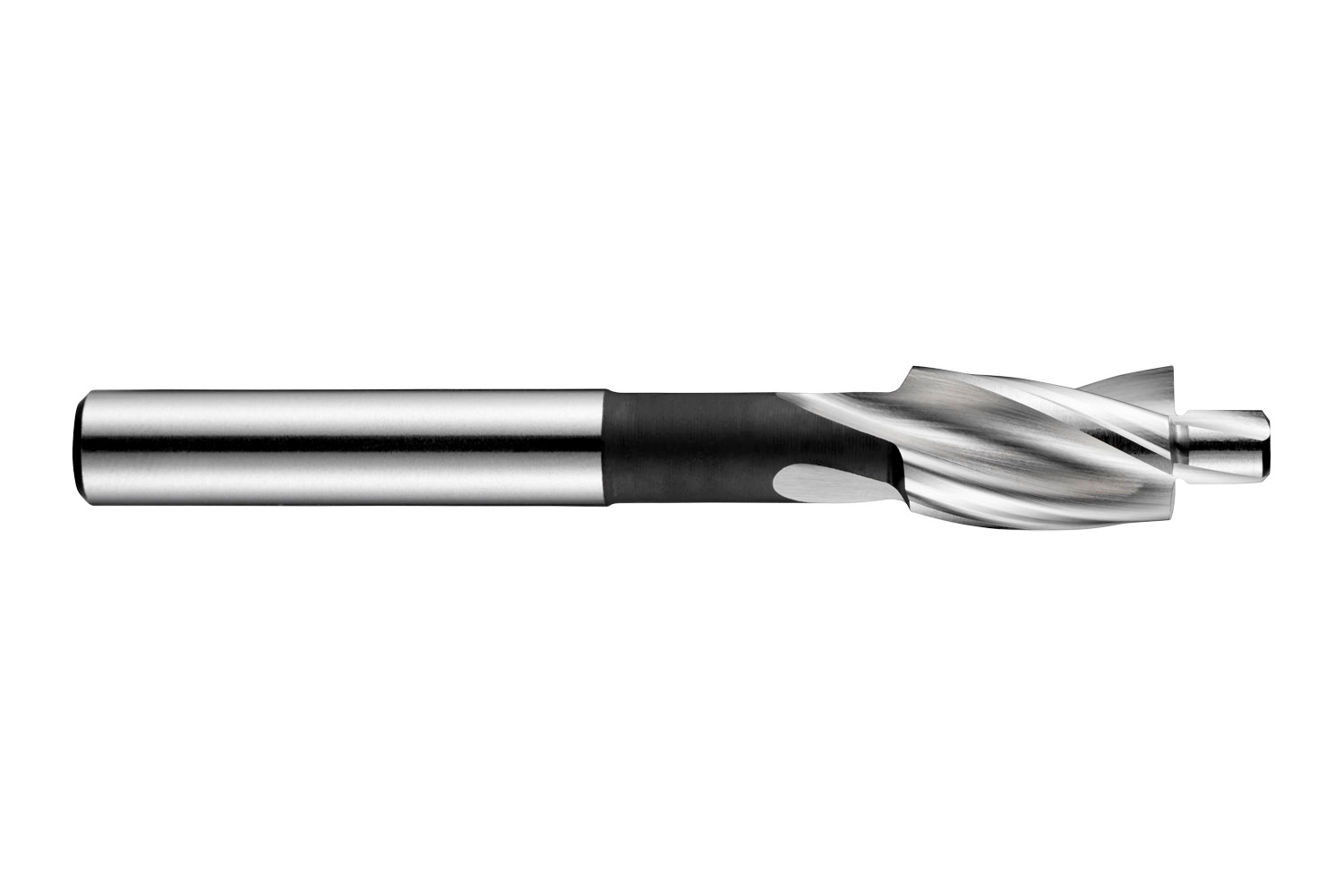

Counterbore with 3-flutes, diameter 20.00mm with an overall length of 100mm and a flute length of 22mm and 12.5mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 13.50mm for normal fit clearance for M12, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight 0.1188 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760107744
Product number (SAP): 86018140
Ordering code ANSI: G12520.0X13.5
Gross weight – grams: 107.2

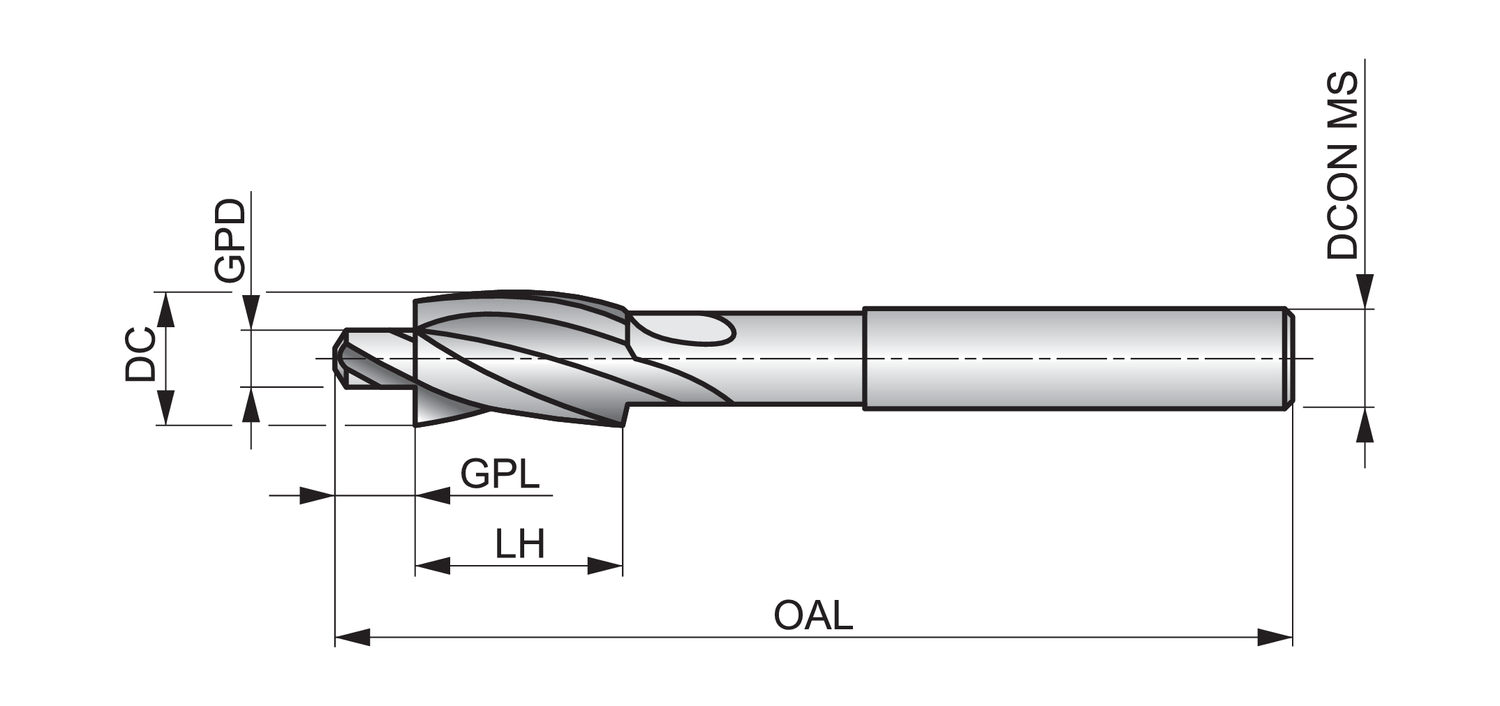

Cutting diameter – millimeter (DC): 20 mm
Guide Pilot Diameter – millimeter (GPD): 13.5 mm
Connection size code machine side (CZC MS): M 12 m
Guide Pilot Length – millimeter (GPL): 10 mm
Overall length – millimeter (OAL): 100 mm
Head length – millimeter (LH): 22 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Flute count (NOF): 3
ISO: G12520.0X13.5

Brand

DORMER
