DORMER G12916.0 Countersinks / Bors

Product Code: G12916.0

$64.02$58.20 Ex. GST

Product Code: G12916.0 SKU G12916.0 Categories , ,
DORMER G12916.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

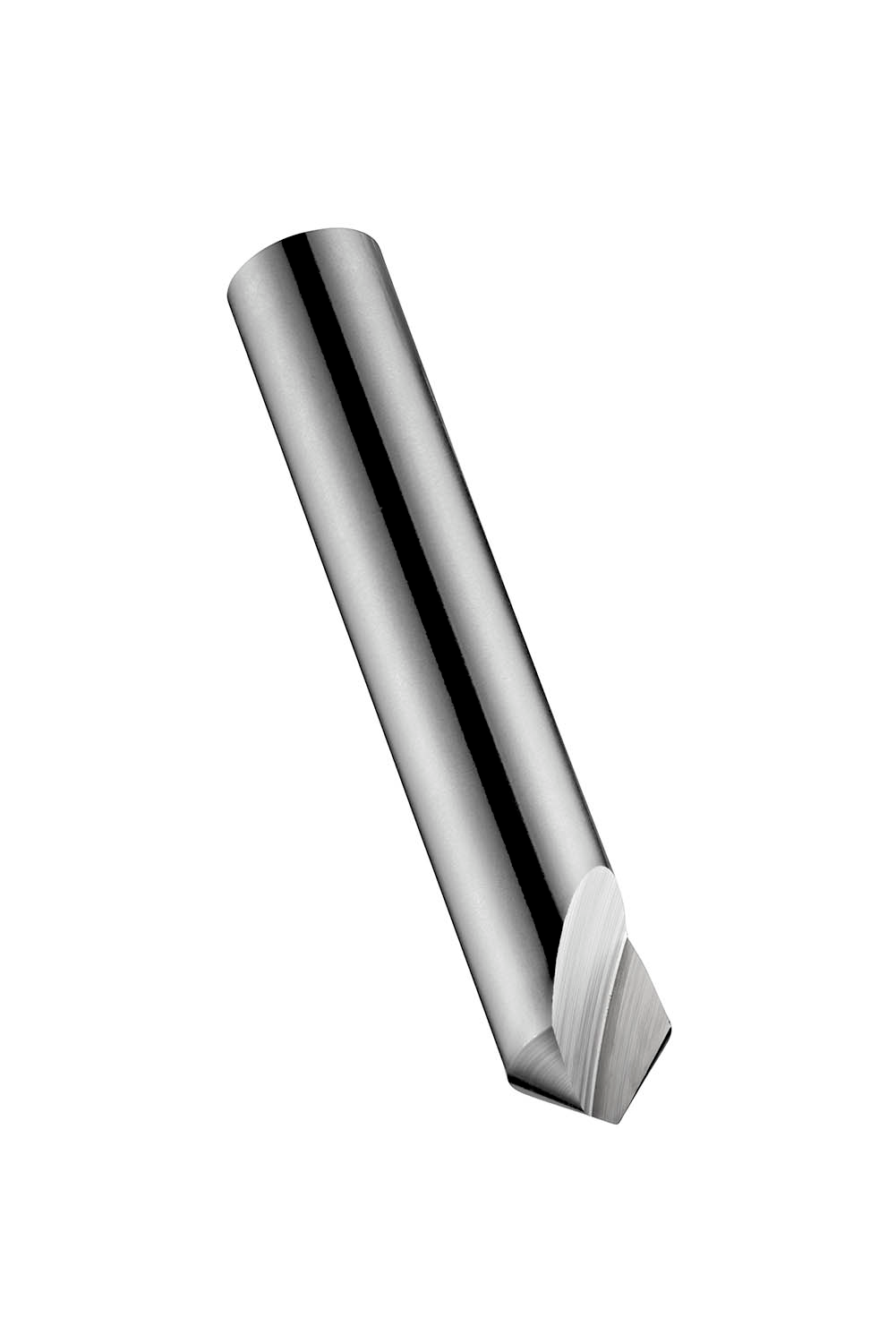

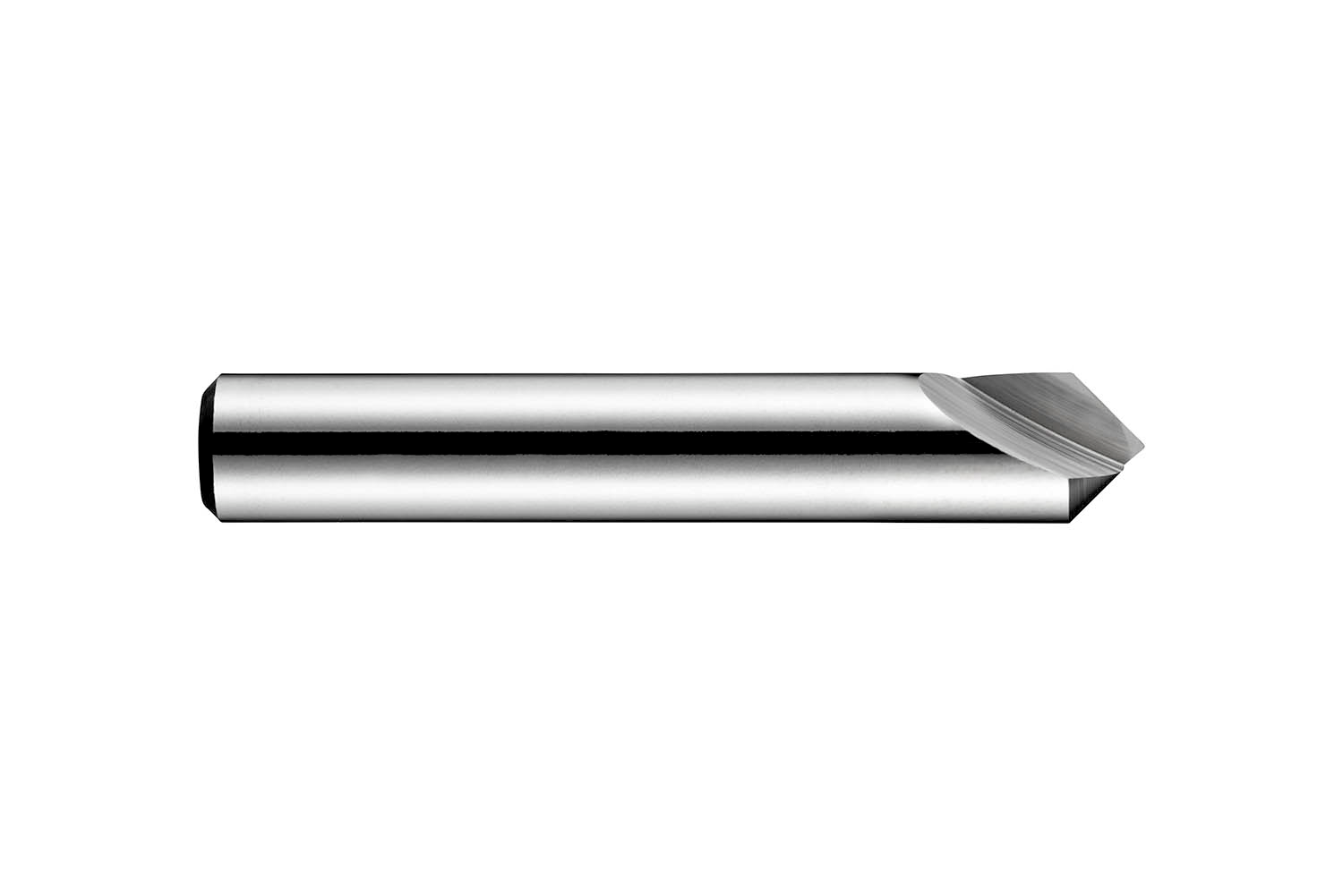

Countersink with 1-flute, 90° chamfering angle, maximum diameter 16.00mm with an overall length of 56mm and a head length of 20mm and 10mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight 0.0622 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760149232
Product number (SAP): 86018149
Ordering code ANSI: G12916.0
Gross weight – grams: 49.3

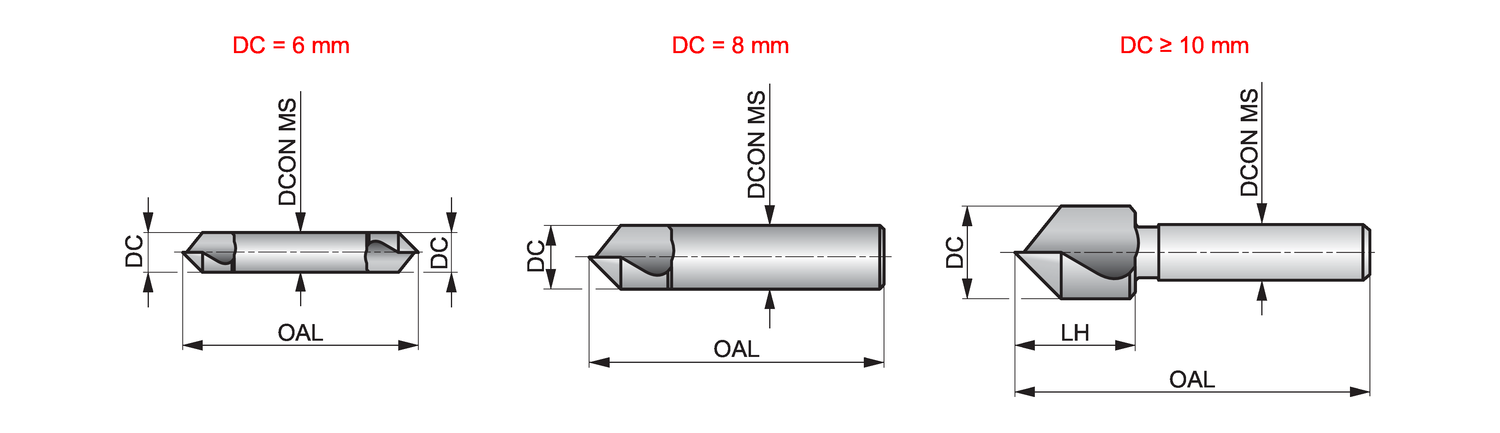

Cutting diameter – millimeter (DC): 16 mm
Head length – millimeter (LH): 20 mm
Overall length – millimeter (OAL): 56 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 1
ISO: G12916.0

Brand

DORMER
