DORMER G12925.0 Countersinks / Bors

Product Code: G12925.0

$125.76$114.33 Ex. GST

Product Code: G12925.0 SKU G12925.0 Categories , ,

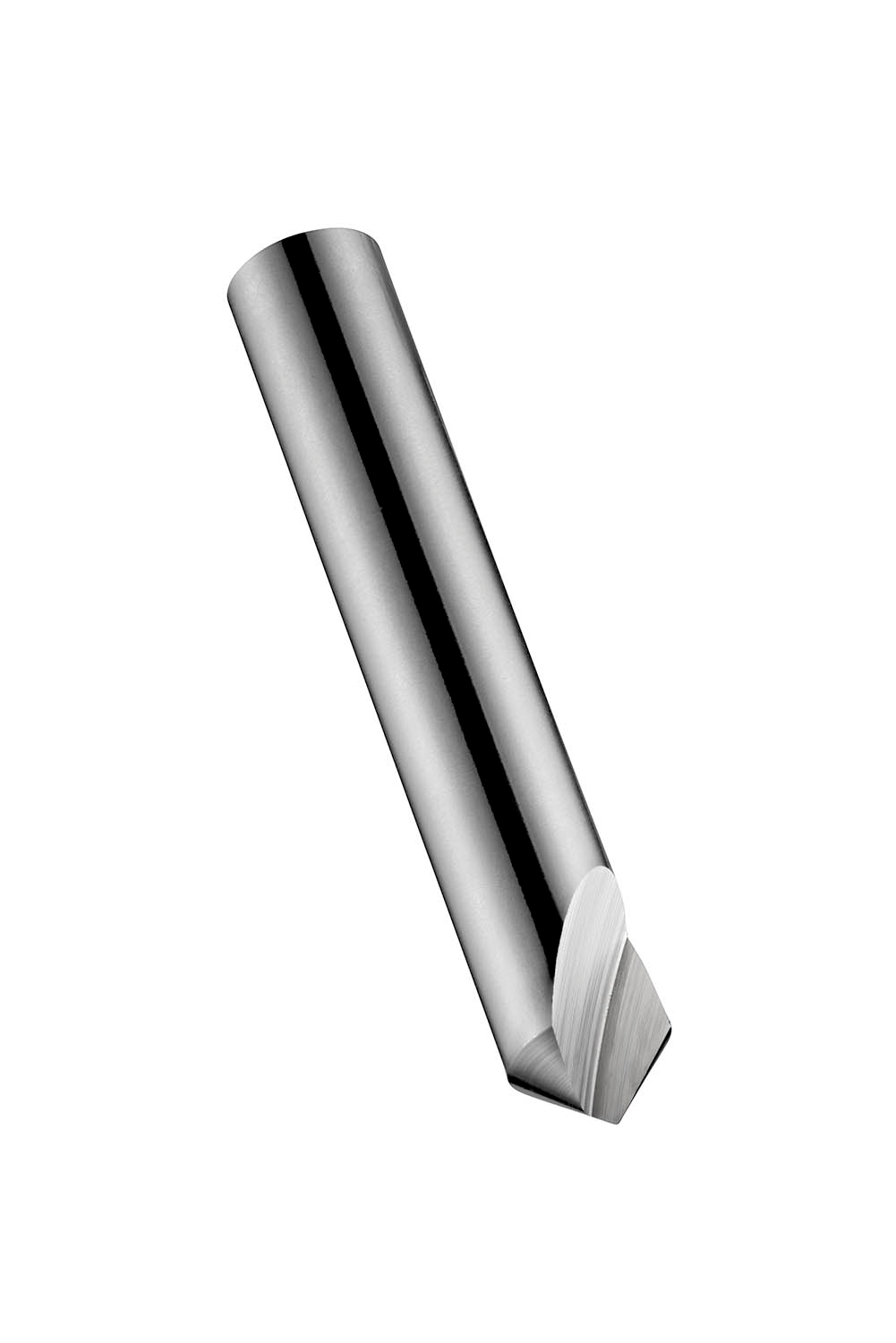

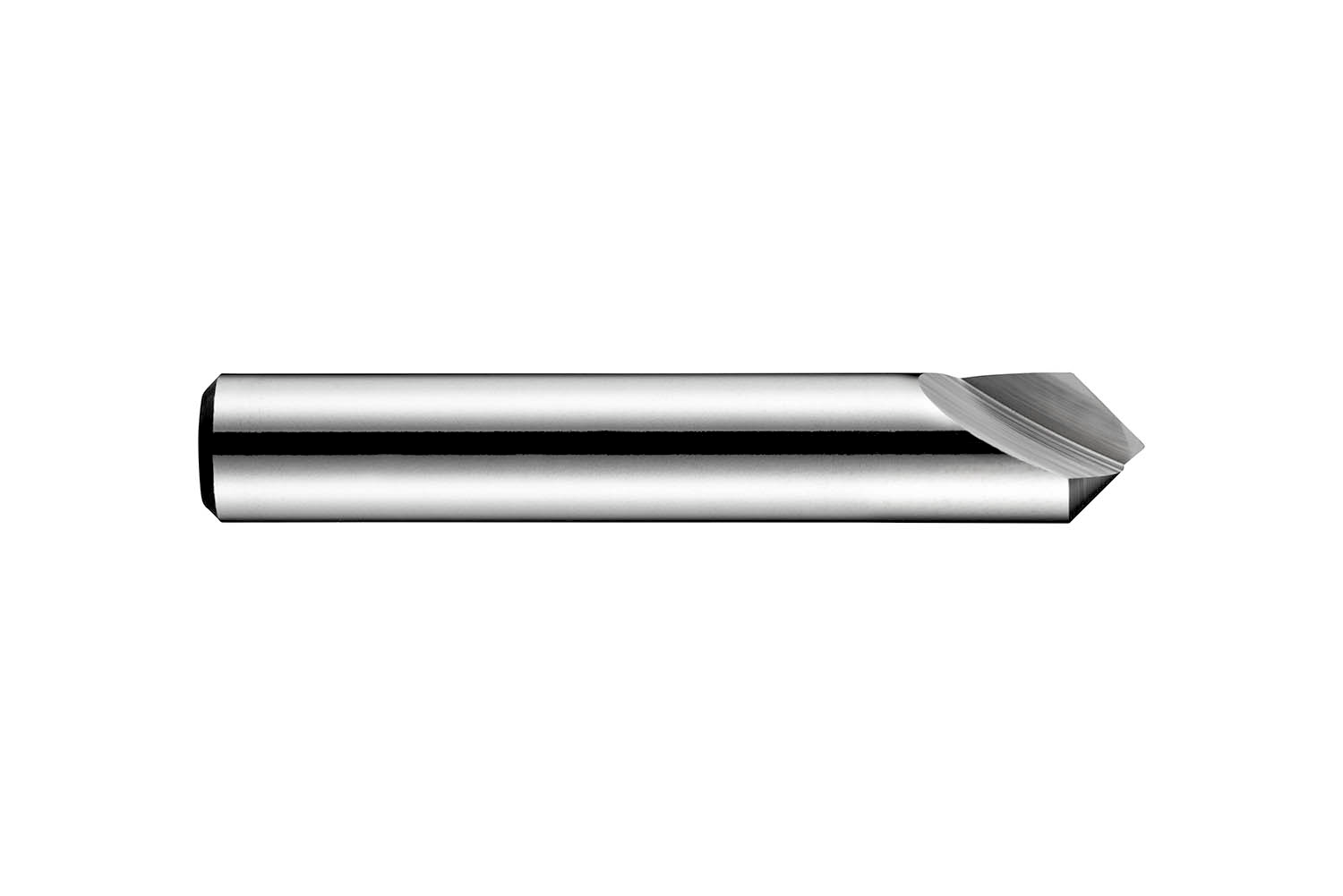

DORMER G12925.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Countersink with 1-flute, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 75mm and a head length of 25mm and 12mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight 0.1221 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760149256
Product number (SAP): 86018151
Ordering code ANSI: G12925.0
Gross weight – grams: 122

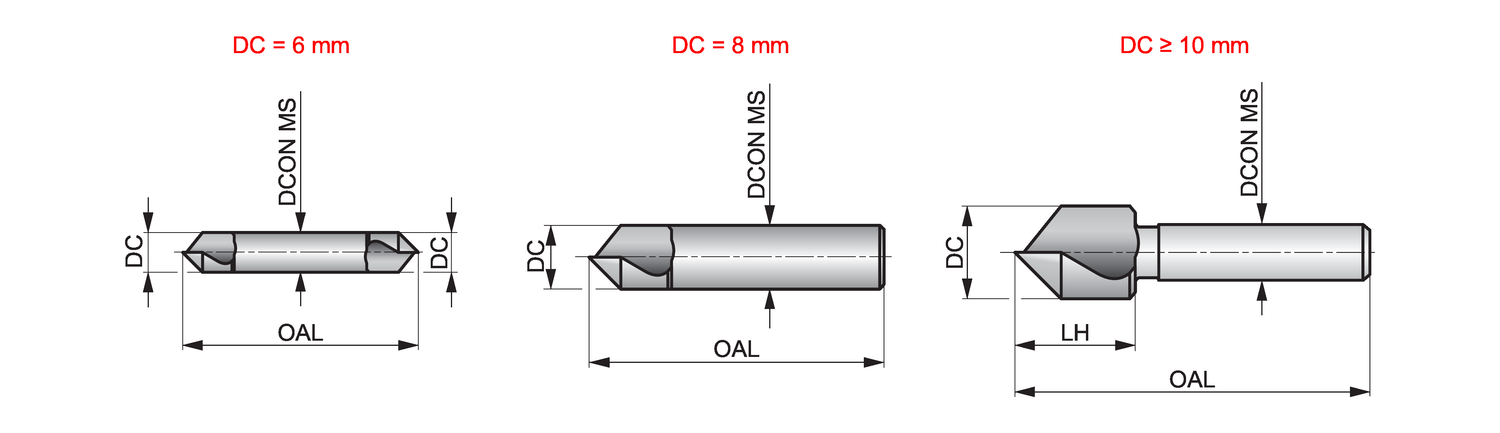

Cutting diameter – millimeter (DC): 25 mm
Head length – millimeter (LH): 25 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 1
ISO: G12925.0

Brand

DORMER
