DORMER G13520.0 Countersinks / Bors

Product Code: G13520.0

$101.97$92.70 Ex. GST

Product Code: G13520.0 SKU G13520.0 Categories , ,
DORMER G13520.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

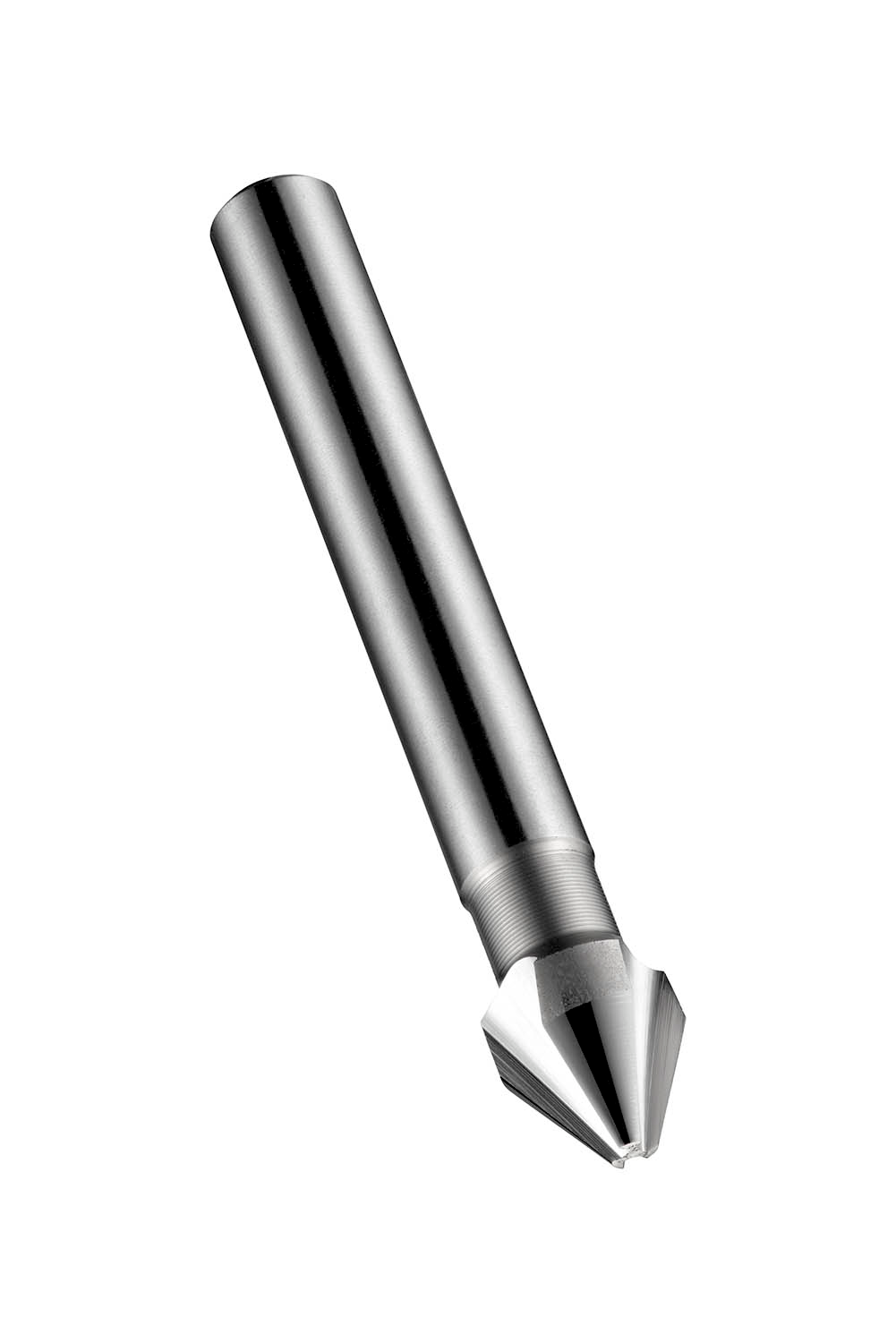

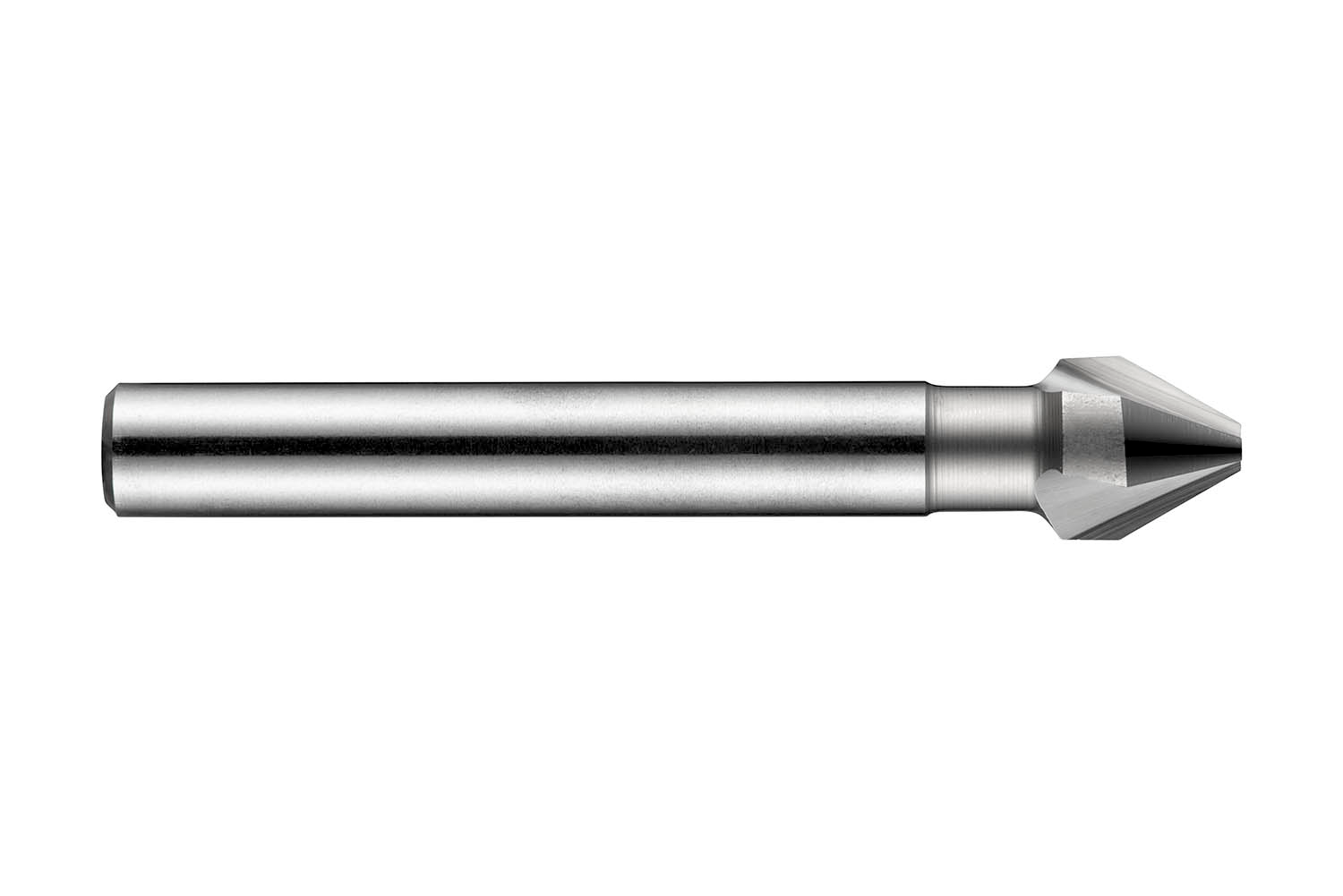

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 20.00mm with an overall length of 67mm and a head length of 17.5mm and 10mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 5.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys

Additional information

Weight 0.0990 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760108468
Product number (SAP): 86018162
Ordering code ANSI: G13520.0
Gross weight – grams: 57.9

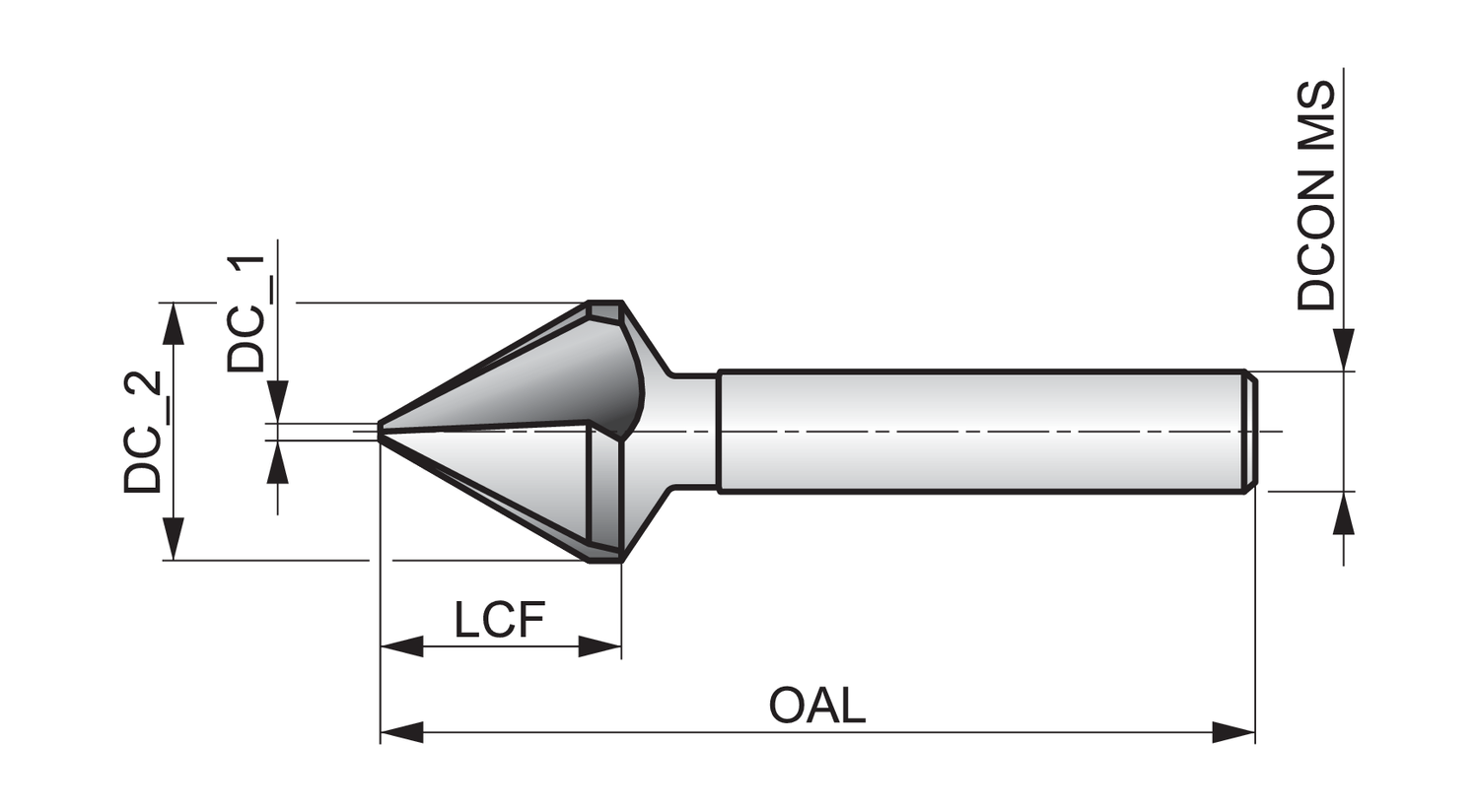

Cutting diameter second cutting step – millimeters (DC_2): 20 mm
Cutting diameter step – millimeter: 5 mm
Length chip flute – millimeter (LCF): 17.5 mm
Overall length – millimeter (OAL): 67 mm
Connection diameter – millimeter (DCON MS): 10 mm

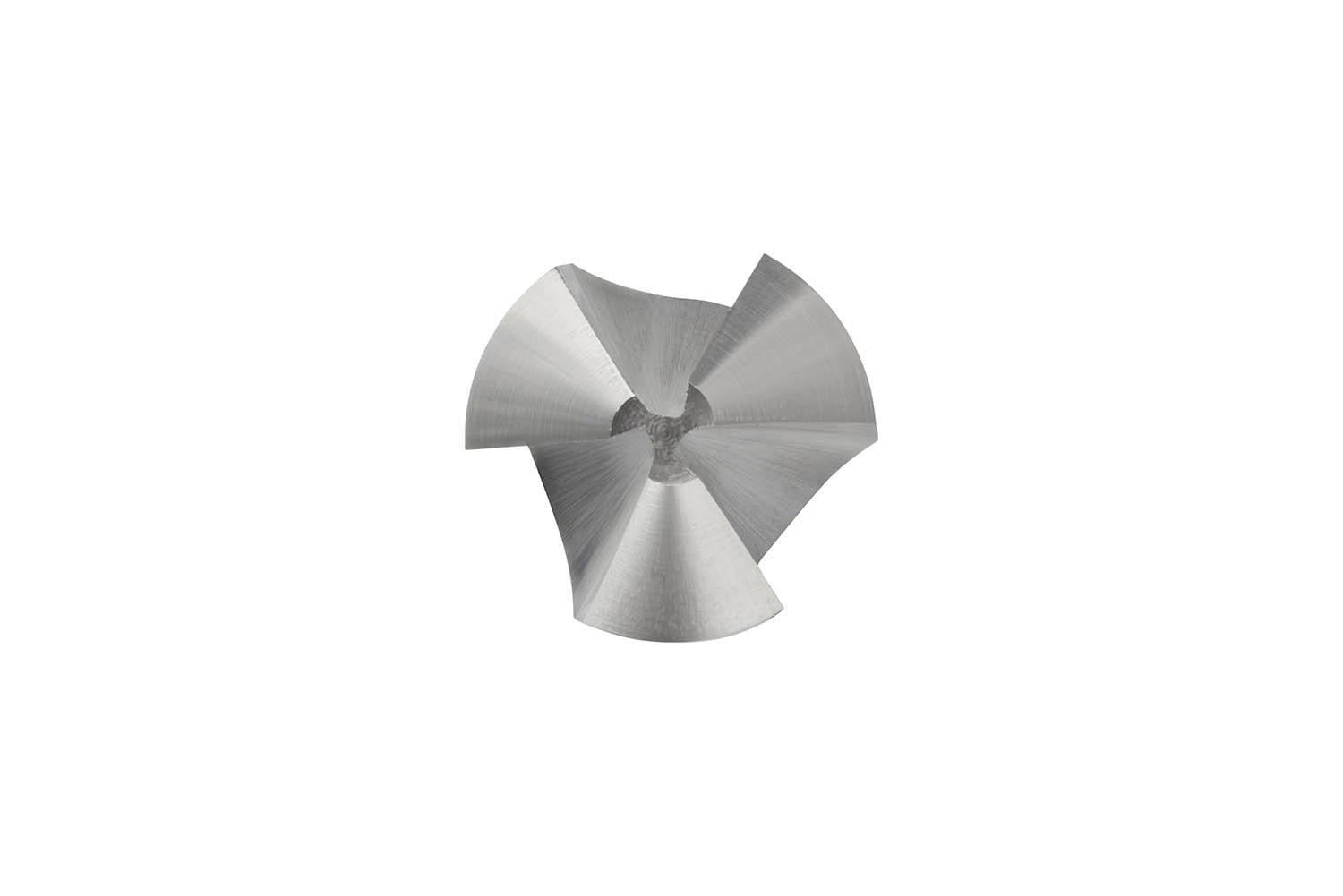

Flute count (NOF): 3
ISO: G13520.0

Brand

DORMER
