DORMER G13525.0 Countersinks / Bors

Product Code: G13525.0

$147.29$133.90 Ex. GST

Product Code: G13525.0 SKU G13525.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

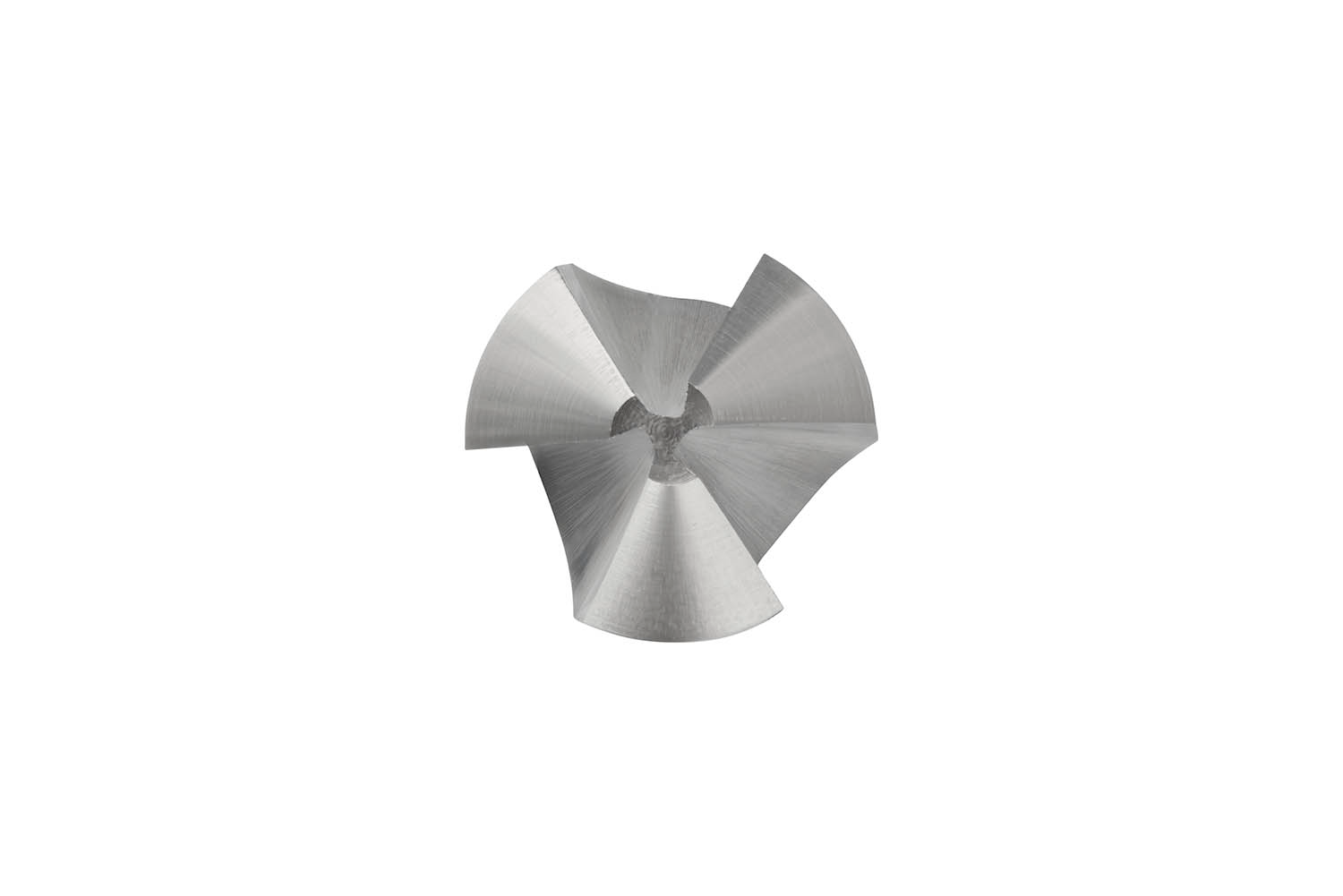

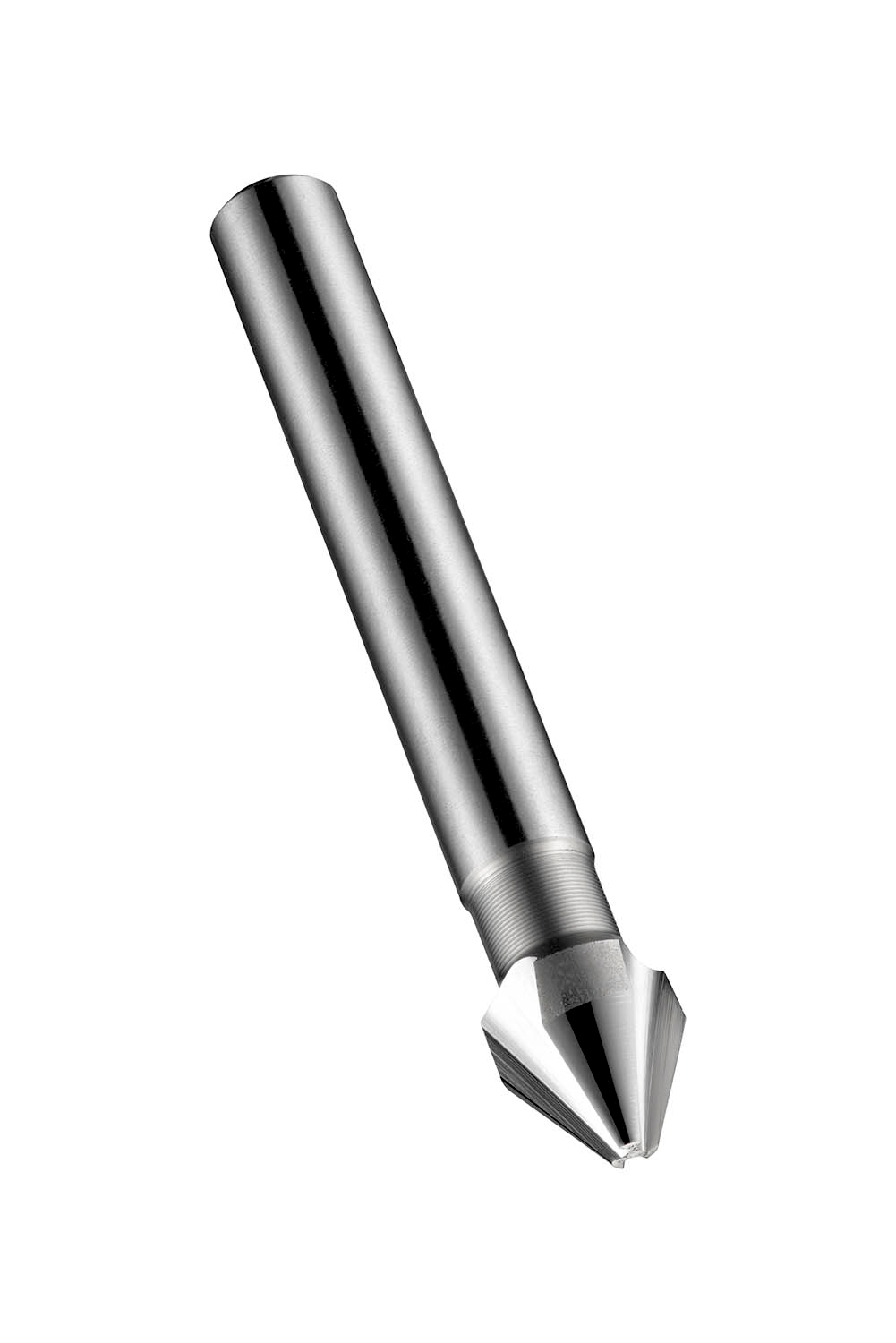

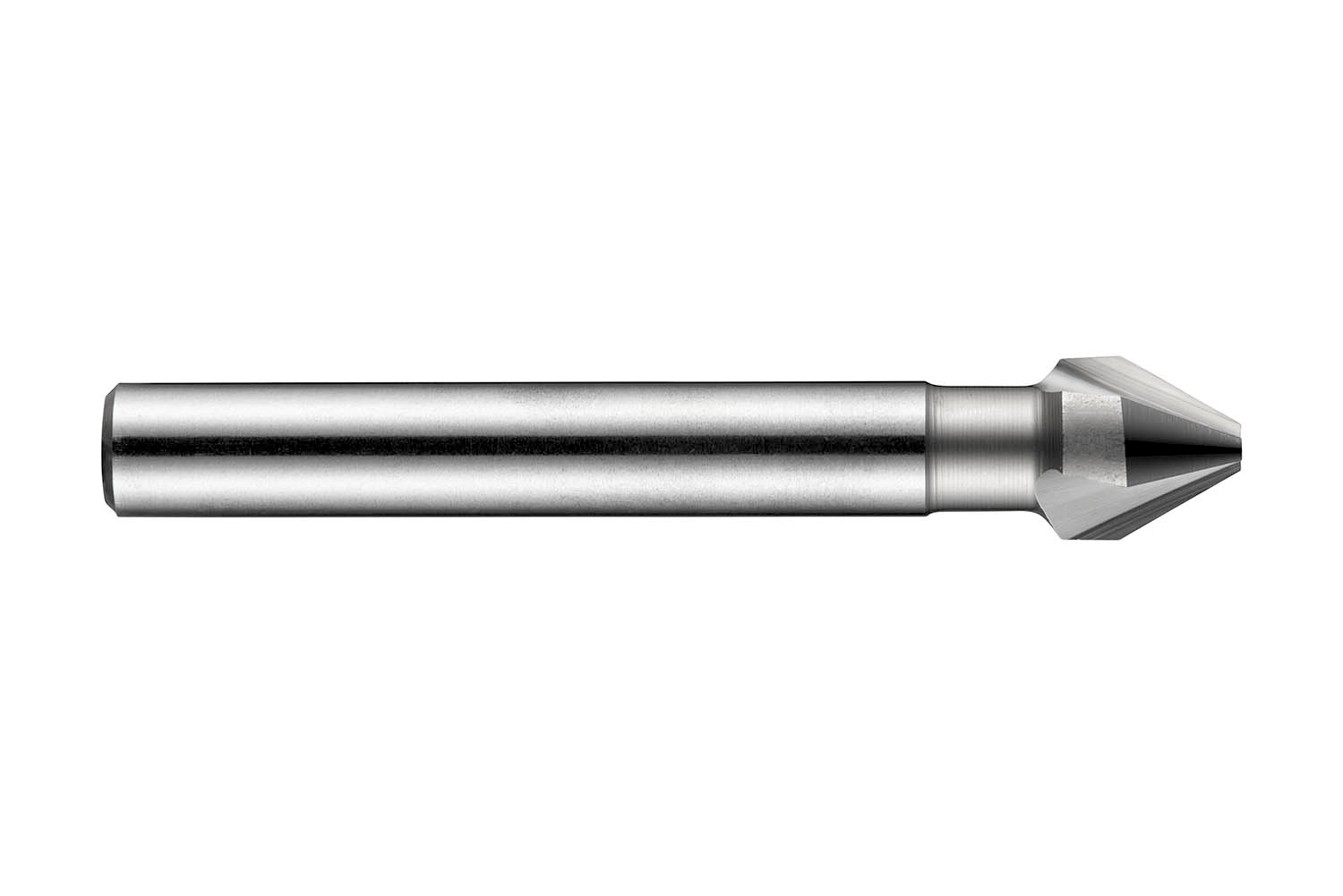

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 25.00mm with an overall length of 71mm and a head length of 20.5mm and 10mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 6.30mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys

Additional information

Weight 0.1430 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760108475
Product number (SAP): 86018163
Ordering code ANSI: G13525.0
Gross weight – grams: 77

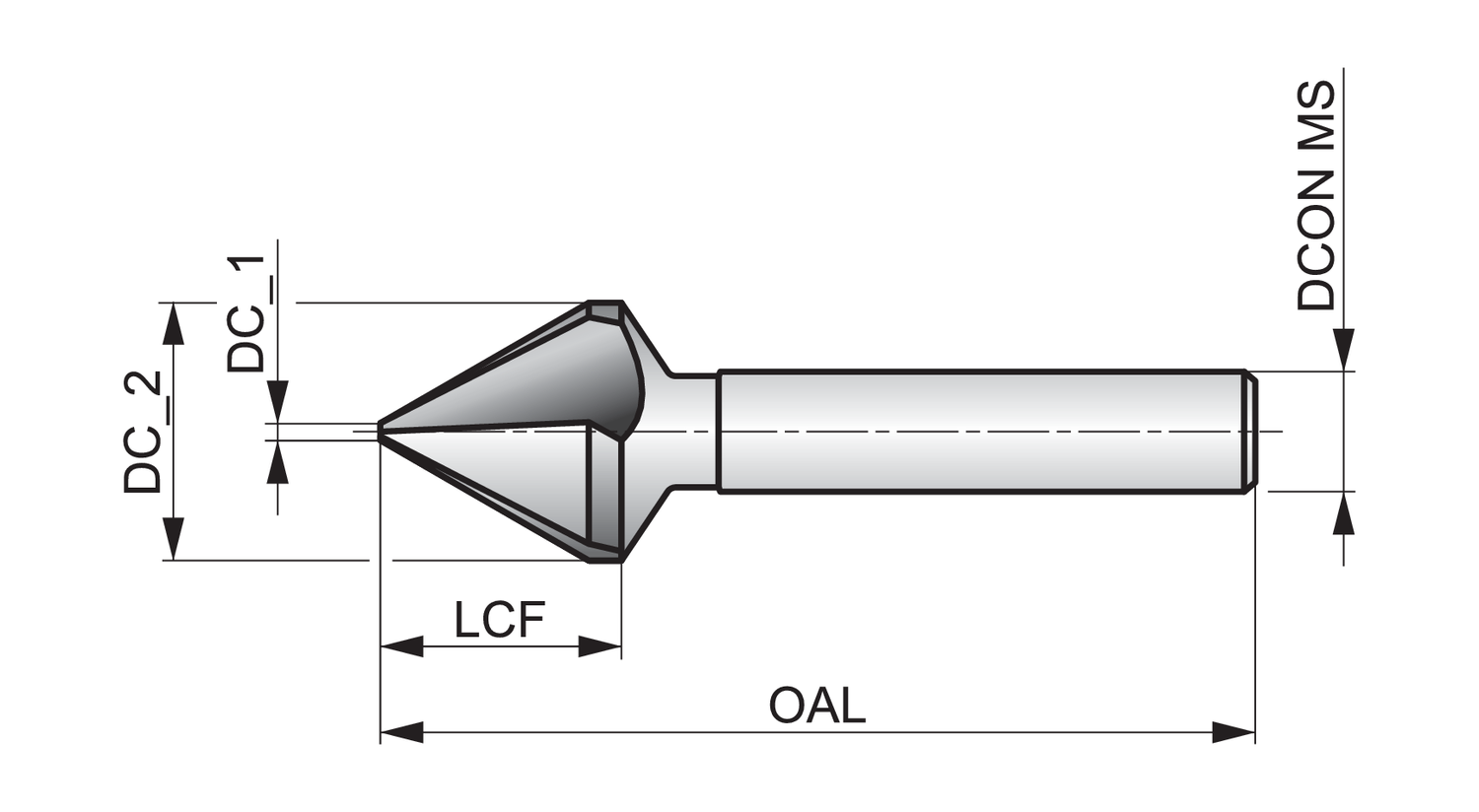

Cutting diameter second cutting step – millimeters (DC_2): 25 mm
Cutting diameter step – millimeter: 6.3 mm
Length chip flute – millimeter (LCF): 20.5 mm
Overall length – millimeter (OAL): 71 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: G13525.0

Brand

DORMER
