DORMER G1356.3 Countersinks / Bors

Product Code: G1356.3

$44.08$40.07 Ex. GST

Product Code: G1356.3 SKU G1356.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 6.8mm and 5mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 1.60mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys

Additional information

Weight 0.0428 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760108482
Product number (SAP): 86018164
Ordering code ANSI: G1356.3
Gross weight – grams: 10

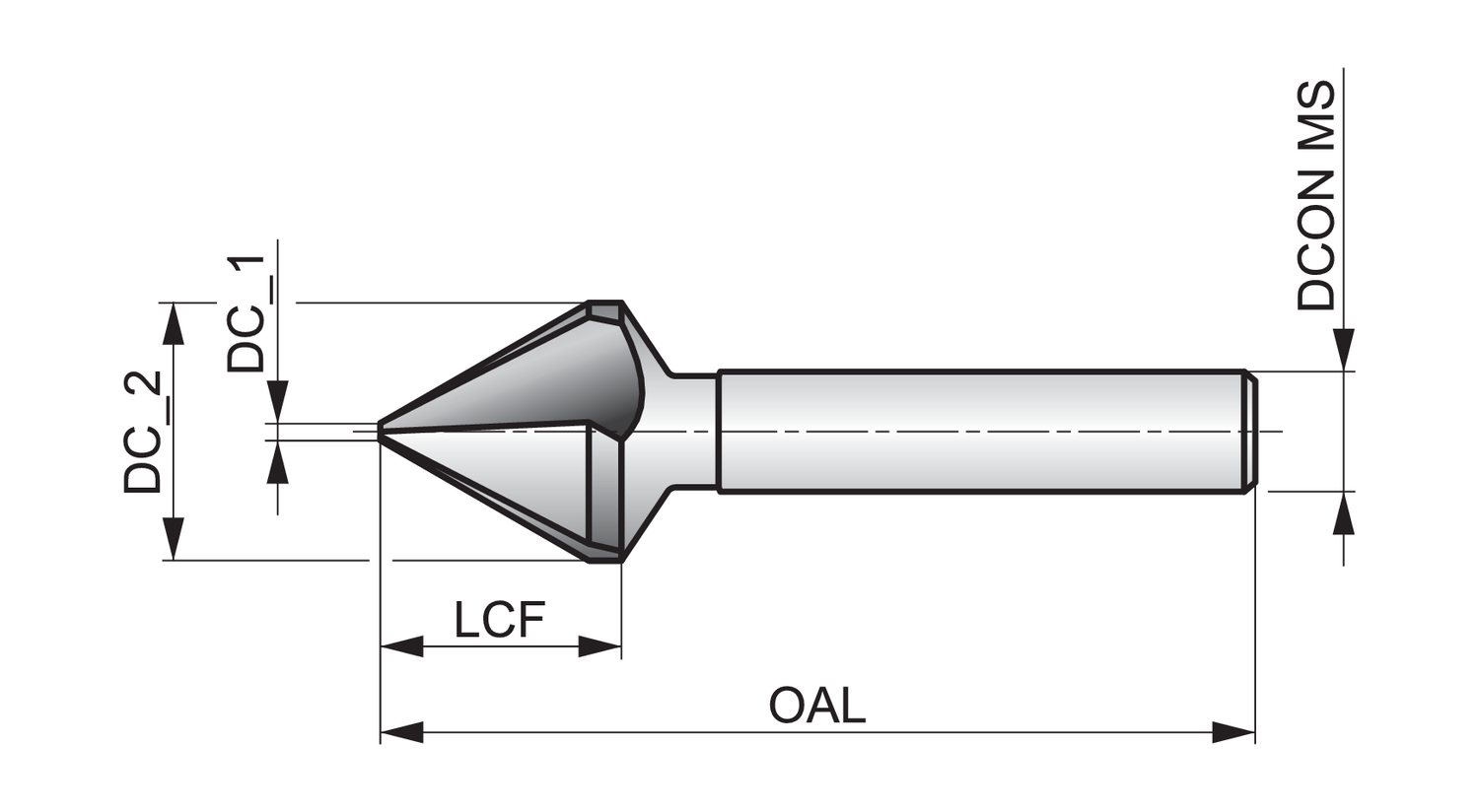

Cutting diameter second cutting step – millimeters (DC_2): 6.3 mm
Cutting diameter step – millimeter: 1.6 mm
Length chip flute – millimeter (LCF): 6.8 mm
Overall length – millimeter (OAL): 45 mm
Connection diameter – millimeter (DCON MS): 5 mm
Flute count (NOF): 3
ISO: G1356.3

Brand

DORMER
