DORMER G13628.0 Countersinks / Bors

Product Code: G13628.0

$182.41$165.83 Ex. GST

Product Code: G13628.0 SKU G13628.0 Categories , ,

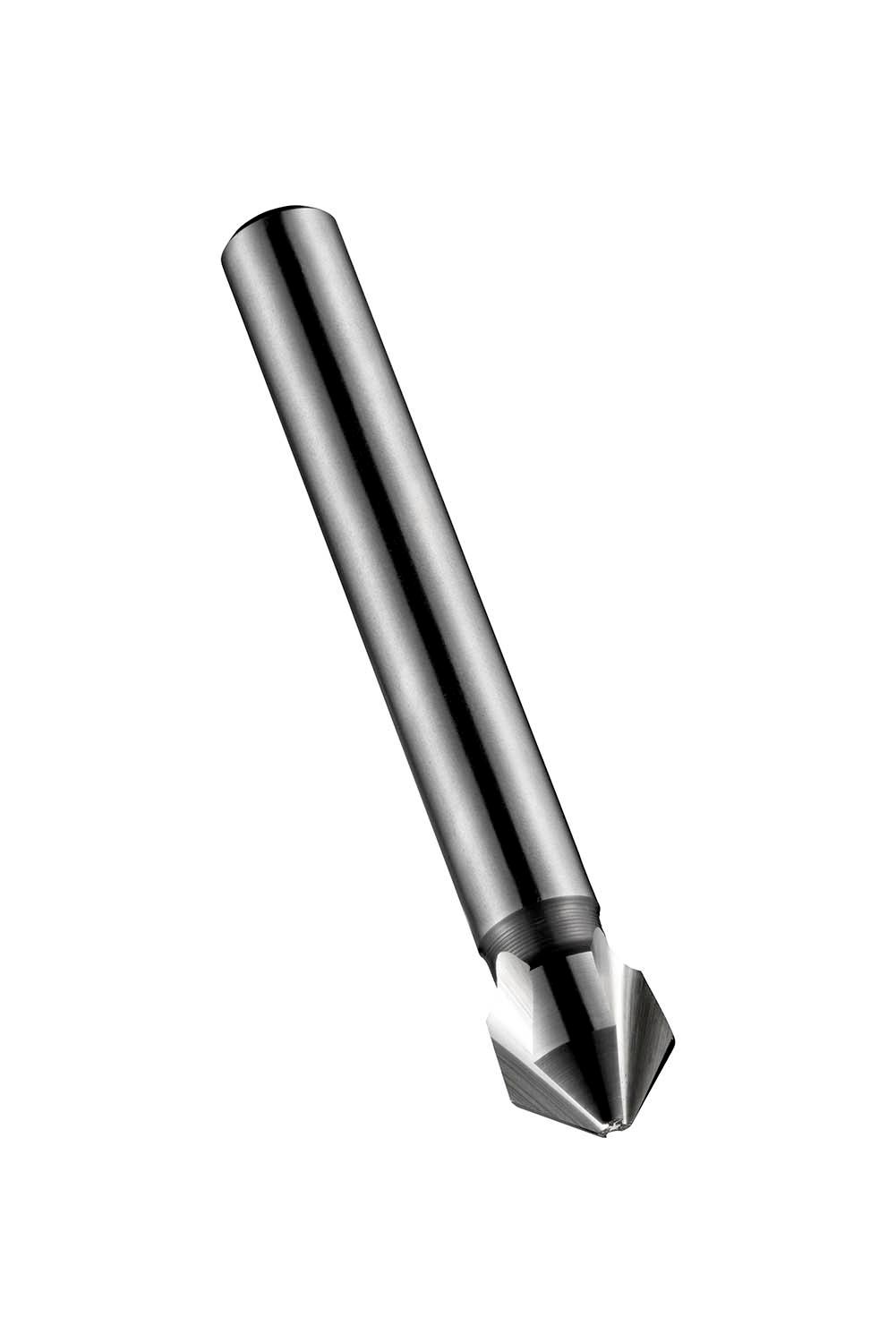

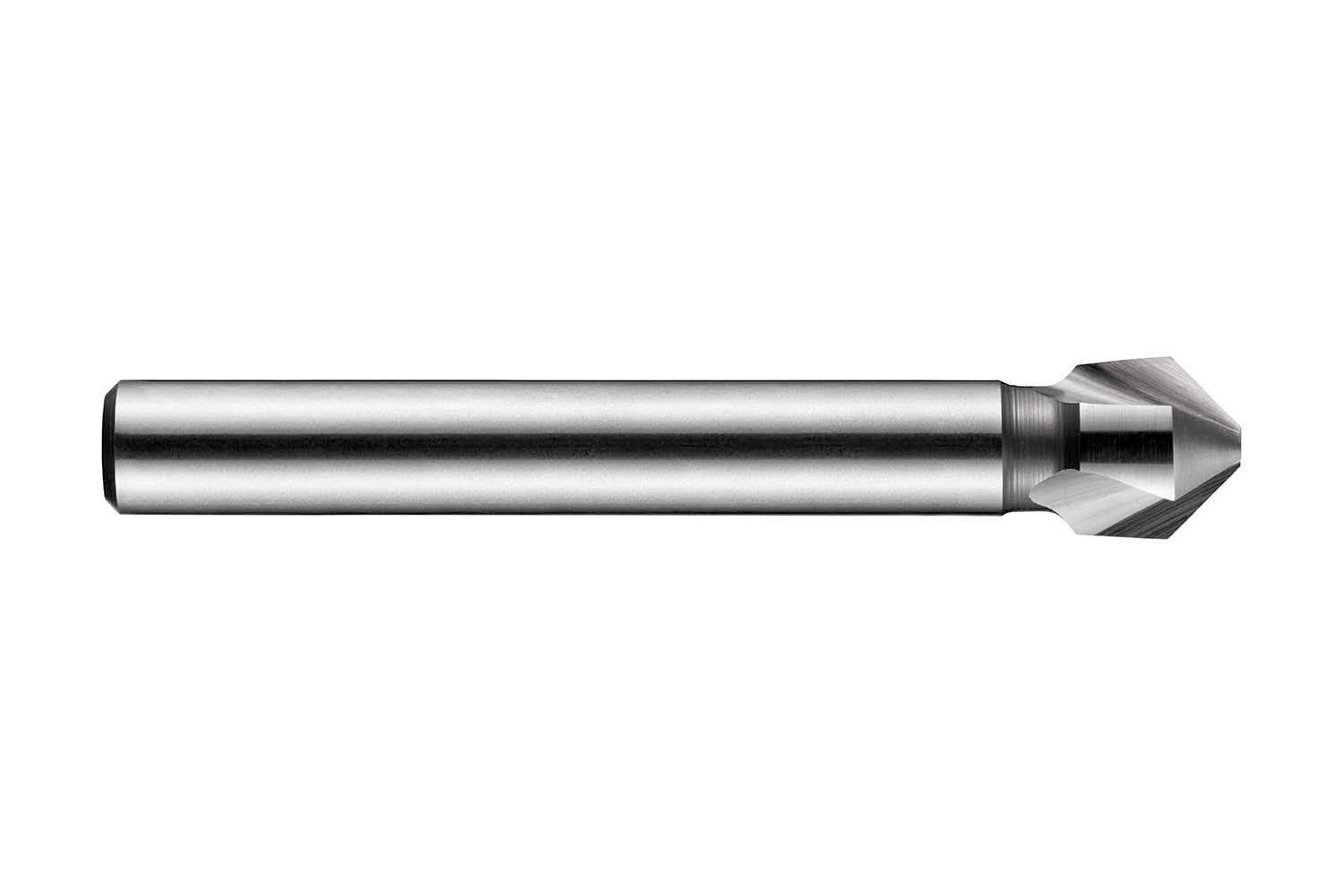

DORMER G13628.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

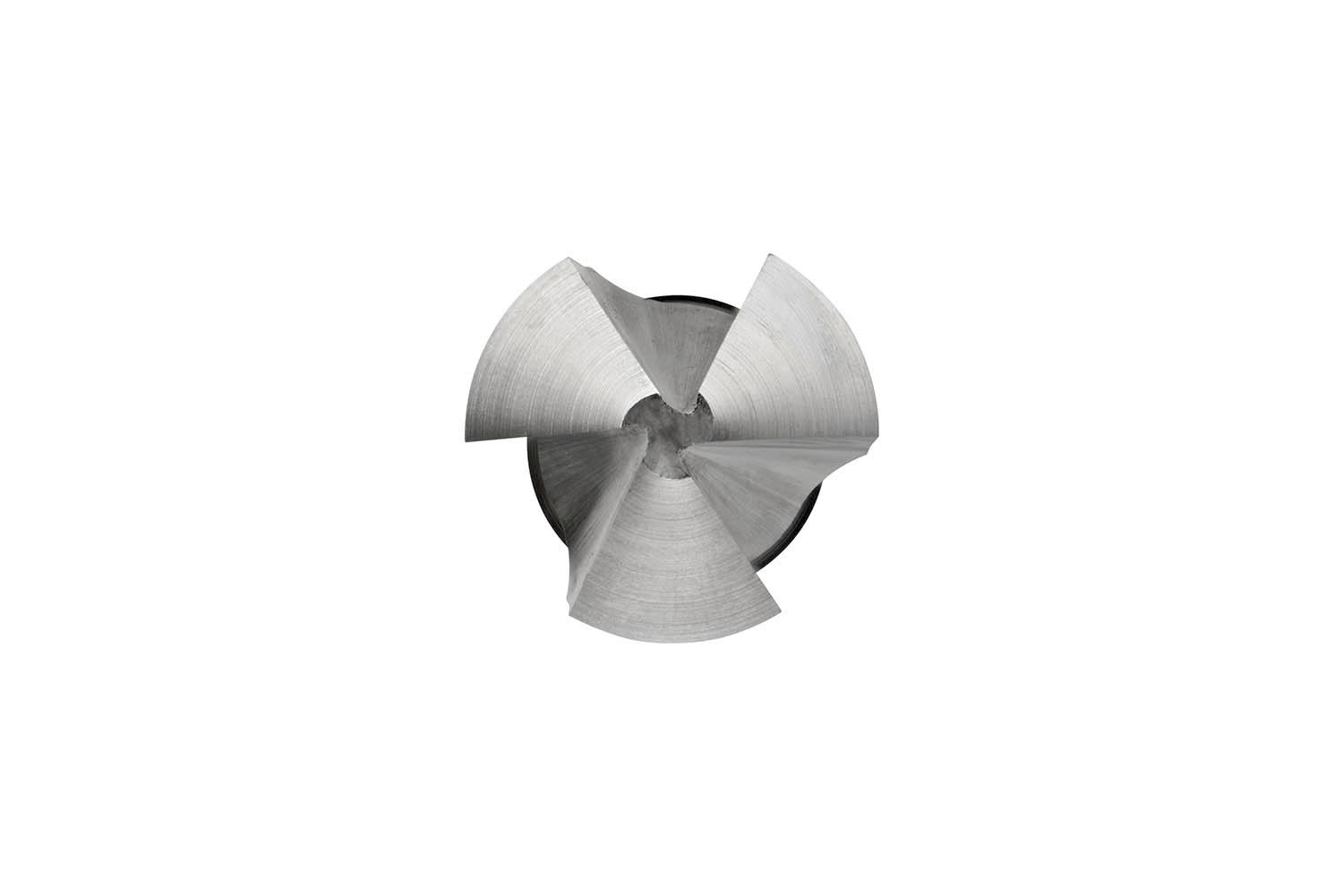

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 28.00mm with an overall length of 71mm and a head length of 16.5mm and 12mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.00mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Additional information

Weight 0.1771 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760108628
Product number (SAP): 86018178
Ordering code ANSI: G13628.0
Gross weight – grams: 100

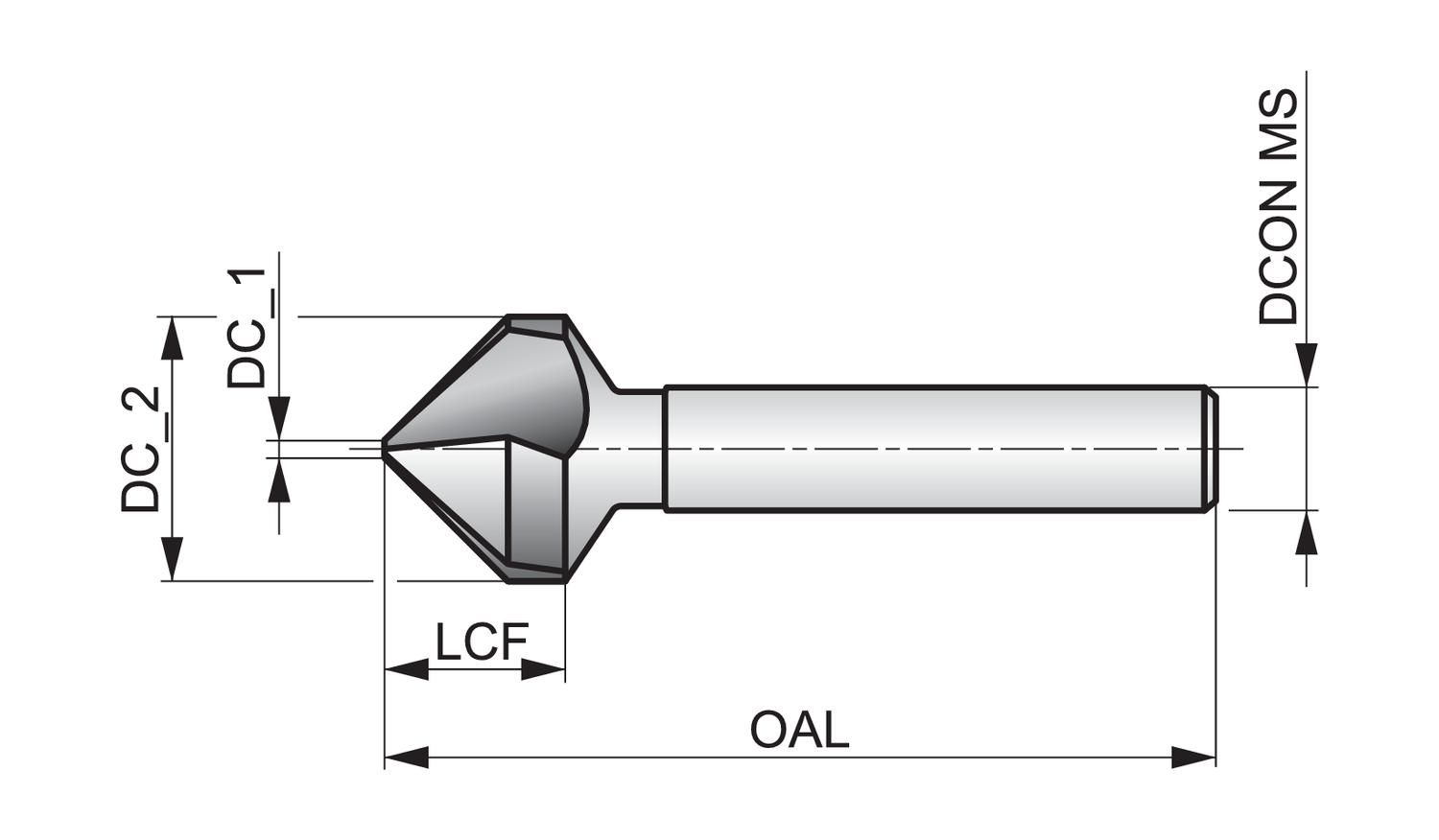

Cutting diameter second cutting step – millimeters (DC_2): 28 mm
Cutting diameter step – millimeter: 4 mm
Length chip flute – millimeter (LCF): 16.5 mm
Overall length – millimeter (OAL): 71 mm
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 3
ISO: G13628.0

Brand

DORMER
