DORMER G1366.3 Countersinks / Bors

Product Code: G1366.3

$44.08$40.07 Ex. GST

Product Code: G1366.3 SKU G1366.3 Categories , ,

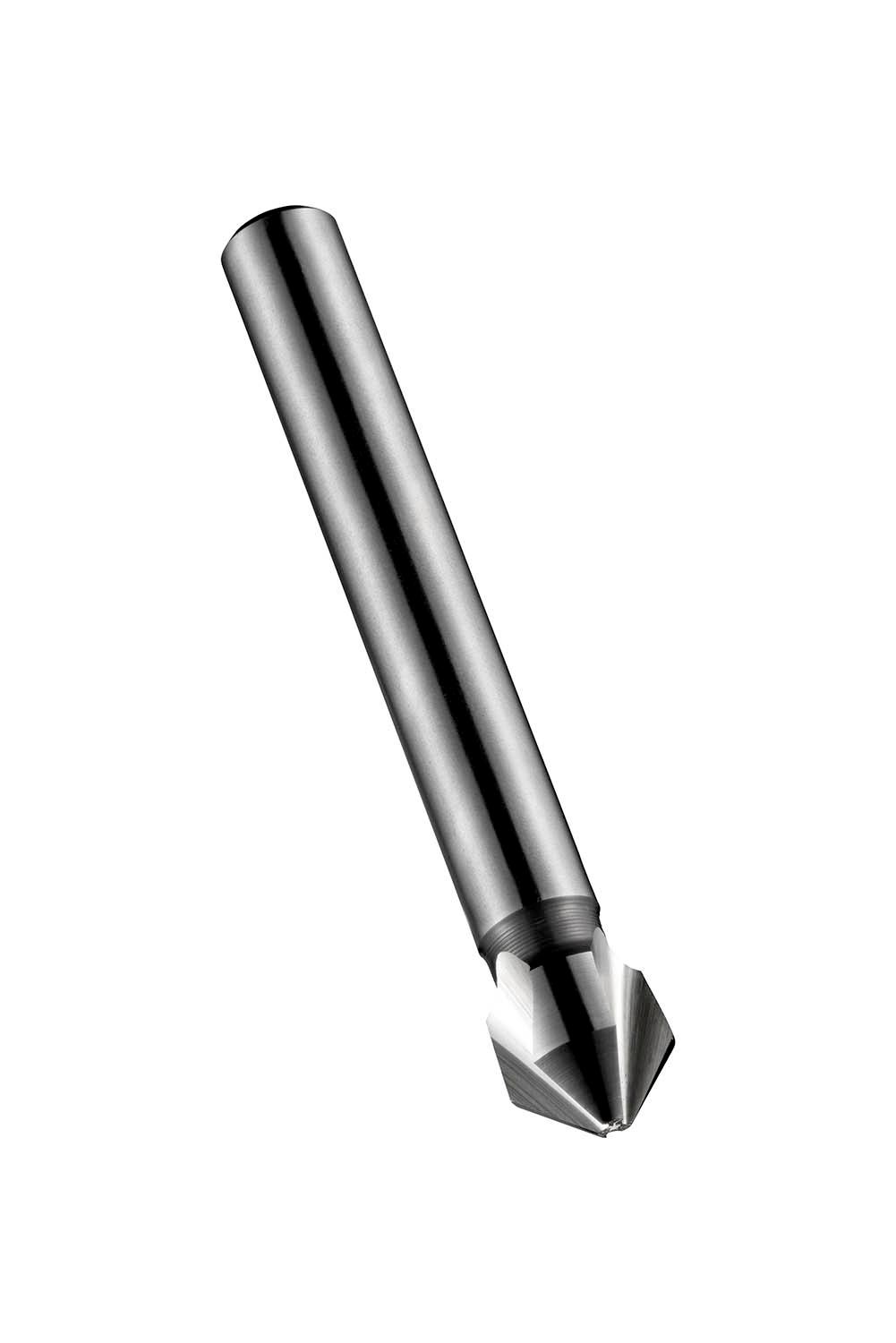

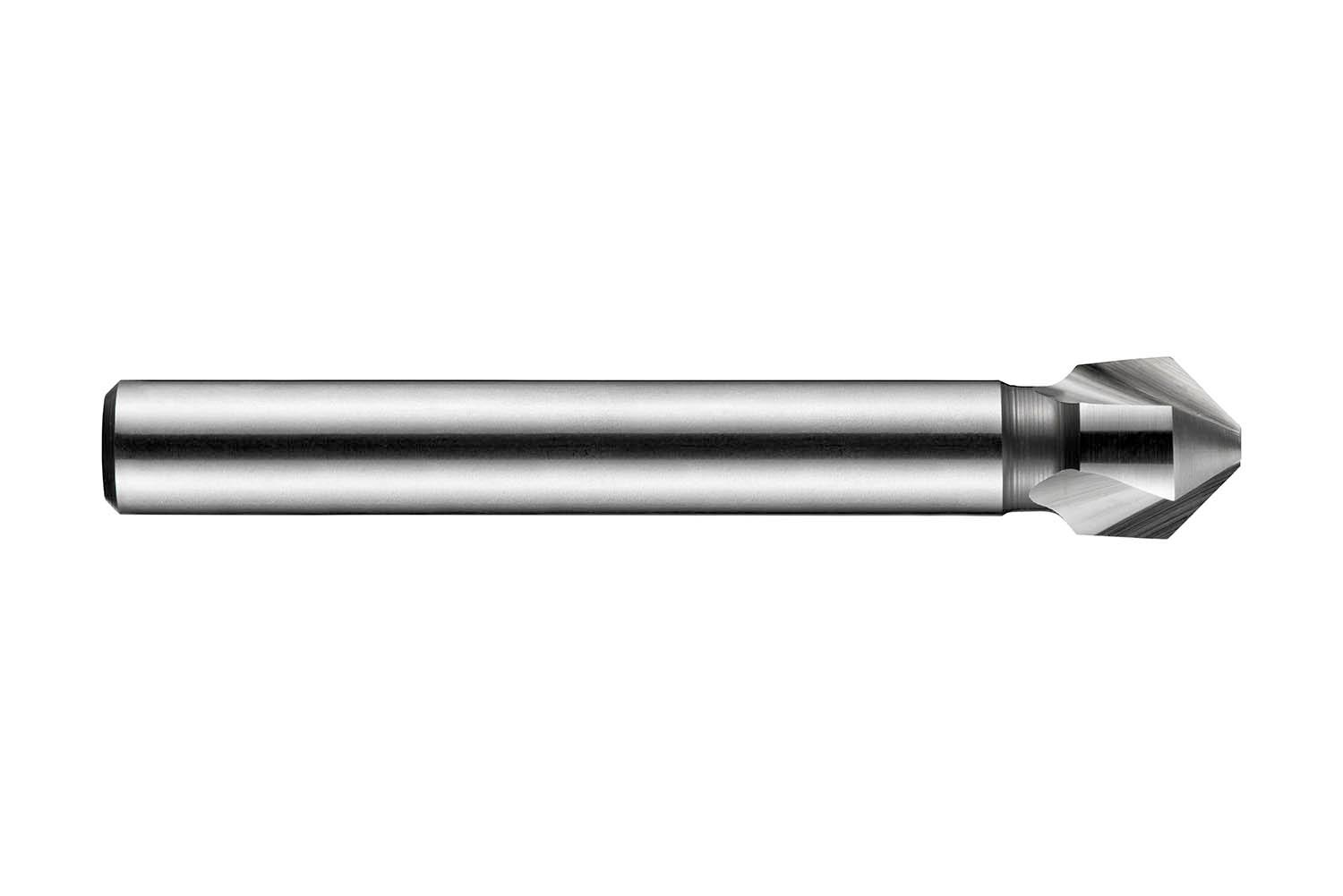

DORMER G1366.3 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.5mm and 5mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Additional information

Weight 0.0428 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760108703
Product number (SAP): 86018186
Ordering code ANSI: G1366.3
Gross weight – grams: 9.6

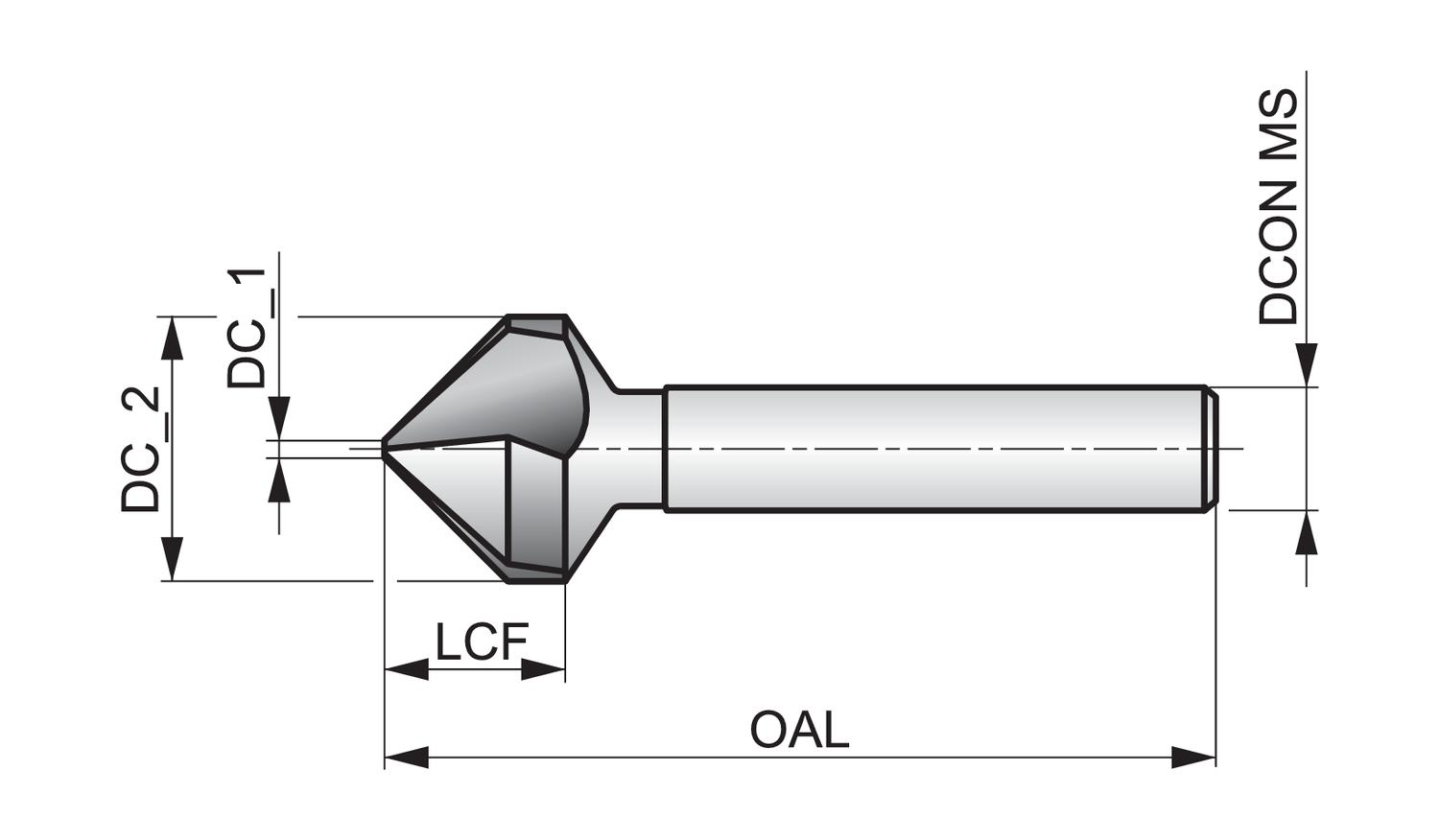

Cutting diameter second cutting step – millimeters (DC_2): 6.3 mm
Cutting diameter step – millimeter: 1.5 mm
Length chip flute – millimeter (LCF): 5.5 mm
Overall length – millimeter (OAL): 45 mm
Connection diameter – millimeter (DCON MS): 5 mm

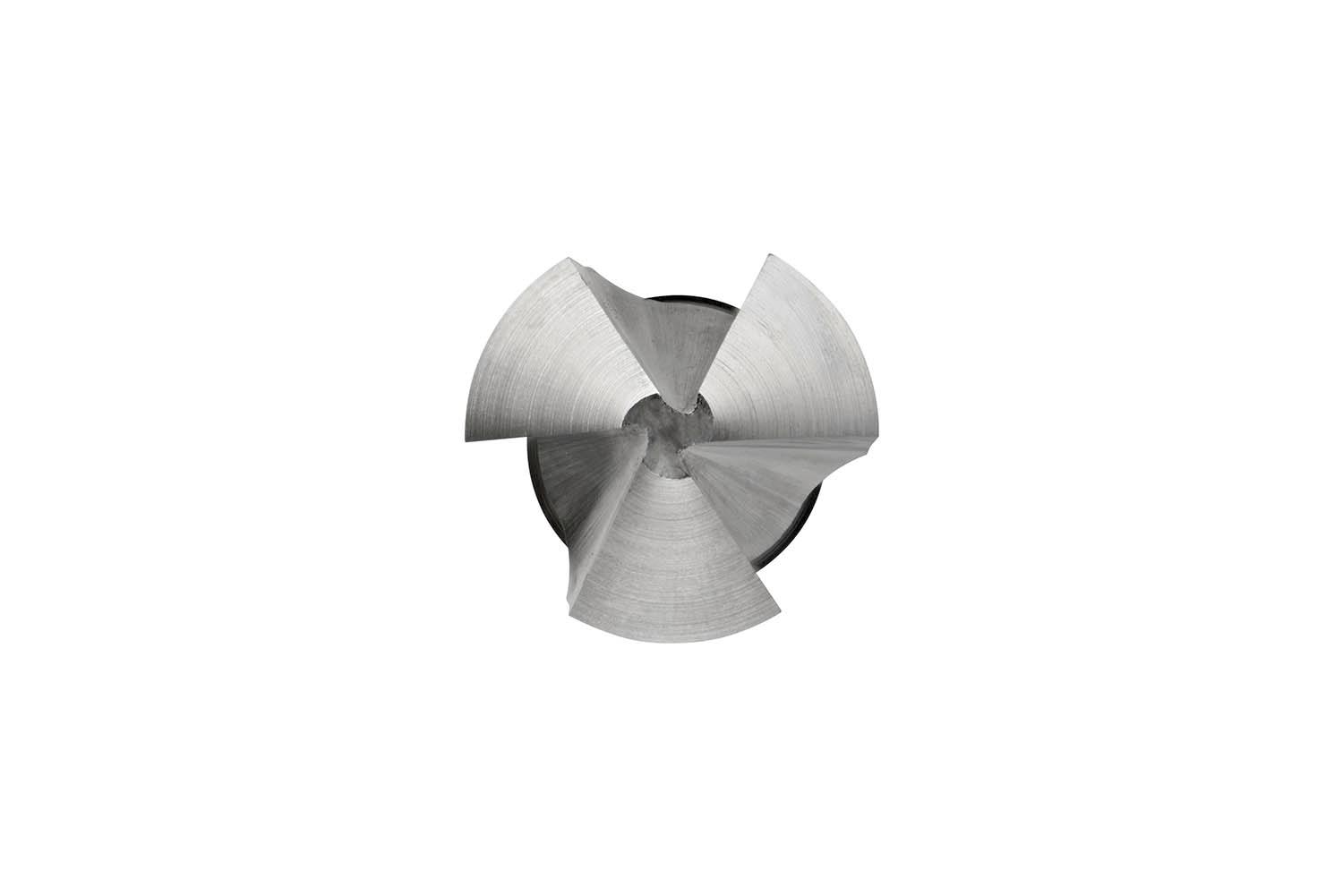

Flute count (NOF): 3
ISO: G1366.3

Brand

DORMER
