DORMER G1368.0 Countersinks / Bors

Product Code: G1368.0

$48.61$44.19 Ex. GST

Product Code: G1368.0 SKU G1368.0 Categories , ,
DORMER G1368.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

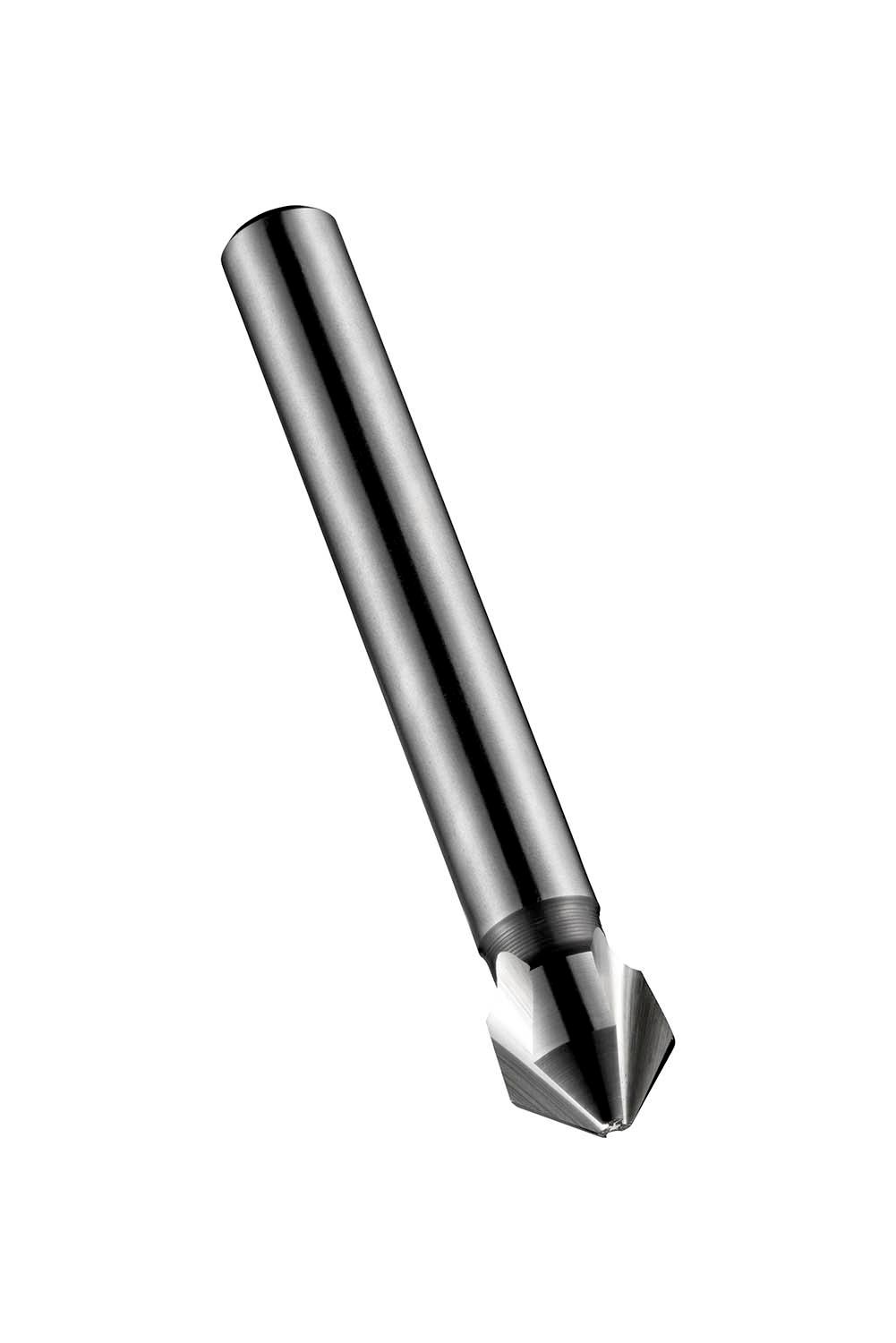

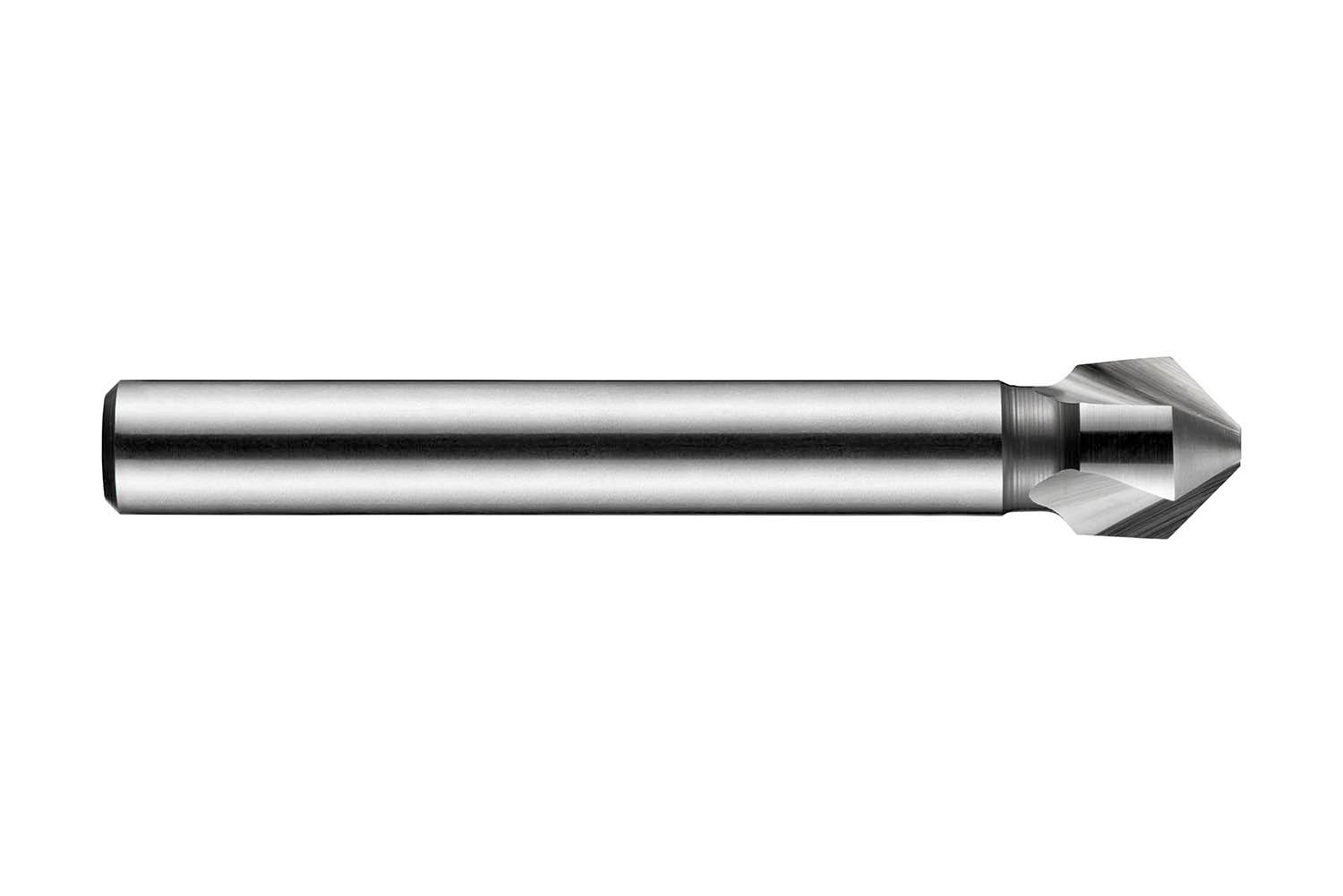

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.00mm with an overall length of 50mm and a head length of 6.1mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Additional information

Weight 0.0472 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760108734
Product number (SAP): 86018189
Ordering code ANSI: G1368.0
Gross weight – grams: 16

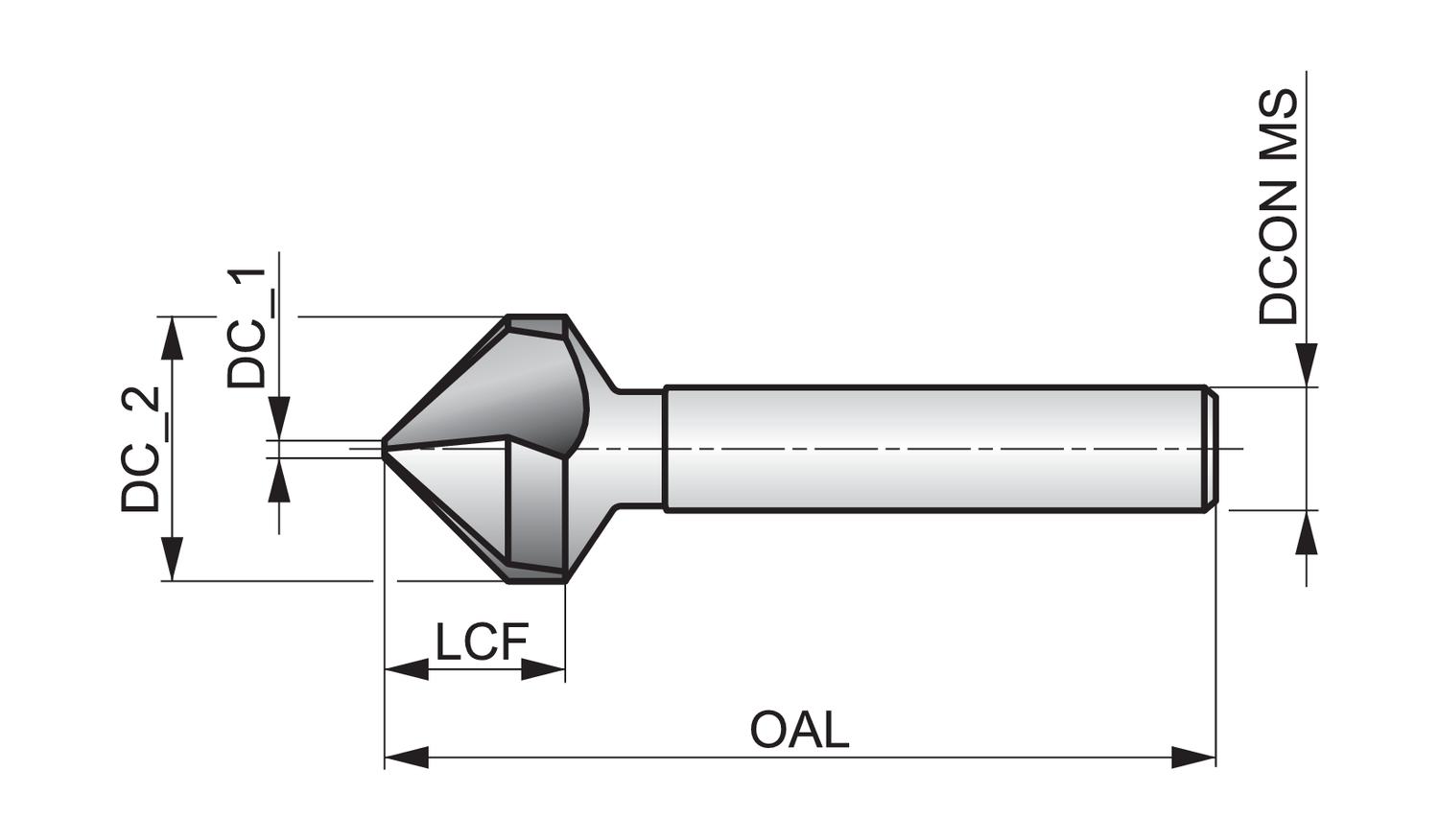

Cutting diameter second cutting step – millimeters (DC_2): 8 mm
Cutting diameter step – millimeter: 2 mm
Length chip flute – millimeter (LCF): 6.1 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm

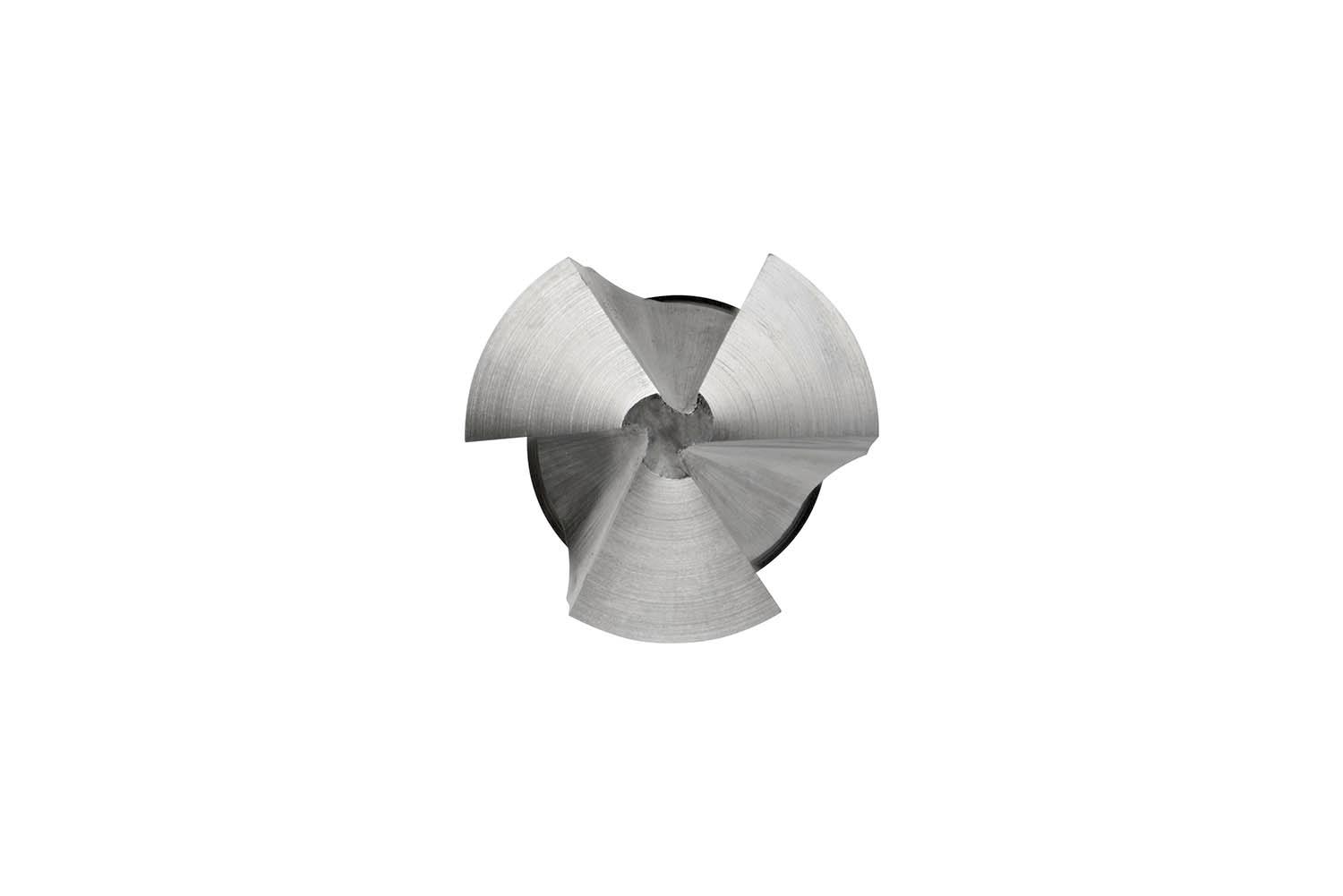

Flute count (NOF): 3
ISO: G1368.0

Brand

DORMER
