DORMER G1369.4 Countersinks / Bors

Product Code: G1369.4

$44.87$40.79 Ex. GST

Product Code: G1369.4 SKU G1369.4 Categories , ,
DORMER G1369.4 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

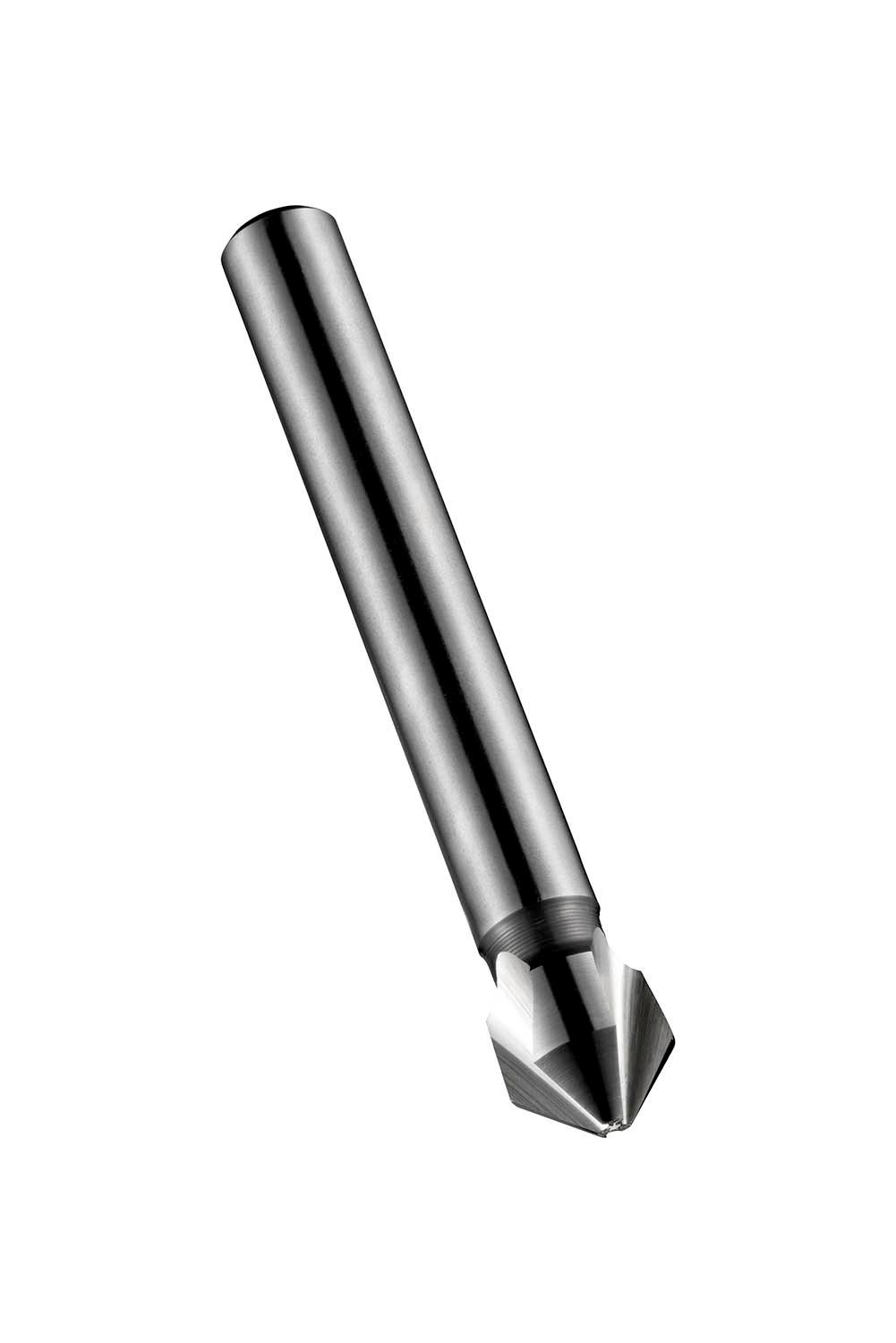

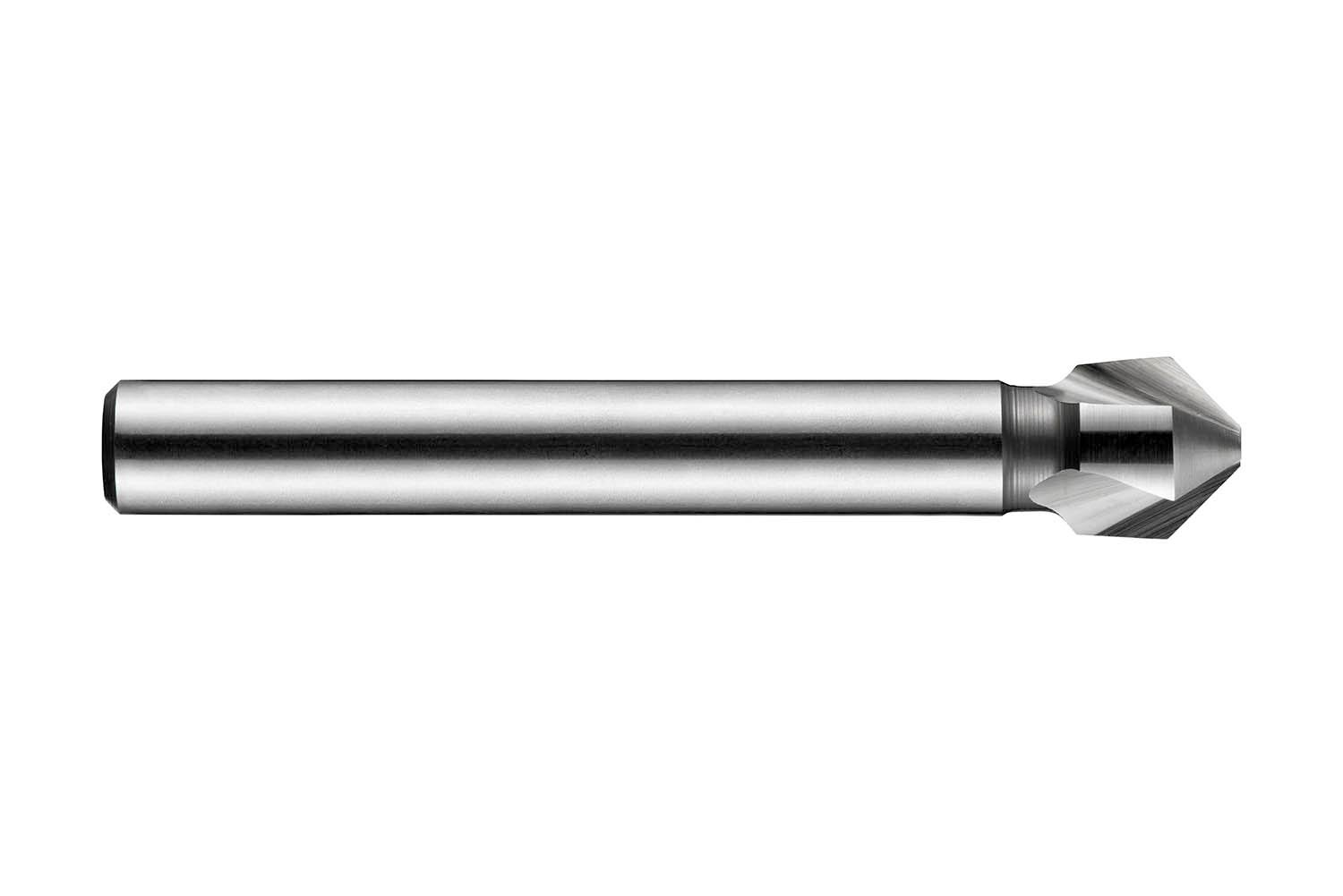

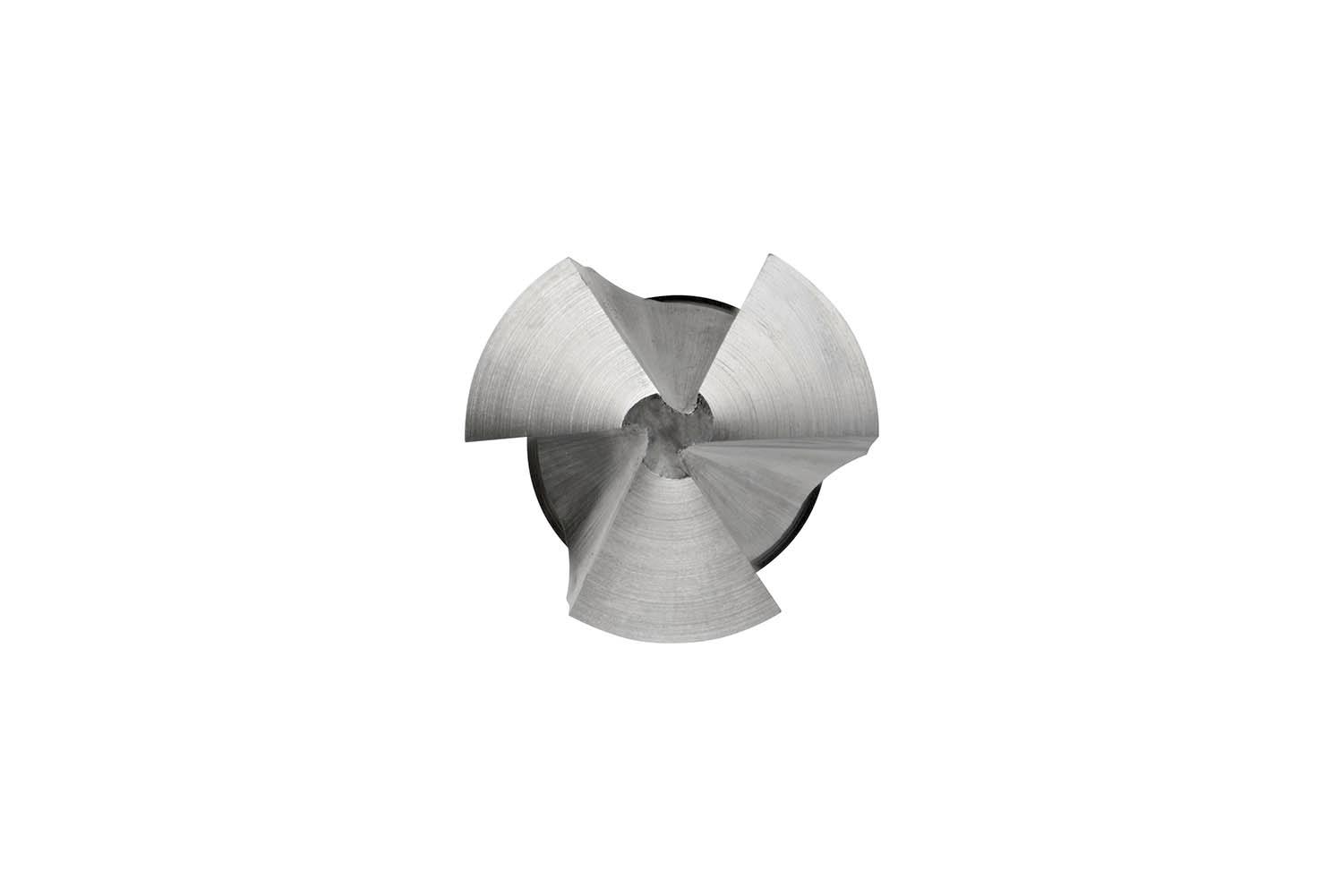

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 9.40mm with an overall length of 50mm and a head length of 7.2mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Additional information

Weight 0.0436 kg
Dimensions
barcode
Additional Information

Description: Value

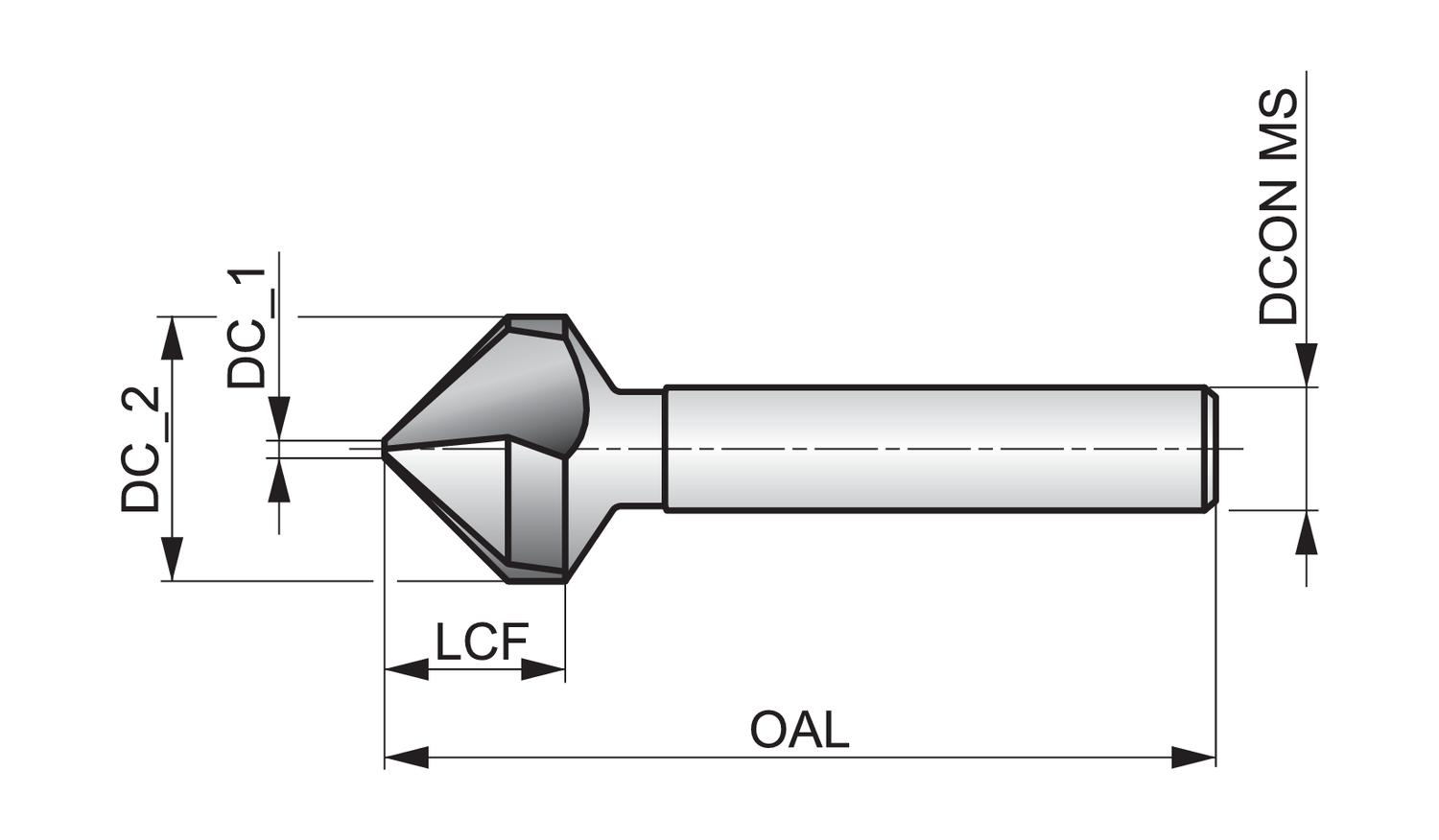

EAN number: 7320760108758 Product number (SAP): 86018191 Ordering code ANSI: G1369.4 Gross weight – grams: 16.6 Cutting diameter second cutting step – millimeters (DC_2): 9.4 mm Cutting diameter step – millimeter: 2.2 mm Length chip flute – millimeter (LCF): 7.2 mm Overall length – millimeter (OAL): 50 mm Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 ISO: G1369.4

Brand

DORMER
