DORMER G13731.5 Countersinks / Bors

Product Code: G13731.5

$277.59$252.35 Ex. GST

Product Code: G13731.5 SKU G13731.5 Categories , ,
DORMER G13731.5 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

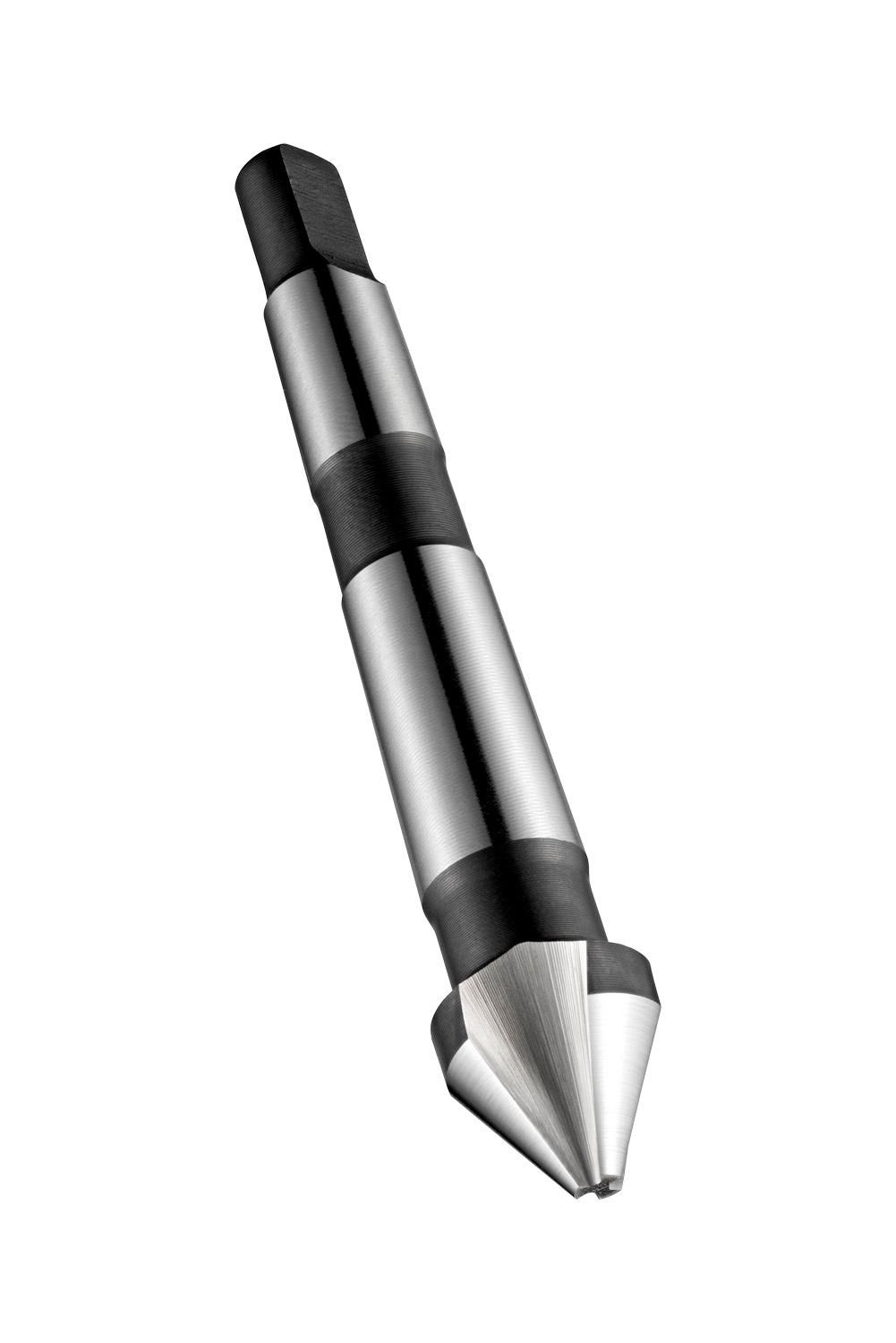

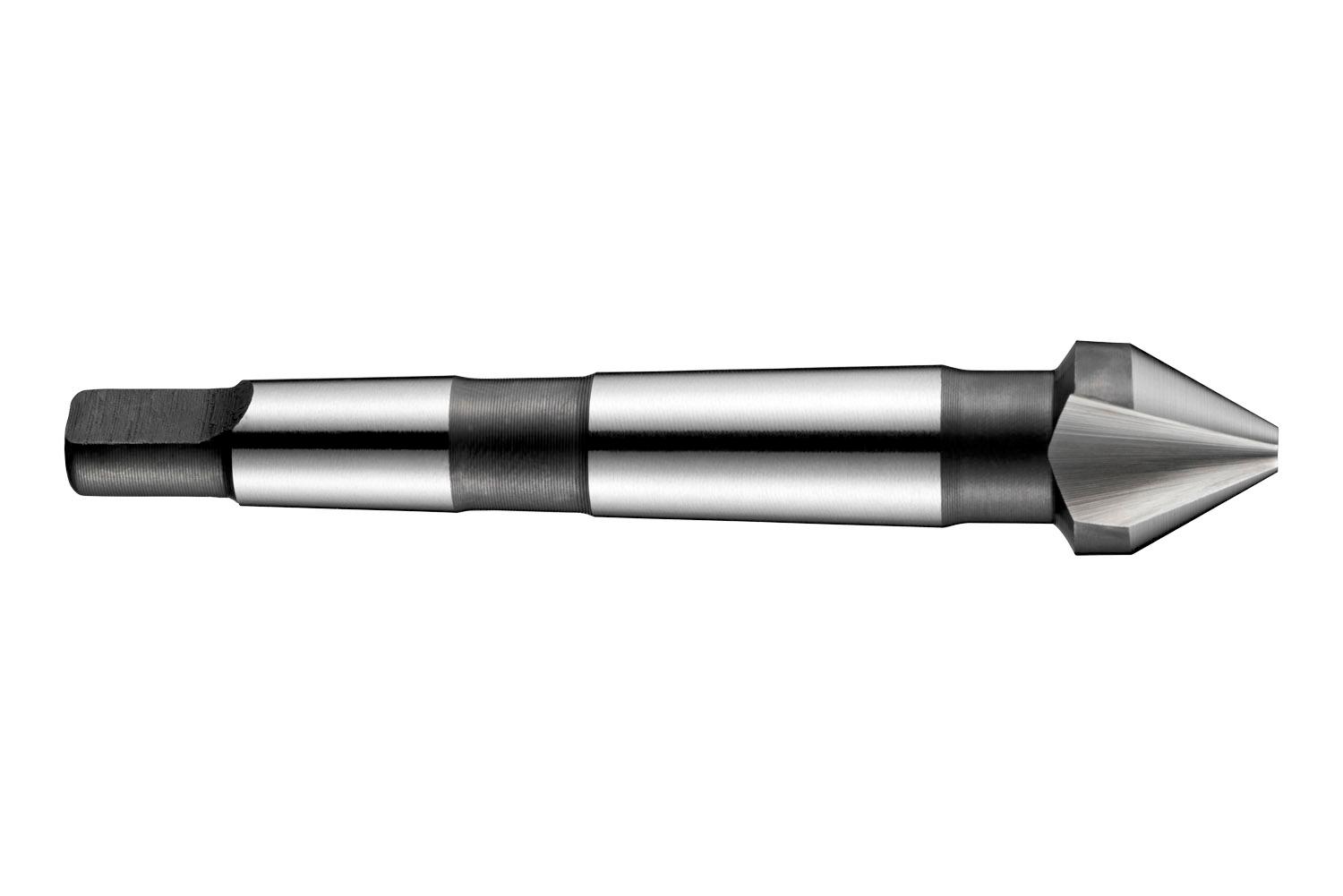

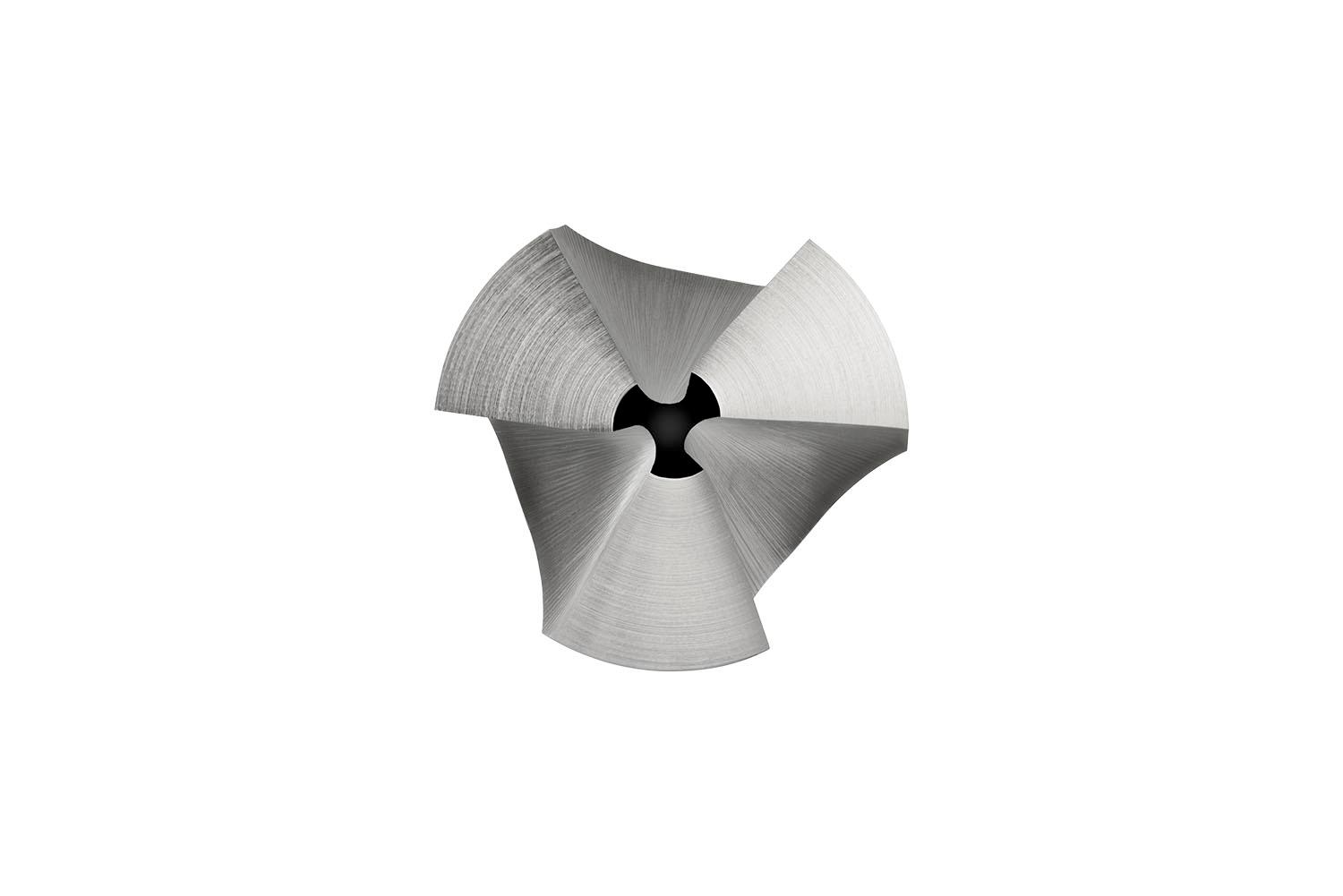

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 31.50mm with an overall length of 118mm and a head length of 23mm and MT 2 Morse-taper shank, according to DIN 334 D standard for deburring and chamfering holes with a minium hole diameter of 10.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.2695 kg
Dimensions
barcode
Additional Information

Description: Value

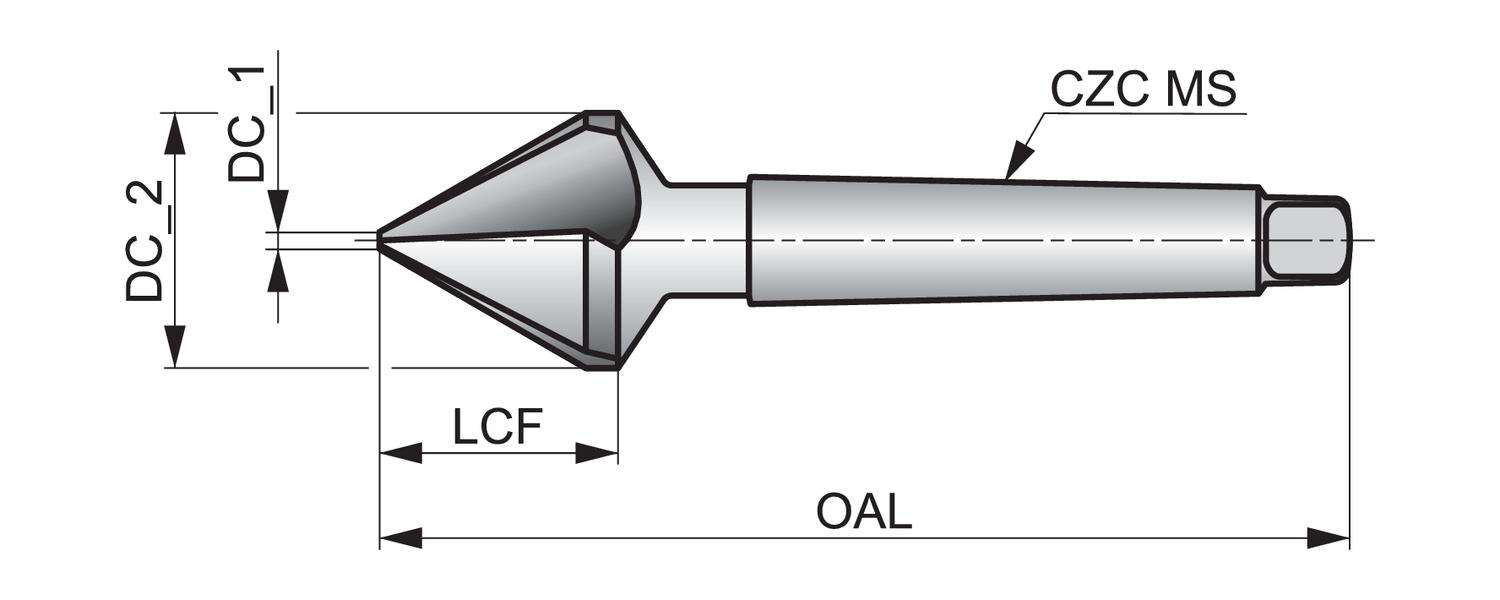

EAN number: 7320760108796 Product number (SAP): 86018195 Ordering code ANSI: G13731.5 Gross weight – grams: 215 Cutting diameter second cutting step – millimeters (DC_2): 31.5 mm Cutting diameter step – millimeter: 10 mm Length chip flute – millimeter (LCF): 23 mm Overall length – millimeter (OAL): 118 mm Connection size code machine side (CZC MS): MK 2 Flute count (NOF): 3 ISO: G13731.5

Brand

DORMER
