DORMER G13740.0 Countersinks / Bors

Product Code: G13740.0

$373.89$339.90 Ex. GST

Product Code: G13740.0 SKU G13740.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

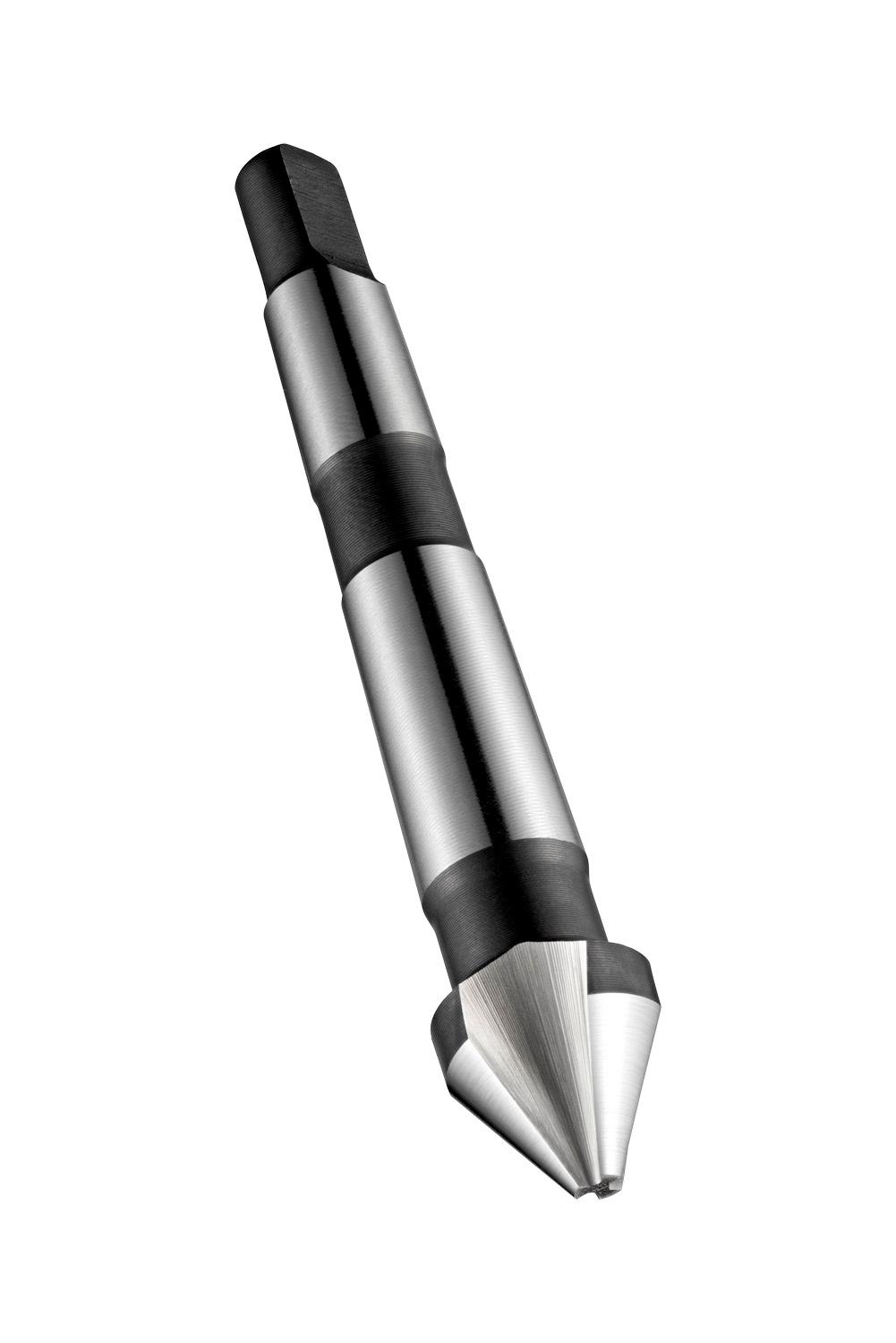

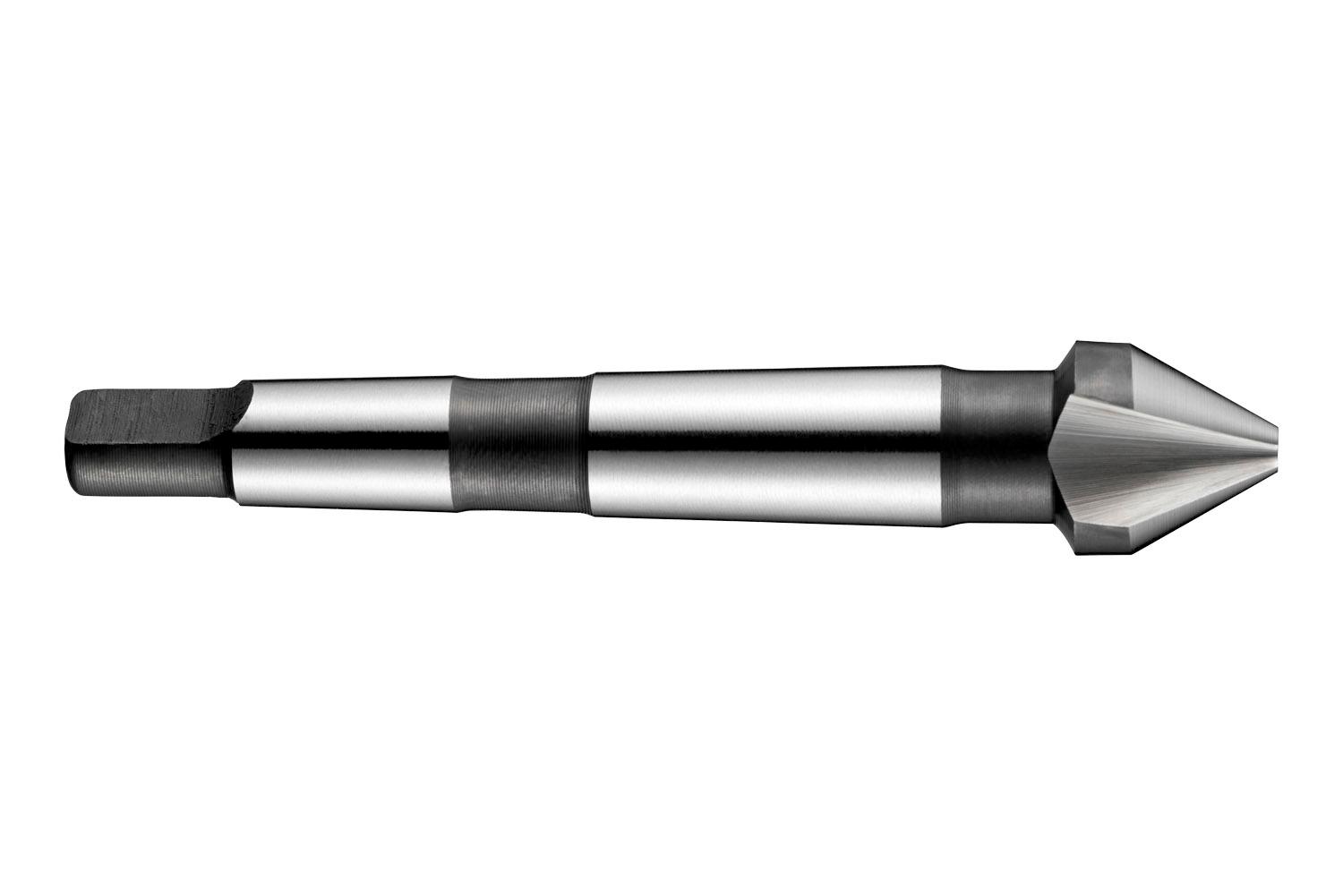

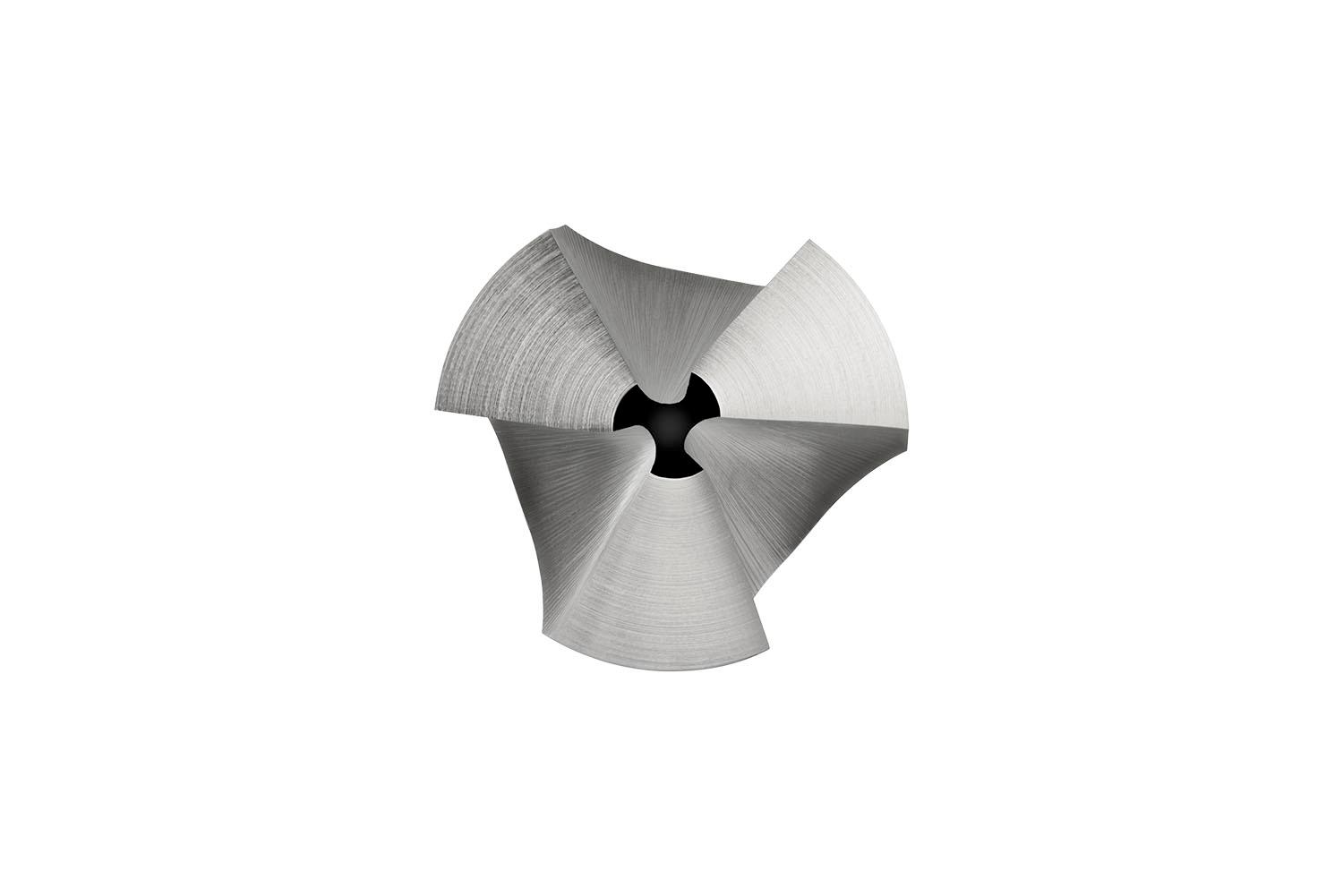

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 40.00mm with an overall length of 150mm and a head length of 28.5mm and MT 3 Morse-taper shank, according to DIN 334 D standard for deburring and chamfering holes with a minium hole diameter of 12.50mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.3630 kg
Dimensions
barcode
Additional Information

Description: Value

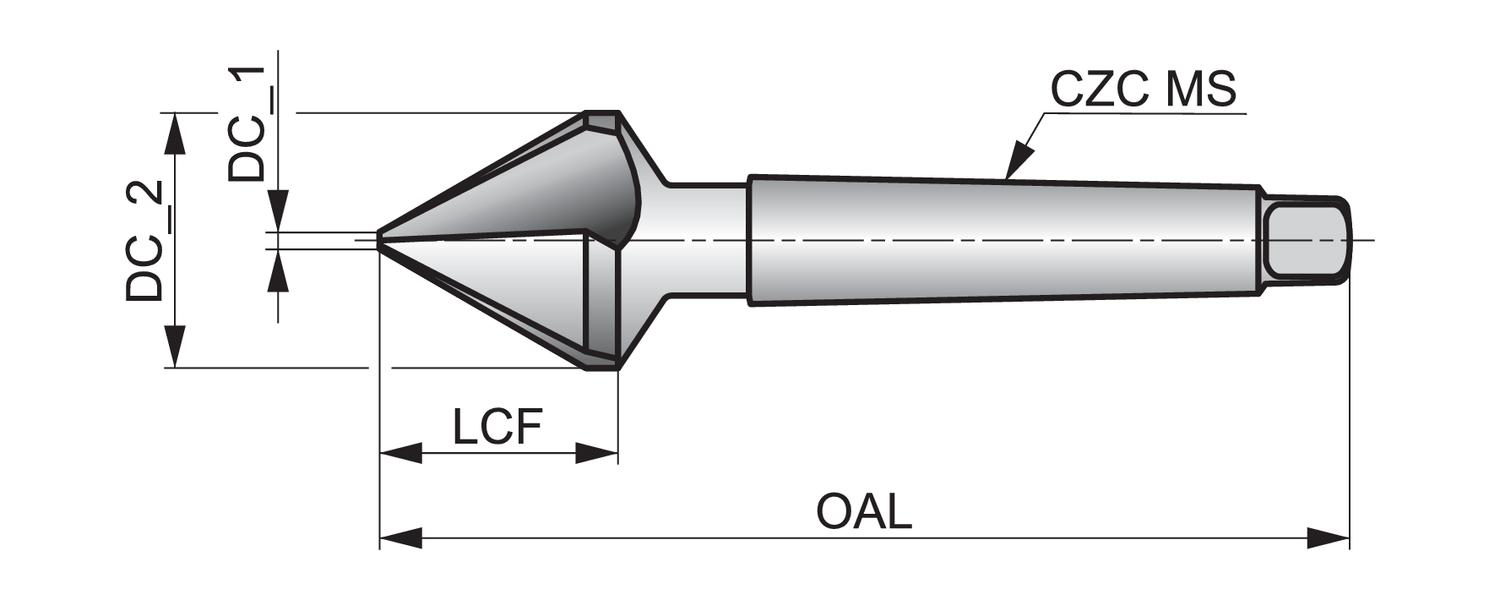

EAN number: 7320760108802 Product number (SAP): 86018196 Ordering code ANSI: G13740.0 Gross weight – grams: 498.6 Cutting diameter second cutting step – millimeters (DC_2): 40 mm Cutting diameter step – millimeter: 12.5 mm Length chip flute – millimeter (LCF): 28.5 mm Overall length – millimeter (OAL): 150 mm Connection size code machine side (CZC MS): MK 3 Flute count (NOF): 3 ISO: G13740.0

Brand

DORMER
