DORMER G13750.0 Countersinks / Bors

Product Code: G13750.0

$487.19$442.90 Ex. GST

Product Code: G13750.0 SKU G13750.0 Categories , ,
DORMER G13750.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

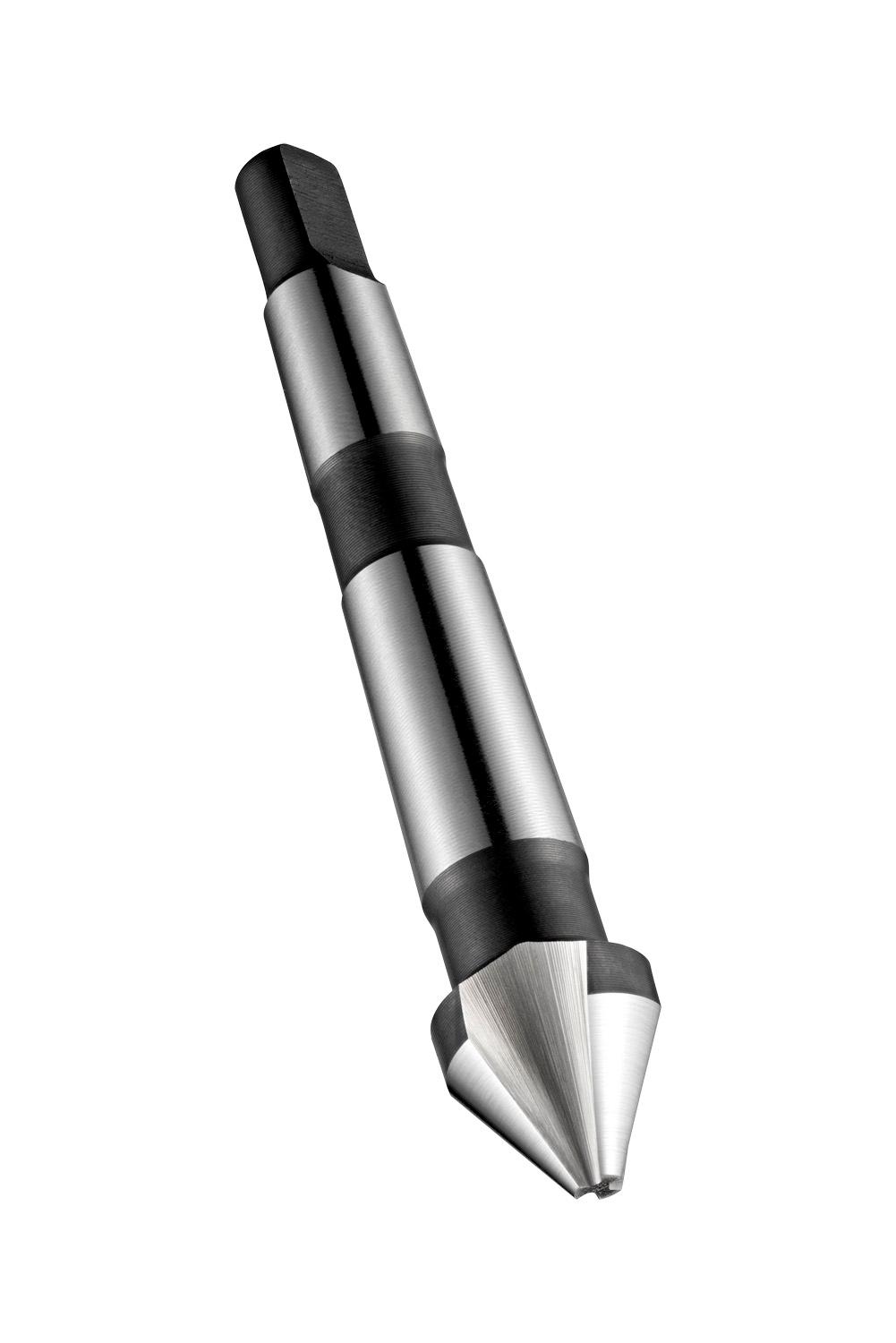

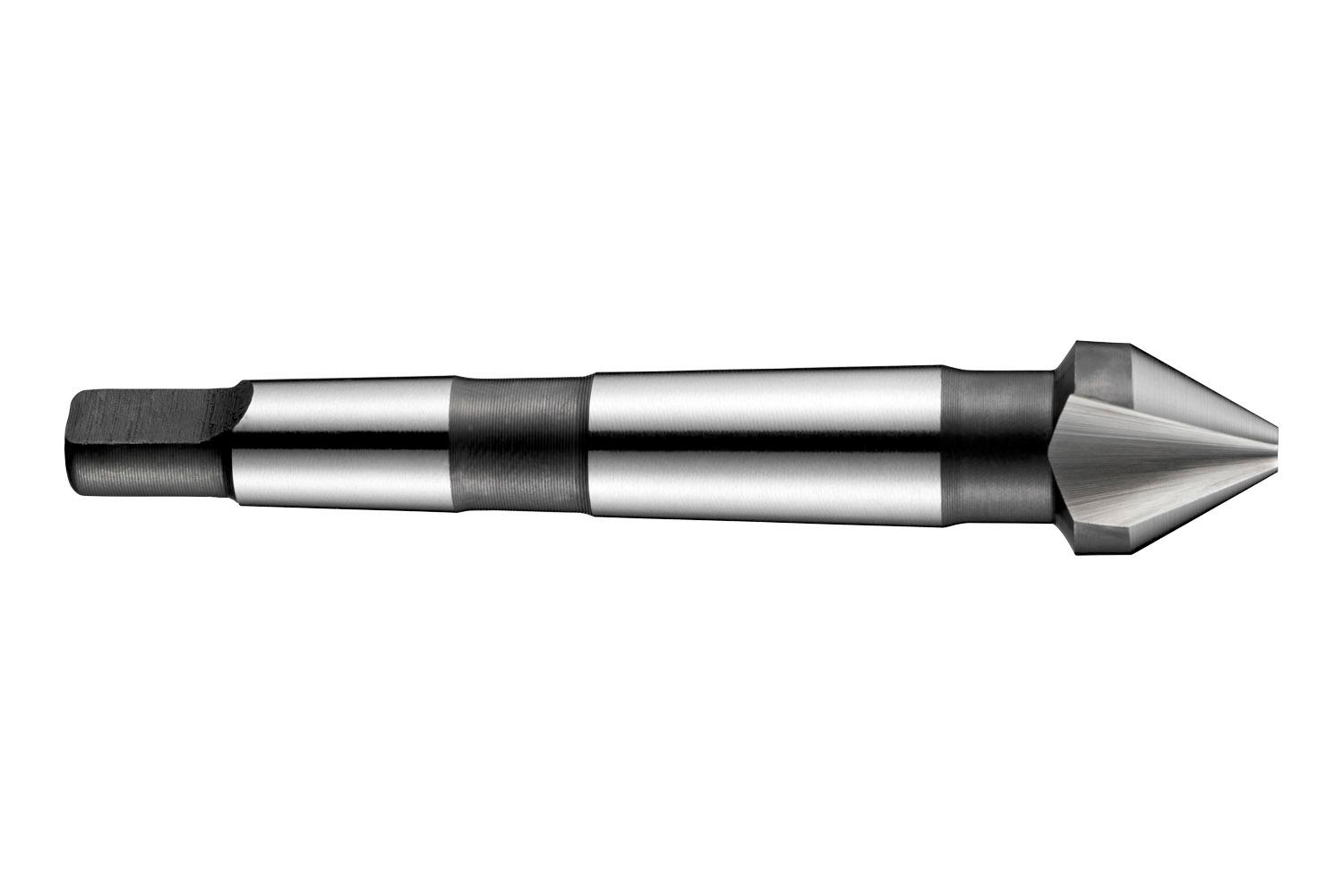

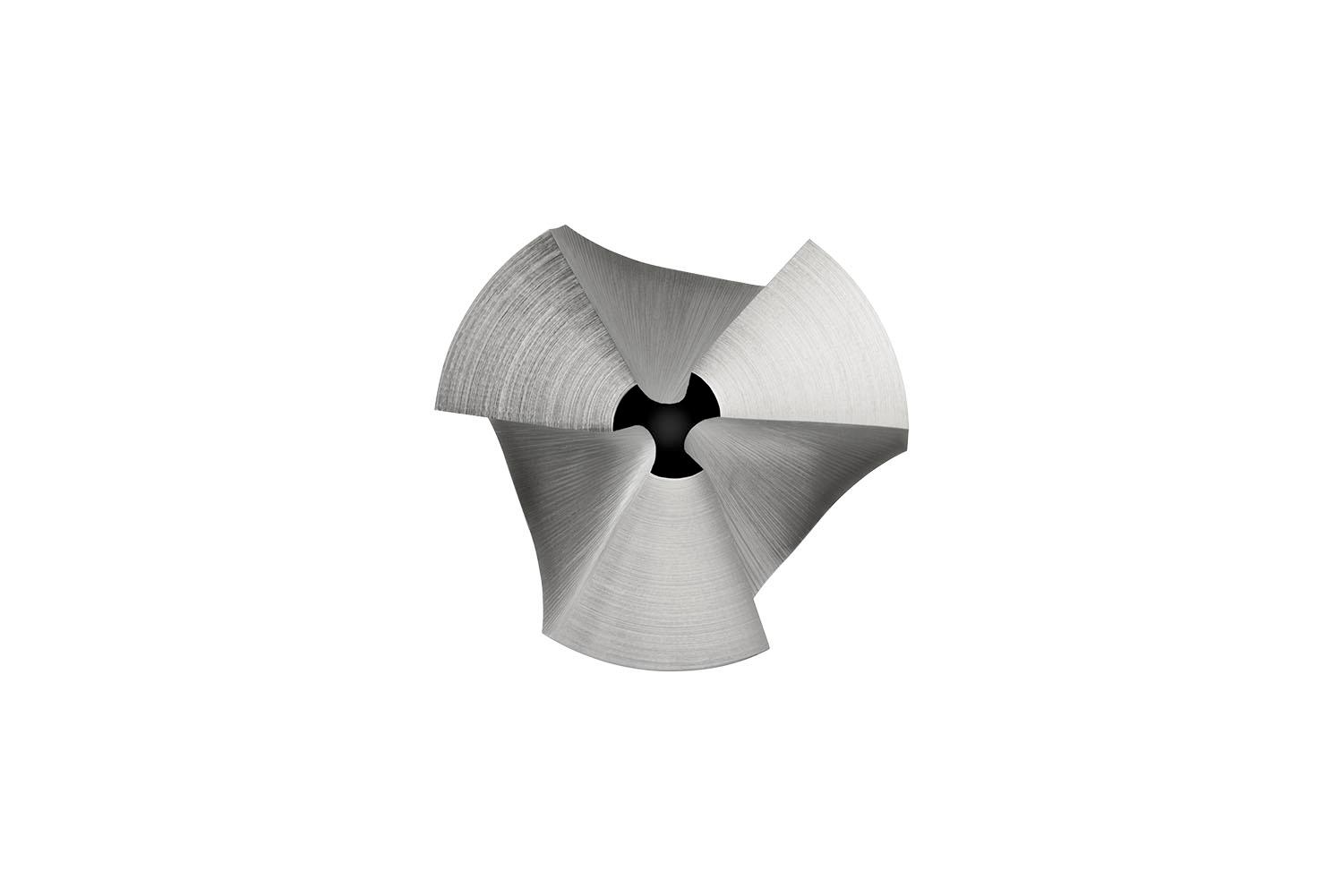

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 50.00mm with an overall length of 160mm and a head length of 36mm and MT 3 Morse-taper shank, according to DIN 334 D standard for deburring and chamfering holes with a minium hole diameter of 16.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.4730 kg
Dimensions
barcode
Additional Information

Description: Value

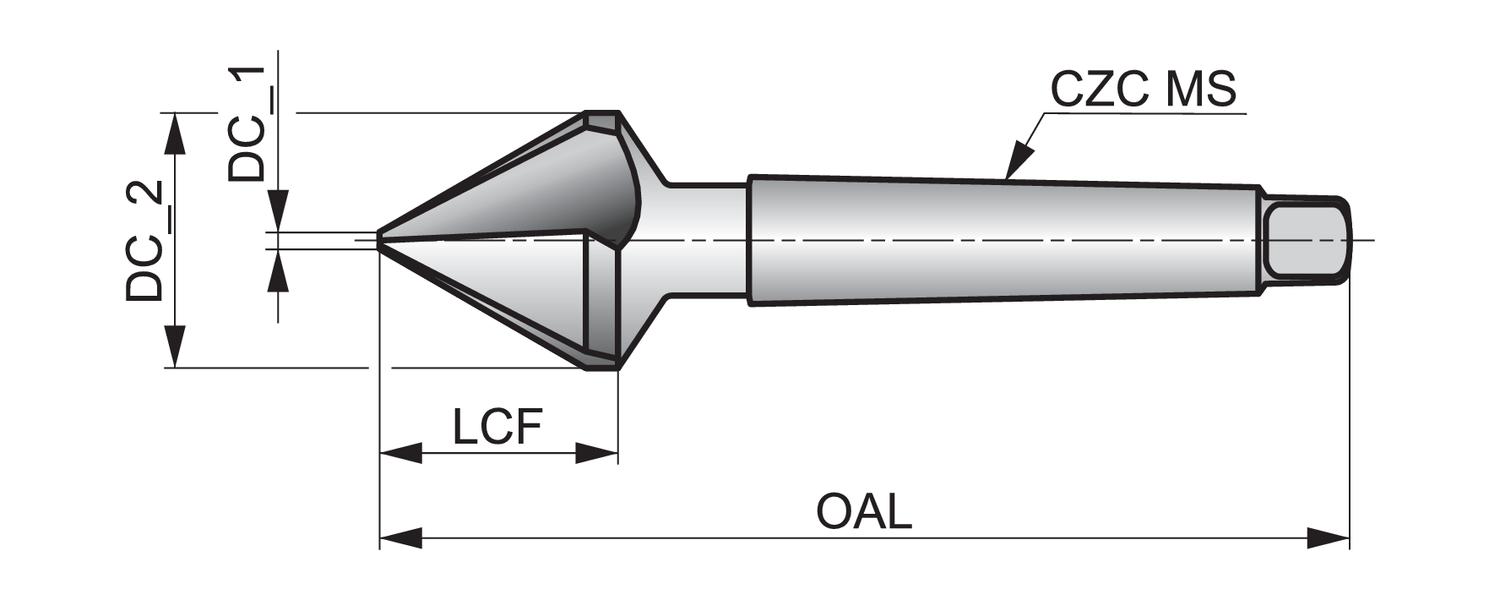

EAN number: 7320760108819 Product number (SAP): 86018197 Ordering code ANSI: G13750.0 Gross weight – grams: 668 Cutting diameter second cutting step – millimeters (DC_2): 50 mm Cutting diameter step – millimeter: 16 mm Length chip flute – millimeter (LCF): 36 mm Overall length – millimeter (OAL): 160 mm Connection size code machine side (CZC MS): MK 3 Flute count (NOF): 3 ISO: G13750.0

Brand

DORMER
