DORMER G13830.0 Countersinks / Bors

Product Code: G13830.0

$245.86$223.51 Ex. GST

Product Code: G13830.0 SKU G13830.0 Categories , ,
DORMER G13830.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

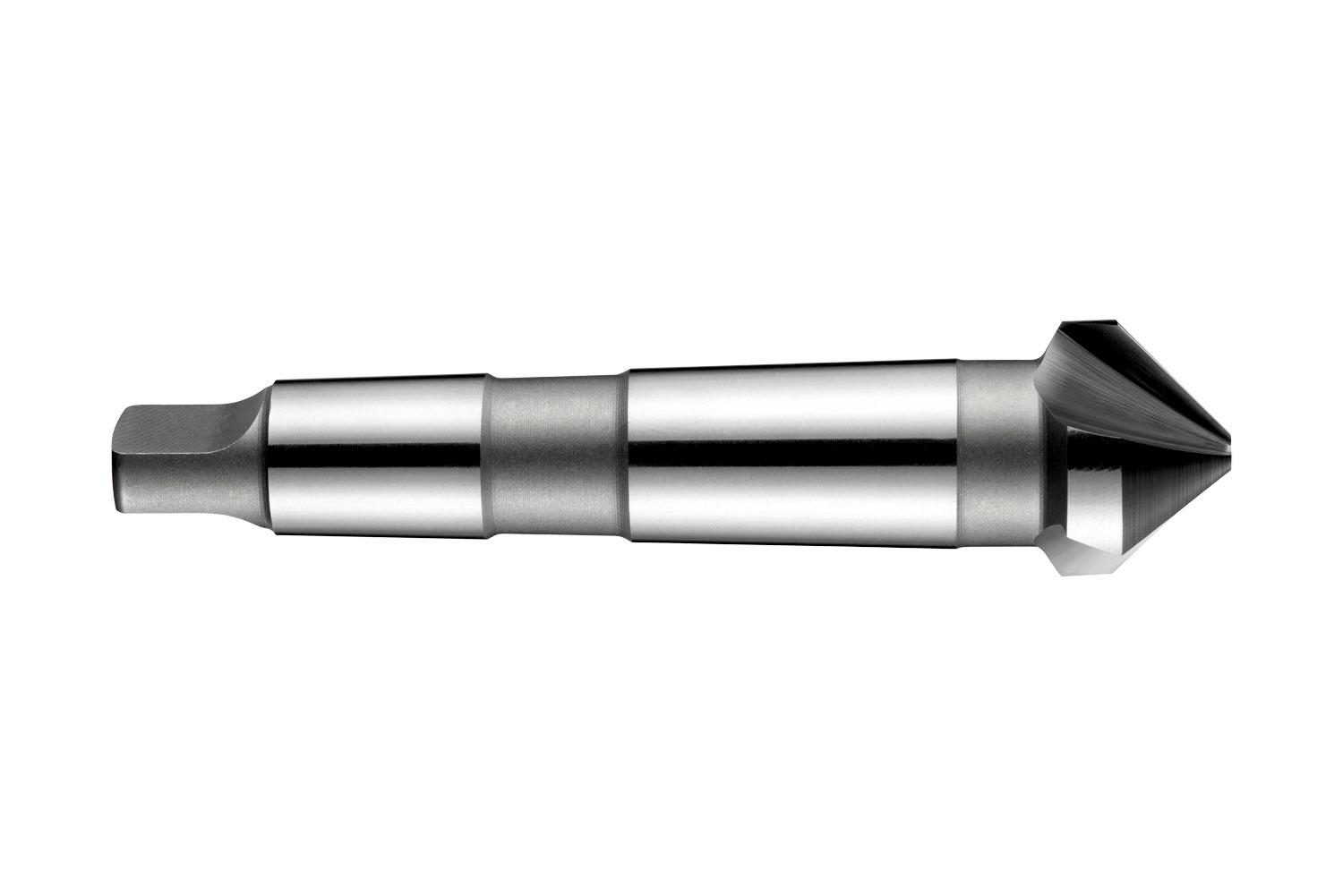

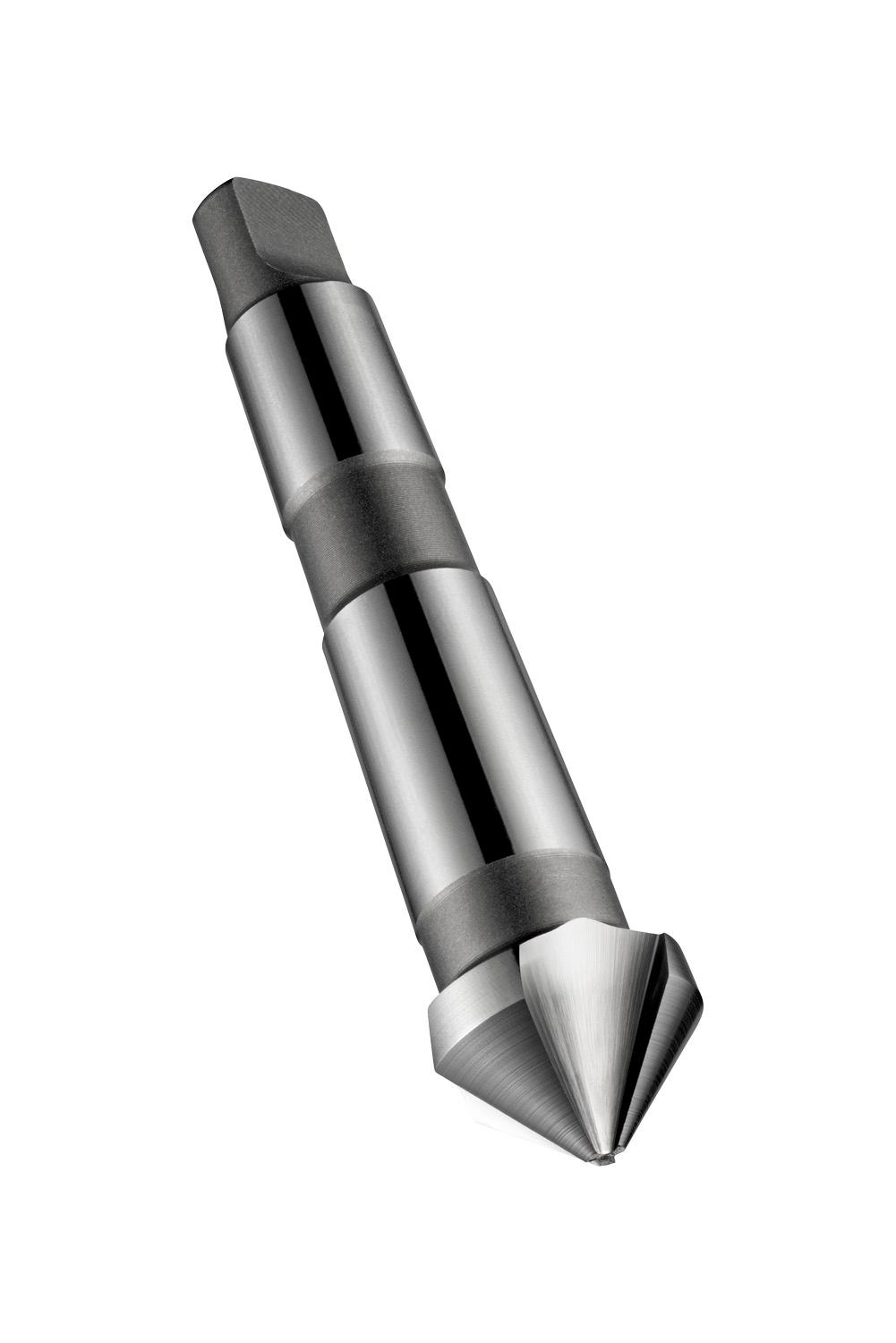

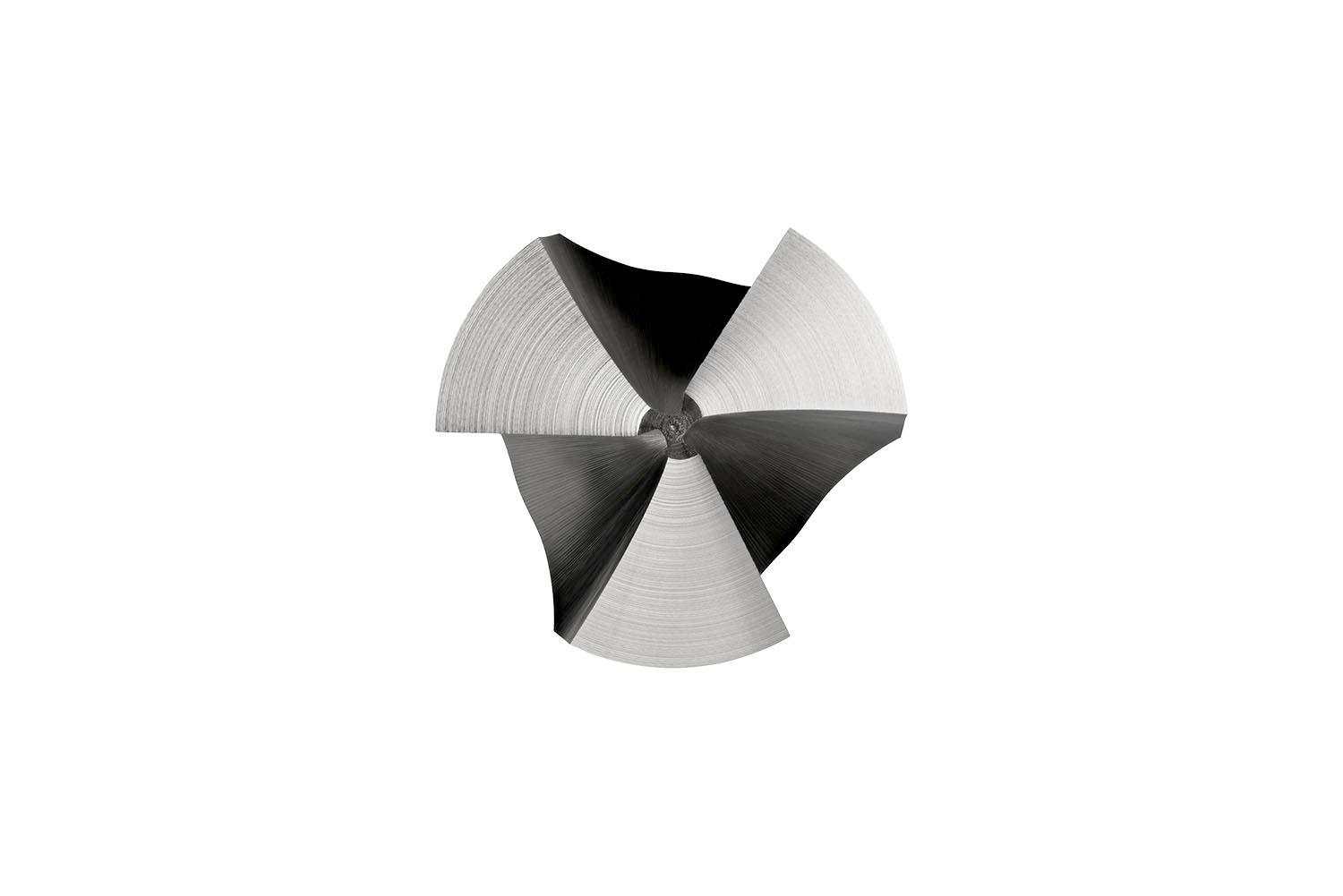

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 30.00mm with an overall length of 112mm and a head length of 18.5mm and MT 2 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.2387 kg
Dimensions
barcode
Additional Information

Description: Value

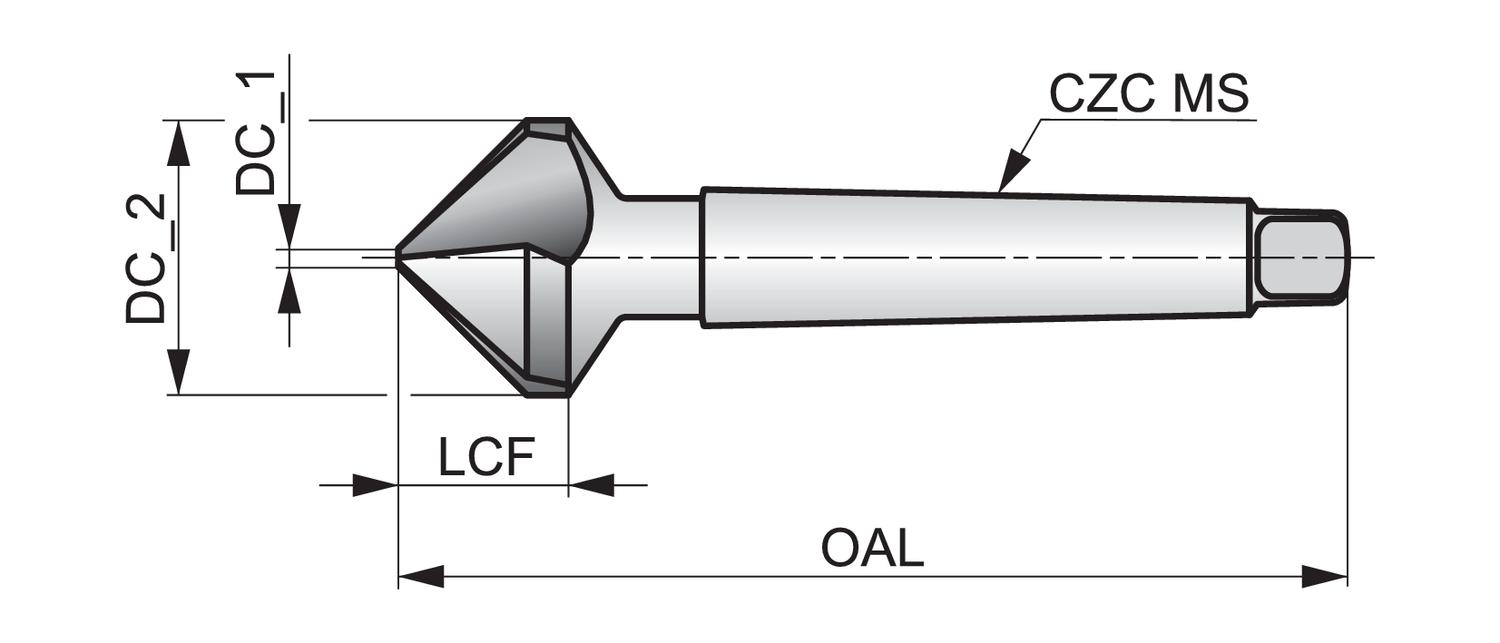

EAN number: 7320760108925 Product number (SAP): 86018201 Ordering code ANSI: G13830.0 Gross weight – grams: 201.2 Cutting diameter second cutting step – millimeters (DC_2): 30 mm Cutting diameter step – millimeter: 4.2 mm Length chip flute – millimeter (LCF): 18.5 mm Overall length – millimeter (OAL): 112 mm Connection size code machine side (CZC MS): MK 2 Flute count (NOF): 3 ISO: G13830.0

Brand

DORMER
