DORMER G13837.0 Countersinks / Bors

Product Code: G13837.0

$280.98$255.44 Ex. GST

Product Code: G13837.0 SKU G13837.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

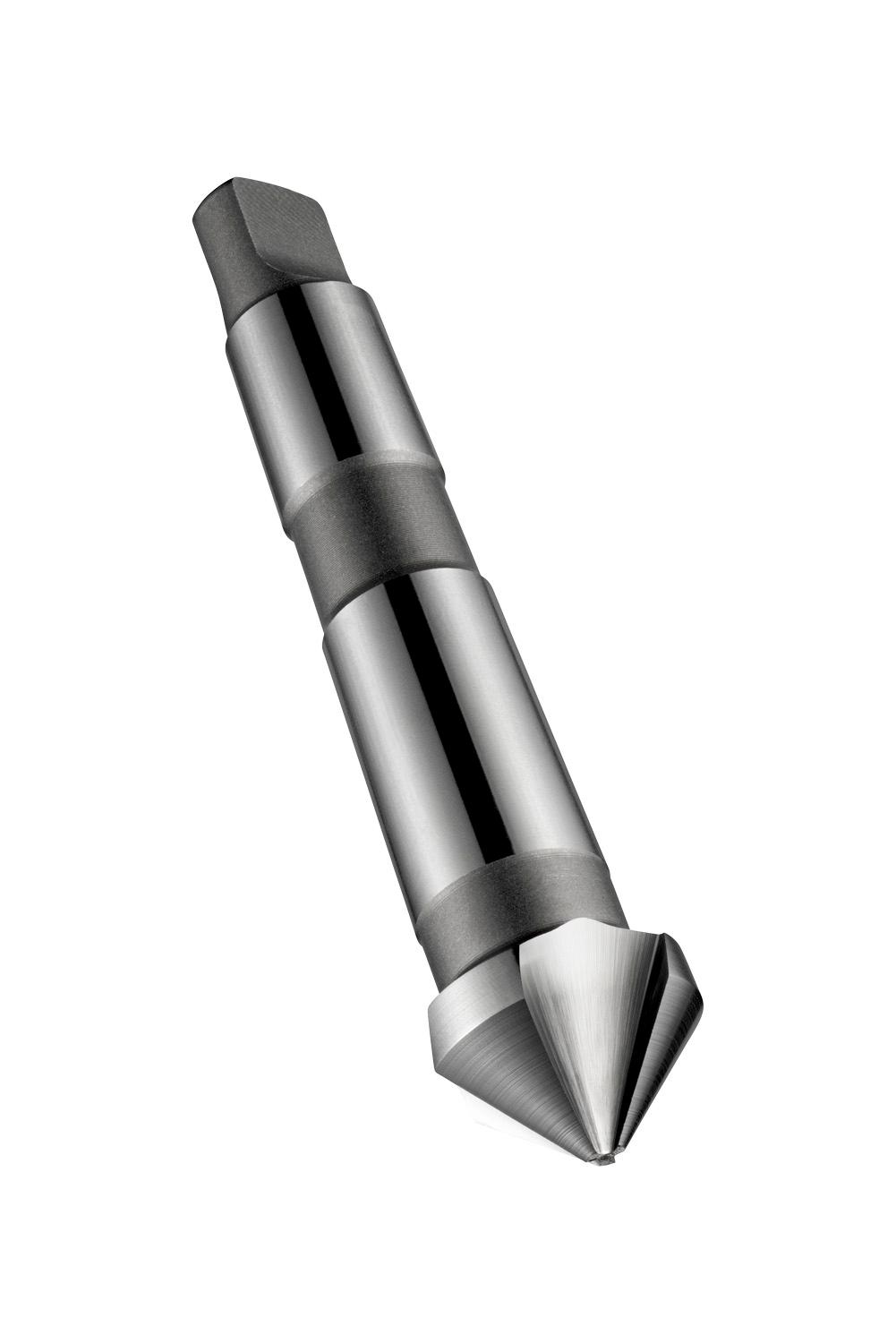

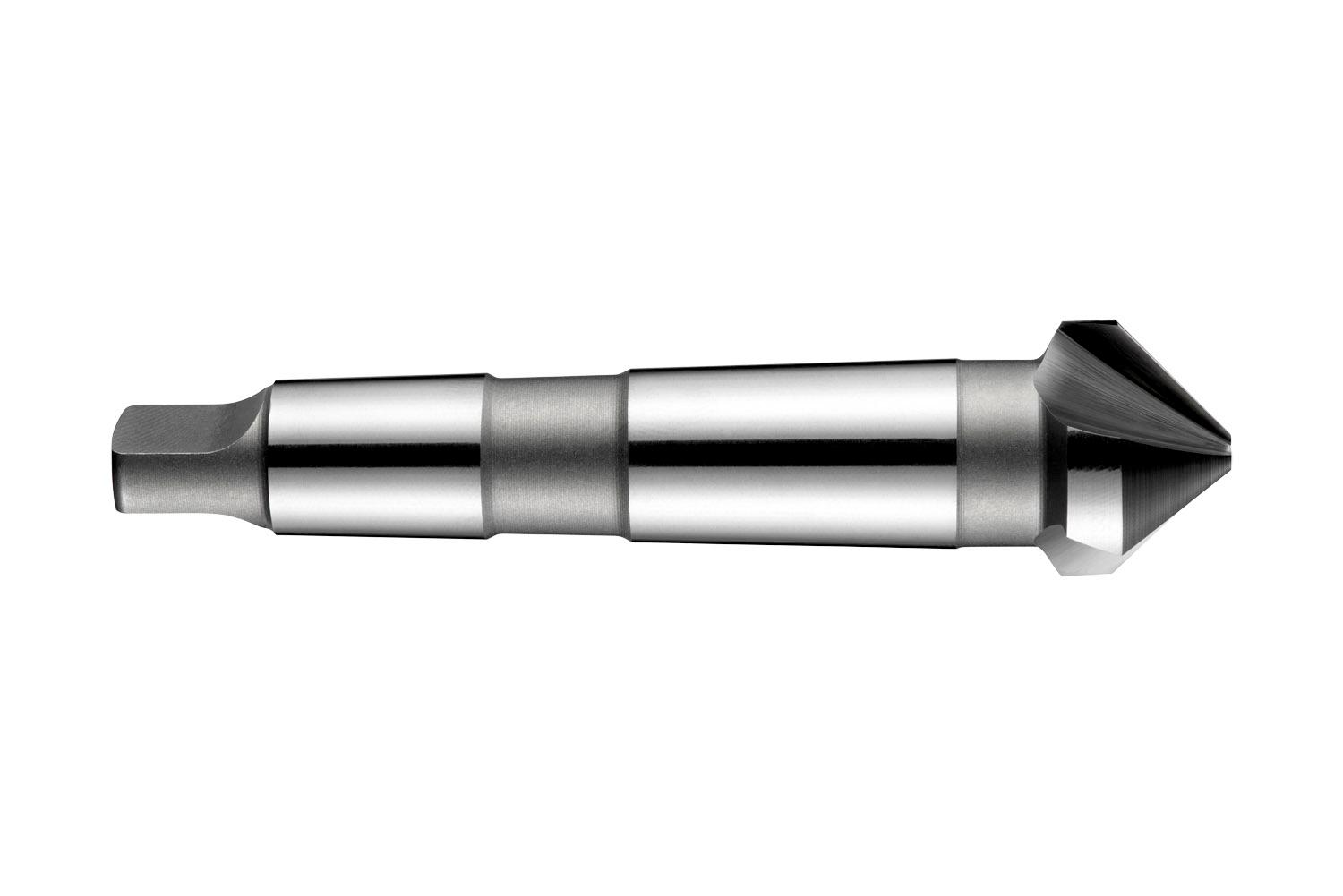

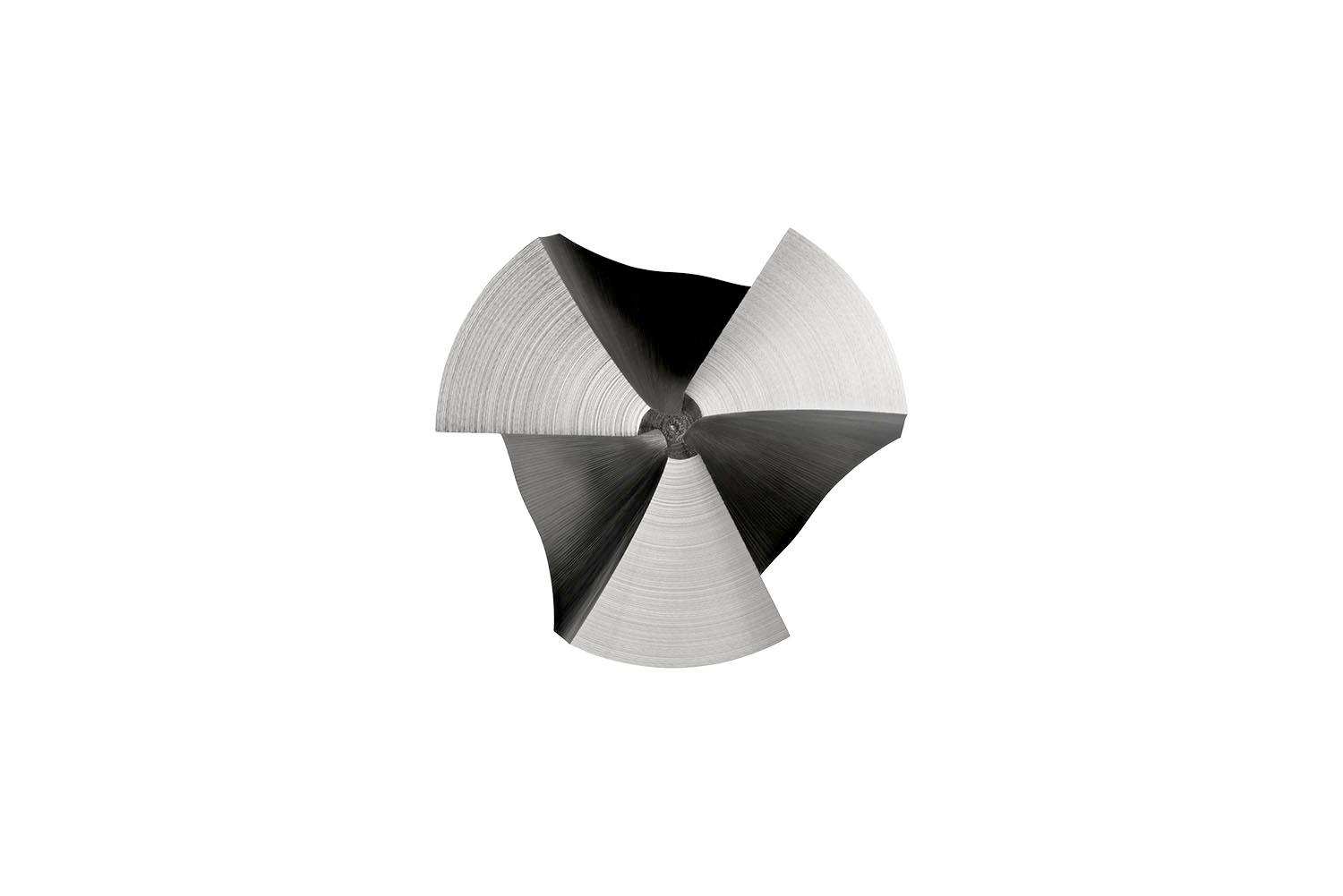

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 37.00mm with an overall length of 118mm and a head length of 21.7mm and MT 2 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.80mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.2728 kg
Dimensions
barcode
Additional Information

Description: Value

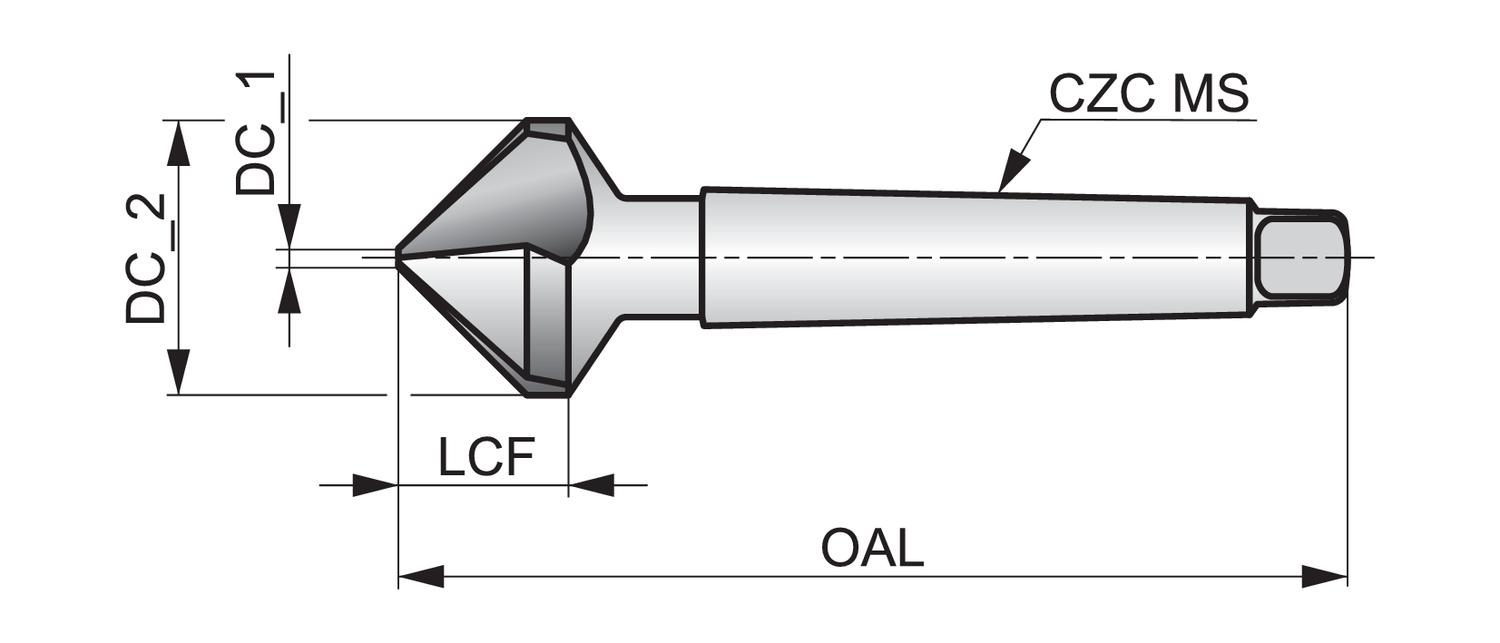

EAN number: 7320760108956 Product number (SAP): 86018204 Ordering code ANSI: G13837.0 Gross weight – grams: 261.3 Cutting diameter second cutting step – millimeters (DC_2): 37 mm Cutting diameter step – millimeter: 4.8 mm Length chip flute – millimeter (LCF): 21.7 mm Overall length – millimeter (OAL): 118 mm Connection size code machine side (CZC MS): MK 2 Flute count (NOF): 3 ISO: G13837.0

Brand

DORMER
