DORMER G13863.0 Countersinks / Bors

Product Code: G13863.0

$723.99$658.17 Ex. GST

Product Code: G13863.0 SKU G13863.0 Categories , ,
DORMER G13863.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

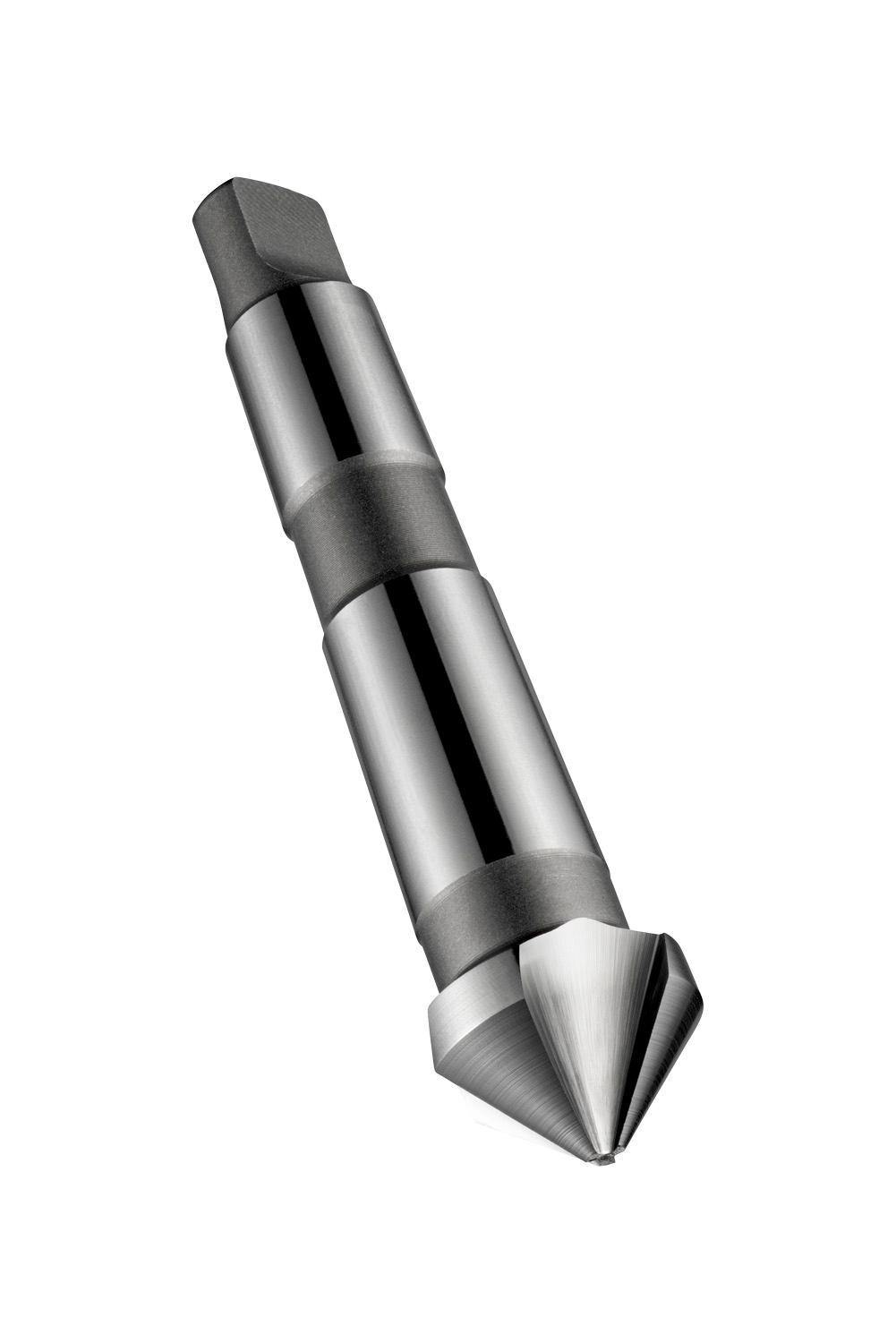

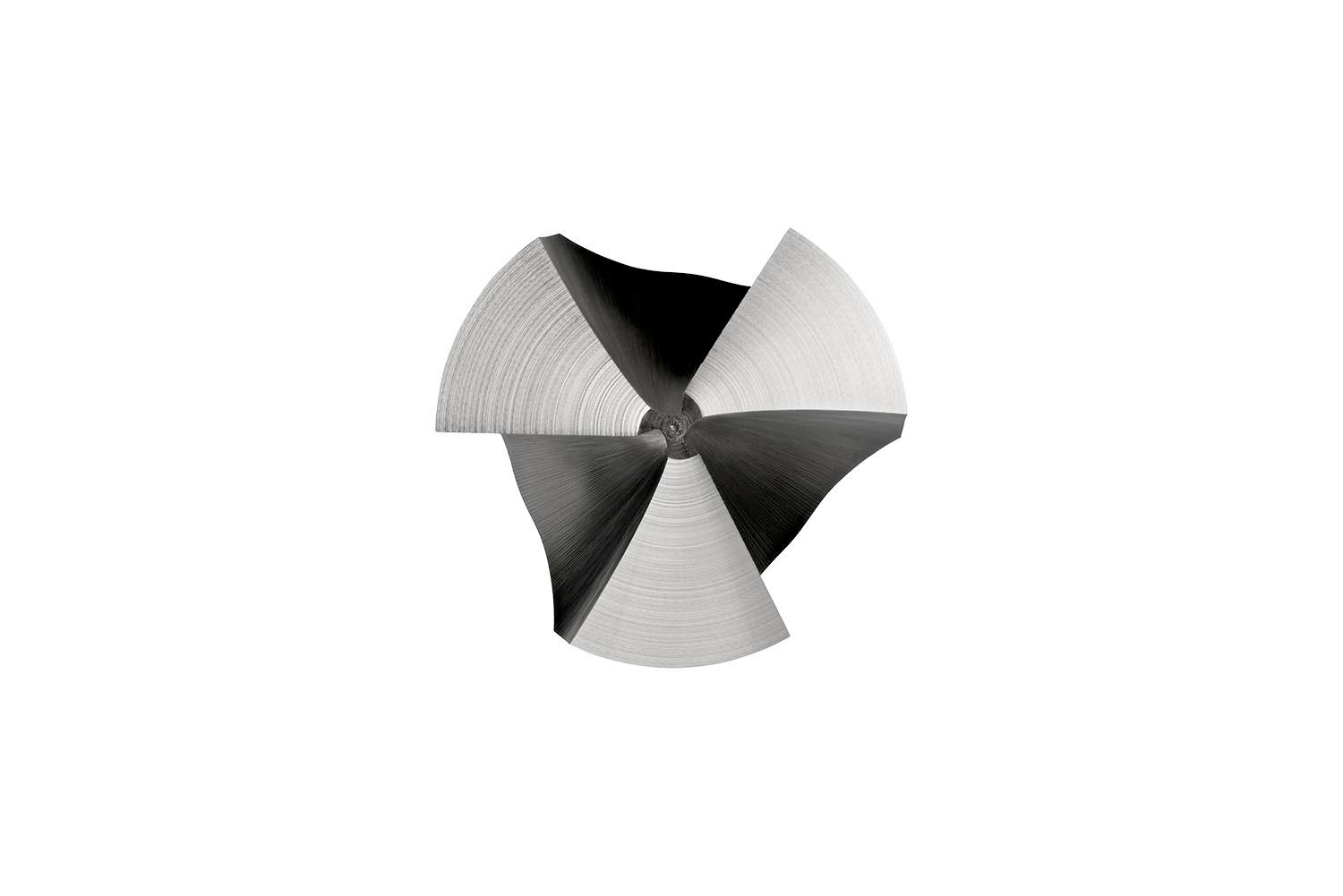

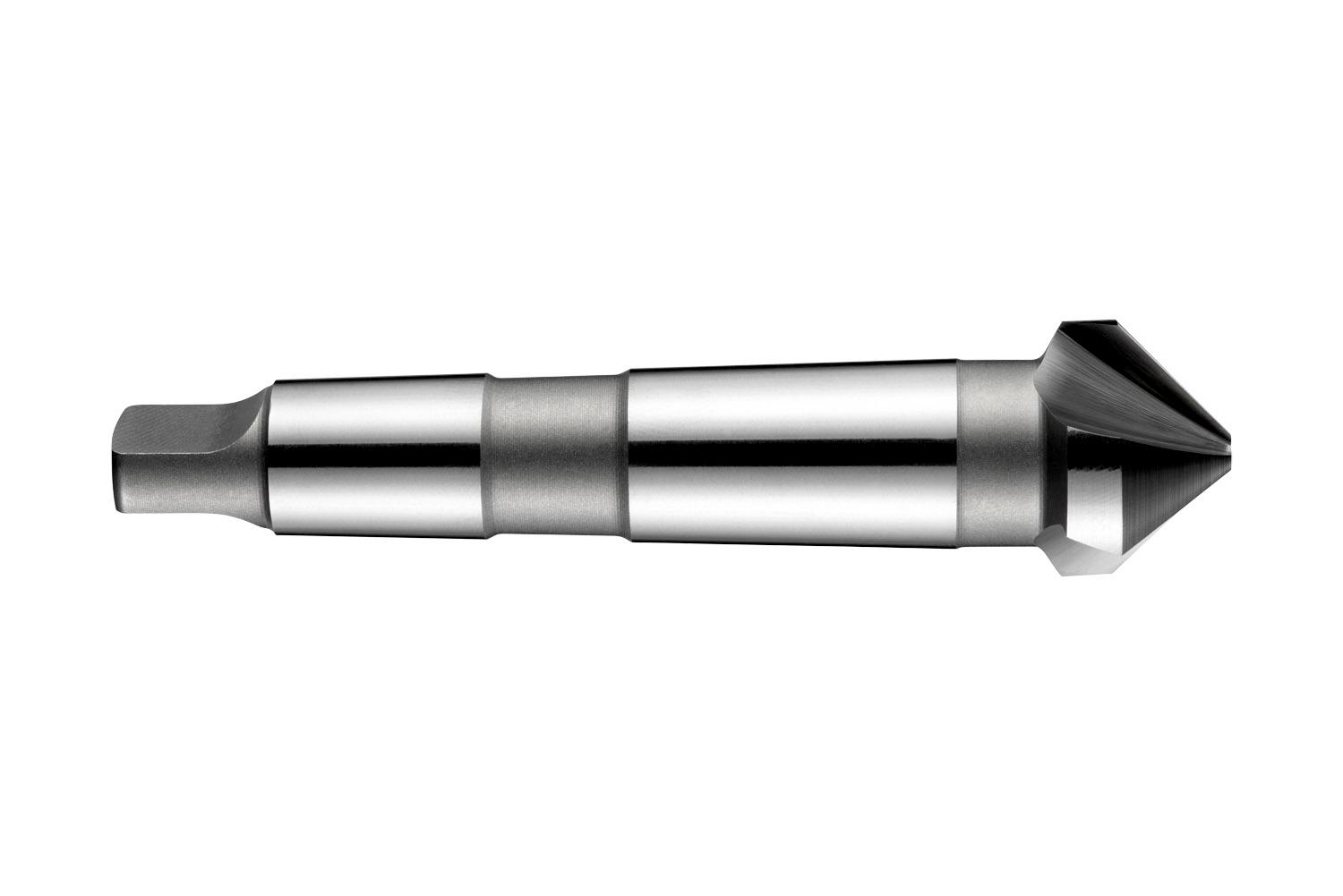

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 63.00mm with an overall length of 180mm and a head length of 28.5mm and MT 4 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 16.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.7029 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760108987
Product number (SAP): 86018207
Ordering code ANSI: G13863.0
Gross weight – grams: 1137

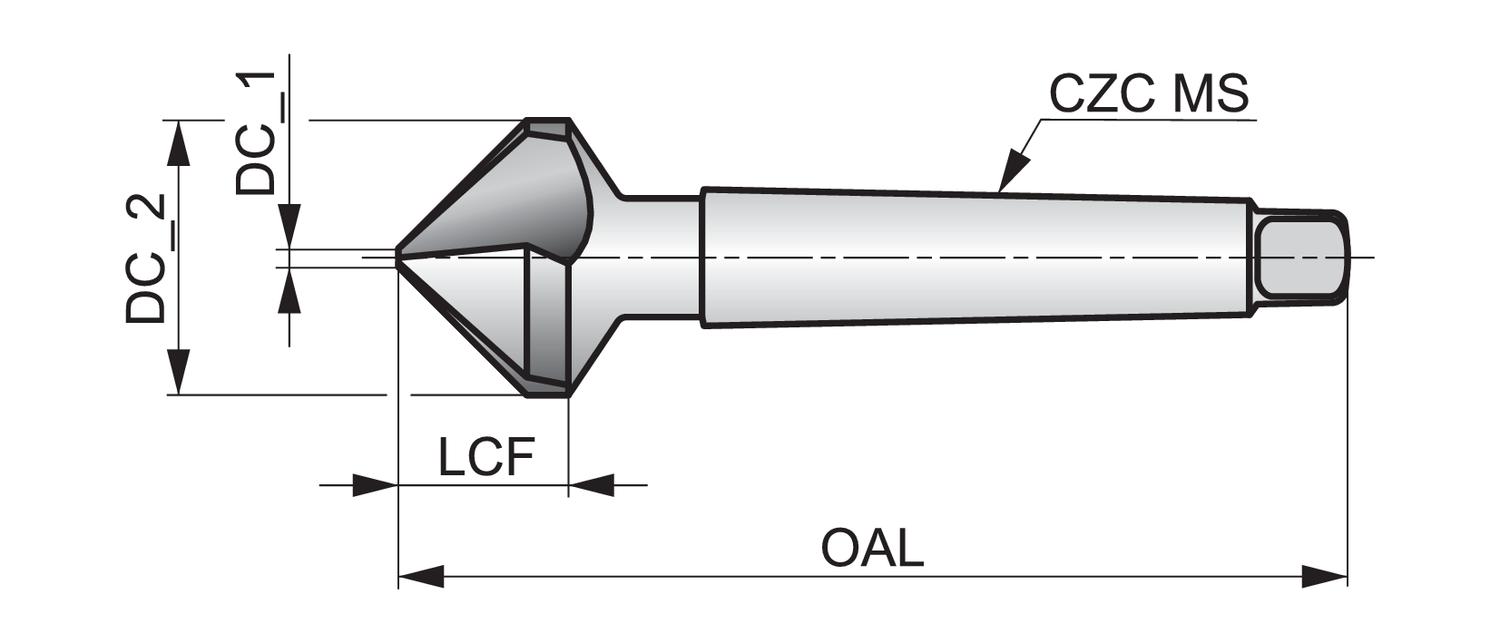

Cutting diameter second cutting step – millimeters (DC_2): 63 mm
Cutting diameter step – millimeter: 16 mm
Length chip flute – millimeter (LCF): 28.5 mm
Overall length – millimeter (OAL): 180 mm
Connection size code machine side (CZC MS): MK 4
Flute count (NOF): 3
ISO: G13863.0

Brand

DORMER
