DORMER G14212.4 Countersinks / Bors

Product Code: G14212.4

$74.78$67.98 Ex. GST

Product Code: G14212.4 SKU G14212.4 Categories , ,
DORMER G14212.4 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

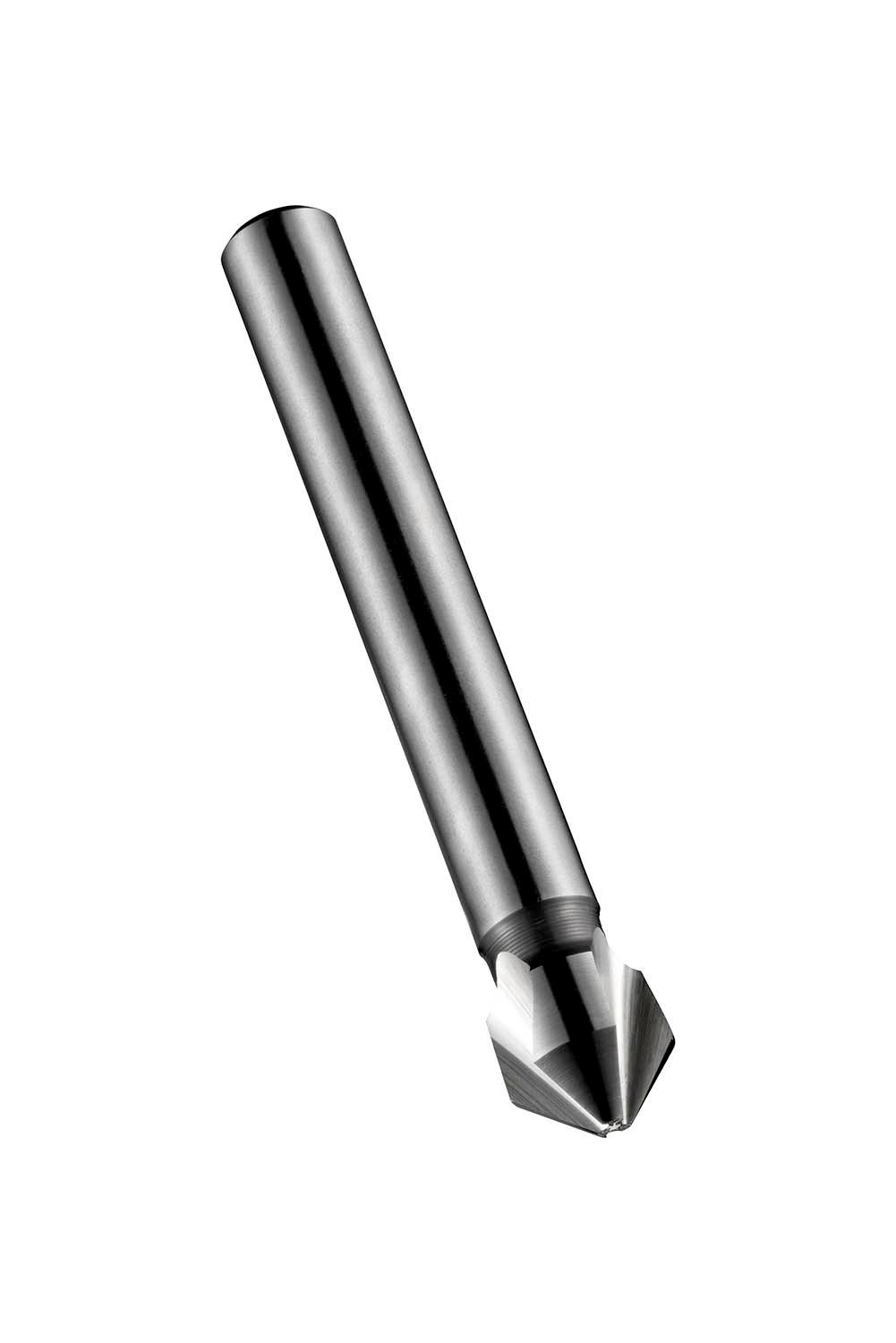

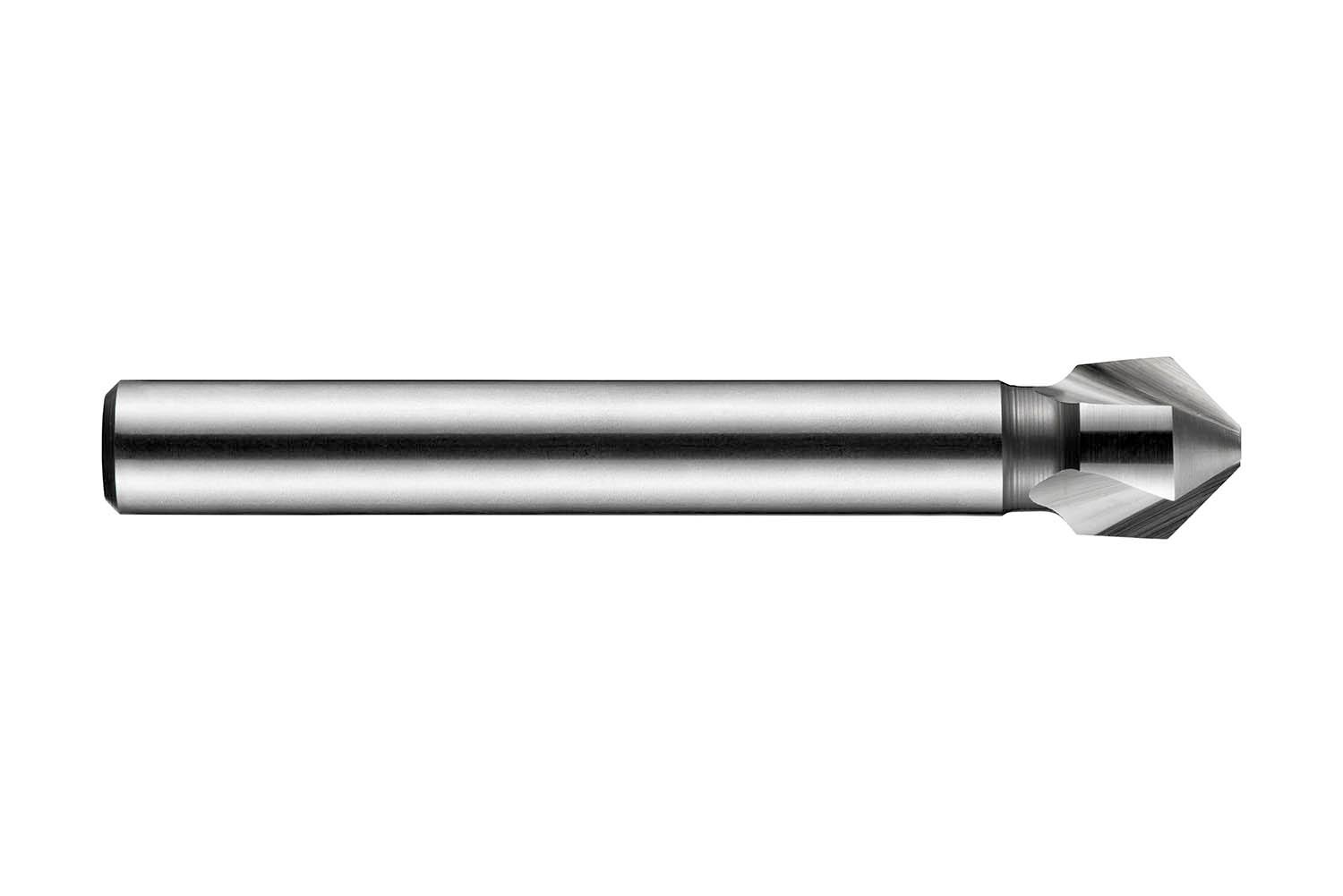

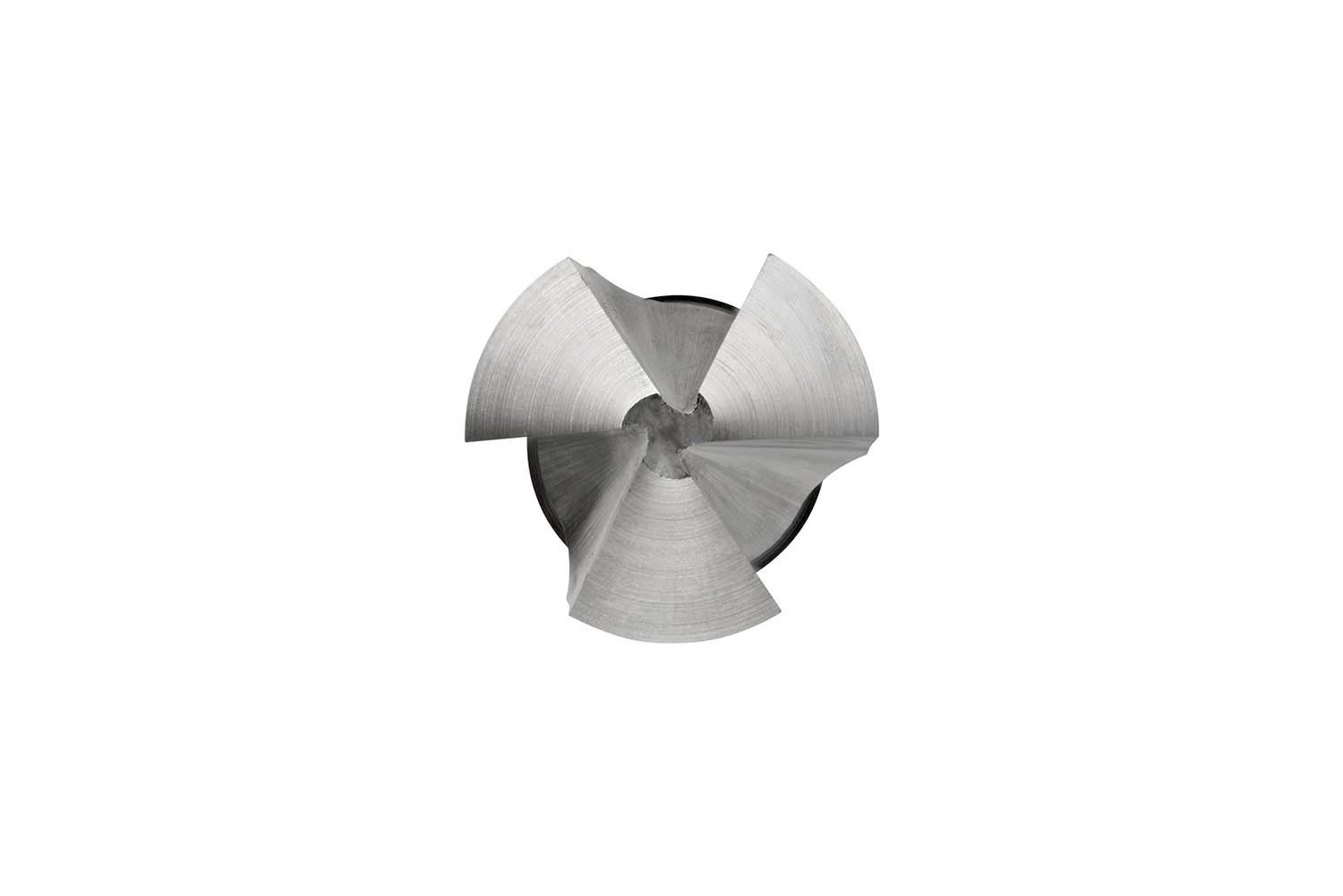

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 56mm and a head length of 8.5mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers

Additional information

Weight 0.0726 kg
Dimensions
barcode
Additional Information

Description: Value

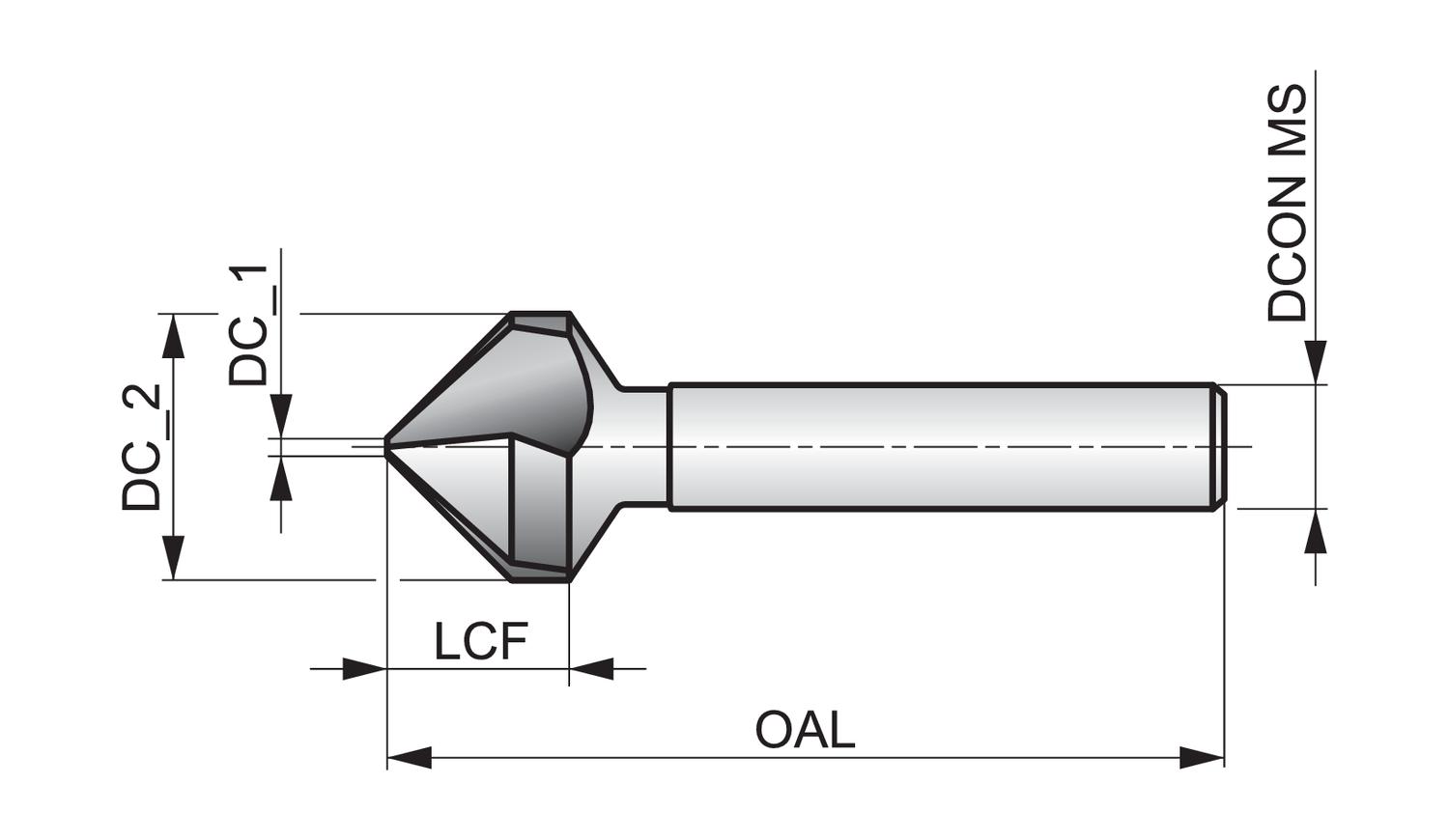

EAN number: 7320760149294 Product number (SAP): 86018212 Ordering code ANSI: G14212.4 Gross weight – grams: 31.2 Cutting diameter second cutting step – millimeters (DC_2): 12.4 mm Cutting diameter step – millimeter: 2.8 mm Length chip flute – millimeter (LCF): 8.5 mm Overall length – millimeter (OAL): 56 mm Connection diameter – millimeter (DCON MS): 8 mm Flute count (NOF): 3 ISO: G14212.4

Brand

DORMER
