DORMER G14223.0 Countersinks / Bors

Product Code: G14223.0

$140.49$127.72 Ex. GST

Product Code: G14223.0 SKU G14223.0 Categories , ,
DORMER G14223.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

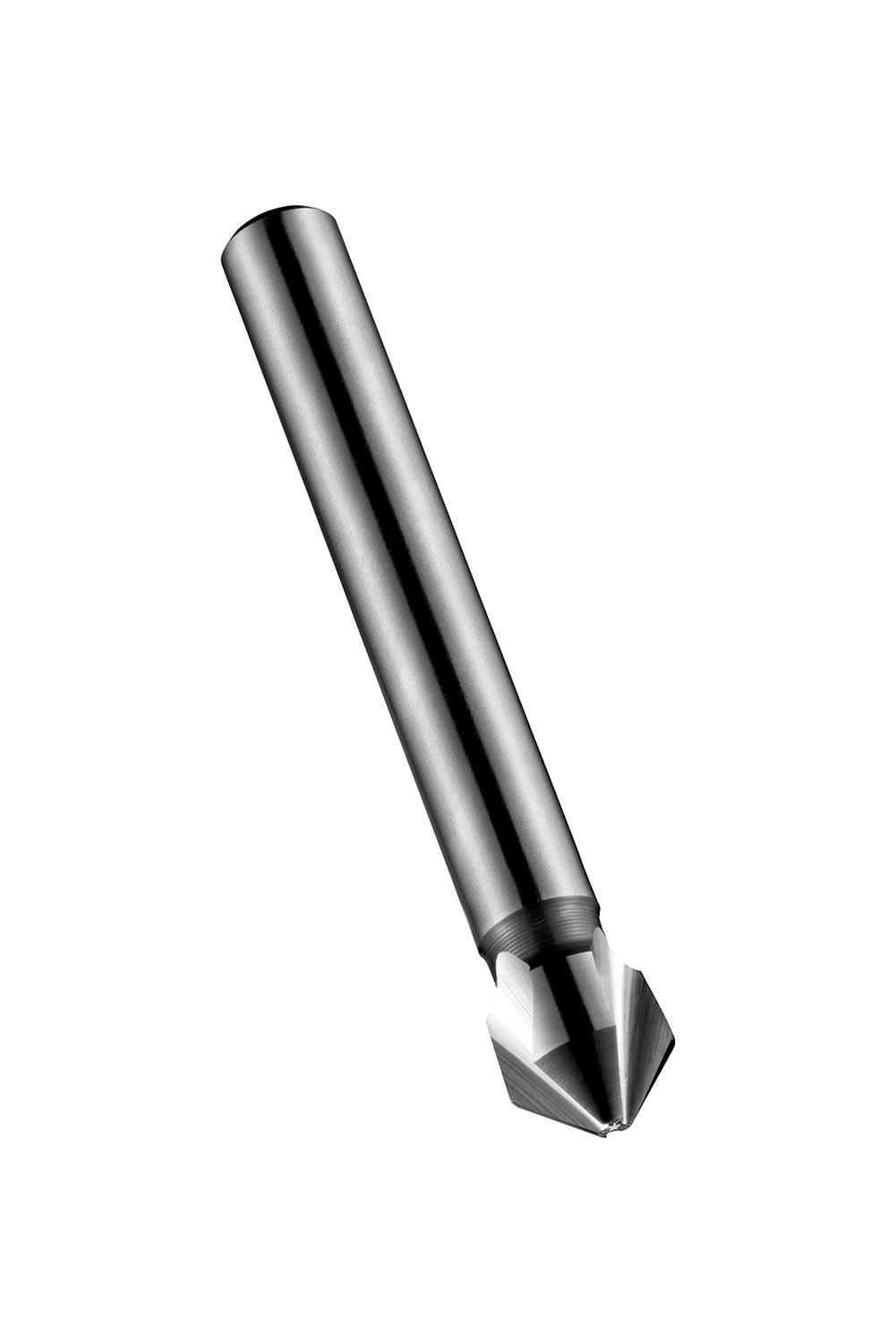

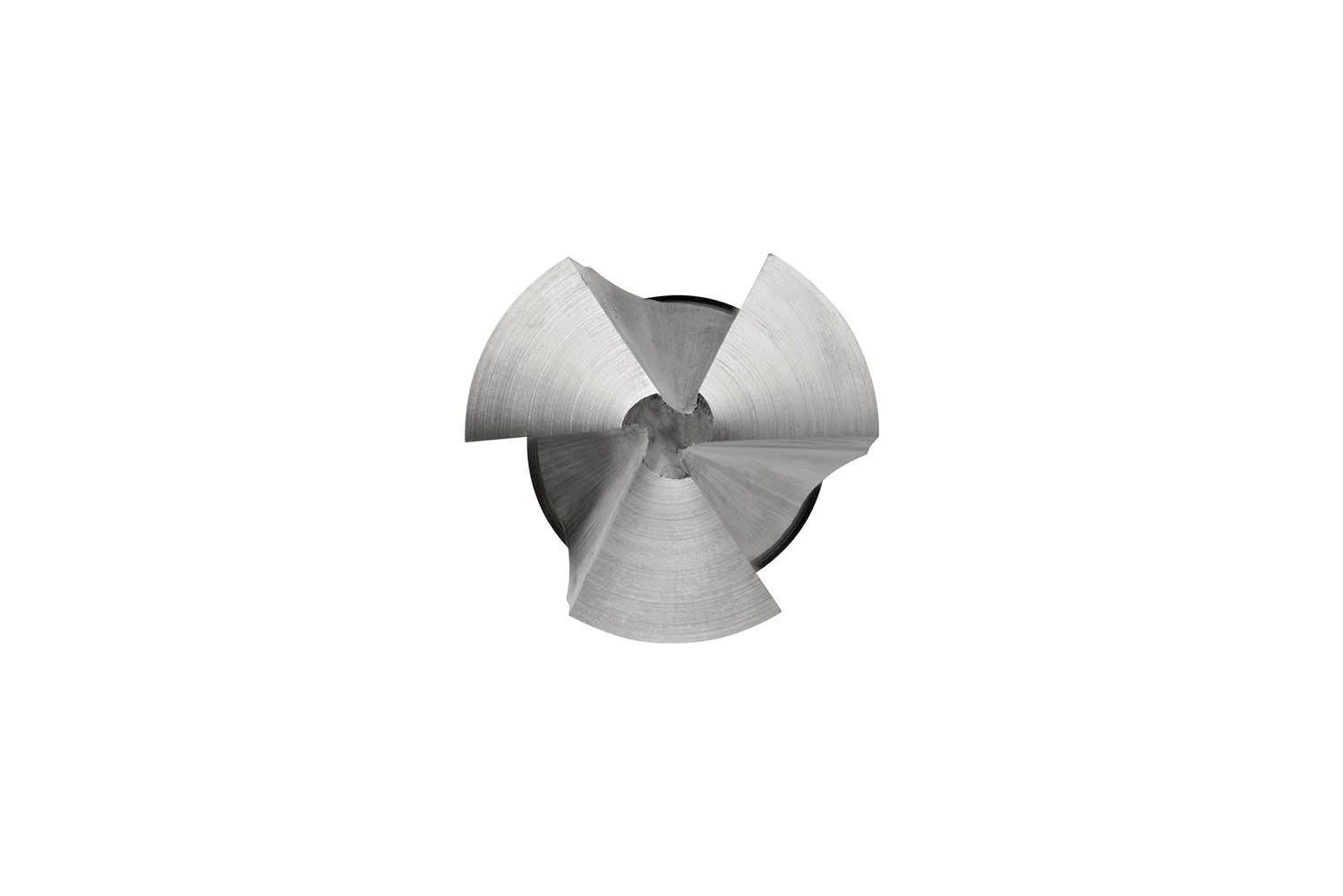

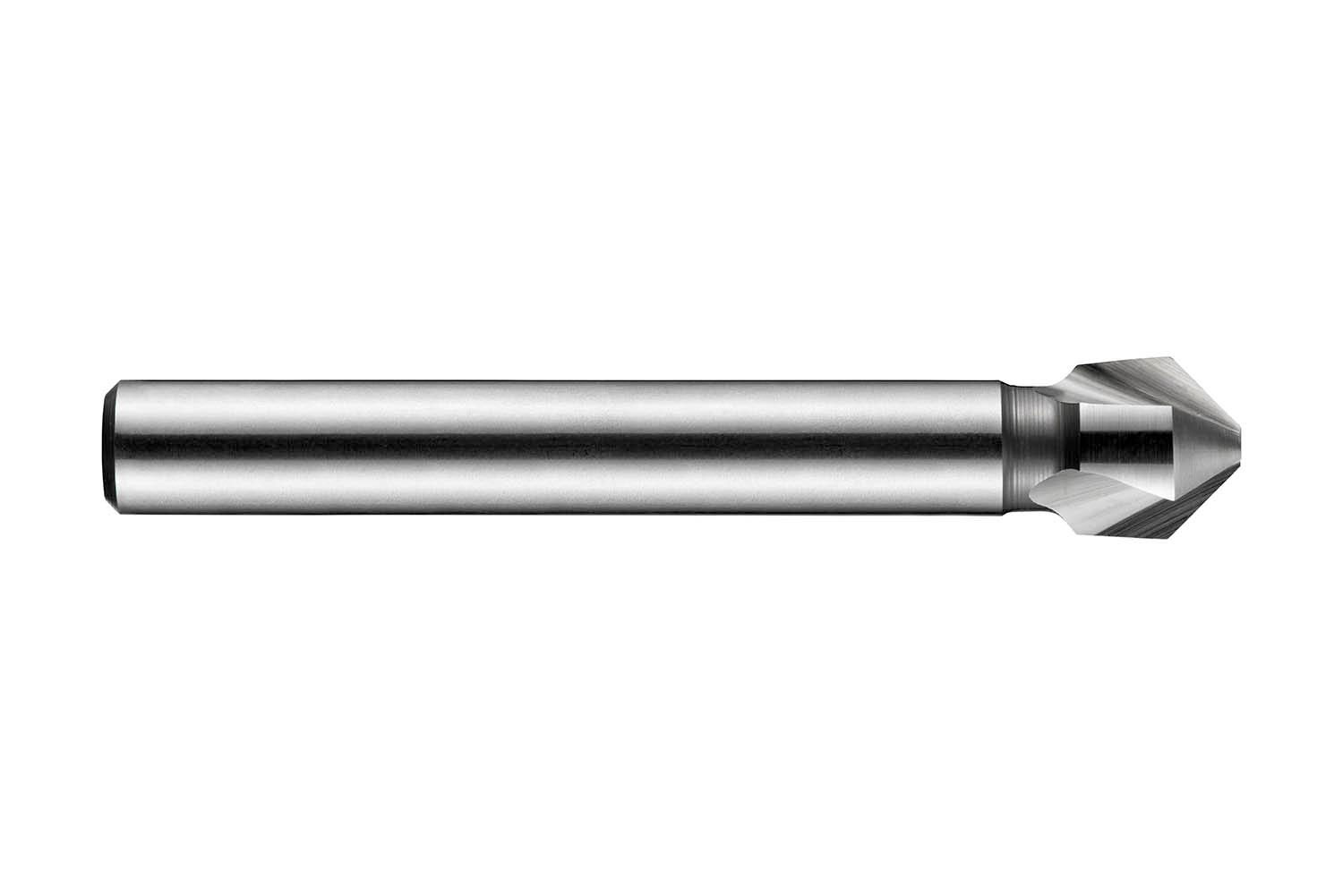

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 23.00mm with an overall length of 67mm and a head length of 13.7mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers

Additional information

Weight 0.1364 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760168158
Product number (SAP): 86018217
Ordering code ANSI: G14223.0
Gross weight – grams: 66
Cutting diameter second cutting step – millimeters (DC_2): 23 mm
Cutting diameter step – millimeter: 3.8 mm
Length chip flute – millimeter (LCF): 13.7 mm
Overall length – millimeter (OAL): 67 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: G14223.0

Brand

DORMER
