DORMER G14225.0 Countersinks / Bors

Product Code: G14225.0

$184.68$167.89 Ex. GST

Product Code: G14225.0 SKU G14225.0 Categories , ,
DORMER G14225.0 Countersinks / Bors

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

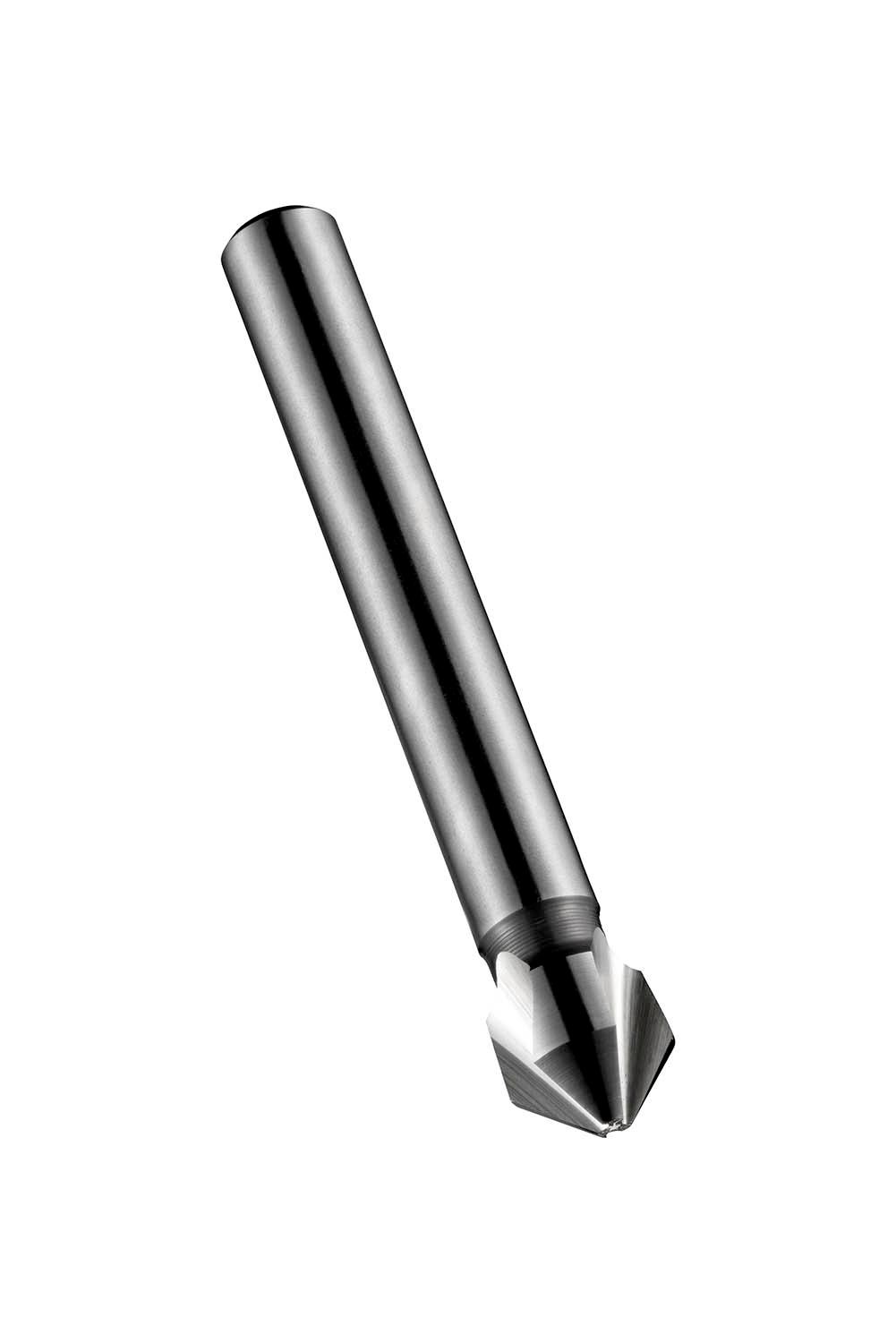

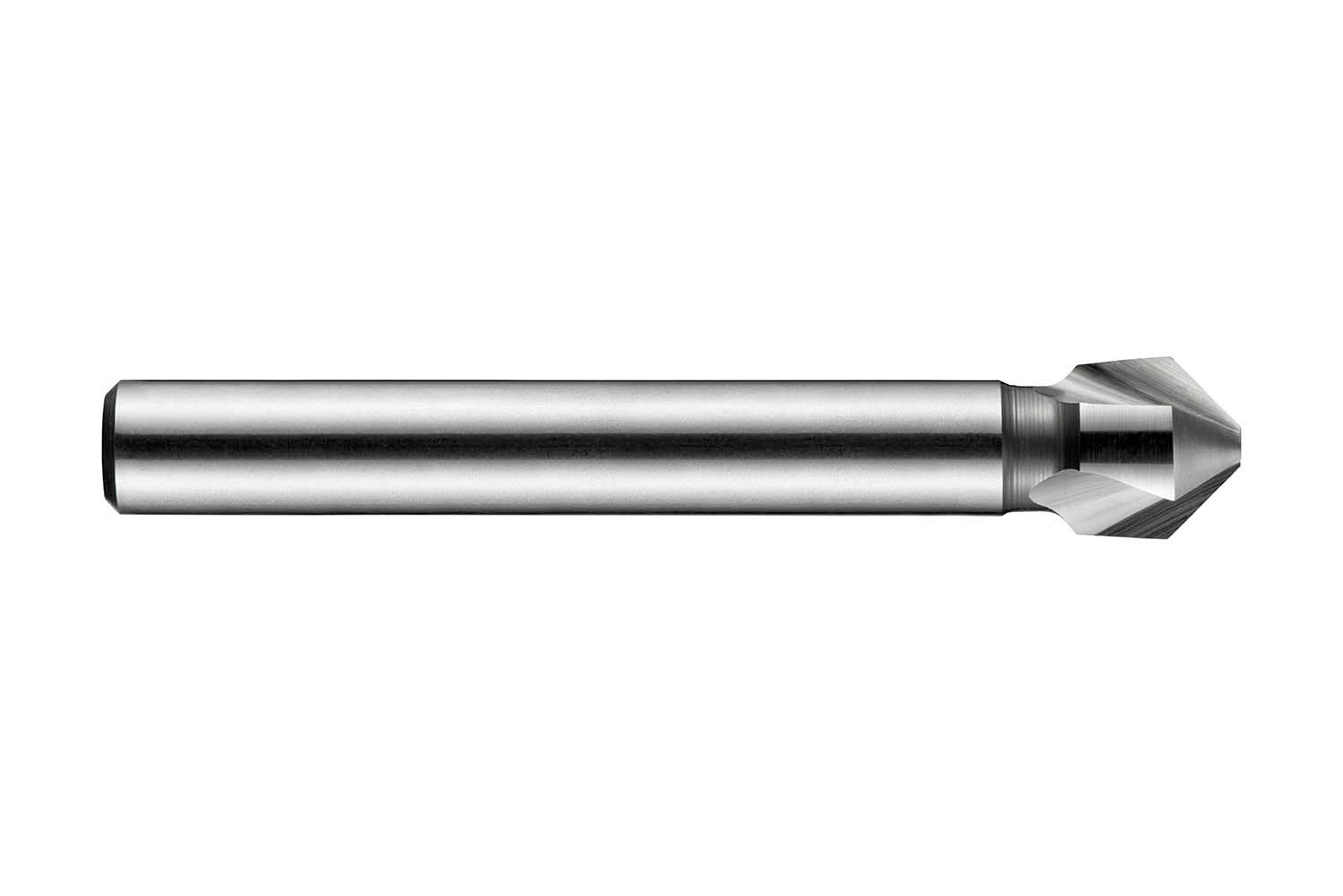

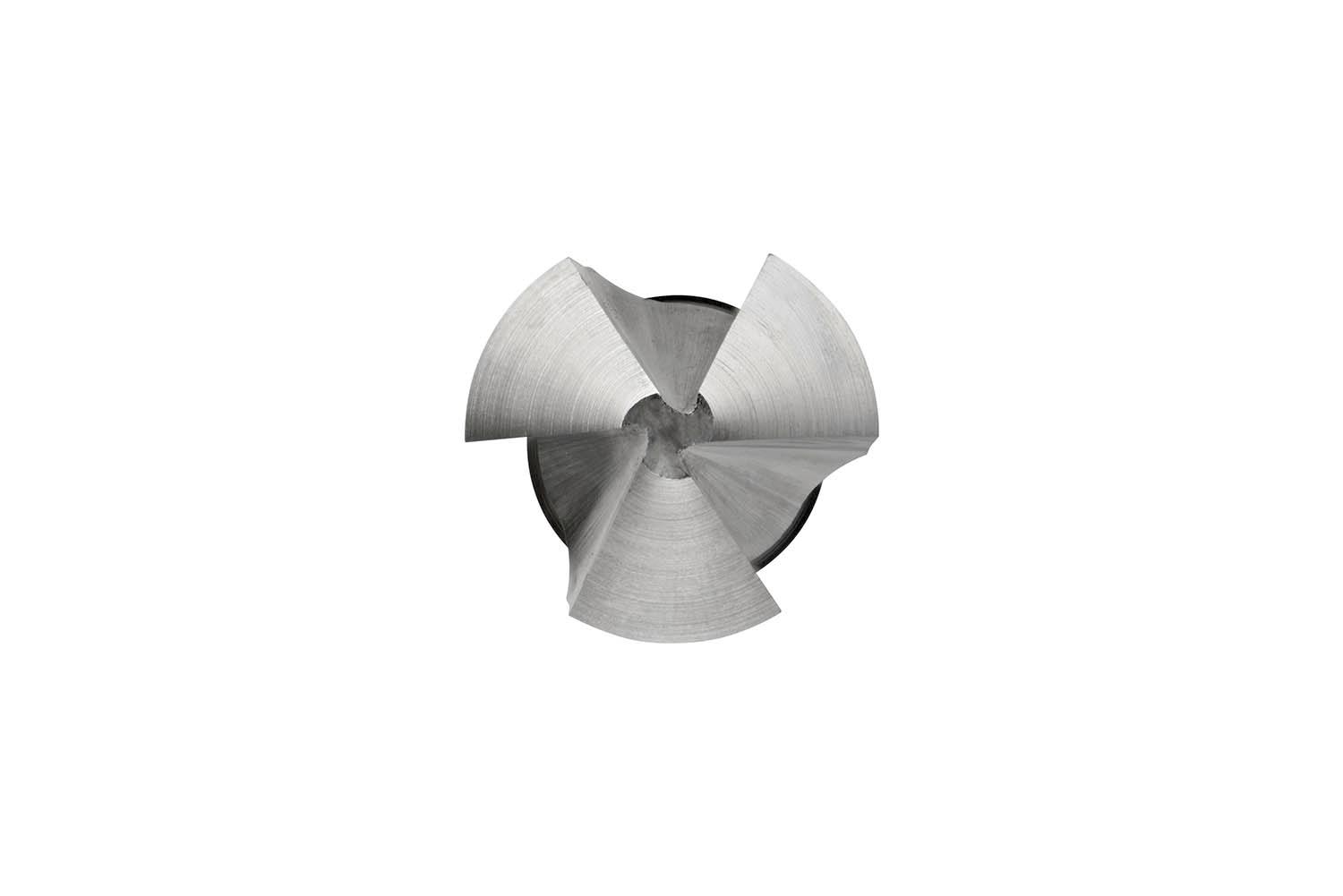

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 67mm and a head length of 15.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers

Additional information

Weight 0.1793 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760149324
Product number (SAP): 86018218
Ordering code ANSI: G14225.0
Gross weight – grams: 72.8
Cutting diameter second cutting step – millimeters (DC_2): 25 mm
Cutting diameter step – millimeter: 3.8 mm
Length chip flute – millimeter (LCF): 15.5 mm
Overall length – millimeter (OAL): 67 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: G14225.0

Brand

DORMER
